Configuration: Discrete I[D ](@100°C) max: 7.6A I[D ](@25°C) max: 12.0A V[F] max: 1.2V Package: TO-257AA Low Ohmic Polarity: N Die Size: 3 V[BRDSS] min: 250.0V TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 220.0mΩ Generation: R6 Optional TID Rating(kRad(si)): 100 300 Qualification: QIRL Q[G]: 40.0nC

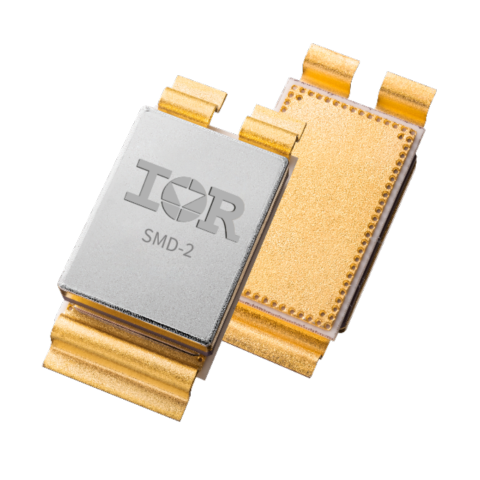

Configuration: Discrete I[D ](@100°C) max: 56.0A I[D ](@25°C) max: 56.0A V[F] max: 1.2V Package: SMD-2 Polarity: N Qualification: COTS Die Size: 6 V[BRDSS] min: 100.0V TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 10.0mΩ Generation: R6 Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: 5.7A I[D ](@25°C) max: 9.1A V[F] max: 1.2V Package: TO-205AF Polarity: N Qualification: COTS Die Size: 3 V[BRDSS] min: 200.0V TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 145.0mΩ Generation: R6 Optional TID Rating(kRad(si)): 100 300 Q[G]: 45.0nC

Configuration: Discrete I[D ](@100°C) max: 35.0A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Tabless Low Ohmic Polarity: N Qualification: COTS Die Size: 6 V[BRDSS] min: 200.0V TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: 100.0MeV∙cm2/mg R[DS (on)](@25°C) max: 29.0mΩ Generation: R6 Q[G]: 240.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: 10.0A I[D ](@25°C) max: 16.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Qualification: COTS Die Size: 3 V[BRDSS] min: 200.0V TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 130.0mΩ Generation: R6 Q[G]: 42.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: 19.0A I[D ](@25°C) max: 22.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 V[BRDSS] min: 100.0V TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 42.0mΩ Generation: R6 Qualification: QIRL Q[G]: 50.0nC Optional TID Rating(kRad(si)): 100 300

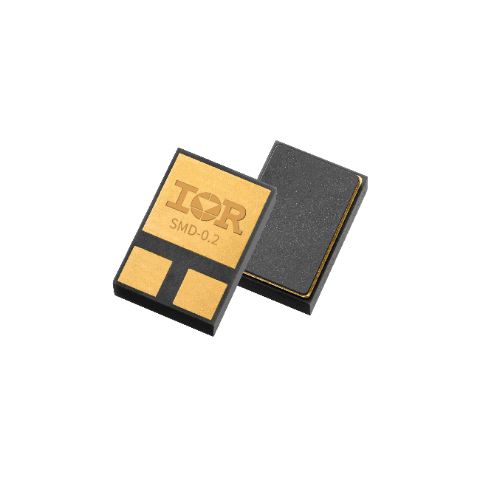

Configuration: Discrete I[D ](@100°C) max: 4.1A I[D ](@25°C) max: 6.5A V[F] max: 1.4V Package: SMD-0.2 Polarity: N Qualification: QIRL V[BRDSS] min: 100.0V TID max: 100.0Krad(Si) ESD Class: Class 1B SEE: Yes R[DS (on)](@25°C) max: 290.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 11.0nC Die Size: 1 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: 4.1A I[D ](@25°C) max: 6.5A V[F] max: 1.4V Package: SMD-0.2 Polarity: N V[BRDSS] min: 100.0V TID max: 100.0Krad(Si) ESD Class: Class 1B SEE: Yes R[DS (on)](@25°C) max: 290.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 11.0nC Qualification: COTS Die Size: 1 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: 10.0A I[D ](@25°C) max: 16.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 V[BRDSS] min: 200.0V TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 130.0mΩ Generation: R6 Qualification: QIRL Q[G]: 42.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: 40.0A I[D ](@25°C) max: 56.0A V[F] max: 1.2V Package: SMD-2 Polarity: N Qualification: COTS Die Size: 6 V[BRDSS] min: 200.0V TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 28.0mΩ Generation: R6 Q[G]: 240.0nC Optional TID Rating(kRad(si)): 100 300
