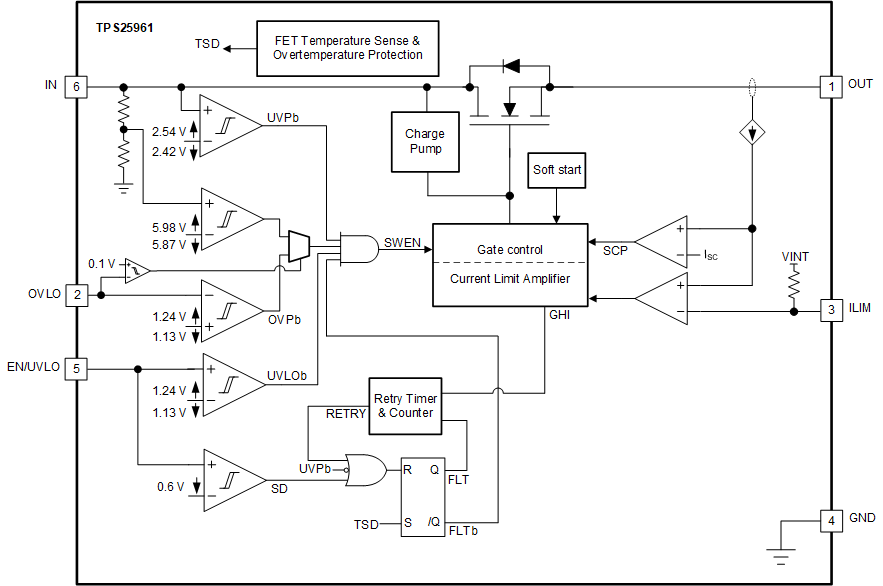

FET: Internal Ron (typ) (mΩ): 100 Vin (min) (V): 2.7 Vin (max) (V): 19 Vabsmax_cont (V): 21 Current limit (min) (A): 0.1 Current limit (max) (A): 2 Overcurrent response: Current limiting Fault response: Auto-retry Soft start: Adjustable Overvoltage response: Cut-off Features: Overvoltage protection, Soft-start, Thermal shutdown UL recognition: UL2367 (pending) Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.0058 Quiescent current (Iq) (max) (A): 0.008 FET: Internal Ron (typ) (mΩ): 100 更多

Supply voltage (min) (V): 2 Number of supplies monitored: 12 Supply voltage (max) (V): 5.5 Iq (typ) (mA): 0.05 Number of sequenced outputs: 12 Rating: Catalog Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 2 Number of supplies monitored: 12 Supply voltage (max) (V): 5.5 Iq (typ) (mA): 0.05 Number of sequenced outputs: 12 Rating: Catalog Operating temperature range (°C): -40 to 125

Number of channels: 1 Vin (min) (V): 1.6 Vin (max) (V): 5.5 Imax (A): 1.25 Ron (typ) (mΩ): 90 Shutdown current (ISD) (typ) (µA): 0.002 Quiescent current (Iq) (typ) (µA): 8 Soft start: Fixed Rise Time Current limit type: Fixed Rating: Space Operating temperature range (°C): -55 to 125 FET: Internal Device type: Load switch Number of channels: 1 Vin (min) (V): 1.6 Vin (max) (V): 5.5 Imax (A): 1.25 Ron (typ) (mΩ): 90 Shutdown current (ISD) (typ) (µA): 0.002 Quiescent current (Iq) (typ) (µA): 8 更多

FET: Internal Ron (typ) (mΩ): 0.59 Vin (min) (V): 4.5 Vin (max) (V): 16 Vabsmax_cont (V): 20 Current limit (min) (A): 10 Current limit (max) (A): 60 Overcurrent response: Circuit breaker Fault response: Auto-retry, Latch-off Soft start: Adjustable Overvoltage response: Cut-off Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.00045 Quiescent current (Iq) (max) (A): 0.00055 FET: Internal Ron (typ) (mΩ): 0.59 Vin (min) (V): 4.5 Vin (max) (V): 16 更多

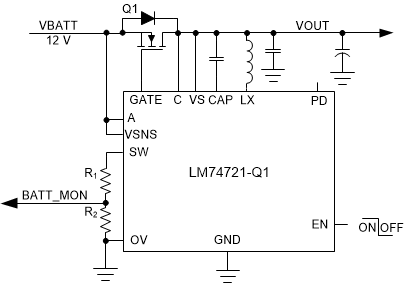

Vin (min) (V): 3 Vin (max) (V): 65 Number of channels: 1 Iq (typ) (mA): 0.032 Iq (max) (mA): 0.038 TI functional safety category: Functional Safety-Capable FET: External back-to-back FET, External single FET IGate sink (typ) (mA): 2.1 IGate pulsed (typ) (A): 2.1 Operating temperature range (°C): -40 to 125 VSense reverse (typ) (mV): -6.5 Design support: EVM Rating: Automotive VGS (max) (V): 13 Shutdown current (ISD) (mA) (A): 0.0035 Device type: Ideal diode controller Product type: Ideal diode controller Vin (min) (V): 3 Vin (max) (V): 65 Number of channels: 1 更多

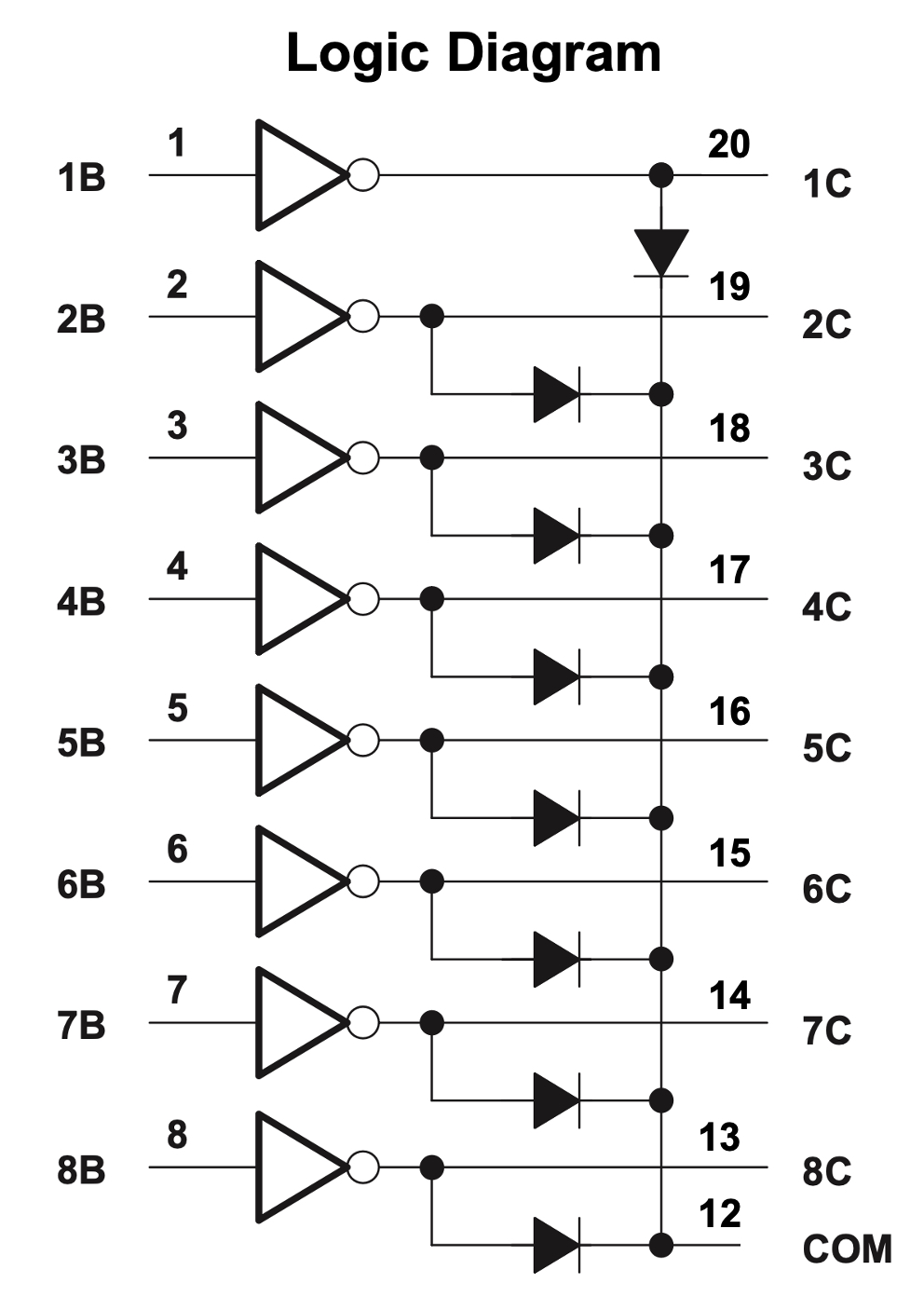

Rating: Catalog Operating temperature range (°C): -40 to 85 Drivers per package: 8 Switching voltage (max) (V): 50 Output voltage (max) (V): 50 Peak output current (A): 0.5 Delay time (typ) (ns): 130 Input compatibility: CMOS, TTL Vol at lowest spec current (typ) (mV): 900 Iout/ch (max) (mA): 500 Iout_off (typ) (µA): 50 Rating: Catalog Operating temperature range (°C): -40 to 85 Drivers per package: 8 Switching voltage (max) (V): 50 Output voltage (max) (V): 50 Peak output current (A): 0.5 Delay time (typ) (ns): 130 Input compatibility: CMOS, TTL Vol at lowest spec current (typ) (mV): 900 更多

Number of channels: 1 Vin (min) (V): 2.7 Vin (max) (V): 16 Imax (A): 10 Ron (typ) (mΩ): 6 Shutdown current (ISD) (typ) (µA): 5 Quiescent current (Iq) (typ) (µA): 430 Soft start: Adjustable Rise Time Rating: Catalog Operating temperature range (°C): -40 to 125 FET: Internal Device type: Load switches Number of channels: 1 Vin (min) (V): 2.7 Vin (max) (V): 16 Imax (A): 10 Ron (typ) (mΩ): 6 Shutdown current (ISD) (typ) (µA): 5 Quiescent current (Iq) (typ) (µA): 430 Soft start: Adjustable Rise Time 更多

Number of channels: 1 Vin (min) (V): 0.7 Vin (max) (V): 5.7 Imax (A): 5 Ron (typ) (mΩ): 14 Shutdown current (ISD) (typ) (µA): 0.01 Quiescent current (Iq) (typ) (µA): 34 Soft start: Adjustable Rise Time Current limit type: None Rating: Automotive Operating temperature range (°C): -40 to 125 FET: Internal Device type: Load switches Number of channels: 1 Vin (min) (V): 0.7 Vin (max) (V): 5.7 Imax (A): 5 Ron (typ) (mΩ): 14 Shutdown current (ISD) (typ) (µA): 0.01 Quiescent current (Iq) (typ) (µA): 34 更多

Number of channels: 1 Vin (min) (V): 0.7 Vin (max) (V): 5.7 Imax (A): 5 Ron (typ) (mΩ): 14 Shutdown current (ISD) (typ) (µA): 0.01 Quiescent current (Iq) (typ) (µA): 34 Soft start: Adjustable Rise Time Current limit type: None Rating: Automotive Operating temperature range (°C): -40 to 125 FET: Internal Device type: Load switches Number of channels: 1 Vin (min) (V): 0.7 Vin (max) (V): 5.7 Imax (A): 5 Ron (typ) (mΩ): 14 Shutdown current (ISD) (typ) (µA): 0.01 Quiescent current (Iq) (typ) (µA): 34 更多

Vin (min) (V): 3 Vin (max) (V): 65 Number of channels: 1 Iq (typ) (mA): 0.032 Iq (max) (mA): 0.038 TI functional safety category: Functional Safety-Capable FET: External back-to-back FET, External single FET IGate sink (typ) (mA): 2.1 IGate pulsed (typ) (A): 2.1 Operating temperature range (°C): -40 to 125 VSense reverse (typ) (mV): -6.5 Design support: EVM Rating: Automotive VGS (max) (V): 13 Shutdown current (ISD) (mA) (A): 0.0035 Device type: Ideal diode controller Product type: Ideal diode controller Vin (min) (V): 3 Vin (max) (V): 65 Number of channels: 1 更多
