THD + N at 1 kHz (typ) (%): 0.02 Number of channels: 4 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Vos (offset voltage at 25°C) (max) (mV): 0.22 Offset drift (typ) (µV/°C): 1 Input bias current (max) (pA): 1 GBW (typ) (MHz): 2.5 Slew rate (typ) (V/µs): 1 Rail-to-rail: In, Out Iq per channel (typ) (mA): 0.8 Vn at 1 kHz (typ) (nV√Hz): 9 CMRR (typ) (dB): 138 Rating: Catalog Operating temperature range (°C): -40 to 125 Iout (typ) (A): 0.066 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.2 Input common mode headroom (to positive supply) (typ) (V): 0.2 Output swing headroom (to negative supply) (typ) (V): 0.03 Output swing headroom (to positive supply) (typ) (V): -0.04 THD + N at 1 kHz (typ) (%): 0.02

Output swing headroom (to positive supply) (typ) (V): -0.005 Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.8 Rail-to-rail: In, Out GBW (typ) (MHz): 0.09 Slew rate (typ) (V/µs): 0.03 Vos (offset voltage at 25°C) (max) (mV): 1.5 Iq per channel (typ) (mA): 0.0029 Vn at 1 kHz (typ) (nV√Hz): 80 Rating: Catalog Operating temperature range (°C): -40 to 125 Offset drift (typ) (µV/°C): 2.7 Features: EMI Hardened Input bias current (max) (pA): 50 CMRR (typ) (dB): 100 Iout (typ) (A): 0.005 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): 0.0055 Input common mode headroom (to positive supply) (typ) (V): 0.0029 Output swing headroom (to negative supply) (typ) (V): 0.005 Output swing headroom (to positive supply) (typ) (V): -0.005

Output swing headroom (to positive supply) (typ) (V): -0.005 Number of channels: 1 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.8 Rail-to-rail: In, Out GBW (typ) (MHz): 0.09 Slew rate (typ) (V/µs): 0.03 Vos (offset voltage at 25°C) (max) (mV): 1.5 Iq per channel (typ) (mA): 0.0029 Vn at 1 kHz (typ) (nV√Hz): 80 Rating: Catalog Operating temperature range (°C): -40 to 125 Offset drift (typ) (µV/°C): 2.7 Features: EMI Hardened Input bias current (max) (pA): 50 CMRR (typ) (dB): 100 Iout (typ) (A): 0.005 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): 0.0055 Input common mode headroom (to positive supply) (typ) (V): 0.0029 Output swing headroom (to negative supply) (typ) (V): 0.005 Output swing headroom (to positive supply) (typ) (V): -0.005

Output swing headroom (to positive supply) (typ) (V): -0.025 Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.8 Rail-to-rail: In to V-, Out GBW (typ) (MHz): 17 Slew rate (typ) (V/µs): 9.5 Vos (offset voltage at 25°C) (max) (mV): 1.35 Iq per channel (typ) (mA): 1.3 Vn at 1 kHz (typ) (nV√Hz): 5.8 Rating: Catalog Operating temperature range (°C): -40 to 125 Offset drift (typ) (µV/°C): 1.8 Features: Shutdown Input bias current (max) (pA): 1 CMRR (typ) (dB): 100 Iout (typ) (A): 0.021 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.3 Input common mode headroom (to positive supply) (typ) (V): -1 Output swing headroom (to negative supply) (typ) (V): 0.02 Output swing headroom (to positive supply) (typ) (V): -0.025

THD + N at 1 kHz (typ) (%): 0.02 Number of channels: 1 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Vos (offset voltage at 25°C) (max) (mV): 0.2 Offset drift (typ) (µV/°C): 1 Input bias current (max) (pA): 1 GBW (typ) (MHz): 2.5 Slew rate (typ) (V/µs): 1 Rail-to-rail: In, Out Iq per channel (typ) (mA): 0.79 Vn at 1 kHz (typ) (nV√Hz): 9 CMRR (typ) (dB): 138 Rating: Catalog Operating temperature range (°C): -40 to 125 Iout (typ) (A): 0.066 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.2 Input common mode headroom (to positive supply) (typ) (V): 0.2 Output swing headroom (to negative supply) (typ) (V): 0.03 Output swing headroom (to positive supply) (typ) (V): -0.04 THD + N at 1 kHz (typ) (%): 0.02

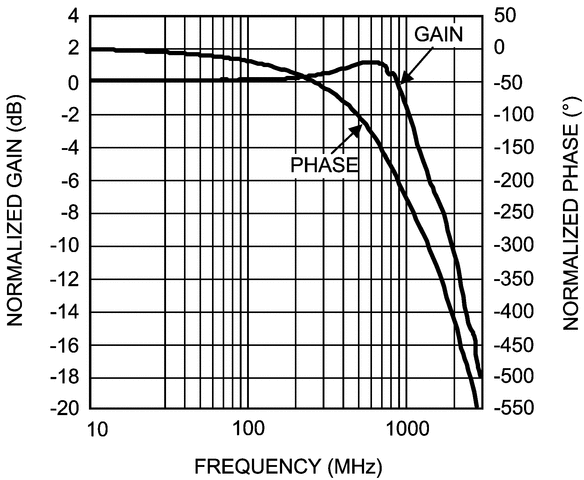

Frequency of harmonic distortion measurement (MHz): 5 Architecture: Fixed Gain/Buffer Number of channels: 1 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.8 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12.6 GBW (typ) (MHz): 1000 BW at Acl (MHz): 1000 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 8000 Vn at flatband (typ) (nV√Hz): 4.8 Vn at 1 kHz (typ) (nV√Hz): 5.9 Iq per channel (typ) (mA): 5.8 Vos (offset voltage at 25°C) (max) (mV): 30 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -45 to 85 Input bias current (max) (pA): 7000000 Offset drift (typ) (µV/°C): 125 Iout (typ) (mA): 60 2nd harmonic (dBc): 76 3rd harmonic (dBc): 98 Frequency of harmonic distortion measurement (MHz): 5

Number of channels: 1 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 3 Rail-to-rail: In to V- GBW (typ) (MHz): 0.8 Slew rate (typ) (V/µs): 0.4 Vos (offset voltage at 25°C) (max) (mV): 4 Iq per channel (typ) (mA): 0.5 Vn at 1 kHz (typ) (nV√Hz): 50 Rating: Catalog Operating temperature range (°C): -40 to 125 Features: High Cload Drive Input bias current (max) (pA): 150000 CMRR (typ) (dB): 85 Iout (typ) (A): 0.02 Architecture: Bipolar Input common mode headroom (to negative supply) (typ) (V): 0 Input common mode headroom (to positive supply) (typ) (V): -1.5 Output swing headroom (to negative supply) (typ) (V): 0.005 Output swing headroom (to positive supply) (typ) (V): -1.5

Common-mode input high (max) (V): 17.5 Input offset (±) (max) (V): 0.0005 Iq (typ) (mA): 1.1 Slew rate (typ) (V/µs): 15 Voltage gain (min) (V/V): 0.2 Voltage gain (max) (V/V): 0.2 Small-signal bandwidth (typ) (Hz): 1500000 Rating: Catalog Operating temperature range (°C): -40 to 125 Gain error (±) (max) (%): 0.024

GBW (typ) (MHz): 1.2 Slew rate (typ) (V/µs): 1.2 Vos (offset voltage at 25°C) (max) (mV): 2 Offset drift (typ) (V/°C): 0.0000013 Iq per channel (typ) (mA): 3.4 Features: Adj Current Limit, Shutdown Rating: Catalog Operating temperature range (°C): -55 to 125 Input bias current (max) (pA): 10 CMRR (typ) (dB): 80 Rail-to-rail: In, Out Architecture: FET
