TLC083A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 具有关断功能、输入接近 V- 的双通道、16V、10MHz、1.4mV 失调电压运算放大器
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5
Rail-to-rail: In to V-
GBW (typ) (MHz): 10
Slew rate (typ) (V/µs): 16
Vos (offset voltage at 25°C) (max) (mV): 1.4
Iq per channel (typ) (mA): 1.8
Vn at 1 kHz (typ) (nV√Hz): 8.5
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 1.2
Features: Shutdown
Input bias current (max) (pA): 50
CMRR (typ) (dB): 110
Iout (typ) (A): 0.1
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -1.5
Output swing headroom (to negative supply) (typ) (V): 0.18
更多
Output swing headroom (to positive supply) (typ) (V): -0.7
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5
Rail-to-rail: In to V-
GBW (typ) (MHz): 10
Slew rate (typ) (V/µs): 16
Vos (offset voltage at 25°C) (max) (mV): 1.4
Iq per channel (typ) (mA): 1.8
Vn at 1 kHz (typ) (nV√Hz): 8.5
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 1.2
Features: Shutdown
Input bias current (max) (pA): 50
CMRR (typ) (dB): 110
Iout (typ) (A): 0.1
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -1.5
Output swing headroom (to negative supply) (typ) (V): 0.18
Output swing headroom (to positive supply) (typ) (V): -0.7
TLV2470A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 具有关断功能的单通道、6V、2.8MHz、1.6mV 失调电压、RRIO 运算放大器
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 6
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7
Rail-to-rail: In, Out
GBW (typ) (MHz): 2.8
Slew rate (typ) (V/µs): 1.5
Vos (offset voltage at 25°C) (max) (mV): 1.6
Iq per channel (typ) (mA): 0.6
Vn at 1 kHz (typ) (nV√Hz): 15
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 0.4
Features: Shutdown
Input bias current (max) (pA): 50
CMRR (typ) (dB): 84
Iout (typ) (A): 0.09
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 0.07
更多
Output swing headroom (to positive supply) (typ) (V): -0.04
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 6
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7
Rail-to-rail: In, Out
GBW (typ) (MHz): 2.8
Slew rate (typ) (V/µs): 1.5
Vos (offset voltage at 25°C) (max) (mV): 1.6
Iq per channel (typ) (mA): 0.6
Vn at 1 kHz (typ) (nV√Hz): 15
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 0.4
Features: Shutdown
Input bias current (max) (pA): 50
CMRR (typ) (dB): 84
Iout (typ) (A): 0.09
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 0.07
Output swing headroom (to positive supply) (typ) (V): -0.04
TLV2770A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 具有关断功能的单通道、5.5V、5.1MHz、1.6mV 失调电压、高压摆率 (10.5V/μs) 运算放大器
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.5
Rail-to-rail: In to V-, Out
GBW (typ) (MHz): 5.1
Slew rate (typ) (V/µs): 10.5
Vos (offset voltage at 25°C) (max) (mV): 1.6
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 17
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 2
Features: Shutdown
Input bias current (max) (pA): 60
CMRR (typ) (dB): 96
Iout (typ) (A): 0.04
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -1.3
Output swing headroom (to negative supply) (typ) (V): 0.1
更多
Output swing headroom (to positive supply) (typ) (V): -0.1
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.5
Rail-to-rail: In to V-, Out
GBW (typ) (MHz): 5.1
Slew rate (typ) (V/µs): 10.5
Vos (offset voltage at 25°C) (max) (mV): 1.6
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 17
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 2
Features: Shutdown
Input bias current (max) (pA): 60
CMRR (typ) (dB): 96
Iout (typ) (A): 0.04
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -1.3
Output swing headroom (to negative supply) (typ) (V): 0.1
Output swing headroom (to positive supply) (typ) (V): -0.1
TLV2771A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 单通道、5.5V、5.1MHz、1.6mV 失调电压、高压摆率 (10.5V/μs) 运算放大器
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.5
Rail-to-rail: In to V-, Out
GBW (typ) (MHz): 5.1
Slew rate (typ) (V/µs): 10.5
Vos (offset voltage at 25°C) (max) (mV): 1.6
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 17
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 2
Input bias current (max) (pA): 60
CMRR (typ) (dB): 96
Iout (typ) (A): 0.04
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -1.3
Output swing headroom (to negative supply) (typ) (V): 0.1
Output swing headroom (to positive supply) (typ) (V): -0.1
更多
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.5
Rail-to-rail: In to V-, Out
GBW (typ) (MHz): 5.1
Slew rate (typ) (V/µs): 10.5
Vos (offset voltage at 25°C) (max) (mV): 1.6
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 17
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 2
Input bias current (max) (pA): 60
CMRR (typ) (dB): 96
Iout (typ) (A): 0.04
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -1.3
Output swing headroom (to negative supply) (typ) (V): 0.1
Output swing headroom (to positive supply) (typ) (V): -0.1
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 1
Slew rate (typ) (V/µs): 3.5
Vos (offset voltage at 25°C) (max) (mV): 15
Iq per channel (typ) (mA): 0.2
Vn at 1 kHz (typ) (nV√Hz): 42
Rating: Military
Operating temperature range (°C): -55 to 125
Offset drift (typ) (µV/°C): 10
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 86
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 1
Slew rate (typ) (V/µs): 3.5
Vos (offset voltage at 25°C) (max) (mV): 15
Iq per channel (typ) (mA): 0.2
Vn at 1 kHz (typ) (nV√Hz): 42
Rating: Military
Operating temperature range (°C): -55 to 125
Offset drift (typ) (µV/°C): 10
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 86
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL072M
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 军用级、双通道、30V、3MHz、高压摆率（13V/µs）、输入接近 V+、JFET 输入运算放大器
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 18
Rating: Military
Operating temperature range (°C): -55 to 125
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 18
Rating: Military
Operating temperature range (°C): -55 to 125
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL074M
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 军用级、四通道、30V、3MHz、高压摆率（13V/µs）、输入接近 V+、JFET 输入运算放大器
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 18
Rating: Military
Operating temperature range (°C): -55 to 125
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 18
Rating: Military
Operating temperature range (°C): -55 to 125
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5

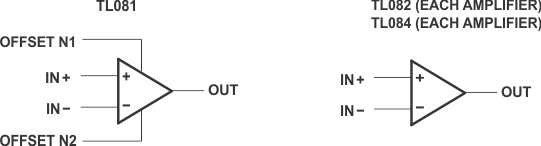

TL082M
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 军用级、双通道、30V、3MHz、13V/µs 压摆率、输入接近 V+、JFET 输入运算放大器
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 18
Rating: Military
Operating temperature range (°C): -55 to 125
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 86
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 18
Rating: Military
Operating temperature range (°C): -55 to 125
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 86
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL084M
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 军用级、四通道、30V、3MHz、13V/µs 压摆率、输入接近 V+、JFET 输入运算放大器
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 18
Rating: Military
Operating temperature range (°C): -55 to 125
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 86
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 18
Rating: Military
Operating temperature range (°C): -55 to 125
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 86
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.6
Vos (offset voltage at 25°C) (max) (mV): 0.2
Offset drift (typ) (µV/°C): 0.5
Input bias current (max) (pA): 60
GBW (typ) (MHz): 1.8
Slew rate (typ) (V/µs): 2.5
Rail-to-rail: In to V-, Out
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 8
CMRR (typ) (dB): 110
Rating: Military
Operating temperature range (°C): -55 to 125
Iout (typ) (A): 0.0045
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -2.3
Output swing headroom (to negative supply) (typ) (V): 0.05
Output swing headroom (to positive supply) (typ) (V): -0.2
更多
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.6
Vos (offset voltage at 25°C) (max) (mV): 0.2
Offset drift (typ) (µV/°C): 0.5
Input bias current (max) (pA): 60
GBW (typ) (MHz): 1.8
Slew rate (typ) (V/µs): 2.5
Rail-to-rail: In to V-, Out
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 8
CMRR (typ) (dB): 110
Rating: Military
Operating temperature range (°C): -55 to 125
Iout (typ) (A): 0.0045
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -2.3
Output swing headroom (to negative supply) (typ) (V): 0.05
Output swing headroom (to positive supply) (typ) (V): -0.2
