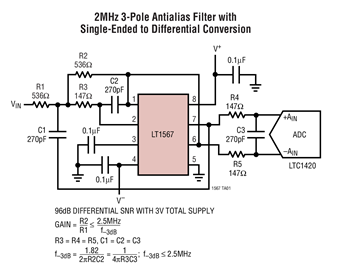

LT1567IMS8#PBF


分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 1.4nV/√Hz 180MHz 滤波器单元式部件

Product Lifecycle: 量产 Package: 8-Lead MSOP # of Channels: 1 BW -3 dB (typ): 5MHz Slew Rate (typ): 55V/us Gain Set: Analog VNoise Density (typ): 1.4nV/rtHz Iq/Amp (typ): 11mA Vs span (min): 2.7V Vs span (max): 12V Input Type: Single-Ended Amp Architecture: Filter Building Block Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 14.7mm² (8-Lead MSOP) (LT1567CMS8#PBF)mm² Package Height: 1.1mm (8-Lead MSOP) (LT1567CMS8#PBF)mm Launch Date: 2001-10-08 EP: No Design Tools: LTspice

LT1567IMS8#TRPBF


分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 1.4nV/√Hz 180MHz 滤波器单元式部件

Product Lifecycle: 量产 Package: 8-Lead MSOP # of Channels: 1 BW -3 dB (typ): 5MHz Slew Rate (typ): 55V/us Gain Set: Analog VNoise Density (typ): 1.4nV/rtHz Iq/Amp (typ): 11mA Vs span (min): 2.7V Vs span (max): 12V Input Type: Single-Ended Amp Architecture: Filter Building Block Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 14.7mm² (8-Lead MSOP) (LT1567CMS8#PBF)mm² Package Height: 1.1mm (8-Lead MSOP) (LT1567CMS8#PBF)mm Launch Date: 2001-10-08 EP: No Design Tools: LTspice

AD8460BSVZ


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 具有集成14位高速DAC的110 V高电压、1 A高电流任意波形发生器

Product Lifecycle: 推荐用于新设计 Package: TQFP 1.0 MM W/ THERMAL PAD # of Amps: 1 BW -3 dB (typ): 4.3MHz Slew Rate (typ): 1.8kV/us Vos (typ): 4mV Vos (max): 25mV Vos TC (typ): 160µV/°C VNoise Density (typ): 600nV/rtHz Iq/Amp (typ): 22.5mA Iq/Amp (max): 26.5mA Vs span (min): 24V Vs span (max): 110V PSRR DC (typ): 93dB Out V+ Headroom (typ): 5V Out V- Headroom (typ): 11.1V Shutdown: Yes Iout (typ): 1A Amp Features: Integrated High Voltage High Current DAC + Amplifier Settling Time 0.1% (typ): 39.5µs p-p
Feedback Type: Fixed Gain Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Launch Date: 2023-10-27 Terminal Finish: E3 Temp Range Code: NA EP: No Design Tools: LTspice

AD8460BSVZ-RL


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 具有集成14位高速DAC的110 V高电压、1 A高电流任意波形发生器

Product Lifecycle: 推荐用于新设计 Package: TQFP 1.0 MM W/ THERMAL PAD # of Amps: 1 BW -3 dB (typ): 4.3MHz Slew Rate (typ): 1.8kV/us Vos (typ): 4mV Vos (max): 25mV Vos TC (typ): 160µV/°C VNoise Density (typ): 600nV/rtHz Iq/Amp (typ): 22.5mA Iq/Amp (max): 26.5mA Vs span (min): 24V Vs span (max): 110V PSRR DC (typ): 93dB Out V+ Headroom (typ): 5V Out V- Headroom (typ): 11.1V Shutdown: Yes Iout (typ): 1A Amp Features: Integrated High Voltage High Current DAC + Amplifier Settling Time 0.1% (typ): 39.5µs p-p
Feedback Type: Fixed Gain Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Launch Date: 2023-10-27 Terminal Finish: E3 Temp Range Code: NA EP: No Design Tools: LTspice

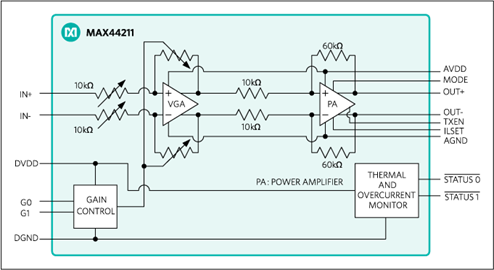

MAX44211ETP+


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 高电流差分线驱动器，支持电力线通信

Product Lifecycle: 量产 Package: EVALUATION BOARDS,Thin Quad Flatpack, No Leads # of Amps: 1 BW -3 dB (typ): 8.5MHz Slew Rate (typ): 80V/us Iq/Amp (typ): 1mA Vs span (min): 8V Vs span (max): 20V Out V+ Headroom (max): 1.8V Out V- Headroom (max): 1.8V Shutdown: Yes Iout (typ): 1.5A Amp Features: Powerline Communications, Shutdown Cdiff (typ): 1pF Package Area: 16.81mm² (Thin Quad Flatpack, No Leads) (MAX44211ETP+)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3, NA
Package Height: 0.8mm (Thin Quad Flatpack, No Leads) (MAX44211ETP+)mm Launch Date: 2015-07-14 Terminal Finish: E3, NA Temp Range Code: E EP: No

MAX44211ETP+T


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 高电流差分线驱动器，支持电力线通信

Product Lifecycle: 量产 Package: EVALUATION BOARDS,Thin Quad Flatpack, No Leads # of Amps: 1 BW -3 dB (typ): 8.5MHz Slew Rate (typ): 80V/us Iq/Amp (typ): 1mA Vs span (min): 8V Vs span (max): 20V Out V+ Headroom (max): 1.8V Out V- Headroom (max): 1.8V Shutdown: Yes Iout (typ): 1.5A Amp Features: Powerline Communications, Shutdown Cdiff (typ): 1pF Package Area: 16.81mm² (Thin Quad Flatpack, No Leads) (MAX44211ETP+)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3, NA
Package Height: 0.8mm (Thin Quad Flatpack, No Leads) (MAX44211ETP+)mm Launch Date: 2015-07-14 Terminal Finish: E3, NA Temp Range Code: E EP: No

ADA4870-KGD-DF


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 2500 V/μs摆率、高压、1 A输出驱动放大器

Product Lifecycle: 推荐用于新设计 Package: 48-lead LFCSP (7 mm x 7 mm x 0.75 mm),CHIPS OR DIE # of Amps: 1 BW -3 dB (typ): 60MHz Slew Rate (typ): 2.5kV/us Vos (typ): 1mV Vos (max): 10mV Vos TC (typ): 4µV/°C VNoise Density (typ): 2.1nV/rtHz Current Noise Density (typ): 4.2pA/rtHz Ibias (typ): 9µA Ibias (max): 23µA Ios (typ): 21µA Iq/Amp (typ): 32.5mA Iq/Amp (max): 33mA Vs span (min): 10V Vs span (max): 40V CMRR (typ): 60dB CMRR (min): 58dB Input Architecture: Bipolar
PSRR DC (min): 67dB PSRR DC (typ): 69dB In V+ Headroom (typ): 2V In V- Headroom (typ): 2V Out V+ Headroom (typ): 1.4V Out V- Headroom (typ): 1.4V Min Stable Gain: 1V/V Shutdown: Yes Iout (typ): 1A Amp Features: Shutdown Over-the-Top: No Ccm (typ): 750fF Cdiff (typ): 0pF Settling Time 0.1% (typ): 82ns p-p Feedback Type: Current Package Area: 49mm² (48-lead LFCSP (7 mm x 7 mm x 0.75 mm)) (ADA4870ACPZ)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: DIE Temp Range: -40 to 85°C Package Finish Code: E4, NA Package Height: 0.75mm (48-lead LFCSP (7 mm x 7 mm x 0.75 mm)) (ADA4870ACPZ)mm Launch Date: 2014-06-13 Terminal Finish: E4, NA Temp Range Code: NA EP: No Design Tools: LTspice

ADA4870-KGD-WP


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 2500 V/μs摆率、高压、1 A输出驱动放大器

Product Lifecycle: 推荐用于新设计 Package: 48-lead LFCSP (7 mm x 7 mm x 0.75 mm),CHIPS OR DIE # of Amps: 1 BW -3 dB (typ): 60MHz Slew Rate (typ): 2.5kV/us Vos (typ): 1mV Vos (max): 10mV Vos TC (typ): 4µV/°C VNoise Density (typ): 2.1nV/rtHz Current Noise Density (typ): 4.2pA/rtHz Ibias (typ): 9µA Ibias (max): 23µA Ios (typ): 21µA Iq/Amp (typ): 32.5mA Iq/Amp (max): 33mA Vs span (min): 10V Vs span (max): 40V CMRR (typ): 60dB CMRR (min): 58dB Input Architecture: Bipolar
PSRR DC (min): 67dB PSRR DC (typ): 69dB In V+ Headroom (typ): 2V In V- Headroom (typ): 2V Out V+ Headroom (typ): 1.4V Out V- Headroom (typ): 1.4V Min Stable Gain: 1V/V Shutdown: Yes Iout (typ): 1A Amp Features: Shutdown Over-the-Top: No Ccm (typ): 750fF Cdiff (typ): 0pF Settling Time 0.1% (typ): 82ns p-p Feedback Type: Current Package Area: 49mm² (48-lead LFCSP (7 mm x 7 mm x 0.75 mm)) (ADA4870ACPZ)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: DIE Temp Range: -40 to 85°C Package Finish Code: E4, NA Package Height: 0.75mm (48-lead LFCSP (7 mm x 7 mm x 0.75 mm)) (ADA4870ACPZ)mm Launch Date: 2014-06-13 Terminal Finish: E4, NA Temp Range Code: NA EP: No Design Tools: LTspice

ADA4870ACPZ


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 2500 V/μs摆率、高压、1 A输出驱动放大器

Product Lifecycle: 推荐用于新设计 Package: 48-lead LFCSP (7 mm x 7 mm x 0.75 mm),CHIPS OR DIE # of Amps: 1 BW -3 dB (typ): 60MHz Slew Rate (typ): 2.5kV/us Vos (typ): 1mV Vos (max): 10mV Vos TC (typ): 4µV/°C VNoise Density (typ): 2.1nV/rtHz Current Noise Density (typ): 4.2pA/rtHz Ibias (typ): 9µA Ibias (max): 23µA Ios (typ): 21µA Iq/Amp (typ): 32.5mA Iq/Amp (max): 33mA Vs span (min): 10V Vs span (max): 40V CMRR (typ): 60dB CMRR (min): 58dB Input Architecture: Bipolar
PSRR DC (min): 67dB PSRR DC (typ): 69dB In V+ Headroom (typ): 2V In V- Headroom (typ): 2V Out V+ Headroom (typ): 1.4V Out V- Headroom (typ): 1.4V Min Stable Gain: 1V/V Shutdown: Yes Iout (typ): 1A Amp Features: Shutdown Over-the-Top: No Ccm (typ): 750fF Cdiff (typ): 0pF Settling Time 0.1% (typ): 82ns p-p Feedback Type: Current Package Area: 49mm² (48-lead LFCSP (7 mm x 7 mm x 0.75 mm)) (ADA4870ACPZ)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: DIE Temp Range: -40 to 85°C Package Finish Code: E4, NA Package Height: 0.75mm (48-lead LFCSP (7 mm x 7 mm x 0.75 mm)) (ADA4870ACPZ)mm Launch Date: 2014-06-13 Terminal Finish: E4, NA Temp Range Code: NA EP: No Design Tools: LTspice

ADA4870ACPZ-R7


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 2500 V/μs摆率、高压、1 A输出驱动放大器

Product Lifecycle: 推荐用于新设计 Package: 48-lead LFCSP (7 mm x 7 mm x 0.75 mm),CHIPS OR DIE # of Amps: 1 BW -3 dB (typ): 60MHz Slew Rate (typ): 2.5kV/us Vos (typ): 1mV Vos (max): 10mV Vos TC (typ): 4µV/°C VNoise Density (typ): 2.1nV/rtHz Current Noise Density (typ): 4.2pA/rtHz Ibias (typ): 9µA Ibias (max): 23µA Ios (typ): 21µA Iq/Amp (typ): 32.5mA Iq/Amp (max): 33mA Vs span (min): 10V Vs span (max): 40V CMRR (typ): 60dB CMRR (min): 58dB Input Architecture: Bipolar
PSRR DC (min): 67dB PSRR DC (typ): 69dB In V+ Headroom (typ): 2V In V- Headroom (typ): 2V Out V+ Headroom (typ): 1.4V Out V- Headroom (typ): 1.4V Min Stable Gain: 1V/V Shutdown: Yes Iout (typ): 1A Amp Features: Shutdown Over-the-Top: No Ccm (typ): 750fF Cdiff (typ): 0pF Settling Time 0.1% (typ): 82ns p-p Feedback Type: Current Package Area: 49mm² (48-lead LFCSP (7 mm x 7 mm x 0.75 mm)) (ADA4870ACPZ)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: DIE Temp Range: -40 to 85°C Package Finish Code: E4, NA Package Height: 0.75mm (48-lead LFCSP (7 mm x 7 mm x 0.75 mm)) (ADA4870ACPZ)mm Launch Date: 2014-06-13 Terminal Finish: E4, NA Temp Range Code: NA EP: No Design Tools: LTspice
