ADA4870ACPZ-RL


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 2500 V/μs摆率、高压、1 A输出驱动放大器

Product Lifecycle: 推荐用于新设计 Package: 48-lead LFCSP (7 mm x 7 mm x 0.75 mm),CHIPS OR DIE # of Amps: 1 BW -3 dB (typ): 60MHz Slew Rate (typ): 2.5kV/us Vos (typ): 1mV Vos (max): 10mV Vos TC (typ): 4µV/°C VNoise Density (typ): 2.1nV/rtHz Current Noise Density (typ): 4.2pA/rtHz Ibias (typ): 9µA Ibias (max): 23µA Ios (typ): 21µA Iq/Amp (typ): 32.5mA Iq/Amp (max): 33mA Vs span (min): 10V Vs span (max): 40V CMRR (typ): 60dB CMRR (min): 58dB Input Architecture: Bipolar
PSRR DC (min): 67dB PSRR DC (typ): 69dB In V+ Headroom (typ): 2V In V- Headroom (typ): 2V Out V+ Headroom (typ): 1.4V Out V- Headroom (typ): 1.4V Min Stable Gain: 1V/V Shutdown: Yes Iout (typ): 1A Amp Features: Shutdown Over-the-Top: No Ccm (typ): 750fF Cdiff (typ): 0pF Settling Time 0.1% (typ): 82ns p-p Feedback Type: Current Package Area: 49mm² (48-lead LFCSP (7 mm x 7 mm x 0.75 mm)) (ADA4870ACPZ)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: DIE Temp Range: -40 to 85°C Package Finish Code: E4, NA Package Height: 0.75mm (48-lead LFCSP (7 mm x 7 mm x 0.75 mm)) (ADA4870ACPZ)mm Launch Date: 2014-06-13 Terminal Finish: E4, NA Temp Range Code: NA EP: No Design Tools: LTspice

ADA4312-1ACPZ-R2


分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 宽带、差分、高输出电流线路驱动器，具有关断模式

Product Lifecycle: 量产 Package: 16-Lead LFCSP (4mm x 4mm) # of Amps: 2 BW -3 dB (typ): 195MHz Slew Rate (typ): 2.1kV/us Vos (max): 1.2mV VNoise Density (typ): 57nV/rtHz Ibias (max): 175µA Iq/Amp (typ): 46mA Vs span (min): 12V Vs span (max): 12V CMRR (typ): -70dB Input Architecture: xDSL Line Driver Out V+ Headroom (max): 1.6V Out V+ Headroom (typ): 1.5V Out V- Headroom (typ): 1.5V Out V- Headroom (max): 1.6V Shutdown: Yes Iout (typ): 225mA Amp Features: Line Drivers
Over-the-Top: No Open Loop Rout: 10kOhms Feedback Type: Current Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm)) (ADA4312-1ACPZ-R2)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Package Height: 0.8mm (16-Lead LFCSP (4mm x 4mm)) (ADA4312-1ACPZ-R2)mm Launch Date: 2012-11-05 Terminal Finish: E3 Temp Range Code: NA EP: No

ADA4312-1ACPZ-R7


分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 宽带、差分、高输出电流线路驱动器，具有关断模式

Product Lifecycle: 量产 Package: 16-Lead LFCSP (4mm x 4mm) # of Amps: 2 BW -3 dB (typ): 195MHz Slew Rate (typ): 2.1kV/us Vos (max): 1.2mV VNoise Density (typ): 57nV/rtHz Ibias (max): 175µA Iq/Amp (typ): 46mA Vs span (min): 12V Vs span (max): 12V CMRR (typ): -70dB Input Architecture: xDSL Line Driver Out V+ Headroom (max): 1.6V Out V+ Headroom (typ): 1.5V Out V- Headroom (typ): 1.5V Out V- Headroom (max): 1.6V Shutdown: Yes Iout (typ): 225mA Amp Features: Line Drivers
Over-the-Top: No Open Loop Rout: 10kOhms Feedback Type: Current Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm)) (ADA4312-1ACPZ-R2)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Package Height: 0.8mm (16-Lead LFCSP (4mm x 4mm)) (ADA4312-1ACPZ-R2)mm Launch Date: 2012-11-05 Terminal Finish: E3 Temp Range Code: NA EP: No

ADA4312-1ACPZ-RL


分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 宽带、差分、高输出电流线路驱动器，具有关断模式

Product Lifecycle: 量产 Package: 16-Lead LFCSP (4mm x 4mm) # of Amps: 2 BW -3 dB (typ): 195MHz Slew Rate (typ): 2.1kV/us Vos (max): 1.2mV VNoise Density (typ): 57nV/rtHz Ibias (max): 175µA Iq/Amp (typ): 46mA Vs span (min): 12V Vs span (max): 12V CMRR (typ): -70dB Input Architecture: xDSL Line Driver Out V+ Headroom (max): 1.6V Out V+ Headroom (typ): 1.5V Out V- Headroom (typ): 1.5V Out V- Headroom (max): 1.6V Shutdown: Yes Iout (typ): 225mA Amp Features: Line Drivers
Over-the-Top: No Open Loop Rout: 10kOhms Feedback Type: Current Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm)) (ADA4312-1ACPZ-R2)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Package Height: 0.8mm (16-Lead LFCSP (4mm x 4mm)) (ADA4312-1ACPZ-R2)mm Launch Date: 2012-11-05 Terminal Finish: E3 Temp Range Code: NA EP: No

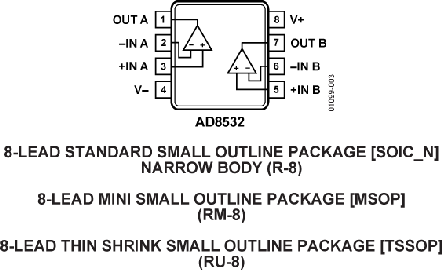

AD8532ARMZ-REEL


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 250 MA输出、双通道、低成本、单电源运算放大器

Product Lifecycle: 量产 Package: 8-Lead SOIC,8-Lead MSOP,8-Lead TSSOP # of Amps: 2 GBP (typ): 3MHz BW -3 dB (typ): 350kHz Slew Rate (typ): 5V/us Vos (typ): 25mV Vos (max): 25mV Vos TC (typ): 20µV/°C VNoise Density (typ): 30nV/rtHz Current Noise Density (typ): 50fA/rtHz 1 Hz Inoise (typ): 1.7pA/rtHz Ibias (typ): 5pA Ibias (max): 50pA Ios (typ): 1pA Ios (max): 25pA Rail to Rail: Both Iq/Amp (typ): 750µA Iq/Amp (max): 1.25mA Vs span (min): 2.7V
Vs span (max): 6V CMRR (typ): 38dB CMRR (min): 38dB Input Architecture: CMOS PSRR DC (min): 45dB PSRR DC (typ): 55dB Out V+ Headroom (max): 100mV Out V+ Headroom (typ): 60mV Out V- Headroom (typ): 50mV Out V- Headroom (max): 100mV Aol (typ): 84dB Min Stable Gain: 1V/V Shutdown: No Iout (typ): 250mA Amp Features: LCD Driver Over-the-Top: No Ccm (typ): 20pF Cdiff (typ): 20pF Open Loop Rout: 120Ohms Feedback Type: Voltage Package Area: 16.48mm² (8-Lead MSOP) (AD8532ARMZ-REEL)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Package Height: 1.1mm (8-Lead MSOP) (AD8532ARMZ-REEL)mm Launch Date: 2007-03-07 Terminal Finish: E3 EP: No

AD8532ARUZ


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 250 MA输出、双通道、低成本、单电源运算放大器

Product Lifecycle: 量产 Package: 8-Lead SOIC,8-Lead MSOP,8-Lead TSSOP # of Amps: 2 GBP (typ): 3MHz BW -3 dB (typ): 350kHz Slew Rate (typ): 5V/us Vos (typ): 25mV Vos (max): 25mV Vos TC (typ): 20µV/°C VNoise Density (typ): 30nV/rtHz Current Noise Density (typ): 50fA/rtHz 1 Hz Inoise (typ): 1.7pA/rtHz Ibias (typ): 5pA Ibias (max): 50pA Ios (typ): 1pA Ios (max): 25pA Rail to Rail: Both Iq/Amp (typ): 750µA Iq/Amp (max): 1.25mA Vs span (min): 2.7V
Vs span (max): 6V CMRR (typ): 38dB CMRR (min): 38dB Input Architecture: CMOS PSRR DC (min): 45dB PSRR DC (typ): 55dB Out V+ Headroom (max): 100mV Out V+ Headroom (typ): 60mV Out V- Headroom (typ): 50mV Out V- Headroom (max): 100mV Aol (typ): 84dB Min Stable Gain: 1V/V Shutdown: No Iout (typ): 250mA Amp Features: LCD Driver Over-the-Top: No Ccm (typ): 20pF Cdiff (typ): 20pF Open Loop Rout: 120Ohms Feedback Type: Voltage Package Area: 16.48mm² (8-Lead MSOP) (AD8532ARMZ-REEL)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Package Height: 1.1mm (8-Lead MSOP) (AD8532ARMZ-REEL)mm Launch Date: 2007-03-07 Terminal Finish: E3 EP: No

AD8532ARUZ-REEL


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 250 MA输出、双通道、低成本、单电源运算放大器

Product Lifecycle: 量产 Package: 8-Lead SOIC,8-Lead MSOP,8-Lead TSSOP # of Amps: 2 GBP (typ): 3MHz BW -3 dB (typ): 350kHz Slew Rate (typ): 5V/us Vos (typ): 25mV Vos (max): 25mV Vos TC (typ): 20µV/°C VNoise Density (typ): 30nV/rtHz Current Noise Density (typ): 50fA/rtHz 1 Hz Inoise (typ): 1.7pA/rtHz Ibias (typ): 5pA Ibias (max): 50pA Ios (typ): 1pA Ios (max): 25pA Rail to Rail: Both Iq/Amp (typ): 750µA Iq/Amp (max): 1.25mA Vs span (min): 2.7V
Vs span (max): 6V CMRR (typ): 38dB CMRR (min): 38dB Input Architecture: CMOS PSRR DC (min): 45dB PSRR DC (typ): 55dB Out V+ Headroom (max): 100mV Out V+ Headroom (typ): 60mV Out V- Headroom (typ): 50mV Out V- Headroom (max): 100mV Aol (typ): 84dB Min Stable Gain: 1V/V Shutdown: No Iout (typ): 250mA Amp Features: LCD Driver Over-the-Top: No Ccm (typ): 20pF Cdiff (typ): 20pF Open Loop Rout: 120Ohms Feedback Type: Voltage Package Area: 16.48mm² (8-Lead MSOP) (AD8532ARMZ-REEL)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Package Height: 1.1mm (8-Lead MSOP) (AD8532ARMZ-REEL)mm Launch Date: 2007-03-07 Terminal Finish: E3 EP: No

AD8532ARZ


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 250 MA输出、双通道、低成本、单电源运算放大器

Product Lifecycle: 量产 Package: 8-Lead SOIC,8-Lead MSOP,8-Lead TSSOP # of Amps: 2 GBP (typ): 3MHz BW -3 dB (typ): 350kHz Slew Rate (typ): 5V/us Vos (typ): 25mV Vos (max): 25mV Vos TC (typ): 20µV/°C VNoise Density (typ): 30nV/rtHz Current Noise Density (typ): 50fA/rtHz 1 Hz Inoise (typ): 1.7pA/rtHz Ibias (typ): 5pA Ibias (max): 50pA Ios (typ): 1pA Ios (max): 25pA Rail to Rail: Both Iq/Amp (typ): 750µA Iq/Amp (max): 1.25mA Vs span (min): 2.7V
Vs span (max): 6V CMRR (typ): 38dB CMRR (min): 38dB Input Architecture: CMOS PSRR DC (min): 45dB PSRR DC (typ): 55dB Out V+ Headroom (max): 100mV Out V+ Headroom (typ): 60mV Out V- Headroom (typ): 50mV Out V- Headroom (max): 100mV Aol (typ): 84dB Min Stable Gain: 1V/V Shutdown: No Iout (typ): 250mA Amp Features: LCD Driver Over-the-Top: No Ccm (typ): 20pF Cdiff (typ): 20pF Open Loop Rout: 120Ohms Feedback Type: Voltage Package Area: 16.48mm² (8-Lead MSOP) (AD8532ARMZ-REEL)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Package Height: 1.1mm (8-Lead MSOP) (AD8532ARMZ-REEL)mm Launch Date: 2007-03-07 Terminal Finish: E3 EP: No

AD8532ARZ-REEL


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 250 MA输出、双通道、低成本、单电源运算放大器

Product Lifecycle: 量产 Package: 8-Lead SOIC,8-Lead MSOP,8-Lead TSSOP # of Amps: 2 GBP (typ): 3MHz BW -3 dB (typ): 350kHz Slew Rate (typ): 5V/us Vos (typ): 25mV Vos (max): 25mV Vos TC (typ): 20µV/°C VNoise Density (typ): 30nV/rtHz Current Noise Density (typ): 50fA/rtHz 1 Hz Inoise (typ): 1.7pA/rtHz Ibias (typ): 5pA Ibias (max): 50pA Ios (typ): 1pA Ios (max): 25pA Rail to Rail: Both Iq/Amp (typ): 750µA Iq/Amp (max): 1.25mA Vs span (min): 2.7V
Vs span (max): 6V CMRR (typ): 38dB CMRR (min): 38dB Input Architecture: CMOS PSRR DC (min): 45dB PSRR DC (typ): 55dB Out V+ Headroom (max): 100mV Out V+ Headroom (typ): 60mV Out V- Headroom (typ): 50mV Out V- Headroom (max): 100mV Aol (typ): 84dB Min Stable Gain: 1V/V Shutdown: No Iout (typ): 250mA Amp Features: LCD Driver Over-the-Top: No Ccm (typ): 20pF Cdiff (typ): 20pF Open Loop Rout: 120Ohms Feedback Type: Voltage Package Area: 16.48mm² (8-Lead MSOP) (AD8532ARMZ-REEL)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Package Height: 1.1mm (8-Lead MSOP) (AD8532ARMZ-REEL)mm Launch Date: 2007-03-07 Terminal Finish: E3 EP: No

AD8532ARZ-REEL7


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 250 MA输出、双通道、低成本、单电源运算放大器

Product Lifecycle: 量产 Package: 8-Lead SOIC,8-Lead MSOP,8-Lead TSSOP # of Amps: 2 GBP (typ): 3MHz BW -3 dB (typ): 350kHz Slew Rate (typ): 5V/us Vos (typ): 25mV Vos (max): 25mV Vos TC (typ): 20µV/°C VNoise Density (typ): 30nV/rtHz Current Noise Density (typ): 50fA/rtHz 1 Hz Inoise (typ): 1.7pA/rtHz Ibias (typ): 5pA Ibias (max): 50pA Ios (typ): 1pA Ios (max): 25pA Rail to Rail: Both Iq/Amp (typ): 750µA Iq/Amp (max): 1.25mA Vs span (min): 2.7V
Vs span (max): 6V CMRR (typ): 38dB CMRR (min): 38dB Input Architecture: CMOS PSRR DC (min): 45dB PSRR DC (typ): 55dB Out V+ Headroom (max): 100mV Out V+ Headroom (typ): 60mV Out V- Headroom (typ): 50mV Out V- Headroom (max): 100mV Aol (typ): 84dB Min Stable Gain: 1V/V Shutdown: No Iout (typ): 250mA Amp Features: LCD Driver Over-the-Top: No Ccm (typ): 20pF Cdiff (typ): 20pF Open Loop Rout: 120Ohms Feedback Type: Voltage Package Area: 16.48mm² (8-Lead MSOP) (AD8532ARMZ-REEL)mm² Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Finish Code: E3 Package Height: 1.1mm (8-Lead MSOP) (AD8532ARMZ-REEL)mm Launch Date: 2007-03-07 Terminal Finish: E3 EP: No
