TAS2563
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 具有集成扬声器保护、高级 EQ 和 11V H 类升压的 6.1W 数字输入智能放大器
Audio input type: Digital Input
Architecture: Class-D Boosted, Smart Amp
Speaker channels (max): Mono
Rating: Catalog
Power stage supply (max) (V): 16
Power stage supply (min) (V): 2.7
Load (min) (Ω): 3.2
Output power (W): 6.1
SNR (dB): 112.5
THD + N at 1 kHz (%): 0.01
Iq (typ) (mA): 2.7
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
Sampling rate (max) (kHz): 96
PSRR (dB): 100
Operating temperature range (°C): -40 to 85
Audio input type: Digital Input
Architecture: Class-D Boosted, Smart Amp
更多
Speaker channels (max): Mono
Rating: Catalog
Power stage supply (max) (V): 16
Power stage supply (min) (V): 2.7
Load (min) (Ω): 3.2
Output power (W): 6.1
SNR (dB): 112.5
THD + N at 1 kHz (%): 0.01
Iq (typ) (mA): 2.7
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
Sampling rate (max) (kHz): 96
PSRR (dB): 100
Operating temperature range (°C): -40 to 85
TAS2562
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 具有 I/V 检测、用于扬声器保护和集成 11V H 类升压的 6.1W 数字输入智能放大器
Audio input type: Digital Input
Architecture: Class-D Boosted, Smart Amp
Speaker channels (max): Mono
Rating: Catalog
Power stage supply (max) (V): 16
Power stage supply (min) (V): 2.7
Load (min) (Ω): 3.2
Output power (W): 6
SNR (dB): 112.5
THD + N at 1 kHz (%): 0.004
Iq (typ) (mA): 3.2
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
PSRR (dB): 100
Operating temperature range (°C): -40 to 85
Audio input type: Digital Input
Architecture: Class-D Boosted, Smart Amp
Speaker channels (max): Mono
更多
Rating: Catalog
Power stage supply (max) (V): 16
Power stage supply (min) (V): 2.7
Load (min) (Ω): 3.2
Output power (W): 6
SNR (dB): 112.5
THD + N at 1 kHz (%): 0.004
Iq (typ) (mA): 3.2
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
PSRR (dB): 100
Operating temperature range (°C): -40 to 85

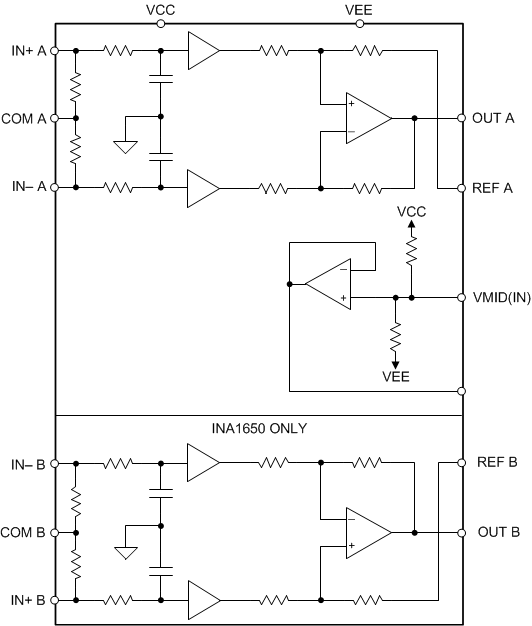

INA1651
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: SoundPlus™ 高共模抑制 (91dB)、低 THD+N (-120dB) 差分线路接收器
Number of channels: 1
Voltage gain (V/V): 1
CMRR at RS = 0 Ω (min) (dB): 85
THD + N at 1 kHz (%): 0.00039
Noise floor (RTO, 20-kHz BW) (dBu): -104.7
Differential input impedance (kΩ): 1000
Common-mode input impedance (kΩ): 250
Slew rate (typ) (V/µs): 10
Small-signal bandwidth (typ) (Hz): 2700000
Supply voltage (max) (V): 36
Supply voltage (min) (V): 4.5
Iq per channel (typ) (mA): 6
Operating temperature range (°C): -40 to 125
Rating: Catalog
Number of channels: 1
Voltage gain (V/V): 1
CMRR at RS = 0 Ω (min) (dB): 85
THD + N at 1 kHz (%): 0.00039
Noise floor (RTO, 20-kHz BW) (dBu): -104.7
Differential input impedance (kΩ): 1000
更多
Common-mode input impedance (kΩ): 250
Slew rate (typ) (V/µs): 10
Small-signal bandwidth (typ) (Hz): 2700000
Supply voltage (max) (V): 36
Supply voltage (min) (V): 4.5
Iq per channel (typ) (mA): 6
Operating temperature range (°C): -40 to 125
Rating: Catalog

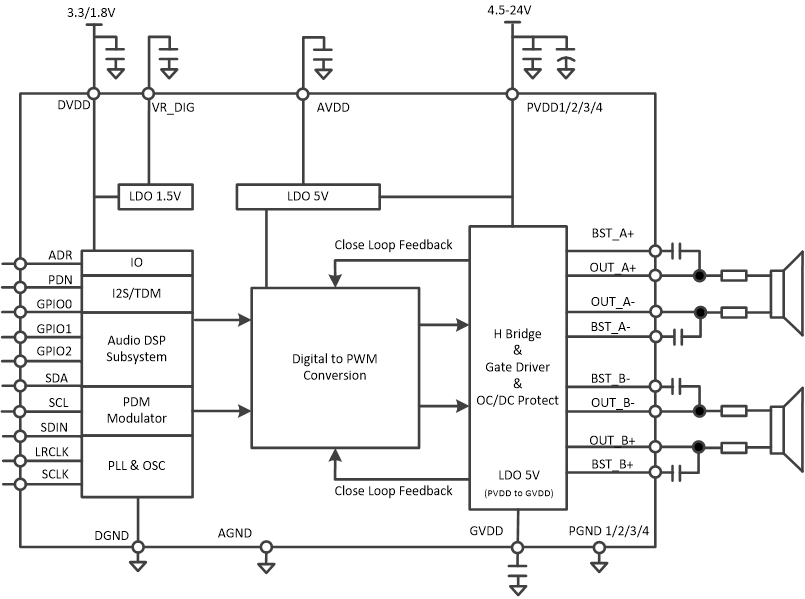

TAS5825M
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 具有 192kHz 架构的 38W 立体声、65W 单声道、4.5V 至 26V、数字输入 D 类智能音频放大器
Audio input type: Digital Input
Architecture: Class-D, Smart Amp
Speaker channels (max): Stereo
Rating: Catalog
Power stage supply (max) (V): 26.4
Power stage supply (min) (V): 4.5
Load (min) (Ω): 4
Output power (W): 38
SNR (dB): 111
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 14.8
Control interface: Software
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26.4
Sampling rate (max) (kHz): 192
Operating temperature range (°C): -25 to 85
Audio input type: Digital Input
Architecture: Class-D, Smart Amp
Speaker channels (max): Stereo
更多
Rating: Catalog
Power stage supply (max) (V): 26.4
Power stage supply (min) (V): 4.5
Load (min) (Ω): 4
Output power (W): 38
SNR (dB): 111
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 14.8
Control interface: Software
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26.4
Sampling rate (max) (kHz): 192
Operating temperature range (°C): -25 to 85
TAS5720A-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 汽车类 25W、单通道、4.5V 至 26.4V 电源数字输入 D 类音频放大器
Audio input type: Digital Input
Architecture: Class-D
Speaker channels (max): Mono
Rating: Automotive
Power stage supply (max) (V): 26.4
Power stage supply (min) (V): 4.5
Load (min) (Ω): 2
Output power (W): 25
SNR (dB): 100
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 33
Control interface: Hardware, Software
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26.4
Sampling rate (max) (kHz): 96
PSRR (dB): 80
Operating temperature range (°C): -40 to 105
Audio input type: Digital Input
Architecture: Class-D
更多
Speaker channels (max): Mono
Rating: Automotive
Power stage supply (max) (V): 26.4
Power stage supply (min) (V): 4.5
Load (min) (Ω): 2
Output power (W): 25
SNR (dB): 100
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 33
Control interface: Hardware, Software
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26.4
Sampling rate (max) (kHz): 96
PSRR (dB): 80
Operating temperature range (°C): -40 to 105
TAS5760M-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 汽车级 25W、双通道、4.5V 至 26.4V 电源数字输入 D 类音频放大器
Audio input type: Digital Input
Architecture: Class-D
Speaker channels (max): Stereo
Rating: Automotive
Power stage supply (max) (V): 26.4
Power stage supply (min) (V): 4.5
Load (min) (Ω): 4
Output power (W): 25
SNR (dB): 100
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 33
Control interface: Hardware, Software
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26.4
Sampling rate (max) (kHz): 96
PSRR (dB): 80
Operating temperature range (°C): -40 to 105
Audio input type: Digital Input
Architecture: Class-D
更多
Speaker channels (max): Stereo
Rating: Automotive
Power stage supply (max) (V): 26.4
Power stage supply (min) (V): 4.5
Load (min) (Ω): 4
Output power (W): 25
SNR (dB): 100
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 33
Control interface: Hardware, Software
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26.4
Sampling rate (max) (kHz): 96
PSRR (dB): 80
Operating temperature range (°C): -40 to 105
TAS5805M
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 具有处理功能的 23W 立体声、45W 单声道、4.5V 至 26.4V 电源电压、数字输入 D 类音频放大器
Audio input type: Digital Input
Architecture: Class-D
Speaker channels (max): Stereo
Rating: Catalog
Power stage supply (max) (V): 26.4
Power stage supply (min) (V): 4.5
Load (min) (Ω): 4
Output power (W): 23
SNR (dB): 107
THD + N at 1 kHz (%): 0.03
Iq (typ) (mA): 16.5
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26.4
Sampling rate (max) (kHz): 96
Operating temperature range (°C): -25 to 85
Audio input type: Digital Input
Architecture: Class-D
Speaker channels (max): Stereo
更多
Rating: Catalog
Power stage supply (max) (V): 26.4
Power stage supply (min) (V): 4.5
Load (min) (Ω): 4
Output power (W): 23
SNR (dB): 107
THD + N at 1 kHz (%): 0.03
Iq (typ) (mA): 16.5
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26.4
Sampling rate (max) (kHz): 96
Operating temperature range (°C): -25 to 85
TPA3220
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 60W 立体声、110W 单声道、7 至 32V、模拟输入 D 类音频放大器，低空闲电流，焊盘朝下
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
Rating: Catalog
Power stage supply (max) (V): 30
Power stage supply (min) (V): 7
Load (min) (Ω): 1
Output power (W): 100
SNR (dB): 108
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 15
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 5
Analog supply voltage (max) (V): 30
PSRR (dB): 60
Operating temperature range (°C): -40 to 85
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
更多
Rating: Catalog
Power stage supply (max) (V): 30
Power stage supply (min) (V): 7
Load (min) (Ω): 1
Output power (W): 100
SNR (dB): 108
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 15
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 5
Analog supply voltage (max) (V): 30
PSRR (dB): 60
Operating temperature range (°C): -40 to 85
TAS3251
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 175W 立体声、350W 单声道、12V 至 38V 电源电压、数字输入 D 类智能音频放大器
Audio input type: Digital Input
Architecture: Class-D, Smart Amp
Speaker channels (max): Stereo
Rating: Catalog
Power stage supply (max) (V): 38
Power stage supply (min) (V): 12
Load (min) (Ω): 1
Output power (W): 175
SNR (dB): 108
THD + N at 1 kHz (%): 0.01
Iq (typ) (mA): 12.5
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 10.8
Analog supply voltage (max) (V): 13.2
Sampling rate (max) (kHz): 96
PSRR (dB): 60
Operating temperature range (°C): 0 to 70
Audio input type: Digital Input
Architecture: Class-D, Smart Amp
更多
Speaker channels (max): Stereo
Rating: Catalog
Power stage supply (max) (V): 38
Power stage supply (min) (V): 12
Load (min) (Ω): 1
Output power (W): 175
SNR (dB): 108
THD + N at 1 kHz (%): 0.01
Iq (typ) (mA): 12.5
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 10.8
Analog supply voltage (max) (V): 13.2
Sampling rate (max) (kHz): 96
PSRR (dB): 60
Operating temperature range (°C): 0 to 70

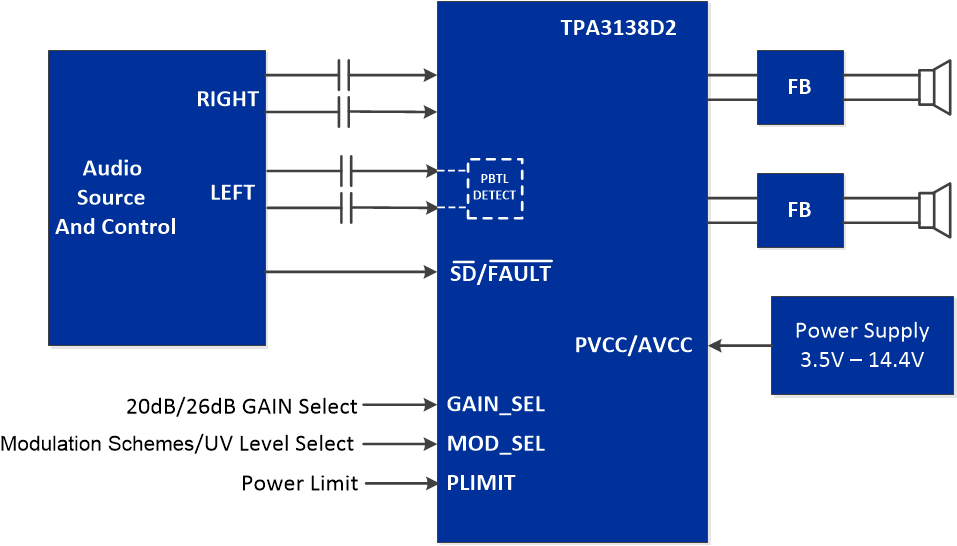

TPA3138D2
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 无电感器型、10W 立体声、18.5W 单声道、3.5V 至 14.4V、模拟输入 D 类音频放大器
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
Rating: Catalog
Power stage supply (max) (V): 14.4
Power stage supply (min) (V): 3.5
Load (min) (Ω): 3.2
Output power (W): 10
SNR (dB): 102
THD + N at 1 kHz (%): 0.04
Iq (typ) (mA): 20
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 3.5
Analog supply voltage (max) (V): 14.4
PSRR (dB): 70
Operating temperature range (°C): -40 to 85
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
更多
Rating: Catalog
Power stage supply (max) (V): 14.4
Power stage supply (min) (V): 3.5
Load (min) (Ω): 3.2
Output power (W): 10
SNR (dB): 102
THD + N at 1 kHz (%): 0.04
Iq (typ) (mA): 20
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 3.5
Analog supply voltage (max) (V): 14.4
PSRR (dB): 70
Operating temperature range (°C): -40 to 85
