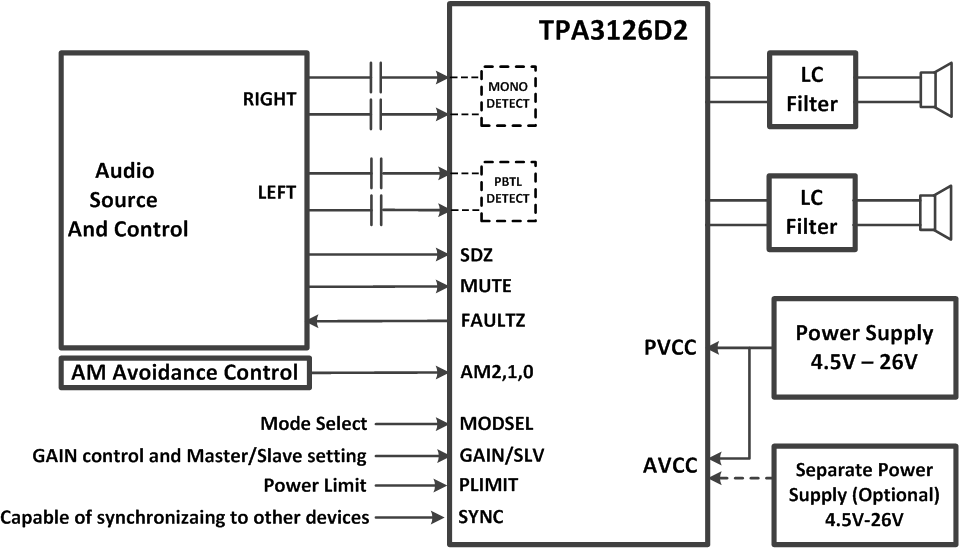

TPA3126D2
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 50W 立体声、100W 单声道、4.5V 至 26V、模拟输入 D 类音频放大器，低空闲电流
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
Rating: Catalog
Power stage supply (max) (V): 26
Power stage supply (min) (V): 4.5
Load (min) (Ω): 4
Output power (W): 50
SNR (dB): 102
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 23
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26
PSRR (dB): 70
Operating temperature range (°C): -40 to 85
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
更多
Rating: Catalog
Power stage supply (max) (V): 26
Power stage supply (min) (V): 4.5
Load (min) (Ω): 4
Output power (W): 50
SNR (dB): 102
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 23
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26
PSRR (dB): 70
Operating temperature range (°C): -40 to 85

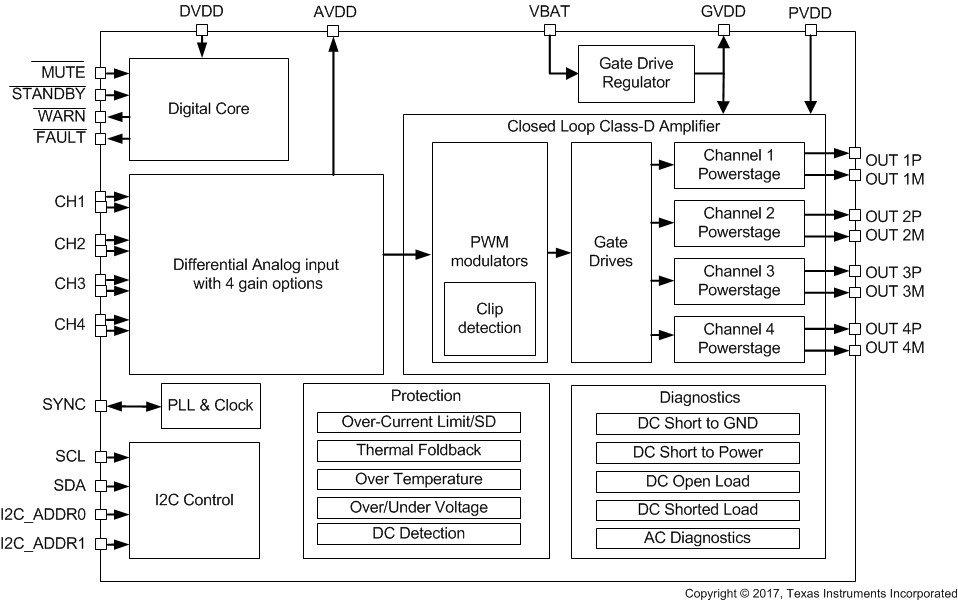

TPA6404-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 具有负载突降保护功能的汽车级 45W、2MHz、4 通道、4.5V 至 18V 电源模拟输入 D 类音频放大器
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): 4
Rating: Automotive
Power stage supply (max) (V): 18
Power stage supply (min) (V): 4.5
Load (min) (Ω): 2
Output power (W): 45
THD + N at 1 kHz (%): 0.01
Iq (typ) (mA): 155
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 18
PSRR (dB): 75
Operating temperature range (°C): -40 to 125
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): 4
Rating: Automotive
更多
Power stage supply (max) (V): 18
Power stage supply (min) (V): 4.5
Load (min) (Ω): 2
Output power (W): 45
THD + N at 1 kHz (%): 0.01
Iq (typ) (mA): 155
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 18
PSRR (dB): 75
Operating temperature range (°C): -40 to 125

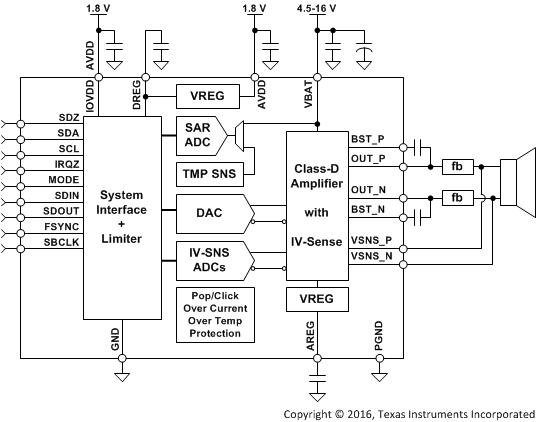

TAS2770
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 具有用于扬声器保护的 I/V 检测功能的 20W 数字输入 4.5V 至 18V 智能放大器
Audio input type: Digital Input
Architecture: Class-D, Smart Amp
Speaker channels (max): Mono
Rating: Catalog
Power stage supply (max) (V): 16
Power stage supply (min) (V): 4.5
Load (min) (Ω): 4
Output power (W): 20
SNR (dB): 108
THD + N at 1 kHz (%): 0.007
Iq (typ) (mA): 7.07
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 16
Sampling rate (max) (kHz): 192
PSRR (dB): 90
Operating temperature range (°C): -40 to 85
Audio input type: Digital Input
Architecture: Class-D, Smart Amp
更多
Speaker channels (max): Mono
Rating: Catalog
Power stage supply (max) (V): 16
Power stage supply (min) (V): 4.5
Load (min) (Ω): 4
Output power (W): 20
SNR (dB): 108
THD + N at 1 kHz (%): 0.007
Iq (typ) (mA): 7.07
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 16
Sampling rate (max) (kHz): 192
PSRR (dB): 90
Operating temperature range (°C): -40 to 85
TPA3156D2
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 70W 立体声、140W 单声道、4.5V 至 26V、模拟输入 D 类音频放大器，低空闲电流
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
Rating: Catalog
Power stage supply (max) (V): 26
Power stage supply (min) (V): 4.5
Load (min) (Ω): 2
Output power (W): 70
SNR (dB): 102
THD + N at 1 kHz (%): 0.1
Iq (typ) (mA): 17
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26
PSRR (dB): 70
Operating temperature range (°C): -40 to 85
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
更多
Rating: Catalog
Power stage supply (max) (V): 26
Power stage supply (min) (V): 4.5
Load (min) (Ω): 2
Output power (W): 70
SNR (dB): 102
THD + N at 1 kHz (%): 0.1
Iq (typ) (mA): 17
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26
PSRR (dB): 70
Operating temperature range (°C): -40 to 85
TAS5755M
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 具有 2.1 声道模式的 50W 立体声、100W 单声道、8V 至 26.4V、数字输入开环 D 类音频放大器
Audio input type: Digital Input
Architecture: Class-D
Speaker channels (max): 3
Rating: Catalog
Power stage supply (max) (V): 26.4
Power stage supply (min) (V): 8
Load (min) (Ω): 4
Output power (W): 50
SNR (dB): 104
THD + N at 1 kHz (%): 0.05
Iq (typ) (mA): 32
Control interface: I2C, Software
Closed/open loop: Open
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 3.6
Sampling rate (max) (kHz): 48
Operating temperature range (°C): 0 to 125
Audio input type: Digital Input
Architecture: Class-D
Speaker channels (max): 3
更多
Rating: Catalog
Power stage supply (max) (V): 26.4
Power stage supply (min) (V): 8
Load (min) (Ω): 4
Output power (W): 50
SNR (dB): 104
THD + N at 1 kHz (%): 0.05
Iq (typ) (mA): 32
Control interface: I2C, Software
Closed/open loop: Open
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 3.6
Sampling rate (max) (kHz): 48
Operating temperature range (°C): 0 to 125
TPA3221
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 具有低空闲电流的 100W 立体声、200W 单声道、7V 至 32V 电源电压、模拟输入 D 类音频放大器
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
Rating: Catalog
Power stage supply (max) (V): 30
Power stage supply (min) (V): 7
Load (min) (Ω): 1
Output power (W): 100
SNR (dB): 108
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 15
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 5
Analog supply voltage (max) (V): 30
PSRR (dB): 60
Operating temperature range (°C): -40 to 85
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
更多
Rating: Catalog
Power stage supply (max) (V): 30
Power stage supply (min) (V): 7
Load (min) (Ω): 1
Output power (W): 100
SNR (dB): 108
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 15
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 5
Analog supply voltage (max) (V): 30
PSRR (dB): 60
Operating temperature range (°C): -40 to 85

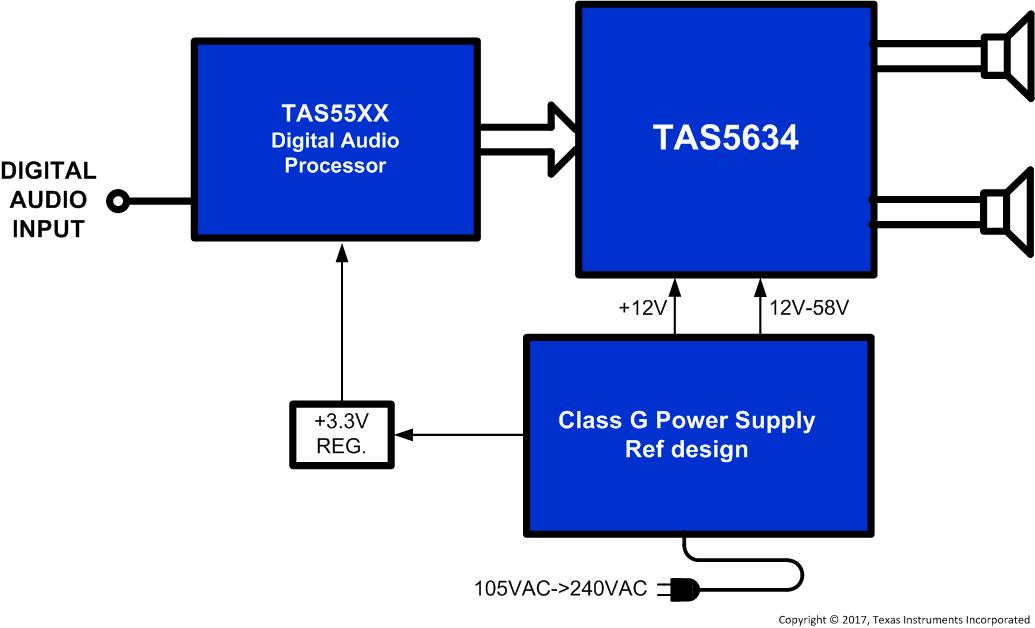

TAS5634
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 300W 立体声、600W 单声道、12V 至 62V 电源电压、PWM 输入 D 类音频放大器
Audio input type: PWM
Architecture: Class-D
Speaker channels (max): 4
Rating: Catalog
Power stage supply (max) (V): 58
Power stage supply (min) (V): 12
Load (min) (Ω): 3
Output power (W): 300
SNR (dB): 105
THD + N at 1 kHz (%): 0.025
Iq (typ) (mA): 29.5
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 10.8
Analog supply voltage (max) (V): 13.2
PSRR (dB): 70
Operating temperature range (°C): 0 to 70
Audio input type: PWM
Architecture: Class-D
Speaker channels (max): 4
更多
Rating: Catalog
Power stage supply (max) (V): 58
Power stage supply (min) (V): 12
Load (min) (Ω): 3
Output power (W): 300
SNR (dB): 105
THD + N at 1 kHz (%): 0.025
Iq (typ) (mA): 29.5
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 10.8
Analog supply voltage (max) (V): 13.2
PSRR (dB): 70
Operating temperature range (°C): 0 to 70
Audio input type: Analog Input, Digital Input
Architecture: Class-D
Speaker channels (max): Mono
Rating: Automotive
Power stage supply (max) (V): 5.5
Power stage supply (min) (V): 2.7
Load (min) (Ω): 4
Output power (W): 2.6
SNR (dB): 94
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 0.002
Control interface: I2C, SPI
Closed/open loop: Closed
Analog supply (min) (V): 1.5
Analog supply voltage (max) (V): 1.95
Sampling rate (max) (kHz): 96
PSRR (dB): 47.2
Operating temperature range (°C): -40 to 105
Audio input type: Analog Input, Digital Input
Architecture: Class-D
更多
Speaker channels (max): Mono
Rating: Automotive
Power stage supply (max) (V): 5.5
Power stage supply (min) (V): 2.7
Load (min) (Ω): 4
Output power (W): 2.6
SNR (dB): 94
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 0.002
Control interface: I2C, SPI
Closed/open loop: Closed
Analog supply (min) (V): 1.5
Analog supply voltage (max) (V): 1.95
Sampling rate (max) (kHz): 96
PSRR (dB): 47.2
Operating temperature range (°C): -40 to 105
TAS6424M-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 具有负载突降保护功能的汽车级 45W、2MHz、4 通道、4.5V 至 18V 数字输入 D 类音频放大器
Audio input type: Digital Input
Architecture: Class-D
Speaker channels (max): 4
Rating: Automotive
Power stage supply (max) (V): 18
Power stage supply (min) (V): 4.5
Load (min) (Ω): 1
Output power (W): 45
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 165
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 18
Sampling rate (max) (kHz): 96
PSRR (dB): 75
Operating temperature range (°C): -40 to 125
Audio input type: Digital Input
Architecture: Class-D
Speaker channels (max): 4
更多
Rating: Automotive
Power stage supply (max) (V): 18
Power stage supply (min) (V): 4.5
Load (min) (Ω): 1
Output power (W): 45
THD + N at 1 kHz (%): 0.02
Iq (typ) (mA): 165
Control interface: I2C
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 18
Sampling rate (max) (kHz): 96
PSRR (dB): 75
Operating temperature range (°C): -40 to 125

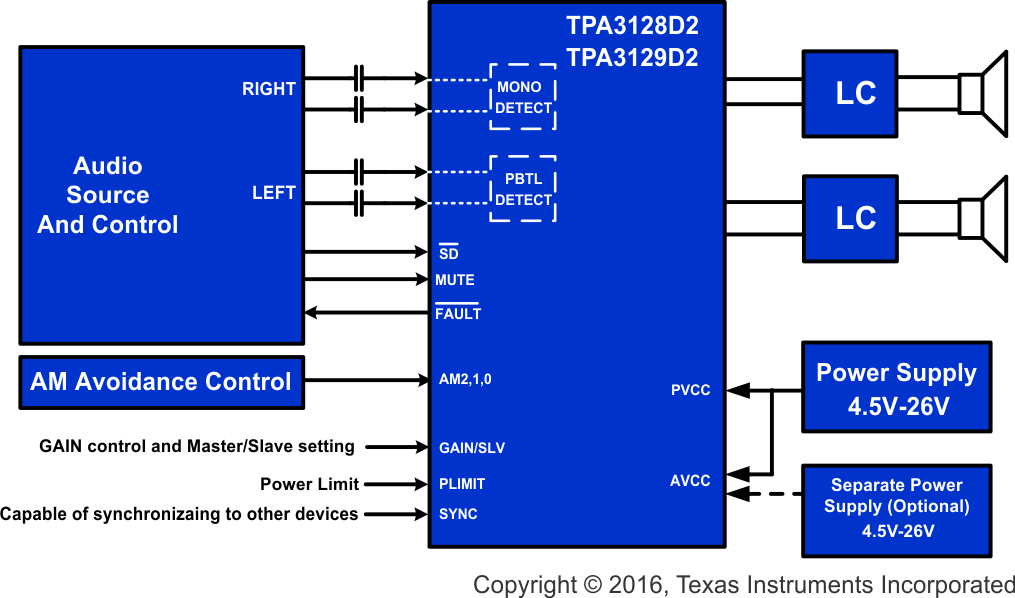

TPA3129D2
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器
描述: 具有低空闲电流的 15W 立体声、30W 单声道、4.5V 至 26V、模拟输入 D 类音频放大器
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
Rating: Catalog
Power stage supply (max) (V): 26
Power stage supply (min) (V): 4.5
Load (min) (Ω): 3.2
Output power (W): 15
SNR (dB): 102
THD + N at 1 kHz (%): 0.1
Iq (typ) (mA): 17
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26
Operating temperature range (°C): -40 to 85
Audio input type: Analog Input
Architecture: Class-D
Speaker channels (max): Stereo
Rating: Catalog
更多
Power stage supply (max) (V): 26
Power stage supply (min) (V): 4.5
Load (min) (Ω): 3.2
Output power (W): 15
SNR (dB): 102
THD + N at 1 kHz (%): 0.1
Iq (typ) (mA): 17
Control interface: Hardware
Closed/open loop: Closed
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 26
Operating temperature range (°C): -40 to 85
