TLV752

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

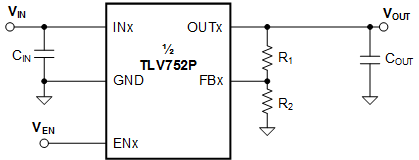

描述: 1A、低 IQ、高 PSRR、可调节、双通道低压降 (LDO) 稳压器

Output options: Adjustable Output, Dual output Iout (max) (A): 1 Vin (max) (V): 6 Vin (min) (V): 1.5 Vout (max) (V): 5.5 Vout (min) (V): 0.55 Rating: Catalog Noise (µVrms): 53 PSRR at 100 KHz (dB): 45 Iq (typ) (mA): 0.025 Thermal resistance θJA (°C/W): 74.6 Load capacitance (min) (µF): 1 Regulated outputs (#): 2 Features: Enable Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 225 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output, Dual output Iout (max) (A): 1 Vin (max) (V): 6 更多

Vin (min) (V): 1.5 Vout (max) (V): 5.5 Vout (min) (V): 0.55 Rating: Catalog Noise (µVrms): 53 PSRR at 100 KHz (dB): 45 Iq (typ) (mA): 0.025 Thermal resistance θJA (°C/W): 74.6 Load capacitance (min) (µF): 1 Regulated outputs (#): 2 Features: Enable Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 225 Operating temperature range (°C): -40 to 125

TPS7A02

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 200mA, nanopower-IQ (25 nA), low-dropout (LDO) voltage regulator with enable

Output options: Fixed Output Iout (max) (A): 0.2 Vin (max) (V): 6 Vin (min) (V): 1.5 Vout (max) (V): 5 Vout (min) (V): 0.8 Rating: Catalog Noise (µVrms): 130 PSRR at 100 KHz (dB): 35 Iq (typ) (mA): 0.000025 Thermal resistance θJA (°C/W): 179.1 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Output discharge Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 205 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 0.2 Vin (max) (V): 6 更多

Vin (min) (V): 1.5 Vout (max) (V): 5 Vout (min) (V): 0.8 Rating: Catalog Noise (µVrms): 130 PSRR at 100 KHz (dB): 35 Iq (typ) (mA): 0.000025 Thermal resistance θJA (°C/W): 179.1 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Output discharge Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 205 Operating temperature range (°C): -40 to 125

TPS7A03

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有快速瞬态响应的毫微功耗 IQ 200nA 200mA 低压降 (LDO) 稳压器

Output options: Fixed Output Iout (max) (A): 0.2 Vin (max) (V): 6 Vin (min) (V): 1.5 Vout (max) (V): 5 Vout (min) (V): 0.8 Rating: Catalog Noise (µVrms): 130 PSRR at 100 KHz (dB): 35 Iq (typ) (mA): 0.0002 Thermal resistance θJA (°C/W): 179.1, 201.1 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Output discharge Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 205 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 0.2 Vin (max) (V): 6 更多

Vin (min) (V): 1.5 Vout (max) (V): 5 Vout (min) (V): 0.8 Rating: Catalog Noise (µVrms): 130 PSRR at 100 KHz (dB): 35 Iq (typ) (mA): 0.0002 Thermal resistance θJA (°C/W): 179.1, 201.1 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Output discharge Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 205 Operating temperature range (°C): -40 to 125

TPS745-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有电源正常指示功能的汽车级、500mA、低 IQ、高 PSRR、低压降 (LDO) 稳压器

Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.5 Vin (max) (V): 6 Vin (min) (V): 1.5 Vout (max) (V): 5.5 Vout (min) (V): 0.55 Rating: Automotive Noise (µVrms): 53 PSRR at 100 KHz (dB): 45 Iq (typ) (mA): 0.025 Thermal resistance θJA (°C/W): 55, 55.5 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 225 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.5 Vin (max) (V): 6 Vin (min) (V): 1.5 更多

Vout (max) (V): 5.5 Vout (min) (V): 0.55 Rating: Automotive Noise (µVrms): 53 PSRR at 100 KHz (dB): 45 Iq (typ) (mA): 0.025 Thermal resistance θJA (°C/W): 55, 55.5 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 225 Operating temperature range (°C): -40 to 125

TPS6521815

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

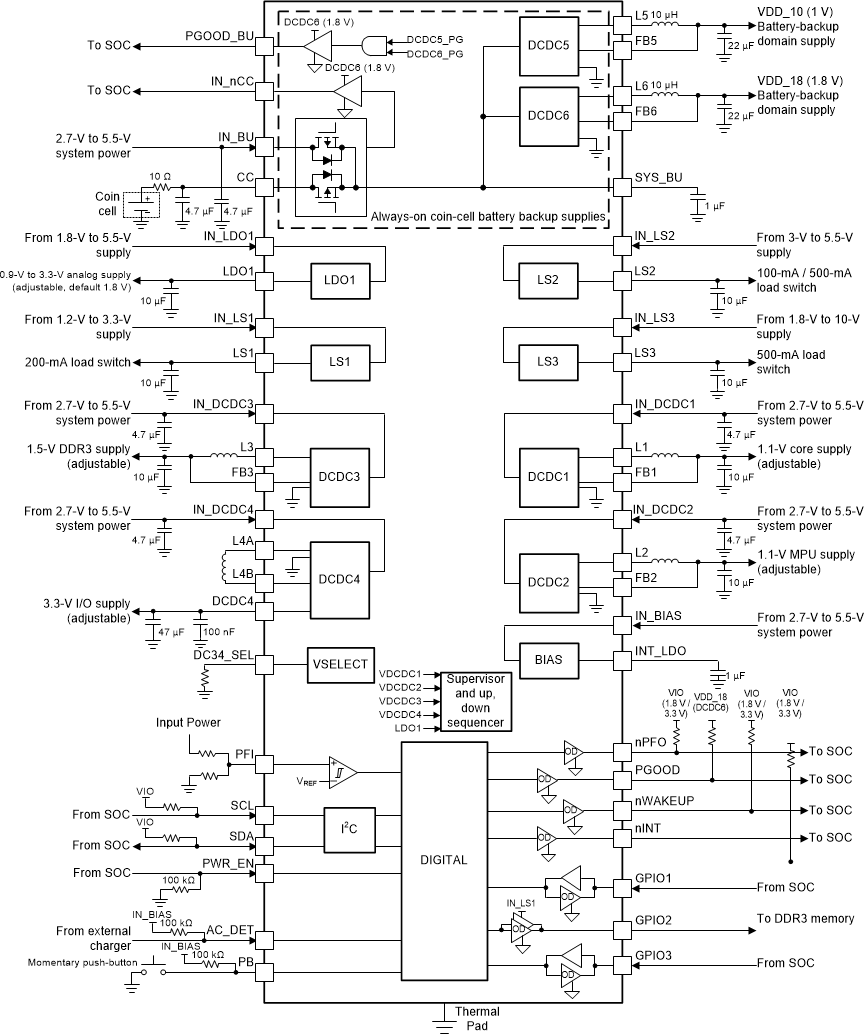

描述: 具有 6 个直流/直流转换器、1 个 LDO 和 3 个负载开关的用户可编程电源管理 IC (PMIC)

Processor supplier: Intel/Altera, NXP/Freescale, Xilinx Regulated outputs (#): 7 Step-down DC/DC converter: 5 Step-up DC/DC converter: 1 LDO: 1 Vin (min) (V): 2.2 Vin (max) (V): 5.5 Vout (min) (V): 0.85 Vout (max) (V): 3.4 Iout (max) (A): 1.8 Configurability: User programmable Rating: Catalog Operating temperature range (°C): -40 to 105 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.025 Switching frequency (max) (kHz): 2400 Switching frequency (typ) (kHz): 2400 Product type: Processor and FPGA Processor supplier: Intel/Altera, NXP/Freescale, Xilinx 更多

Regulated outputs (#): 7 Step-down DC/DC converter: 5 Step-up DC/DC converter: 1 LDO: 1 Vin (min) (V): 2.2 Vin (max) (V): 5.5 Vout (min) (V): 0.85 Vout (max) (V): 3.4 Iout (max) (A): 1.8 Configurability: User programmable Rating: Catalog Operating temperature range (°C): -40 to 105 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.025 Switching frequency (max) (kHz): 2400 Switching frequency (typ) (kHz): 2400 Product type: Processor and FPGA

TPS6521825

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 适用于 NXP i.MX 8M mini 的电源管理 IC (PMIC)

Processor supplier: NXP/Freescale Processor name: i.MX 8M Mini/Nano Regulated outputs (#): 7 Step-down DC/DC converter: 5 Step-up DC/DC converter: 1 LDO: 1 Vin (min) (V): 2.2 Vin (max) (V): 5.5 Vout (min) (V): 0.85 Vout (max) (V): 3.4 Iout (max) (A): 1.8 Configurability: Factory programmable, Software configurable Rating: Catalog Operating temperature range (°C): -40 to 105 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.025 Switching frequency (max) (kHz): 2400 Switching frequency (typ) (kHz): 2400 Product type: Processor and FPGA 更多

TPS746-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

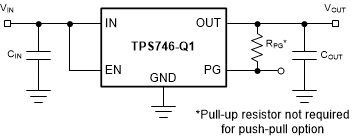

描述: 具有电源正常指示功能的汽车类、1A、低 IQ、高 PSRR、低压降 (LDO) 稳压器

Output options: Adjustable Output, Fixed Output Iout (max) (A): 1 Vin (max) (V): 6 Vin (min) (V): 1.5 Vout (max) (V): 5.5 Vout (min) (V): 0.55 Rating: Automotive Noise (µVrms): 53 PSRR at 100 KHz (dB): 45 Iq (typ) (mA): 0.025 Thermal resistance θJA (°C/W): 55 TI functional safety category: Functional Safety-Capable Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 0.85 Dropout voltage (Vdo) (typ) (mV): 190 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output, Fixed Output Iout (max) (A): 1 Vin (max) (V): 6 更多

Vin (min) (V): 1.5 Vout (max) (V): 5.5 Vout (min) (V): 0.55 Rating: Automotive Noise (µVrms): 53 PSRR at 100 KHz (dB): 45 Iq (typ) (mA): 0.025 Thermal resistance θJA (°C/W): 55 TI functional safety category: Functional Safety-Capable Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 0.85 Dropout voltage (Vdo) (typ) (mV): 190 Operating temperature range (°C): -40 to 125

LP8733

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 双路高电流降压转换器和双路线性稳压器

Processor supplier: NXP, Texas Instruments Processor name: AM6411, AM68, AM68A, AM68x, i.MX 8M Mini/Nano Regulated outputs (#): 4 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.7 Vout (max) (V): 3.36 Iout (max) (A): 3 Configurability: Factory programmable, Software configurable Rating: Catalog Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.009 Switching frequency (max) (kHz): 2200 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA 更多

TPS7A78

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

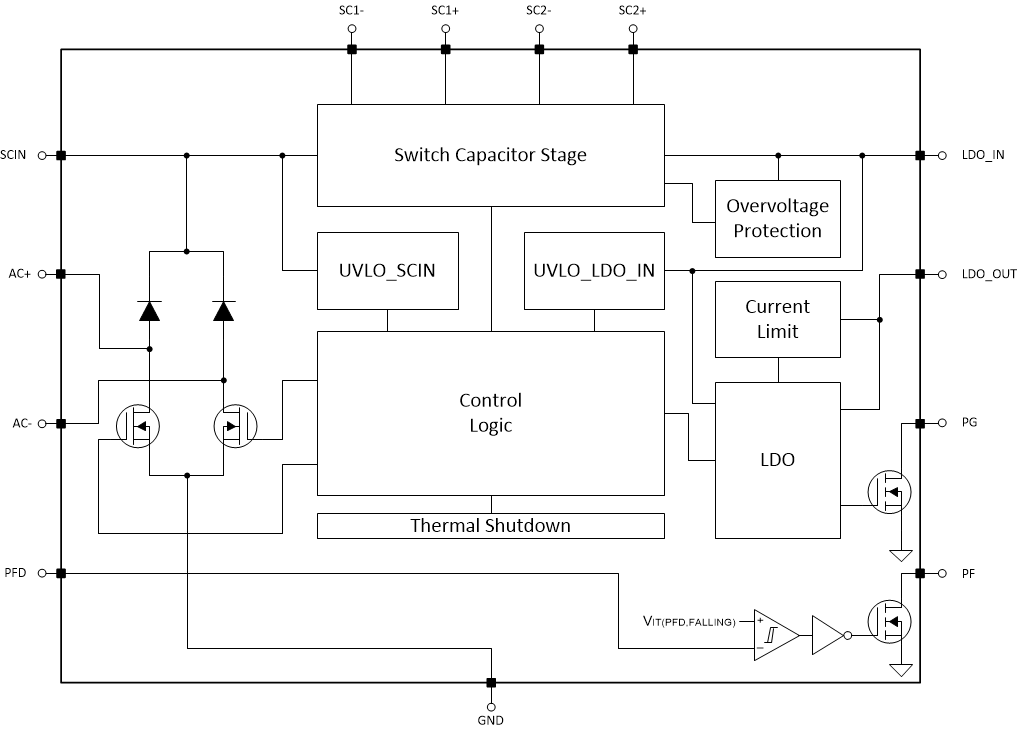

描述: 120mA 智能电容降压型低压降 (LDO) 线性稳压器

Output options: Fixed Output Iout (max) (A): 0.12 Vin (max) (V): 23 Vin (min) (V): 17 Vout (max) (V): 5 Vout (min) (V): 1.25 Fixed output options (V): 3.3, 3.6, 5 Rating: Catalog Iq (typ) (mA): 0.28 Thermal resistance θJA (°C/W): 48 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: AC/DC regulation, Power good, Power-fail detect Accuracy (%): 2 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 0.12 Vin (max) (V): 23 Vin (min) (V): 17 Vout (max) (V): 5 更多

Vout (min) (V): 1.25 Fixed output options (V): 3.3, 3.6, 5 Rating: Catalog Iq (typ) (mA): 0.28 Thermal resistance θJA (°C/W): 48 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: AC/DC regulation, Power good, Power-fail detect Accuracy (%): 2 Operating temperature range (°C): -40 to 125

TPS65296

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

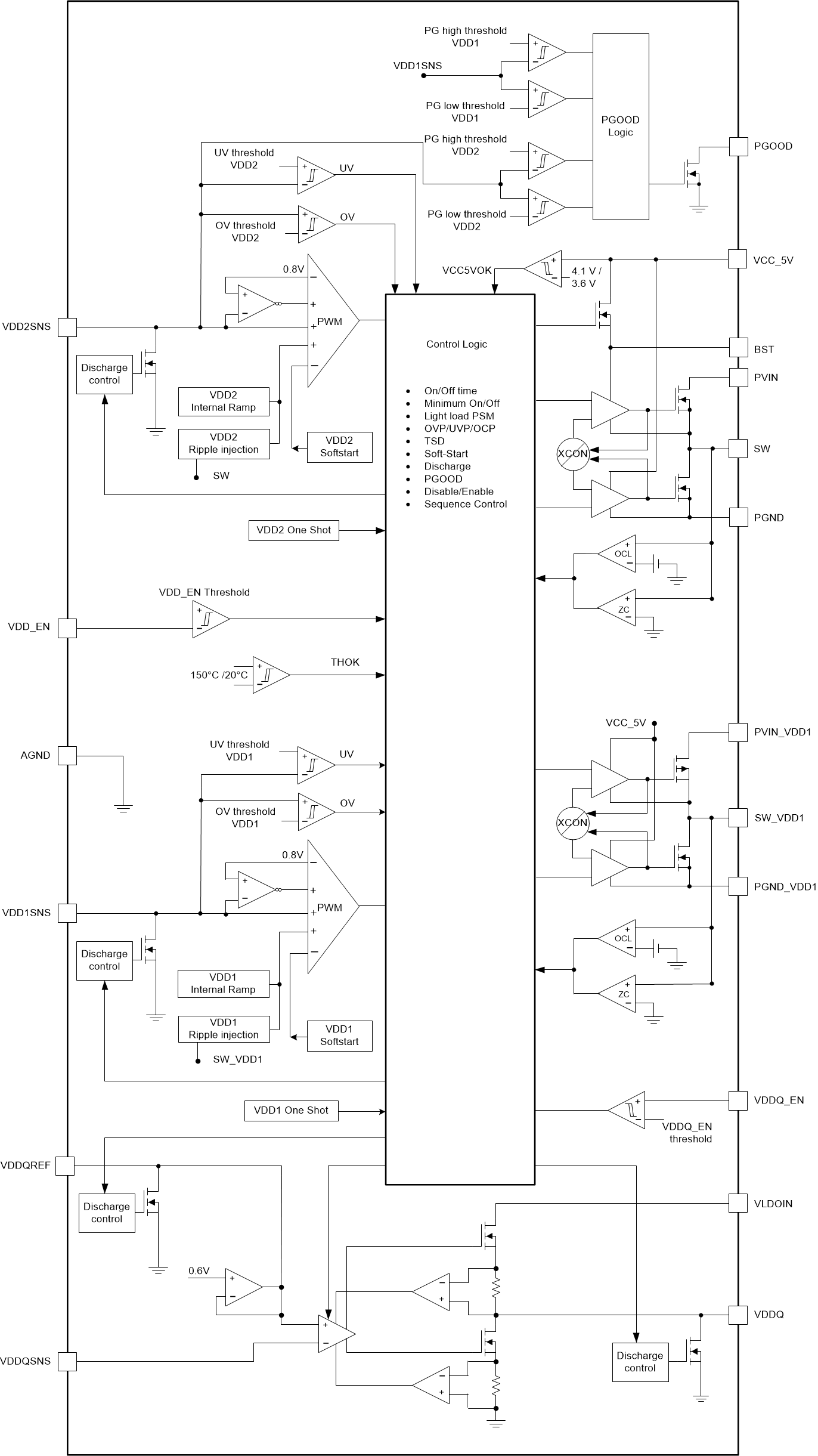

描述: 4.5V 至 18V 输入电压、完整 LPDDR4 和 LPDDR4X 存储器电源解决方案

DDR memory type: LPDDR4, LPDDR4X Control mode: D-CAP3 Iout VDDQ (max) (A): 8 Iout VTT (max) (A): 1.5 Iq (typ) (mA): 0.15 Output: VDDQ, VREF, VTT Vin (min) (V): 4.5 Vin (max) (V): 18 Features: Complete Solution, Eco Mode, S3/S5 Support Rating: Catalog Operating temperature range (°C): -40 to 125 Regulator type: Step-Down Module Vin bias (max) (V): 16 Vin bias (min) (V): 4.5 Vout VTT (min) (V): 0.6 DDR memory type: LPDDR4, LPDDR4X Control mode: D-CAP3 Iout VDDQ (max) (A): 8 Iout VTT (max) (A): 1.5 Iq (typ) (mA): 0.15 更多

Output: VDDQ, VREF, VTT Vin (min) (V): 4.5 Vin (max) (V): 18 Features: Complete Solution, Eco Mode, S3/S5 Support Rating: Catalog Operating temperature range (°C): -40 to 125 Regulator type: Step-Down Module Vin bias (max) (V): 16 Vin bias (min) (V): 4.5 Vout VTT (min) (V): 0.6
