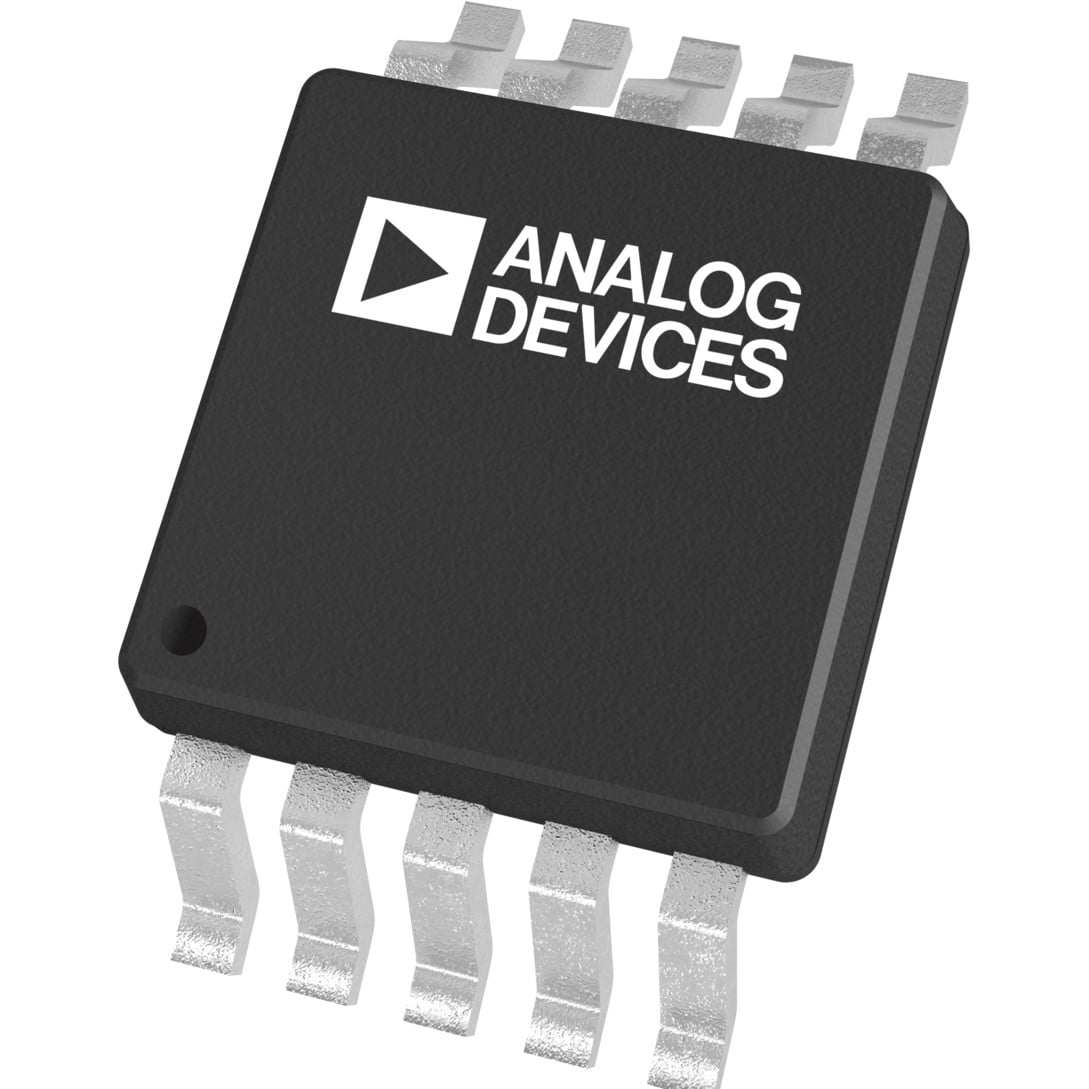

MAX4734EUB+T
制造商: ANALOG DEVICES INC./MAXIM INTEGRATED数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 1 电路 IC 开关 4：1 800 毫欧 10-uMAX/uSOP
开关电路: SP4T
多路复用器/解复用器电路: 4：1
电路数: 1
导通电阻（最大值）: 800 毫欧
通道至通道匹配 (ΔRon): 100 毫欧
电压 - 电源，单 (V+): 1.6V ~ 3.6V
电压 - 供电，双 (V±): -
开关时间 (Ton, Toff)（最大值）: 25ns，20ns
-3db 带宽: 90MHz
电荷注入: 60pC
沟道电容 (CS(off)，CD(off)): 33pF，117pF
电流 - 漏泄 (IS(off))（最大值）: 1nA
串扰: -56dB @ 1MHz
工作温度: -40°C ~ 85°C（TA）
安装类型: 表面贴装型
封装/外壳: 10-TFSOP，10-MSOP（0.118，3.00mm 宽）
供应商器件封装: 10-uMAX/uSOP
开关电路: SPST - 常闭
多路复用器/解复用器电路: 1：1
电路数: 4
导通电阻（最大值）: 10 欧姆
通道至通道匹配 (ΔRon): 2.5 欧姆（最大）
电压 - 电源，单 (V+): 2.7V ~ 12V
电压 - 供电，双 (V±): -
开关时间 (Ton, Toff)（最大值）: 75ns，45ns
-3db 带宽: 530MHz
电荷注入: -10.5pC
沟道电容 (CS(off)，CD(off)): 8pF，8pF
电流 - 漏泄 (IS(off))（最大值）: 1nA
串扰: -
工作温度: -40°C ~ 85°C（TA）
安装类型: 表面贴装型

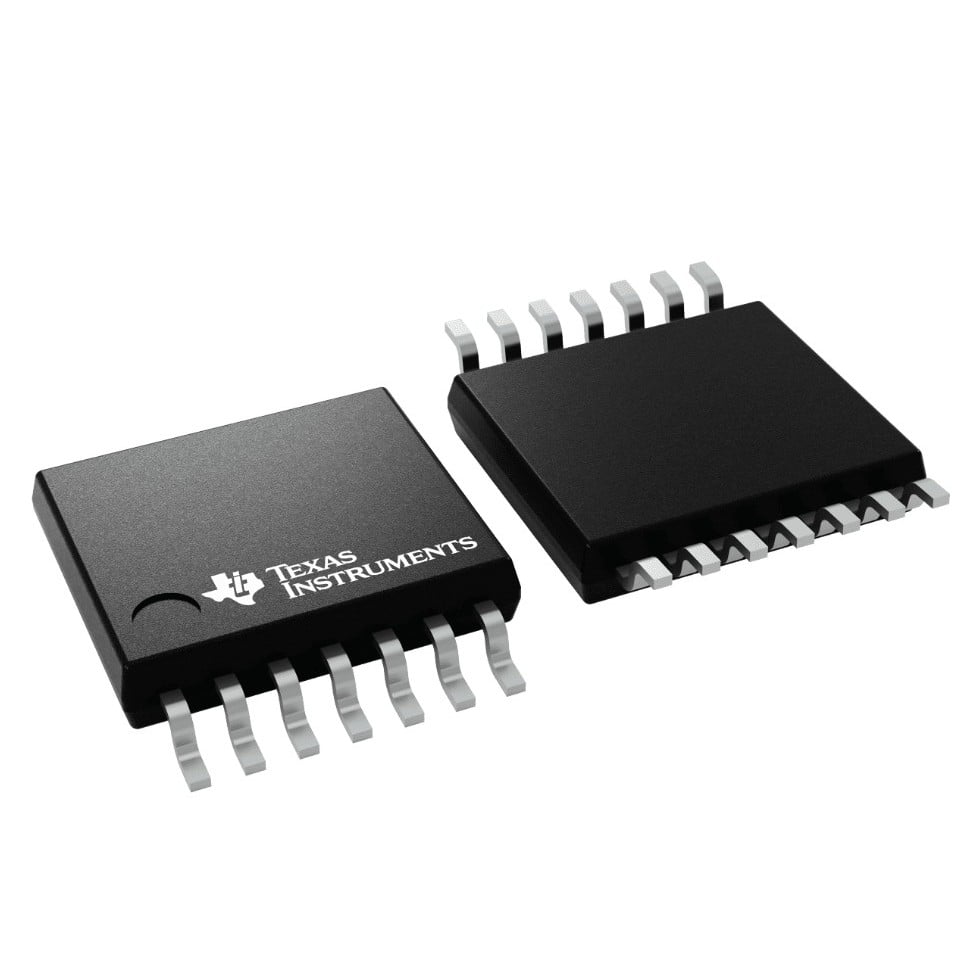

封装/外壳: 14-TSSOP（0.173，4.40mm 宽）
供应商器件封装: 14-TSSOP
开关电路: SPST - 常闭
多路复用器/解复用器电路: 1：1
电路数: 4
导通电阻（最大值）: 10 欧姆
通道至通道匹配 (ΔRon): 2.5 欧姆（最大）
电压 - 电源，单 (V+): 2.7V ~ 12V
电压 - 供电，双 (V±): -
开关时间 (Ton, Toff)（最大值）: 75ns，45ns
-3db 带宽: 530MHz
电荷注入: -10.5pC
沟道电容 (CS(off)，CD(off)): 8pF，8pF
电流 - 漏泄 (IS(off))（最大值）: 1nA
串扰: -
工作温度: -40°C ~ 85°C（TA）
安装类型: 表面贴装型

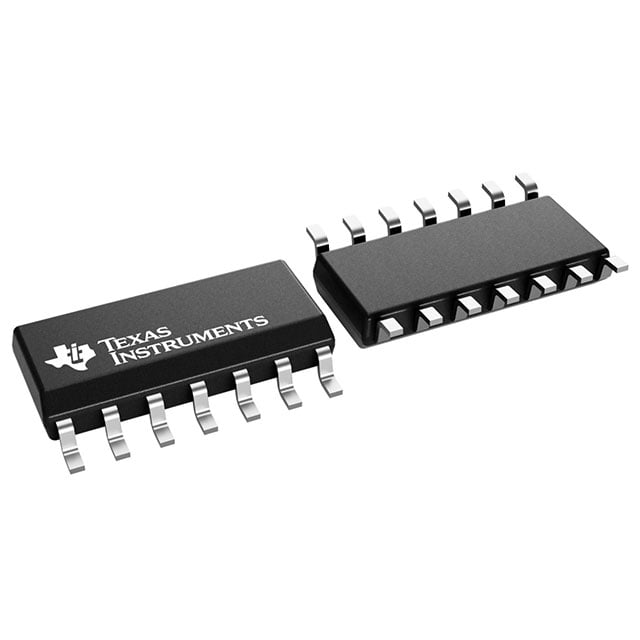

封装/外壳: 14-SOIC（0.154，3.90mm 宽）
供应商器件封装: 14-SOIC
TMUX1308A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

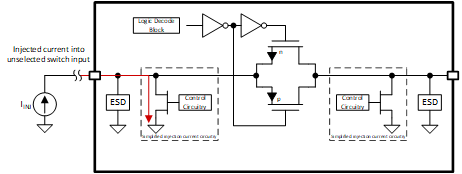

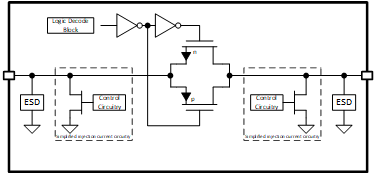

描述: 具有注入电流控制和 1.8V 逻辑电平的 5V 双向 8:1、单通道多路复用器
Configuration: 8:1
Number of channels: 1
Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 59
CON (typ) (pF): 9
ON-state leakage current (max) (µA): 0.8
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 100
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 8:1
Number of channels: 1
Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 59
CON (typ) (pF): 9
更多
ON-state leakage current (max) (µA): 0.8
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 100
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
TMUX1308A-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有注入电流控制和 1.8V 逻辑电平的汽车级 5V 双向 8:1、单通道多路复用器
Configuration: 8:1
Number of channels: 1
Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 59
CON (typ) (pF): 9
ON-state leakage current (max) (µA): 0.8
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 100
Rating: Automotive
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 8:1
Number of channels: 1
Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 59
CON (typ) (pF): 9
更多
ON-state leakage current (max) (µA): 0.8
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 100
Rating: Automotive
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
TMUX1309A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有注入电流控制和 1.8V 逻辑电平的 5V 双向 4:1、双通道多路复用器
Configuration: 4:1
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Protocols: Analog, LVDS
Ron (typ) (Ω): 59
CON (typ) (pF): 9
ON-state leakage current (max) (µA): 0.8
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 100
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 4:1
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Protocols: Analog, LVDS
Ron (typ) (Ω): 59
CON (typ) (pF): 9
更多
ON-state leakage current (max) (µA): 0.8
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 100
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
TMUX1309A-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有注入电流控制和 1.8V 逻辑电平的汽车级 5V 双向 4:1、双通道多路复用器
Configuration: 4:1
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Protocols: Analog, LVDS
Ron (typ) (Ω): 59
CON (typ) (pF): 9
ON-state leakage current (max) (µA): 0.8
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 100
Rating: Automotive
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 4:1
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Protocols: Analog, LVDS
Ron (typ) (Ω): 59
CON (typ) (pF): 9
更多
ON-state leakage current (max) (µA): 0.8
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 100
Rating: Automotive
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
TMUX7208M
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 44V, latch-up-immune 8:1 precision multiplexer with 1.8V logic and extended temperature
Configuration: 8:1
Number of channels: 1
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
Ron (typ) (Ω): 4
CON (typ) (pF): 185
ON-state leakage current (max) (µA): 0.04
Supply current (typ) (µA): 3
Bandwidth (MHz): 30
Operating temperature range (°C): -55 to 125
Input/output continuous current (max) (mA): 300
Rating: Catalog
Drain supply voltage (max) (V): 22
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -4.5
Configuration: 8:1
Number of channels: 1
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
更多
Protocols: Analog
Ron (typ) (Ω): 4
CON (typ) (pF): 185
ON-state leakage current (max) (µA): 0.04
Supply current (typ) (µA): 3
Bandwidth (MHz): 30
Operating temperature range (°C): -55 to 125
Input/output continuous current (max) (mA): 300
Rating: Catalog
Drain supply voltage (max) (V): 22
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -4.5

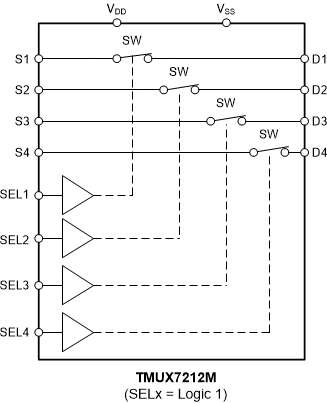

TMUX7212M
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 44V, low RON, 1:1 (SPST) four-channel precision multiplexer with 1.8V logic and extended temperature
Configuration: 1:1 SPST
Number of channels: 4
Power supply voltage - single (V): 5, 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
Ron (typ) (Ω): 1.7
CON (typ) (pF): 144
ON-state leakage current (max) (µA): 0.0033
Supply current (typ) (µA): 65
Operating temperature range (°C): -55 to 125
Input/output continuous current (max) (mA): 370
Rating: Catalog
Drain supply voltage (max) (V): 22
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -22
Configuration: 1:1 SPST
Number of channels: 4
Power supply voltage - single (V): 5, 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
更多
Ron (typ) (Ω): 1.7
CON (typ) (pF): 144
ON-state leakage current (max) (µA): 0.0033
Supply current (typ) (µA): 65
Operating temperature range (°C): -55 to 125
Input/output continuous current (max) (mA): 370
Rating: Catalog
Drain supply voltage (max) (V): 22
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -22
Configuration: 2:1 SPDT
Number of channels: 1
Power supply voltage - single (V): 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 6
CON (typ) (pF): 23
ON-state leakage current (max) (µA): 0.1
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 250
Operating temperature range (°C): -40 to 125
Features: Break-before-make, Fail-safe logic
Input/output continuous current (max) (mA): 30
Rating: Automotive
Supply voltage (max) (V): 5.5
Configuration: 2:1 SPDT
Number of channels: 1
Power supply voltage - single (V): 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 6
CON (typ) (pF): 23
更多
ON-state leakage current (max) (µA): 0.1
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 250
Operating temperature range (°C): -40 to 125
Features: Break-before-make, Fail-safe logic
Input/output continuous current (max) (mA): 30
Rating: Automotive
Supply voltage (max) (V): 5.5
