TPS561201


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

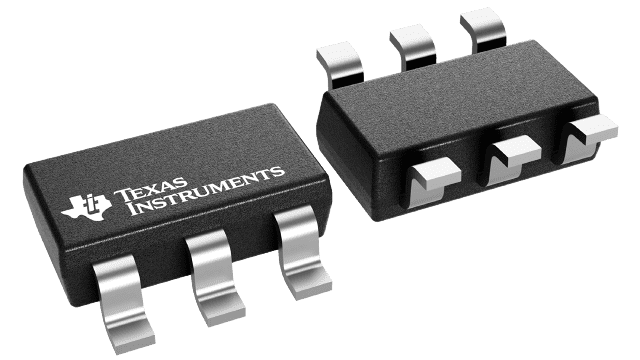

描述: 采用 6 引脚 SOT-23 封装的 4.5V 至 17V 输入、1A 同步降压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1 Vin (min) (V): 4.5 Vin (max) (V): 17 Switching frequency (min) (kHz): 580 Switching frequency (max) (kHz): 580 Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 400 Duty cycle (max) (%): 80 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1 Vin (min) (V): 4.5
Vin (max) (V): 17 Switching frequency (min) (kHz): 580 Switching frequency (max) (kHz): 580 Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 400 Duty cycle (max) (%): 80

TPS561208


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 4.5V 至 17V 输入、1A 输出、同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1 Vin (min) (V): 4.5 Vin (max) (V): 17 Switching frequency (min) (kHz): 580 Switching frequency (max) (kHz): 580 Features: Enable, Forced PWM, Soft Start Fixed, Synchronous Rectification Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 400 Duty cycle (max) (%): 80 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1
Vin (min) (V): 4.5 Vin (max) (V): 17 Switching frequency (min) (kHz): 580 Switching frequency (max) (kHz): 580 Features: Enable, Forced PWM, Soft Start Fixed, Synchronous Rectification Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 400 Duty cycle (max) (%): 80

TLV61046A


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有功率二极管和隔离开关的 28V 输出电压升压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 1.8 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 850 Switching frequency (max) (kHz): 1250 Vout (min) (V): 3.3 Vout (max) (V): 28 Iq (typ) (µA): 110 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 0.9 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 1.8 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 850
Switching frequency (max) (kHz): 1250 Vout (min) (V): 3.3 Vout (max) (V): 28 Iq (typ) (µA): 110 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 0.9

TPS61096A


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 1μA 静态电流的 28V 输出电压升压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 1.8 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 3000 Vout (min) (V): 4.5 Vout (max) (V): 28 Iq (typ) (µA): 1 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 0.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 1.8 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 200
Switching frequency (max) (kHz): 3000 Vout (min) (V): 4.5 Vout (max) (V): 28 Iq (typ) (µA): 1 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 0.5

TPS57112C-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 汽车 2.95V 至 6V、2A、2MHz 同步降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 2.95 Vin (max) (V): 6 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2000 Features: Enable, Forced PWM, Frequency synchronization, Power good Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 4.5 Iq (typ) (µA): 515 Duty cycle (max) (%): 100 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable Topology: Buck
Type: Converter Iout (max) (A): 2 Vin (min) (V): 2.95 Vin (max) (V): 6 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2000 Features: Enable, Forced PWM, Frequency synchronization, Power good Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 4.5 Iq (typ) (µA): 515 Duty cycle (max) (%): 100

TPS61253A


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

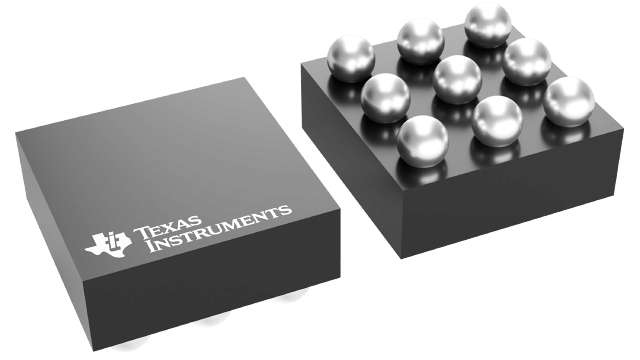

描述: 采用 1.2mm x 1.3mm WCSP 封装的 3.8MHz、5V/4A 升压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 2.3 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 3800 Switching frequency (max) (kHz): 3800 Vout (min) (V): 5 Vout (max) (V): 5 Iq (typ) (µA): 50 Duty cycle (max) (%): 100 Switch current limit (typ) (A): 4 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 2.3 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 3800
Switching frequency (max) (kHz): 3800 Vout (min) (V): 5 Vout (max) (V): 5 Iq (typ) (µA): 50 Duty cycle (max) (%): 100 Switch current limit (typ) (A): 4

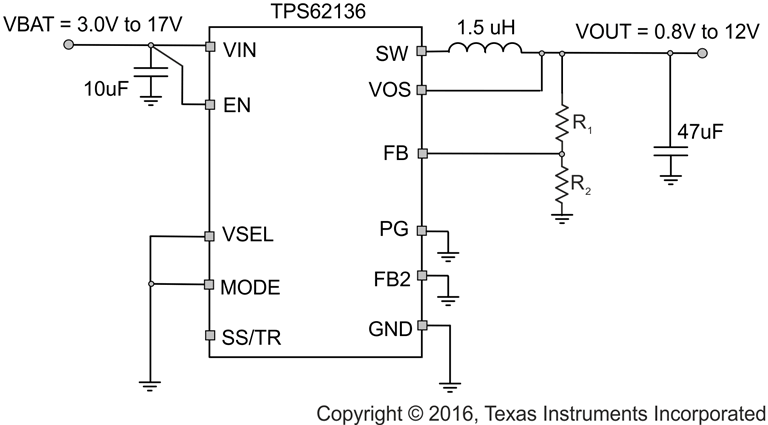

TPS62136


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 2x3QFN 封装并具有 1% 精度和 PFM/强制 PWM 特性的 3-17V 4.0A 降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 4 Vin (min) (V): 3 Vin (max) (V): 17 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1000 Control mode: Constant on-time (COT), DCS-Control Vout (min) (V): 0.8 Vout (max) (V): 12 Iq (typ) (µA): 18 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 4 Vin (min) (V): 3
Vin (max) (V): 17 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1000 Control mode: Constant on-time (COT), DCS-Control Vout (min) (V): 0.8 Vout (max) (V): 12 Iq (typ) (µA): 18 Duty cycle (max) (%): 100

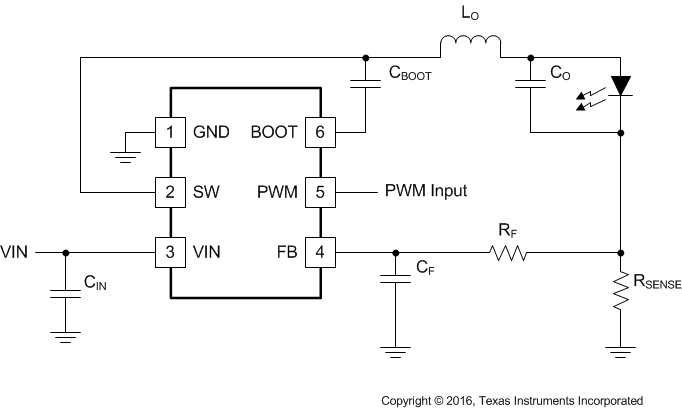

TPS54201


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 4.5V 至 28V 输入电压、同步降压型 LED 驱动器

Input voltage type: DC/DC Topology: Buck, Inductive Vin (min) (V): 4.5 Vin (max) (V): 28 Iout (max) (A): 1.5 Iq (typ) (mA): 0.002 Operating temperature range (°C): -40 to 125 Dimming method: Analog, PWM Number of channels: 1 Rating: Catalog Input voltage type: DC/DC Topology: Buck, Inductive Vin (min) (V): 4.5 Vin (max) (V): 28 Iout (max) (A): 1.5 Iq (typ) (mA): 0.002 Operating temperature range (°C): -40 to 125 Dimming method: Analog, PWM Number of channels: 1 Rating: Catalog

TPS92692


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有扩频频率调制功能和内部 PWM 发生器的高精度 LED 控制器

Input voltage type: DC/DC Topology: Boost, Buck, Buck-Boost, Cuk, Flyback, SEPIC Vin (min) (V): 4.5 Vin (max) (V): 65 Vout (max) (V): 65 Vout (min) (V): 3 Iout (max) (A): 5 Iq (typ) (mA): 1.8 Operating temperature range (°C): -40 to 125 Dimming method: Analog, PWM Number of channels: 1 Rating: Catalog Input voltage type: DC/DC Topology: Boost, Buck, Buck-Boost, Cuk, Flyback, SEPIC Vin (min) (V): 4.5 Vin (max) (V): 65 Vout (max) (V): 65 Vout (min) (V): 3 Iout (max) (A): 5 Iq (typ) (mA): 1.8
Operating temperature range (°C): -40 to 125 Dimming method: Analog, PWM Number of channels: 1 Rating: Catalog

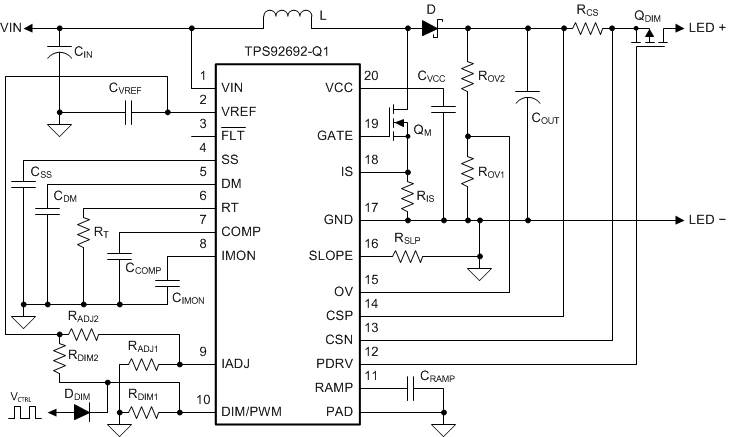

TPS92692-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有扩频频率调制功能和内部 PWM 发生器的高精度 LED 控制器

Number of channels: 1 Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 4.5 Vin (max) (V): 65 Vout (min) (V): 3 Vout (max) (V): 65 Iout (max) (A): 5 Iq (typ) (mA): 1.8 Switching frequency (max) (kHz): 800 Number of channels: 1 Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 4.5 Vin (max) (V): 65 Vout (min) (V): 3 Vout (max) (V): 65 Iout (max) (A): 5 Iq (typ) (mA): 1.8 Switching frequency (max) (kHz): 800
