ADC (#, Max. Resolution @ Sample Rate): DelSig (1, 10-bit @ 5.9 ksps)
CAPSENSE™: Y
CapSense Channels: 1.0
CapSense IO: 44.0
CapSense Type: CapSense Plus
Communication Interfaces: I2C, SPI, UART, USB
CPU: M8C
Development Software: PSoC Designer
Flash: 16.0kByte
Frequency max: 24.0MHz
GPIOs: 50.0
I2C: 1.0
LCD Direct Drive: N
Operating Temperature max: 85.0°C
Operating Voltage max: 5.25V
Operational Amplifier: 0
Peak Reflow Temp: 260.0°C
Proximity Sensing: Y
Publish in NPSG: Y
Publish in PSG: Y
更多
PWM: HW
SmartSense Enabled: N
SPI: 1.0
USB Type: Full-Speed
Water Tolerant: N
CapSense Technology: CSD
Lead Ball Finish: Ni/Pd/Au
Real Time Clock: N
SRAM: 1.0kByte
DAC (#, Max. Resolution @ Sample Rate): None
Number of ADC Modules: 1.0
I/O Pins: 50.0
Family: PSOC™ 24x94
ADC (#, Max. Resolution @ Sample Rate): DelSig (1, 10-bit @ 5.9 ksps)
CAPSENSE™: Y
CapSense Channels: 1.0
CapSense IO: 21.0
CapSense Type: CapSense
Communication Interfaces: I2C, SPI
DAC (#, Max. Resolution @ Sample Rate): None
Development Software: PSoC Designer
Flash: 8.0kByte
GPIOs: 24.0
I2C: 1.0
LCD Direct Drive: N
Lead Ball Finish: Ni/Pd/Au
Operating Temperature max: 85.0°C
Operating Voltage max: 5.25V
Peak Reflow Temp: 260.0°C
Proximity Sensing: N
Publish in PSG: Y
PWM: SW
Real Time Clock: N
更多
SmartSense Enabled: N
SPI: 1.0
SRAM: 0.5kByte
Water Tolerant: N
CPU: M8C
Operational Amplifier: 0
USB Type: None
Frequency max: 12.0MHz
Timer/Counter: 1.0
CapSense Technology: CSA
Publish in NPSG: Y
Number of ADC Modules: 1.0
I/O Pins: 24.0
Family: PSOC™ 20x34
ADC (#, Max. Resolution @ Sample Rate): DelSig (1, 10-bit @ 5.9 ksps)
CAPSENSE™: Y
CapSense Channels: 1.0
CapSense IO: 10.0
Communication Interfaces: I2C, SPI
CPU: M8C
DAC (#, Max. Resolution @ Sample Rate): None
Development Software: PSoC Designer
Frequency max: 12.0MHz
GPIOs: 13.0
I2C: 1.0
LCD Direct Drive: N
Operating Temperature max: 85.0°C
Operating Voltage max: 5.25V
Operational Amplifier: 0
Proximity Sensing: N
Publish in PSG: Y
PWM: SW
SmartSense Enabled: N
SPI: 1.0
更多
SRAM: 0.5kByte
USB Type: None
Water Tolerant: N
Peak Reflow Temp: 260.0°C
CapSense Technology: CSA
Lead Ball Finish: Pure Sn
Real Time Clock: N
Flash: 8.0kByte
Timer/Counter: 1.0
CapSense Type: CapSense
Publish in NPSG: Y
Number of ADC Modules: 1.0
I/O Pins: 13.0
Family: PSOC™ 20x34
ADC (#, Max. Resolution @ Sample Rate): DelSig (1, 10-bit @ 5.9 ksps)
Analog Blocks(Programmable): 5.0
CAPSENSE™: Y
CapSense Channels: 1.0
CapSense IO: 43.0
Communication Interfaces: I2C, SPI, UART, USB
CPU: M8C
DAC (#, Max. Resolution @ Sample Rate): None
Development Software: PSoC Designer
Flash: 16.0kByte
Frequency max: 24.0MHz
GPIOs: 49.0
I2C: 1.0
LCD Direct Drive: N
Lead Ball Finish: Ni/Pd/Au
Operating Temperature max: 85.0°C
Operating Voltage max: 5.25V
Peak Reflow Temp: 260.0°C
Proximity Sensing: Y
Publish in PSG: Y
更多
PWM: HW
Real Time Clock: N
Slider: 8
SPI: 1.0
USB Type: Full-Speed
Water Tolerant: N
SRAM: 1.0kByte
CapSense Type: CapSense Plus
Operational Amplifier: 0
SmartSense Enabled: N
CapSense Technology: CSD
Publish in NPSG: Y
Universal Digital Blocks: 3.0
Number of ADC Modules: 1.0
I/O Pins: 49.0
Family: PSOC™ 24x94

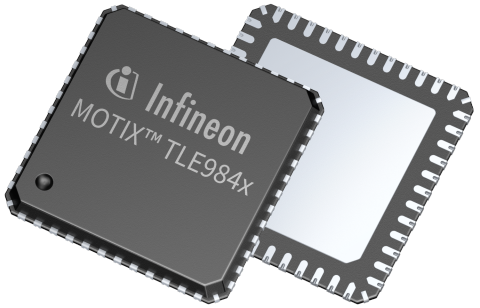

TLE9842-2QX
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9842-2QX fits perfectly with the window lift applications by offering efficiency
Solid Flash: 40.0kByte
RAM: 2.0kByte
Frequency: 40.0MHz
High Side Switch: 2
Low Side Switch: 2
High Voltage Monitor Input: 5
GPIO: 10
Interfaces: LIN
Operational Amplifier: NO
PN MOS DRIVER: NO
T[j] max: 150.0°C
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex® M0
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9844-2QX
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9844-2QX is the perfect fit for sunroof applications using relays
Solid Flash: 64.0kByte
RAM: 4.0kByte
Frequency: 40.0MHz
High Side Switch: 2
Low Side Switch: 2
High Voltage Monitor Input: 5
GPIO: 10
Interfaces: LIN
Operational Amplifier: NO
PN MOS DRIVER: NO
T[j] max: 150.0°C
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex® M0
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9843-2QX
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9843-2QX gives an optimized motor control solution for window lift
Solid Flash: 52.0kByte
RAM: 4.0kByte
Frequency: 40.0MHz
High Side Switch: 2
Low Side Switch: 2
High Voltage Monitor Input: 5
GPIO: 10
Interfaces: LIN
Operational Amplifier: NO
PN MOS DRIVER: NO
T[j] max: 150.0°C
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex® M0
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9844QX
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9844QX includes an Arm® Cortex® M0 and integrated high-side and low-side switches
Solid Flash: 64.0kByte
RAM: 4.0kByte
Frequency: 25.0MHz
High Side Switch: 1
Low Side Switch: 2
High Voltage Monitor Input: 4
GPIO: 10
Interfaces: LIN
Operational Amplifier: NO
PN MOS DRIVER: NO
T[j] max: 150.0°C
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 25.0MHz
Instruction Set Architecture: Arm® Cortex® M0
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9843QX
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9843QX combines a microcontroller with power supply, HS and LS switches and a LIN Trx
Solid Flash: 48.0kByte
RAM: 4.0kByte
Frequency: 25.0MHz
High Side Switch: 1
Low Side Switch: 2
High Voltage Monitor Input: 4
GPIO: 10
Interfaces: LIN
Operational Amplifier: NO
PN MOS DRIVER: NO
T[j] max: 150.0°C
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 25.0MHz
Instruction Set Architecture: Arm® Cortex® M0
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9853QX
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9853QX provides high-performance and cost-optimization for window lift using MOSFETs
Interfaces: PWM + LIN
Frequency: 40.0MHz
RAM: 4.0kByte
Solid Flash: 48.0kByte
T[j] max: 150.0°C
Operational Amplifier: YES
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex® M0
Currently planned availability until at least: 2038
Technology: MOTIX™ MCU (SoC)
Family: MOTIX™ 32-bit motor control SoC
