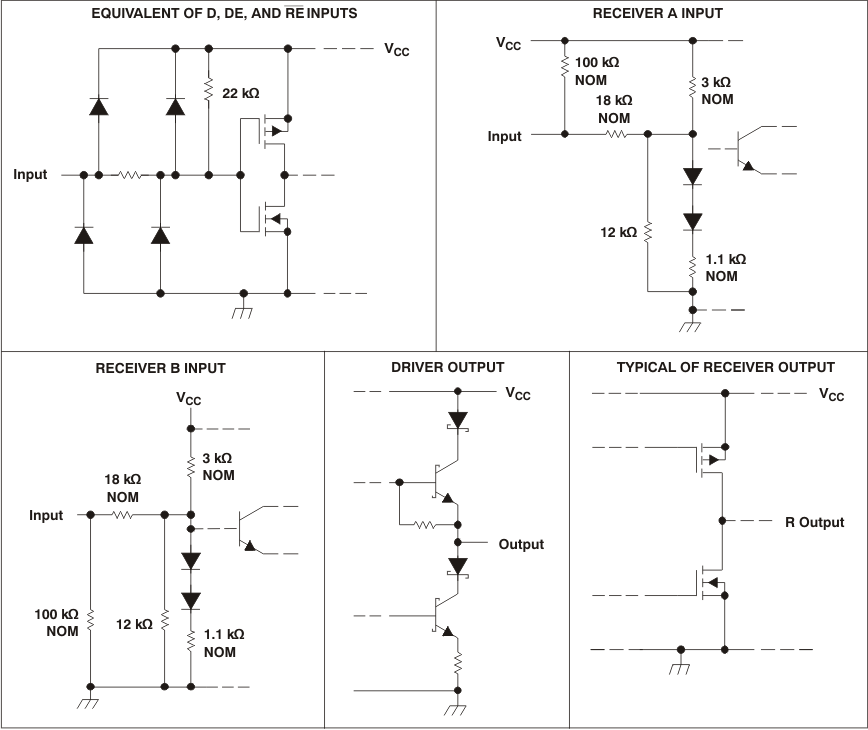

Number of receivers: 1 Number of transmitters: 1 Duplex: Full Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 10 Fault protection (V): -10 to 15 Common-mode range (V): -7 to 12 Number of nodes: 32 Isolated: No Supply current (max) (µA): 4000 Rating: Catalog Operating temperature range (°C): -55 to 125 Number of receivers: 1 Number of transmitters: 1 Duplex: Full Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 10 Fault protection (V): -10 to 15 Common-mode range (V): -7 to 12 Number of nodes: 32 更多

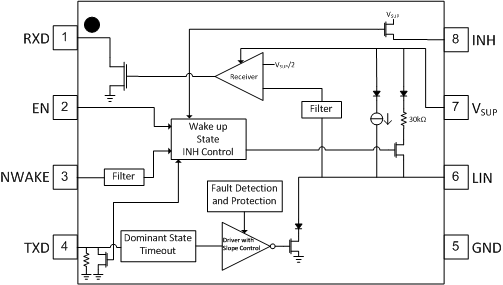

Protocols: LIN Number of channels: 1 Supply voltage (V): 7 to 27 Bus fault voltage (V): -40 to 40 Signaling rate (max) (bps): 100000 Rating: Automotive Protocols: LIN Number of channels: 1 Supply voltage (V): 7 to 27 Bus fault voltage (V): -40 to 40 Signaling rate (max) (bps): 100000 Rating: Automotive

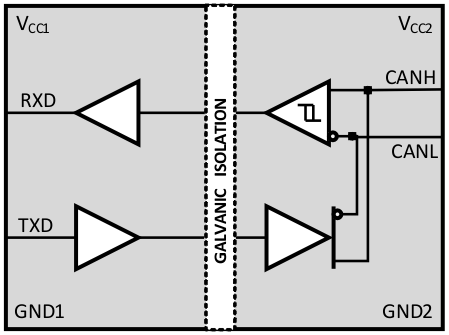

Rating: Catalog Isolation rating: Basic Data rate (max) (Mbps): 1 Working isolation voltage (VIOWM) (Vrms): 400, 850 Surge isolation voltage (VIOSM) (VPK): 4000 Transient isolation voltage (VIOTM) (VPK): 4000 Withstand isolation voltage (VISO) (Vrms): 4243 CMTI (min) (kV/µs): 25 Bus fault voltage (V): -27 to 40 Common-mode voltage (V): -12 to 12 Operating temperature range (°C): -55 to 105 Rating: Catalog Isolation rating: Basic Data rate (max) (Mbps): 1 Working isolation voltage (VIOWM) (Vrms): 400, 850 Surge isolation voltage (VIOSM) (VPK): 4000 Transient isolation voltage (VIOTM) (VPK): 4000 Withstand isolation voltage (VISO) (Vrms): 4243 CMTI (min) (kV/µs): 25 Bus fault voltage (V): -27 to 40 更多

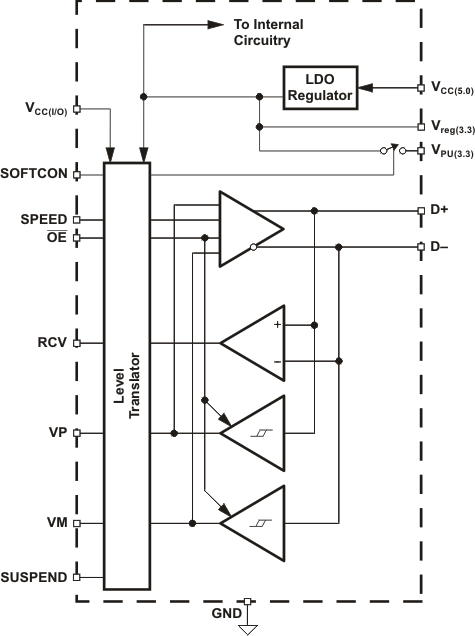

Function: USB2 USB speed (Mbps): 12 Type: Transceiver Supply voltage (V): 5 Rating: Catalog Operating temperature range (°C): -40 to 85 Function: USB2 USB speed (Mbps): 12 Type: Transceiver Supply voltage (V): 5 Rating: Catalog Operating temperature range (°C): -40 to 85

Type: Redriver Protocols: General purpose, PCIe1, PCIe2, sRIO Applications: Backplane, Front Port, Peripheral I/O Number of channels: 8 Speed (max) (Gbpp): 5 Supply voltage (V): 2.5 Rating: Catalog Operating temperature range (°C): -10 to 85 Type: Redriver Protocols: General purpose, PCIe1, PCIe2, sRIO Applications: Backplane, Front Port, Peripheral I/O Number of channels: 8 Speed (max) (Gbpp): 5 Supply voltage (V): 2.5 Rating: Catalog Operating temperature range (°C): -10 to 85

Type: Bridge Protocols: PCIe Applications: PCIe Number of channels: 3 Speed (max) (Gbpp): 0.8 Supply voltage (V): 1.5, 3.3 Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Bridge Protocols: PCIe Applications: PCIe Number of channels: 3 Speed (max) (Gbpp): 0.8 Supply voltage (V): 1.5, 3.3 Rating: Catalog Operating temperature range (°C): -40 to 85

Type: Bridge Protocols: PCIe Applications: PCIe Number of channels: 4 Speed (max) (Gbpp): 2.5 Supply voltage (V): 1.5, 3.3 Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Bridge Protocols: PCIe Applications: PCIe Number of channels: 4 Speed (max) (Gbpp): 2.5 Supply voltage (V): 1.5, 3.3 Rating: Catalog Operating temperature range (°C): -40 to 85

Type: Passive mux Protocols: PCIe1, PCIe2 Applications: PCIe Number of channels: 4 Speed (max) (Gbpp): 4.2 Supply voltage (V): 1.8 Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Passive mux Protocols: PCIe1, PCIe2 Applications: PCIe Number of channels: 4 Speed (max) (Gbpp): 4.2 Supply voltage (V): 1.8 Rating: Catalog Operating temperature range (°C): -40 to 85

Type: Redriver Protocols: SAS1, SATA1 Applications: SATA Gen 2.6, eSATA Number of channels: 2 Speed (max) (Gbpp): 3 Supply voltage (V): 3.3 Rating: Catalog Operating temperature range (°C): 0 to 85 Type: Redriver Protocols: SAS1, SATA1 Applications: SATA Gen 2.6, eSATA Number of channels: 2 Speed (max) (Gbpp): 3 Supply voltage (V): 3.3 Rating: Catalog Operating temperature range (°C): 0 to 85

Number of receivers: 9 Number of transmitters: 9 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 20 Fault protection (V): -9 to 14 Common-mode range (V): -7 to 12 Number of nodes: 32 Isolated: No Supply current (max) (µA): 60000 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of receivers: 9 Number of transmitters: 9 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 20 Fault protection (V): -9 to 14 Common-mode range (V): -7 to 12 Number of nodes: 32 更多
