DAC53508

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有 SPI 的八路 10 位缓冲电压输出 DAC

Resolution (Bits): 10 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Features: Cost Optimized Power consumption (typ) (mW): 0.18 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC Resolution (Bits): 10 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 更多

Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Features: Cost Optimized Power consumption (typ) (mW): 0.18 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC

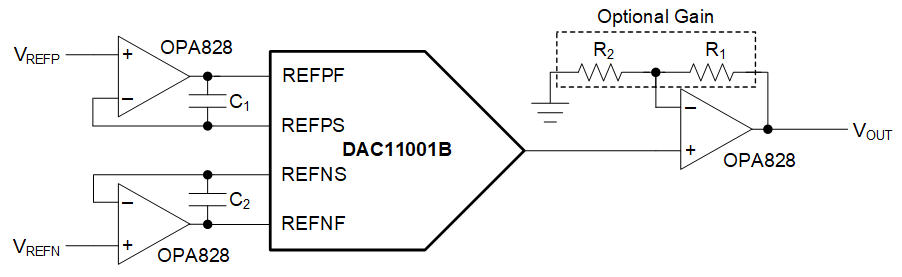

DAC11001B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有超低噪声、低干扰和出色 THD 性能的 20 位单调高级 DAC

Resolution (Bits): 20 Number of DAC channels: 1 Interface type: SPI Output type: Unbuffered Voltage Output voltage range (V): -10 to 10 INL (max) (±LSB): 1 Settling time (µs): 1 Reference type: Ext Architecture: R-2R Rating: Catalog Sample/update rate (Msps): 1 Power consumption (typ) (mW): 158 Operating temperature range (°C): -40 to 125 Product type: Precision DAC Resolution (Bits): 20 Number of DAC channels: 1 Interface type: SPI Output type: Unbuffered Voltage Output voltage range (V): -10 to 10 INL (max) (±LSB): 1 更多

Settling time (µs): 1 Reference type: Ext Architecture: R-2R Rating: Catalog Sample/update rate (Msps): 1 Power consumption (typ) (mW): 158 Operating temperature range (°C): -40 to 125 Product type: Precision DAC

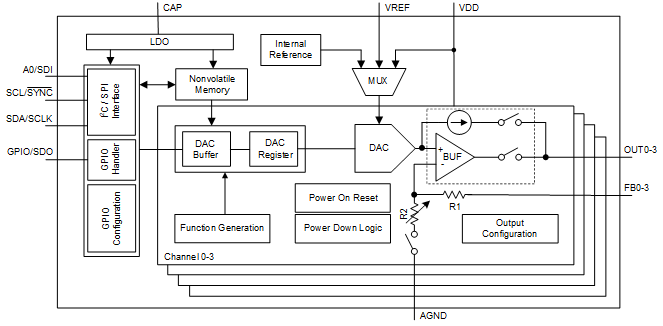

DAC43204

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有 Hi-Z、EEPROM 和波形发生器的 8 位、4 通道电压/电流输出智能 DAC

Resolution (Bits): 8 Number of DAC channels: 4 Interface type: I2C, SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 20 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Current source/sink DAC, EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.4 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC Resolution (Bits): 8 Number of DAC channels: 4 Interface type: I2C, SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): 0 to 5.5 更多

INL (max) (±LSB): 1 Settling time (µs): 20 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Current source/sink DAC, EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.4 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC

DAC53004

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有 Hi-Z、EEPROM 和波形发生器的 10 位、4 通道低功耗电压/电流输出智能 DAC

Resolution (Bits): 10 Number of DAC channels: 4 Interface type: I2C, SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 20 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Current source/sink DAC, EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.13 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC Resolution (Bits): 10 Number of DAC channels: 4 Interface type: I2C, SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): 0 to 5.5 更多

INL (max) (±LSB): 1 Settling time (µs): 20 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Current source/sink DAC, EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.13 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC

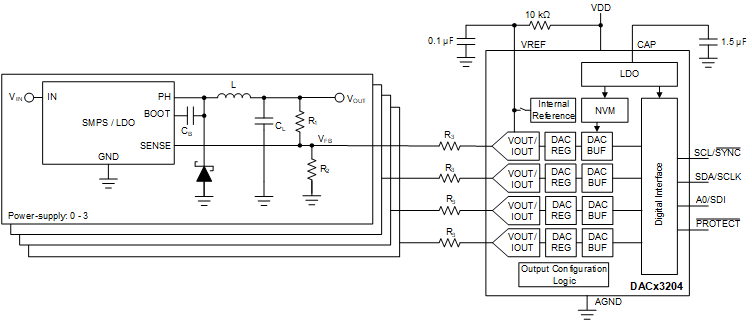

DAC53204

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有 Hi-Z、EEPROM 和波形发生器的 10 位、4 通道电压/电流输出智能 DAC

Resolution (Bits): 10 Number of DAC channels: 4 Interface type: I2C, SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 20 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Current source/sink DAC, EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.4 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC Resolution (Bits): 10 Number of DAC channels: 4 Interface type: I2C, SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): 0 to 5.5 更多

DAC63004

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有 Hi-Z、EEPROM 和波形发生器的 12 位、4 通道低功耗电压/电流输出智能 DAC

Resolution (Bits): 12 Number of DAC channels: 4 Interface type: I2C, SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 4 Settling time (µs): 20 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Current source/sink DAC, EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.13 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC Resolution (Bits): 12 Number of DAC channels: 4 Interface type: I2C, SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): 0 to 5.5 更多

INL (max) (±LSB): 4 Settling time (µs): 20 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Current source/sink DAC, EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.13 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC

DAC63204

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有 Hi-Z、EEPROM 和波形发生器的 12 位、4 通道电压/电流输出智能 DAC

Resolution (Bits): 12 Number of DAC channels: 4 Interface type: I2C, SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 4 Settling time (µs): 20 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Current source/sink DAC, EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.4 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC Resolution (Bits): 12 Number of DAC channels: 4 Interface type: I2C, SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): 0 to 5.5 更多

INL (max) (±LSB): 4 Settling time (µs): 20 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Current source/sink DAC, EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.4 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC

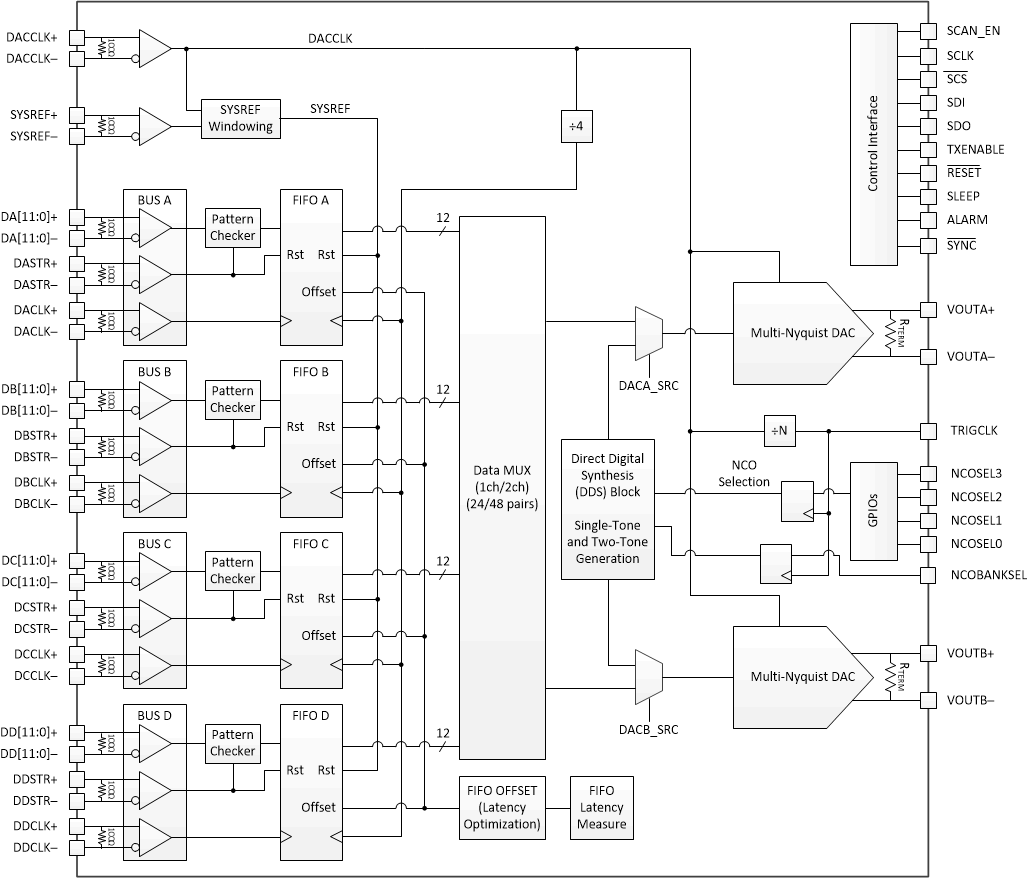

DAC12DL3200

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 12 位、低延迟、双通道 3.2GSPS 或单通道 6.4GSPS 射频采样 DAC（LVDS 接口）

Resolution (Bits): 12 Number of DAC channels: 1, 2 Interface type: DDR LVDS, Parallel LVDS Sample/update rate (Msps): 3200, 6400 Features: Ultra High Speed Rating: Catalog Interpolation: 1x Power consumption (typ) (mW): 1400 SFDR (dB): 80 Architecture: Current Source Operating temperature range (°C): -40 to 85 Reference type: Ext, Int Resolution (Bits): 12 Number of DAC channels: 1, 2 Interface type: DDR LVDS, Parallel LVDS Sample/update rate (Msps): 3200, 6400 Features: Ultra High Speed Rating: Catalog Interpolation: 1x Power consumption (typ) (mW): 1400 更多

SFDR (dB): 80 Architecture: Current Source Operating temperature range (°C): -40 to 85 Reference type: Ext, Int

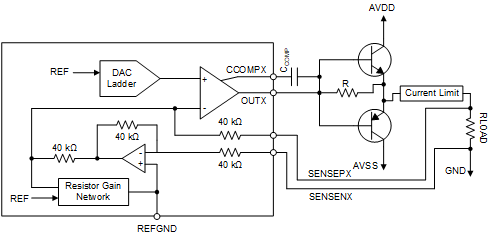

DAC61404

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有精密内部基准电压的四通道、12 位、高电压输出 DAC

Resolution (Bits): 12 Number of DAC channels: 4 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Settling time (µs): 6 Reference type: Ext, Int Architecture: R-2R Rating: Catalog Features: SDO Power consumption (typ) (mW): 300 Operating temperature range (°C): -40 to 125 Resolution (Bits): 12 Number of DAC channels: 4 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Settling time (µs): 6 更多

Reference type: Ext, Int Architecture: R-2R Rating: Catalog Features: SDO Power consumption (typ) (mW): 300 Operating temperature range (°C): -40 to 125

DAC81402

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有精密内部基准电压的双通道、16 位、高电压输出 DAC

Resolution (Bits): 16 Number of DAC channels: 2 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -5 to 5, 0 to 20, 0 to 40 INL (max) (±LSB): 1 Settling time (µs): 6 Reference type: Ext, Int Architecture: R-2R Rating: Catalog Features: Current source/sink DAC Power consumption (typ) (mW): 300 Operating temperature range (°C): -40 to 125 Product type: High-voltage DAC Resolution (Bits): 16 Number of DAC channels: 2 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -5 to 5, 0 to 20, 0 to 40 INL (max) (±LSB): 1 更多

Settling time (µs): 6 Reference type: Ext, Int Architecture: R-2R Rating: Catalog Features: Current source/sink DAC Power consumption (typ) (mW): 300 Operating temperature range (°C): -40 to 125 Product type: High-voltage DAC
