天天芯片 - 物料搜索

DAC43701

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有 Hi-Z、EEPROM、波形发生器、比较器和 GPIO 的 8 位、单通道电压输出智能 DAC

Resolution (Bits): 8 Number of DAC channels: 1 Interface type: I2C Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext, Int Architecture: String Rating: Catalog Features: EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.36 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC Resolution (Bits): 8 Number of DAC channels: 1 Interface type: I2C Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 更多

INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext, Int Architecture: String Rating: Catalog Features: EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.36 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC

DAC53701

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有 Hi-Z、EEPROM、波形发生器、比较器和 GPIO 的 10 位、单通道电压输出智能 DAC

Resolution (Bits): 10 Number of DAC channels: 1 Interface type: I2C Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Features: EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.36 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC Resolution (Bits): 10 Number of DAC channels: 1 Interface type: I2C Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 更多

INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Features: EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.36 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC

DAC61402

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有精密内部基准的双通道、12 位、±20V 电压范围、缓冲输出 DAC

Resolution (Bits): 12 Number of DAC channels: 2 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Reference type: Ext, Int Architecture: R-2R Rating: Catalog Operating temperature range (°C): -40 to 125 Resolution (Bits): 12 Number of DAC channels: 2 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Reference type: Ext, Int Architecture: R-2R Rating: Catalog Operating temperature range (°C): -40 to 125

DAC81404

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

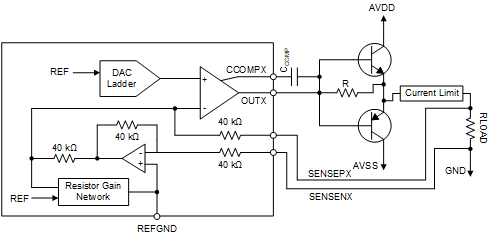

描述: 具有精密内部基准的四通道、16 位、高电压输出 DAC

Resolution (Bits): 16 Number of DAC channels: 4 Interface type: SPI, Serial SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -20 to 20, -5 to 5, 0 to 10, 0 to 20, 0 to 40, 0 to 5 INL (max) (±LSB): 1 Settling time (µs): 6 Reference type: Ext, Int Architecture: R-2R Rating: Catalog Operating temperature range (°C): -40 to 125 Product type: High-voltage DAC Resolution (Bits): 16 Number of DAC channels: 4 Interface type: SPI, Serial SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -20 to 20, -5 to 5, 0 to 10, 0 to 20, 0 to 40, 0 to 5 INL (max) (±LSB): 1 Settling time (µs): 6 Reference type: Ext, Int 更多

Architecture: R-2R Rating: Catalog Operating temperature range (°C): -40 to 125 Product type: High-voltage DAC

DAC43401-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有 Hi-Z、EEPROM、波形发生器和比较器的汽车类、8 位、单通道 VOUT 智能 DAC

Resolution (Bits): 8 Number of DAC channels: 1 Interface type: I2C Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext, Int Architecture: String Rating: Automotive Features: EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.36 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC Resolution (Bits): 8 Number of DAC channels: 1 Interface type: I2C Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 更多

INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext, Int Architecture: String Rating: Automotive Features: EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.36 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC

DAC53401-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有 Hi-Z、EEPROM、波形发生器和比较器的汽车类、10 位、单通道 VOUT 智能 DAC

Resolution (Bits): 10 Number of DAC channels: 1 Interface type: I2C Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext, Int Architecture: String Rating: Automotive Features: EEPROM, Smart DAC Sample/update rate (Msps): 0.025 Power consumption (typ) (mW): 0.36 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC, Smart DAC Resolution (Bits): 10 Number of DAC channels: 1 Interface type: I2C Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 更多

DAC81001

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

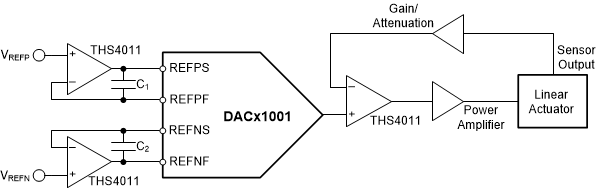

描述: 具有超低噪声、低干扰和出色 THD 的 16 位单调 DAC

Resolution (Bits): 16 Number of DAC channels: 1 Interface type: SPI Output type: Unbuffered Voltage Output voltage range (V): -10 to 10 INL (max) (±LSB): 1 Settling time (µs): 1 Reference type: Ext Architecture: R-2R Rating: Catalog Sample/update rate (Msps): 0.4 Operating temperature range (°C): -40 to 125 Product type: Precision DAC Resolution (Bits): 16 Number of DAC channels: 1 Interface type: SPI Output type: Unbuffered Voltage Output voltage range (V): -10 to 10 INL (max) (±LSB): 1 Settling time (µs): 1 更多

Reference type: Ext Architecture: R-2R Rating: Catalog Sample/update rate (Msps): 0.4 Operating temperature range (°C): -40 to 125 Product type: Precision DAC

DAC91001

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有超低噪声、低干扰和出色 THD 的 18 位单调 DAC

Resolution (Bits): 18 Number of DAC channels: 1 Interface type: SPI Output type: Unbuffered Voltage Output voltage range (V): -10 to 10 INL (max) (±LSB): 1 Settling time (µs): 1 Reference type: Ext Architecture: R-2R Rating: Catalog Operating temperature range (°C): -40 to 125 Product type: Precision DAC Resolution (Bits): 18 Number of DAC channels: 1 Interface type: SPI Output type: Unbuffered Voltage Output voltage range (V): -10 to 10 INL (max) (±LSB): 1 Settling time (µs): 1 Reference type: Ext 更多

Architecture: R-2R Rating: Catalog Operating temperature range (°C): -40 to 125 Product type: Precision DAC

DAC60502

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

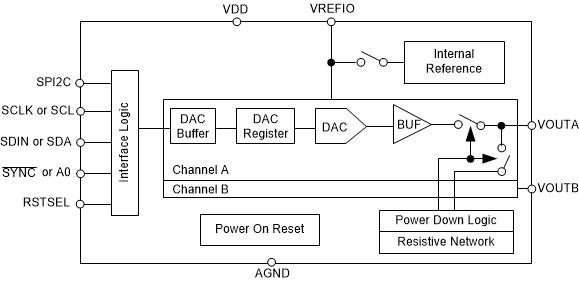

描述: 双通道 1LSB INL 12 位 SPI 电压输出数模转换器 (DAC)

Resolution (Bits): 12 Number of DAC channels: 2 Interface type: I2C, SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 5 Reference type: Ext, Int Architecture: R-2R Rating: Catalog Features: Reset to Mid-Scale Power consumption (typ) (mW): 3.6 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC Resolution (Bits): 12 Number of DAC channels: 2 Interface type: I2C, SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 更多

Settling time (µs): 5 Reference type: Ext, Int Architecture: R-2R Rating: Catalog Features: Reset to Mid-Scale Power consumption (typ) (mW): 3.6 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC

DAC70502

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 双通道 1LSB INL 14 位 SPI 电压输出数模转换器 (DAC)

Resolution (Bits): 14 Number of DAC channels: 2 Interface type: I2C, SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 5 Reference type: Ext, Int Architecture: R-2R Rating: Catalog Features: Reset to Mid-Scale Power consumption (typ) (mW): 3.6 Operating temperature range (°C): -40 to 125 Product type: Precision DAC Resolution (Bits): 14 Number of DAC channels: 2 Interface type: I2C, SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 更多
