THS6093


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有关断模式的 275mA、+12V ADSL CPE 和 PLC 线路驱动器

Number of channels: 2 Architecture: DSL Line Driver, PLC Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 5 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 14 BW at Acl (MHz): 100 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 2.1 Vn at 1 kHz (typ) (nV√Hz): 2.1 Iq per channel (typ) (mA): 7.3 Vos (offset voltage at 25°C) (max) (mV): 16 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 63 Input bias current (max) (pA): 10000000 Offset drift (typ) (µV/°C): 20 GBW (typ) (MHz): 100 Iout (typ) (mA): 275 Number of channels: 2 Architecture: DSL Line Driver, PLC Line Driver
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 5 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 14 BW at Acl (MHz): 100 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 2.1 Vn at 1 kHz (typ) (nV√Hz): 2.1 Iq per channel (typ) (mA): 7.3 Vos (offset voltage at 25°C) (max) (mV): 16 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 63 Input bias current (max) (pA): 10000000 Offset drift (typ) (µV/°C): 20 GBW (typ) (MHz): 100 Iout (typ) (mA): 275

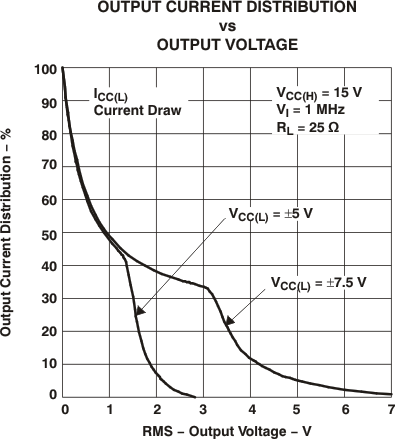

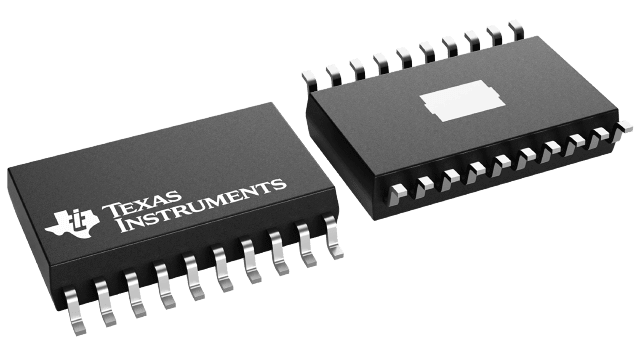

THS6032


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 低功耗、双通道 G 类放大器和 DSL/PLC 线路驱动器

Number of channels: 2 Architecture: DSL Line Driver, PLC Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 10 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 32 BW at Acl (MHz): 100 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 2.4 Vn at 1 kHz (typ) (nV√Hz): 2.8 Iq per channel (typ) (mA): 8.3 Vos (offset voltage at 25°C) (max) (mV): 5 Rail-to-rail: No Features: Adjustable BW/IQ/IOUT, Shutdown Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 72 Input bias current (max) (pA): 9000000 Offset drift (typ) (µV/°C): 10 GBW (typ) (MHz): 100 Iout (typ) (mA): 440 2nd harmonic (dBc): 79
3rd harmonic (dBc): 68 Frequency of harmonic distortion measurement (MHz): 1 Number of channels: 2 Architecture: DSL Line Driver, PLC Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 10 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 32 BW at Acl (MHz): 100 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 2.4 Vn at 1 kHz (typ) (nV√Hz): 2.8 Iq per channel (typ) (mA): 8.3 Vos (offset voltage at 25°C) (max) (mV): 5 Rail-to-rail: No Features: Adjustable BW/IQ/IOUT, Shutdown Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 72 Input bias current (max) (pA): 9000000 Offset drift (typ) (µV/°C): 10 GBW (typ) (MHz): 100 Iout (typ) (mA): 440 2nd harmonic (dBc): 79 3rd harmonic (dBc): 68 Frequency of harmonic distortion measurement (MHz): 1

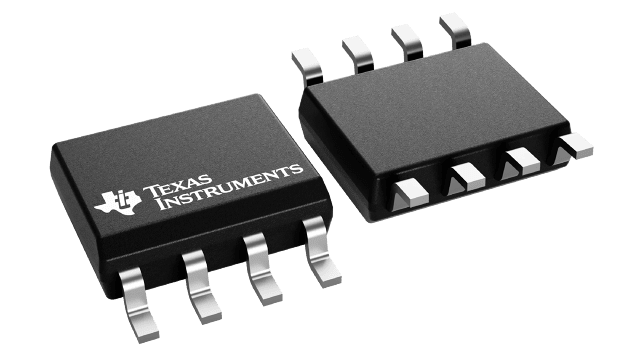

THS6072


分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 低功耗 ADSL 差分接收器

Number of channels: 2 Architecture: DSL Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 9 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 32 BW at Acl (MHz): 175 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 10 Vn at 1 kHz (typ) (nV√Hz): 13 Iq per channel (typ) (mA): 3.4 Vos (offset voltage at 25°C) (max) (mV): 7 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 90 Input bias current (max) (pA): 10000000 Offset drift (typ) (µV/°C): 15 GBW (typ) (MHz): 175 Iout (typ) (mA): 85 2nd harmonic (dBc): 81 3rd harmonic (dBc): 87
Frequency of harmonic distortion measurement (MHz): 1 Number of channels: 2 Architecture: DSL Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 9 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 32 BW at Acl (MHz): 175 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 10 Vn at 1 kHz (typ) (nV√Hz): 13 Iq per channel (typ) (mA): 3.4 Vos (offset voltage at 25°C) (max) (mV): 7 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 90 Input bias current (max) (pA): 10000000 Offset drift (typ) (µV/°C): 15 GBW (typ) (MHz): 175 Iout (typ) (mA): 85 2nd harmonic (dBc): 81 3rd harmonic (dBc): 87 Frequency of harmonic distortion measurement (MHz): 1

THS6062


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 低噪声 ADSL 双路差分接收器

Number of channels: 2 Architecture: DSL Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 33 BW at Acl (MHz): 100 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 1.6 Vn at 1 kHz (typ) (nV√Hz): 1.9 Iq per channel (typ) (mA): 7.5 Vos (offset voltage at 25°C) (max) (mV): 6 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 95 Input bias current (max) (pA): 10000000 Offset drift (typ) (µV/°C): 20 GBW (typ) (MHz): 100 Iout (typ) (mA): 90 2nd harmonic (dBc): 91 3rd harmonic (dBc): 109
Frequency of harmonic distortion measurement (MHz): 1 Number of channels: 2 Architecture: DSL Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 33 BW at Acl (MHz): 100 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 1.6 Vn at 1 kHz (typ) (nV√Hz): 1.9 Iq per channel (typ) (mA): 7.5 Vos (offset voltage at 25°C) (max) (mV): 6 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 95 Input bias current (max) (pA): 10000000 Offset drift (typ) (µV/°C): 20 GBW (typ) (MHz): 100 Iout (typ) (mA): 90 2nd harmonic (dBc): 91 3rd harmonic (dBc): 109 Frequency of harmonic distortion measurement (MHz): 1

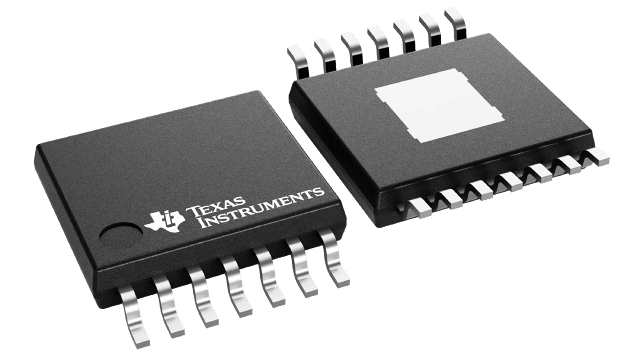

THS6022


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 250mA 双路差分 DSL 和 PLC 线路驱动器

Number of channels: 2 Architecture: DSL Line Driver, PLC Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 9 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 33 BW at Acl (MHz): 210 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 1.7 Vn at 1 kHz (typ) (nV√Hz): 1.8 Iq per channel (typ) (mA): 7.2 Vos (offset voltage at 25°C) (max) (mV): 5 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 73 Input bias current (max) (pA): 10000000 Offset drift (typ) (µV/°C): 20 GBW (typ) (MHz): 210 Iout (typ) (mA): 250 2nd harmonic (dBc): 76 3rd harmonic (dBc): 80
Frequency of harmonic distortion measurement (MHz): 1 Number of channels: 2 Architecture: DSL Line Driver, PLC Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 9 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 33 BW at Acl (MHz): 210 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 1.7 Vn at 1 kHz (typ) (nV√Hz): 1.8 Iq per channel (typ) (mA): 7.2 Vos (offset voltage at 25°C) (max) (mV): 5 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 73 Input bias current (max) (pA): 10000000 Offset drift (typ) (µV/°C): 20 GBW (typ) (MHz): 210 Iout (typ) (mA): 250 2nd harmonic (dBc): 76 3rd harmonic (dBc): 80 Frequency of harmonic distortion measurement (MHz): 1

THS6012


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 500mA 双路差分 DSL 和 PLC 线路驱动器

Number of channels: 2 Architecture: DSL Line Driver, PLC Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 9 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 33 BW at Acl (MHz): 140 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 1.7 Vn at 1 kHz (typ) (nV√Hz): 1.8 Iq per channel (typ) (mA): 11.5 Vos (offset voltage at 25°C) (max) (mV): 5 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 70 Input bias current (max) (pA): 10000000 Offset drift (typ) (µV/°C): 20 GBW (typ) (MHz): 140 Iout (typ) (mA): 500 2nd harmonic (dBc): 80 3rd harmonic (dBc): 85
Frequency of harmonic distortion measurement (MHz): 1 Number of channels: 2 Architecture: DSL Line Driver, PLC Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 9 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 33 BW at Acl (MHz): 140 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 1.7 Vn at 1 kHz (typ) (nV√Hz): 1.8 Iq per channel (typ) (mA): 11.5 Vos (offset voltage at 25°C) (max) (mV): 5 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 70 Input bias current (max) (pA): 10000000 Offset drift (typ) (µV/°C): 20 GBW (typ) (MHz): 140 Iout (typ) (mA): 500 2nd harmonic (dBc): 80 3rd harmonic (dBc): 85 Frequency of harmonic distortion measurement (MHz): 1

THS6002


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 双路差分 DSL 线路驱动器/接收器

Number of channels: 4 Architecture: Current FB, DSL Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 9 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 33 BW at Acl (MHz): 140 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 1.7 Vn at 1 kHz (typ) (nV√Hz): 1.8 Iq per channel (typ) (mA): 11.5 Vos (offset voltage at 25°C) (max) (mV): 4 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 70 Input bias current (max) (pA): 9000000 Offset drift (typ) (µV/°C): 20 GBW (typ) (MHz): 140 Iout (typ) (mA): 500 2nd harmonic (dBc): 70 3rd harmonic (dBc): 80
Frequency of harmonic distortion measurement (MHz): 1 Number of channels: 4 Architecture: Current FB, DSL Line Driver Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 9 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 33 BW at Acl (MHz): 140 Acl, min spec gain (V/V): 1 Vn at flatband (typ) (nV√Hz): 1.7 Vn at 1 kHz (typ) (nV√Hz): 1.8 Iq per channel (typ) (mA): 11.5 Vos (offset voltage at 25°C) (max) (mV): 4 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 70 Input bias current (max) (pA): 9000000 Offset drift (typ) (µV/°C): 20 GBW (typ) (MHz): 140 Iout (typ) (mA): 500 2nd harmonic (dBc): 70 3rd harmonic (dBc): 80 Frequency of harmonic distortion measurement (MHz): 1

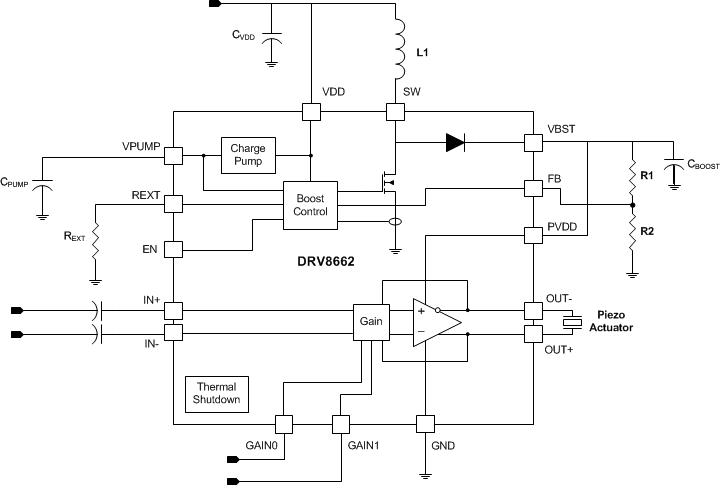

DRV8662


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 采用 QFN 封装且具有集成式 105V 升压转换器的压电式触觉驱动器

Haptic actuator type: Piezo Input signal: Analog, PWM Vs (min) (V): 3 Vs (max) (V): 5.5 Vout (max) (V): 100 Peak-to-peak output voltage (max) (V): 200 Iq (typ) (mA): 5 Shutdown current (ISD) (µA): 13 Startup time (ms): 1.5 Operating temperature range (°C): -40 to 70 Rating: Catalog Haptic actuator type: Piezo Input signal: Analog, PWM Vs (min) (V): 3 Vs (max) (V): 5.5 Vout (max) (V): 100 Peak-to-peak output voltage (max) (V): 200 Iq (typ) (mA): 5 Shutdown current (ISD) (µA): 13 Startup time (ms): 1.5
Operating temperature range (°C): -40 to 70 Rating: Catalog

LMKDB1104


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 适用于 PCIe 第 1 代至第 6 代的 4 路输出 LP-HCSL 时钟缓冲器

Function: Clock buffer, Differential Additive RMS jitter (typ) (fs): 19.2 Output frequency (max) (MHz): 400 Number of outputs: 4 Output supply voltage (V): 1.8, 3.3 Core supply voltage (V): 1.8, 3.3 Output skew (ps): 50 Operating temperature range (°C): -40 to 105 Rating: Catalog Output type: LP-HCSL Input type: LP-HCSL Function: Clock buffer, Differential Additive RMS jitter (typ) (fs): 19.2 Output frequency (max) (MHz): 400 Number of outputs: 4 Output supply voltage (V): 1.8, 3.3 Core supply voltage (V): 1.8, 3.3 Output skew (ps): 50 Operating temperature range (°C): -40 to 105 Rating: Catalog
Output type: LP-HCSL Input type: LP-HCSL

LMKDB1204


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 适用于 PCIe 第 1 代至第 6 代的双输入、4 输出 LP-HCSL 时钟多路复用器

Function: Clock buffer, Differential Additive RMS jitter (typ) (fs): 19.2 Output frequency (max) (MHz): 400 Number of outputs: 4 Output supply voltage (V): 1.8, 3.3 Core supply voltage (V): 1.8, 3.3 Output skew (ps): 50 Operating temperature range (°C): -40 to 105 Rating: Catalog Output type: LP-HCSL Input type: LP-HCSL Function: Clock buffer, Differential Additive RMS jitter (typ) (fs): 19.2 Output frequency (max) (MHz): 400 Number of outputs: 4 Output supply voltage (V): 1.8, 3.3 Core supply voltage (V): 1.8, 3.3 Output skew (ps): 50 Operating temperature range (°C): -40 to 105 Rating: Catalog
Output type: LP-HCSL Input type: LP-HCSL
