Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

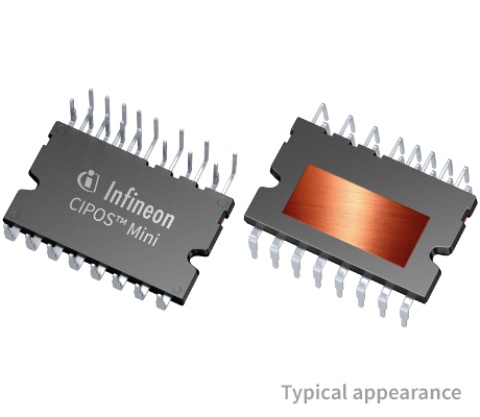

Configuration: 3 Phase Open Emitter
Pmot(10kHz): 800.0W
Product Group: CIPOS™ Mini
Switch Type: IGBT
Voltage Class: 600.0V
Rated Current: 10.0A
Built in NTC: Yes
IRSM836-084MA
分类: 微电路 / 多芯片组件(MCM)数据:

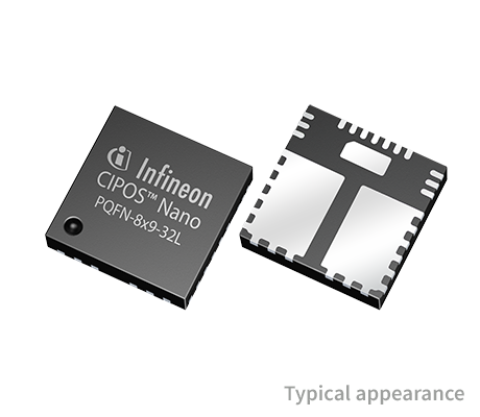

简介: CIPOS™ Nano 250 V, 0.45 Ω three-phase intelligent power module
Voltage Class: 250.0V
Pmot(10kHz): 85.0W
Product Group: CIPOS™ Nano
Built in NTC: No
Configuration: 3 Phase Open Source
Encryption: No
Additional Information: Electrical
Switch Type: MOSFET
RDS (on)(@ Tj = 25°C): NoneΩ
Product Name: IRSM836-084MA
Qualification: Industrial
Language: PLECS
Product Category: Intelligent Power Modules (IPM)
Rated Current: 7.0A
IRSM005-301MH
分类: 微电路 / 多芯片组件(MCM)数据:

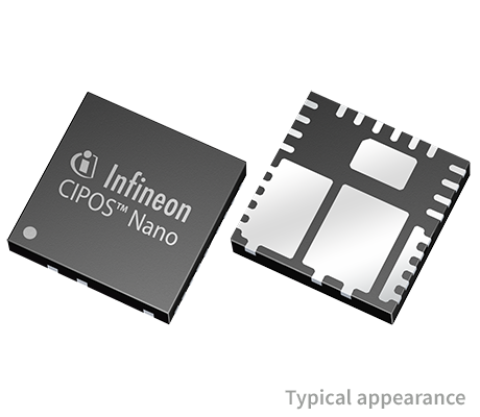

简介: CIPOS™ Nano 100 V, 0.02 Ω half-bridge intelligent power module
Voltage Class: 100.0V
Pmot(10kHz): 165.0W
Product Group: CIPOS™ Nano
Applications: Motor Control & Drives
Built in NTC: No
Configuration: Half-Bridge
Encryption: no
Additional Information: Electrical
Switch Type: MOSFET
RDS (on)(@ Tj = 25°C): NoneΩ
Product Name: IRSM005-301MH
Qualification: Industrial
Language: PLECS
Product Category: Intelligent Power Modules (IPM)
IRSM807-105MH
分类: 微电路 / 多芯片组件(MCM)数据:
简介: CIPOS™ Nano 500 V, 0.8 Ω half-bridge intelligent power module
Voltage Class: 500.0V
Pmot(10kHz): 200.0W
Product Group: CIPOS™ Nano
Built in NTC: No
Configuration: Half-Bridge
Encryption: No
Additional Information: Electrical
Switch Type: MOSFET
RDS (on)(@ Tj = 25°C): NoneΩ
Product Name: IRSM807-105MH
Qualification: Industrial
Language: PLECS
Product Category: Intelligent Power Modules (IPM)
Rated Current: 10.0A
Built in NTC: Yes
Configuration: 3 Phase Open Emitter
Encryption: No
Pmot(10kHz): 3000.0W
Product Category: Intelligent Power Modules (IPM)

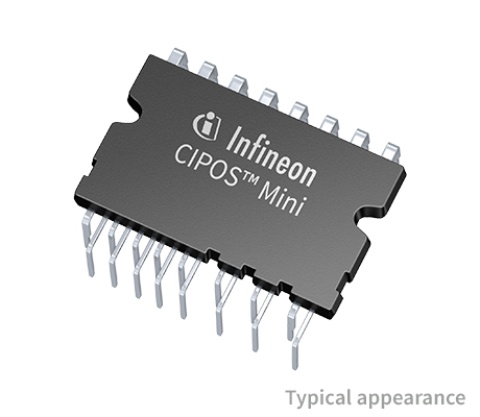

Product Group: CIPOS™ Mini
Product Name: IM535-U6D
Qualification: Industrial
Rated Current: 30.0A
Switch Type: IGBT
Voltage Class: 600.0V
Additional Information: Electrical
Additional Information: Electrical
Built in NTC: Yes
Configuration: 3 Phase Open Emitter
Encryption: no
IC(@ 25°): 15.0A
Language: PLECS
Product Category: Intelligent Power Modules (IPM)
Product Group: CIPOS™ Tiny

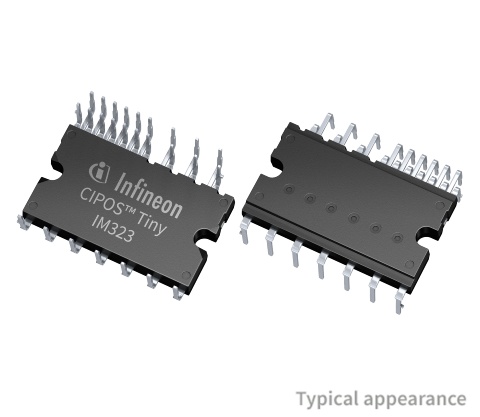

Product Name: IM323-L6G2
Rated Current: 15.0A
Simulator: Yes
Voltage Class: 600.0V
Pmot(10kHz): 1200.0W
Qualification: Industrial
Switch Type: IGBT
Built in NTC: Yes
Configuration: 3 Phase Open Emitter
Pmot(10kHz): 1200.0W
Product Group: CIPOS™ Mini
Rated Current: 15.0A
Switch Type: IGBT
Voltage Class: 600.0V
Additional Information: Electrical
Built in NTC: Yes
Configuration: 3 Phase Open Emitter
Encryption: no
IC(@ 25°): 15.0A
Language: PLECS
Product Category: Intelligent Power Modules (IPM)
Product Group: CIPOS™ Tiny
Product Name: IM323-L6G
Rated Current: 15.0A
Simulator: Yes
Voltage Class: 600.0V
Qualification: Industrial
Pmot(10kHz): 1200.0W
Switch Type: IGBT
I[out] max: 10000.0mA
I[out] max: 7000.0mA
I[out] max: 1200.0mA
I[out] max: 1000.0mA
I[out] max: 600.0mA
I[out] max: 150.0mA
I[out] max: 30.0mA
I[q]: 70.0µA

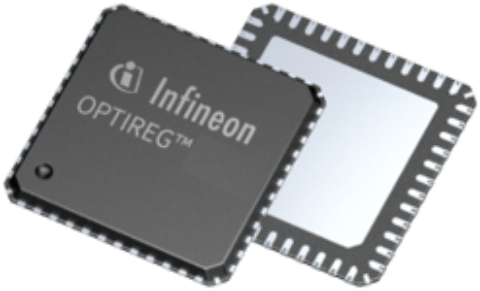

Comments: Automotive Safety PMIC
Comments: companion power IC for Aurix™ MCU and peripherals
Comments: Buck PreReg
Comments: Buck PostReg for core supply
Comments: Buck PostReg for highspeed interface supply
Comments: Boost PostReg
Comments: 3 linear PostRegs (µC, RefLDO, TRX)
Comments: StandBy-LDO
Comments: ISO 26262-compliant
Comments: Grade 0
Comments: Safety Features
Base Product: TLF4D985Qx
更多
ISO 26262: ASIL-D
Enable (=Inhibit): yes
V[Q] (multiple): 4.0V or 5.5V
V[Q] (multiple): 1.0V
V[Q] (multiple): 1.8V
V[Q] (multiple): 5.8V
V[Q] (multiple): 5.0V
V[Q] (multiple): 3.3V
Watchdog: Window-WD
Watchdog: Functional-WD
Package: PG-LQFP-64
Qualification: Automotive
Classification: ISO 26262-compliant
Regulator Type: Pre-Buck
Regulator Type: Post-Buck
Regulator Type: Post-Boost
Regulator Type: Post-LDO
Reset: yes
Target Application: Safe Control
Target Application: Safe Computing
Tolerance: 2%
Operating Temperature max: 175.0°C
Operating Voltage max: 52.0V
Over Voltage Protection: yes
Product Group: PMIC
IRSM808-105MH
分类: 微电路 / 多芯片组件(MCM)数据:
简介: CIPOS™ Nano 500 V, 0.8 Ω half-bridge intelligent power module
Voltage Class: 500.0V
Pmot(10kHz): 200.0W
Product Group: CIPOS™ Nano
Built in NTC: No
Configuration: Half-Bridge
Encryption: No
Additional Information: Electrical
Switch Type: MOSFET
RDS (on)(@ Tj = 25°C): NoneΩ
Product Name: IRSM808-105MH
Qualification: Industrial
Language: PLECS
Product Category: Intelligent Power Modules (IPM)
Rated Current: 10.0A
