INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

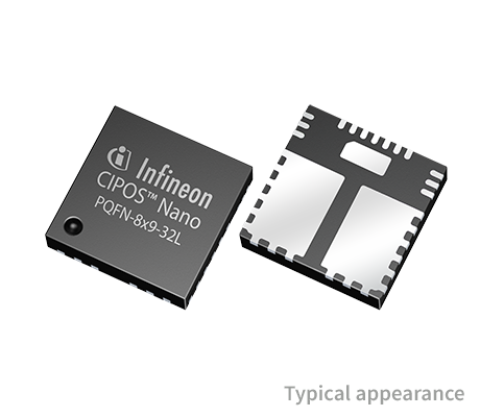

IRSM005-800MH

分类: 微电路 / 多芯片组件(MCM)
数据:

简介: CIPOS™ Nano 40 V, 0.005 Ω half-bridge intelligent power module

Voltage Class: 40.0V Pmot(10kHz): 165.0W Product Group: CIPOS™ Nano Built in NTC: No Configuration: Half-Bridge Encryption: no Additional Information: Electrical Switch Type: MOSFET RDS (on)(@ Tj = 25°C): NoneΩ Product Name: IRSM005-800MH Qualification: Industrial Language: PLECS Product Category: Intelligent Power Modules (IPM) Rated Current: 80.0A

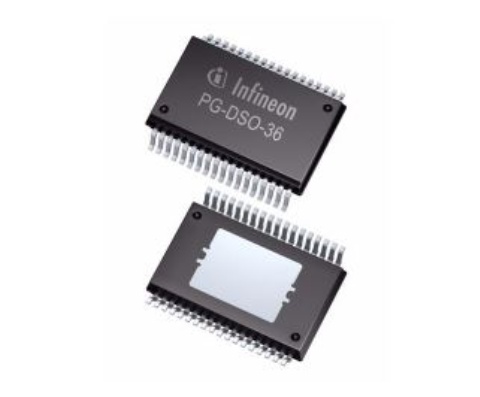

TLE7368E

分类:
数据:

简介: The TLE7368E device is a multifunctional power supply circuit especially designed for Automotive powertrain systems using a standard 12 V battery.

I[out] max: 800.0mA I[out] max: 700.0mA I[out] max: 70.0mA I[out] max: 105.0mA I[out] max: 50.0mA I[out] max: 30.0mA I[q]: 120.0µA Comments: Automotive PMIC Comments: 3 linear post regulators (5V, 3.3/2.6V, 1.5V) Comments: selectable StandBy-Vreg (1.0/2.6V) and 2 voltage trackers (5V) Base Product: TLE7368 ISO 26262: QM Enable (=Inhibit): yes V[Q] (multiple): 5.0 V V[Q] (multiple): 3.3 V/2.6 V V[Q] (multiple): 1.5 V V[Q] (multiple): 1.0 V/2.6 V Watchdog: Window-WD Package: PG-DSO-36 Qualification: Automotive
Regulator Type: Buck Reset: yes Target Application: Safe Control Tolerance: 2% Operating Temperature max: 150.0°C Operating Voltage max: 45.0V Over Voltage Protection: no Product Group: PMIC Currently planned availability until at least: 2029

TLE7368-3E

分类:
数据:

简介: The TLE7368-3E device is a multifunctional power supply circuit especially designed for Automotive powertrain systems using a standard 12 V battery.

I[out] max: 800.0mA I[out] max: 700.0mA I[out] max: 70.0mA I[out] max: 105.0mA I[out] max: 50.0mA I[out] max: 30.0mA I[q]: 120.0µA Comments: Automotive PMIC Comments: 3 linear post regulators (5V, 3.3/2.6V, 1.5V) Comments: selectable StandBy-Vreg (1.0/2.6V) and 2 voltage trackers (5V) Base Product: TLE7368 ISO 26262: QM Enable (=Inhibit): yes V[Q] (multiple): 5.0 V V[Q] (multiple): 3.3 V/2.6 V V[Q] (multiple): 1.3 V V[Q] (multiple): 1.0 V/2.6 V Watchdog: Window-WD Package: PG-DSO-36 Qualification: Automotive
Regulator Type: Buck Reset: yes Target Application: Safe Control Tolerance: 2% Operating Temperature max: 150.0°C Operating Voltage max: 45.0V Over Voltage Protection: no Product Group: PMIC Currently planned availability until at least: 2029

TLE6368G2

分类:
数据:

简介: The TLE6368G2 is a multi voltage power supply system especially designed for automotive applications (12V / 24V battery and the new 42V powernet).

I[out] max: 800.0mA I[out] max: 500.0mA I[out] max: 350.0mA I[out] max: 17.0mA I[out] max: 1.0mA I[q]: 10.0µA Comments: Automotive PMIC, Vin up to 60V Comments: SPI Base Product: TLE6368 ISO 26262: QM Enable (=Inhibit): no V[Q] (multiple): 5.0 V V[Q] (multiple): 2.6 V / 3.3 V V[Q] (multiple): 5 V (trackers) V[Q] (multiple): 2.4 V Watchdog: Window-WD Package: PG-VQFN-48 Qualification: Automotive Regulator Type: Buck Reset: yes
Target Application: Safe Control Tolerance: 2% Operating Temperature max: 150.0°C Operating Voltage max: 60.0V Over Voltage Protection: no Product Group: PMIC Classification: n.a Currently planned availability until at least: n.a

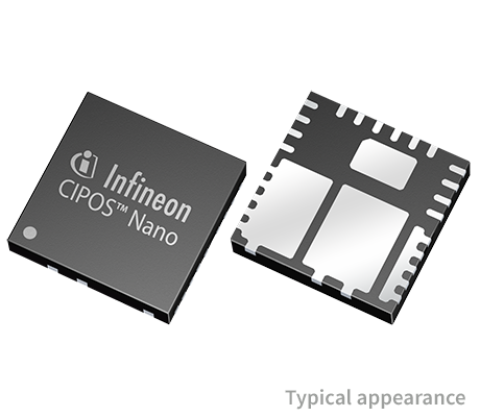

IRSM807-045MH

分类: 微电路 / 多芯片组件(MCM)
数据:

简介: CIPOS™ Nano 500 V, 1.7 Ω half-bridge intelligent power module

Voltage Class: 500.0V Pmot(10kHz): 130.0W Product Group: CIPOS™ Nano Built in NTC: No Configuration: Half-Bridge Encryption: No Additional Information: Electrical Switch Type: MOSFET RDS (on)(@ Tj = 25°C): NoneΩ Product Name: IRSM807-045MH Qualification: Industrial Language: PLECS Product Category: Intelligent Power Modules (IPM) Rated Current: 4.0A

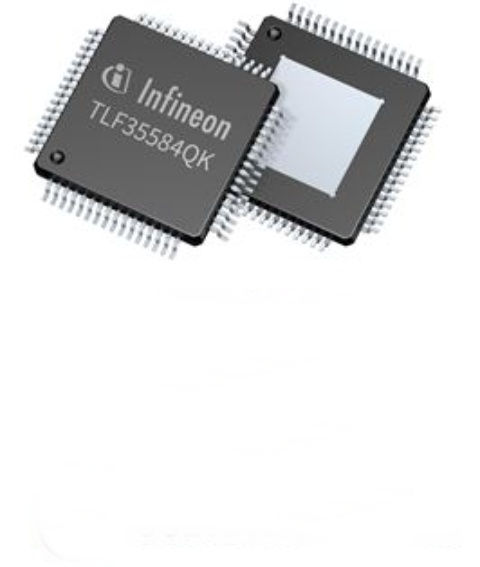

TLF35584QKVS1

分类:
数据:

简介: The TLF35584QKVS1 is a multiple output system supply for safety-relevant applications supplying 5V-μC, transceivers, and sensors.

I[out] max: 1300.0mA I[out] max: 200.0mA I[out] max: 600.0mA I[out] max: 150.0mA I[out] max: 10.0mA I[q]: 70.0µA Comments: 3 linear PostRegs (µC, RefLDO, TRX) Comments: 2 tracker Comments: StBy-LDO Comments: ISO 26262-compliant Comments: Safety Features Base Product: TLF35584Qx ISO 26262: ASIL-D Enable (=Inhibit): yes V[Q] (multiple): 5.8 V V[Q] (multiple): 5.0 V Watchdog: Window-WD Watchdog: Functional-WD Package: PG-DSO-20 Qualification: Automotive
Classification: ISO 26262-compliant Regulator Type: Buck-boost Reset: yes Target Application: Safe Control Target Application: Safe Computing Tolerance: 2% Operating Temperature max: 150.0°C Operating Voltage max: 40.0V Over Voltage Protection: yes Currently planned availability until at least: 2038 Product Group: PMIC

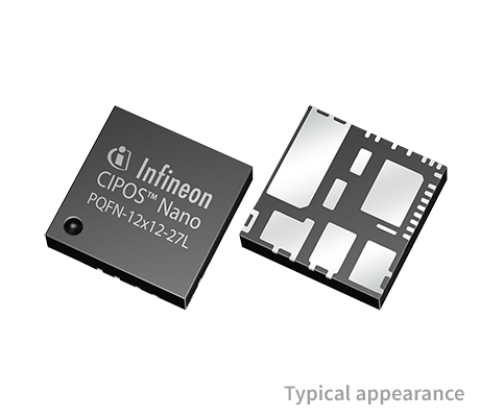

IRSM836-045MA

分类: 微电路 / 多芯片组件(MCM)
数据:

简介: CIPOS™ Nano 500 V, 1.7 Ω three-phase intelligent power module

Voltage Class: 500.0V Pmot(10kHz): 80.0W Product Group: CIPOS™ Nano Built in NTC: No Configuration: 3 Phase Open Source Encryption: No Additional Information: Electrical Switch Type: MOSFET RDS (on)(@ Tj = 25°C): NoneΩ Product Name: IRSM836-045MA Qualification: Industrial Language: PLECS Product Category: Intelligent Power Modules (IPM) Rated Current: 4.0A

IGCM06G60GA

分类: 微电路 / 多芯片组件(MCM)
数据:

简介: CIPOS™ Mini 600 V, 6 A three-phase intelligent power module

Voltage Class: 600.0V Rated Current: 6.0A Pmot(10kHz): 800.0W Product Group: CIPOS™ Mini Built in NTC: Yes Configuration: 3 Phase Closed Emitter Encryption: no Additional Information: Electrical Switch Type: IGBT Qualification: Industrial Product Name: IGCM06G60GA Language: PLECS Product Category: Intelligent Power Modules (IPM)

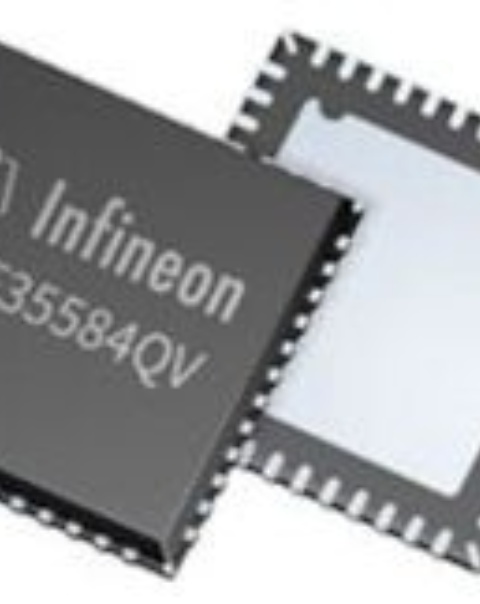

TLF35584QVVS2

分类:
数据:

简介: The TLF35584QVVS2 is a multiple output system supply for safety-relevant applications supplying 3.3V-μC, transceivers, and sensors.

I[out] max: 1300.0mA I[out] max: 200.0mA I[out] max: 600.0mA I[out] max: 150.0mA I[out] max: 10.0mA I[q]: 70.0µA Comments: 3 linear PostRegs (µC, RefLDO, TRX) Comments: 2 tracker Comments: StBy-LDO Comments: ISO 26262-compliant Comments: Safety Features Base Product: TLF35584Qx ISO 26262: ASIL-D Enable (=Inhibit): yes V[Q] (multiple): 5.0 V V[Q] (multiple): 5.8 V Watchdog: Functional-WD Watchdog: Window-WD Package: PG-VQFN-48 Qualification: Automotive
Classification: ISO 26262-compliant Regulator Type: Buck-boost Reset: yes Target Application: Safe Computing Target Application: Safe Control Tolerance: 2% Operating Temperature max: 150.0°C Operating Voltage max: 40.0V Over Voltage Protection: yes Currently planned availability until at least: 2038 Product Group: PMIC

TLF35584QKVS2

分类:
数据:

简介: The TLF35584QKVS2 is a multiple output system supply for safety-relevant applications supplying 3.3V-μC, transceivers, and sensors.

I[out] max: 1300.0mA I[out] max: 200.0mA I[out] max: 600.0mA I[out] max: 150.0mA I[out] max: 10.0mA I[q]: 70.0µA Comments: 3 linear PostRegs (µC, RefLDO, TRX) Comments: 2 tracker Comments: StBy-LDO Comments: ISO 26262-compliant Comments: Safety Features Base Product: TLF35584Qx ISO 26262: ASIL-D Enable (=Inhibit): yes V[Q] (multiple): 5.0 V V[Q] (multiple): 5.8 V Watchdog: Functional-WD Watchdog: Window-WD Package: PG-LQFP-64 Qualification: Automotive
Classification: ISO 26262-compliant Regulator Type: Buck-boost Reset: yes Target Application: Safe Computing Target Application: Safe Control Tolerance: 2% Operating Temperature max: 150.0°C Operating Voltage max: 40.0V Over Voltage Protection: yes Currently planned availability until at least: 2038 Product Group: PMIC
