Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。
TLE6711GL
分类:数据:
简介: The TLE6711GL is a multifunctional power supply circuit especially designed for automotive applications.
I[out] max: 250.0mA
I[q]: 1500.0µA
Comments: Automotive Multifunctional Voltage Regulator and Watchdog
Base Product: TLE6711xx
ISO 26262: QM
Enable (=Inhibit): no
V[Q] (multiple): 5.0 V
Watchdog: Window-WD
Package: PG-VQFN-48
Qualification: Automotive
Regulator Type: Buck-boost
Reset: yes
Target Application: Safe Control
Tolerance: 2%
Operating Temperature max: 150.0°C
Operating Voltage max: 35.0V
Over Voltage Protection: no
Product Group: PMIC
Classification: n.a
Currently planned availability until at least: n.a
TLF35584QVHS2
分类:数据:
简介: The TLF35584QVHS2 is a multiple output system supply for safety-relevant applications supplying 3.3 V-μC, transceivers, and sensors by an efficient and flexible pre-/post-regulator concept over a wide input voltage range.
I[out] max: 1300.0mA
I[out] max: 200.0mA
I[out] max: 600.0mA
I[out] max: 150.0mA
I[out] max: 10.0mA
I[q]: 70.0µA
Comments: 3 linear PostRegs (µC, RefLDO, TRX)
Comments: 2 tracker
Comments: StBy-LDO
Comments: ISO 26262-compliant
Comments: Grade 0
Comments: Safety Features
Base Product: TLF35584QVHSx
ISO 26262: ASIL-D
Enable (=Inhibit): yes
V[Q] (multiple): 5.8 V
V[Q] (multiple): 5.0 V
V[Q] (multiple): 3.3 V
Watchdog: Window-WD
Watchdog: Functional-WD
更多
Package: PG-DSO-36
Qualification: Automotive
Classification: ISO 26262-compliant
Regulator Type: Buck-boost
Reset: yes
Target Application: Safe Control
Target Application: Safe Computing
Tolerance: 2%
Operating Temperature max: 175.0°C
Operating Voltage max: 40.0V
Over Voltage Protection: yes
Product Group: PMIC

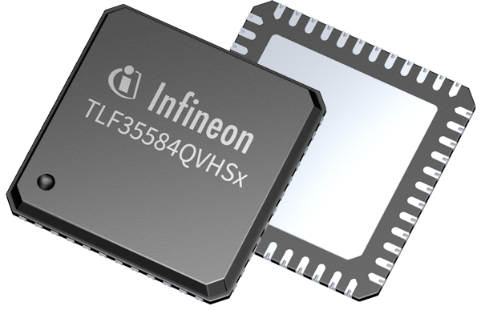

TLF35584QVHS1
分类:数据:
简介: The TLF35584QVHS1 is a multiple output system supply for safety-relevant applications supplying 5 V-μC, transceivers, and sensors by an efficient and flexible pre-/post-regulator concept over a wide input voltage range.
I[out] max: 1300.0mA
I[out] max: 200.0mA
I[out] max: 600.0mA
I[out] max: 150.0mA
I[out] max: 10.0mA
I[q]: 70.0µA
Comments: StBy-LDO
Comments: ISO 26262-compliant
Comments: Grade 0
Comments: Safety Features
Comments: 3 linear PostRegs (µC, RefLDO, TRX)
Comments: 2 tracker
Base Product: TLF35584QVHSx
ISO 26262: ASIL-D
Enable (=Inhibit): yes
V[Q] (multiple): 5.8 V
V[Q] (multiple): 5.0 V
Watchdog: Window-WD
Watchdog: Functional-WD
Package: PG-VQFN-48
更多
Qualification: Automotive
Classification: ISO 26262-compliant
Regulator Type: Buck-boost
Reset: yes
Target Application: Safe Control
Target Application: Safe Computing
Tolerance: 2%
Operating Temperature max: 175.0°C
Operating Voltage max: 40.0V
Over Voltage Protection: yes
Product Group: PMIC

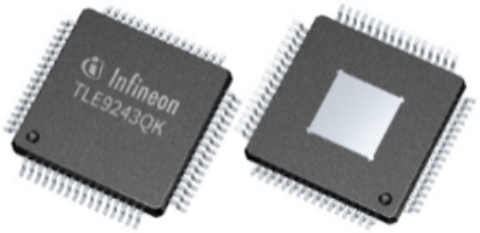

TLE9243QK
分类:数据:
简介: The TLE9243QK is an application specific multiple output system supply for transmission applications supplying 5 V-μC, transceivers, and sensors by an efficient and flexible pre-/post-regulator concept over a wide input voltage range.
I[out] max: 800.0mA
I[out] max: 240.0mA
I[out] max: 150.0mA
I[out] max: 50.0mA
I[out] max: 1500.0mA
I[q]: 25.0µA
Comments: Companion power IC for Aurix™ MCU and peripherals
Comments: Buck/Boost PreReg
Comments: 3 linear PostRegs (µC, COM, REF)
Comments: 2 trackers
Comments: ISO 26262-compliant
Comments: 2 High-side gate drivers
Comments: Safety Features
Comments: Grade 0
Comments: Automotive Transmission PMIC
Base Product: TLE9243QK
ISO 26262: ASIL-D
Enable (=Inhibit): yes
V[Q] (multiple): 9.0 V
V[Q] (multiple): 5.8 V
更多
V[Q] (multiple): 5.0 V
Watchdog: Functional-WD
Watchdog: Window-WD
Qualification: Automotive
Classification: ISO 26262-compliant
Regulator Type: Buck-boost
Reset: yes
Target Application: Safe Control
Tolerance: 0.01
Tolerance: 0.002
Tolerance: 0.033
Tolerance: 0.026
Tolerance: 2%
Operating Temperature max: 175.0°C
Operating Voltage max: 40.0V
Over Voltage Protection: yes
Currently planned availability until at least: 2038
Product Group: PMIC
Package: PG-LQFP-64

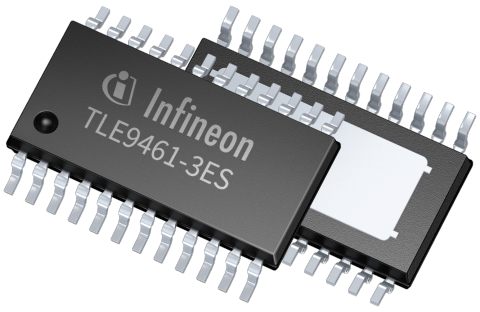

TLE9461-3ES
分类:数据:
简介: The TLE9461-3ES is a monolithically integrated circuit in an exposed pad PG-TSDSO-24-1 (150 mil) power package
Transceiver: 1 x CAN FD ISO 11898 - 2
Transmission Rate max: 5.0MBit/s
Voltage Regulator Output((VCC1)): 5V / 150 mA
Voltage Regulator Output((VCC2)): 5V / 100 mA
Output Drivers: 1 x Charge Pump
Quiescent Current: 15µA (typ.) Sleep Mode
Standby Current: 44µA (typ.) Stop Mode
Wake-up Inputs: Wake Pins, CAN
Family: OPTIREG™ Lite SBC
Currently planned availability until at least: 2038

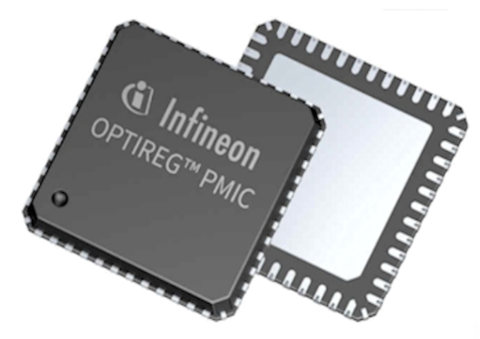

TLF30682QVS01
分类:数据:
简介: The TLF30682QVS01, member of the OPTIREG™ PMIC-family, is a multi-rail supply for ADAS-applications.
I[out] max: 3500.0mA
I[out] max: 2000.0mA
I[out] max: 250.0mA
I[q]: 11.0µA
Comments: companion power IC for Aurix™ MCU and peripherals
Comments: battery connected Buck (PreReg PoL)
Comments: PostReg Boost for transceivers
Comments: PostRegs Buck for µC-core
Comments: Window-Watchdog
Comments: Automotive PMIC
Base Product: TLF3068xQV
ISO 26262: QM
Enable (=Inhibit): yes
V[Q] (multiple): 0.9 V - 1.3 V
V[Q] (multiple): 5.0 V
V[Q] (multiple): 3.3 V
Watchdog: Window-WD
Qualification: Automotive
Regulator Type: Buck-boost
Reset: yes
更多
Target Application: Safe Computing
Target Application: Safe Control
Tolerance: 2%
Operating Temperature max: 150.0°C
Operating Voltage max: 35.0V
Over Voltage Protection: yes
Currently planned availability until at least: 2038
Product Group: PMIC
Package: PG-VQFN-48

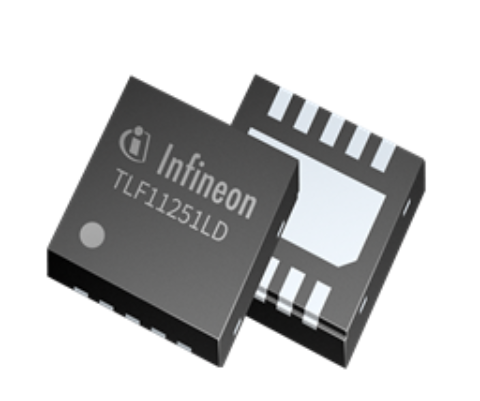

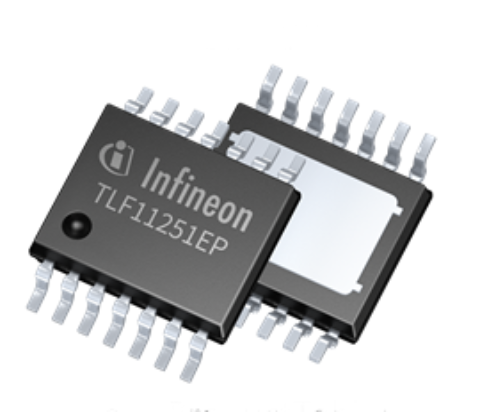

I[out] max: 2500.0mA
I[q]: 200.0µA
Comments: 2.5 A current capability
Comments: integrated gate drivers
Comments: integrated level-shifters
Comments: Grade 0
Comments: Integrated PMOS and NMOS complementary output bridge
Base Product: TLF11251xx
ISO 26262: QM
Enable (=Inhibit): no
V[Q] (multiple): N/A
Watchdog: no
Package: PG-VQFN-48
Qualification: Automotive
Classification: NA
Regulator Type: N/A
Reset: no
Target Application: Safe Computing
Target Application: Safe Control
Target Application: PMIC Companion
更多
Tolerance: N/A
Operating Temperature max: 175.0°C
Operating Voltage max: 7.0V
Over Voltage Protection: no
Currently planned availability until at least: 2038
Product Group: PMIC

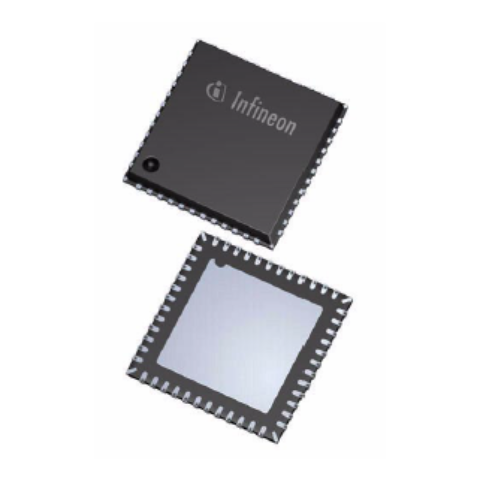

TLF35584QVVS1
分类:数据:
简介: The TLF35584QVVS1 is a multiple output system supply for safety-relevant applications supplying 5V-μC, transceivers, and sensors by an efficient and flexible pre-/post-regulator concept over a wide input voltage range.
I[out] max: 1300.0mA
I[out] max: 200.0mA
I[out] max: 600.0mA
I[out] max: 150.0mA
I[out] max: 10.0mA
I[q]: 70.0µA
Comments: 3 linear PostRegs (µC, RefLDO, TRX)
Comments: 2 tracker
Comments: StBy-LDO
Comments: ISO 26262-compliant
Comments: Safety Features
Base Product: TLF35584Qx
ISO 26262: ASIL-D
Enable (=Inhibit): yes
V[Q] (multiple): 5.0 V
V[Q] (multiple): 3.3 V
V[Q] (multiple): 5.8 V
Watchdog: Functional-WD
Watchdog: Window-WD
Package: PG-LQFP-64
更多
Qualification: Automotive
Classification: ISO 26262-compliant
Regulator Type: Buck-boost
Reset: yes
Target Application: Safe Computing
Target Application: Safe Control
Tolerance: 2%
Operating Temperature max: 150.0°C
Operating Voltage max: 40.0V
Over Voltage Protection: yes
Currently planned availability until at least: 2038
Product Group: PMIC
I[out] max: 2500.0mA
I[q]: 200.0µA
Comments: 2.5 A current capability
Comments: integrated gate drivers
Comments: integrated level-shifters
Comments: Grade 0
Comments: Integrated PMOS and NMOS complementary output bridge
Base Product: TLF11251xx
ISO 26262: QM
Enable (=Inhibit): no
V[Q] (multiple): N/A
Watchdog: no
Package: PG-TQFP-48
Qualification: Automotive
Classification: NA
Regulator Type: N/A
Reset: no
Target Application: Safe Computing
Target Application: Safe Control
Target Application: PMIC Companion
更多
Tolerance: N/A
Operating Temperature max: 150.0°C
Operating Voltage max: 7.0V
Over Voltage Protection: no
Currently planned availability until at least: 2038
Product Group: PMIC
TLE9261-3BQX
分类:数据:
简介: The TLE9261-3BQX is a Mid-Range+ SBC designed for various CAN automotive applications
Transceiver: 1 x CAN FD ISO 11898 - 2
Transmission Rate max: 5.0MBit/s
Output Drivers: 4 x High-Side Switch 150 mA
Quiescent Current: 15 μA (typ) Sleep Mode
Standby Current: 44 μA (typ) Stop Mode
Wake-up Inputs: Wake Pins, CAN
Voltage Regulator Output((VCC1)): 5V / 250 mA
Voltage Regulator Output((VCC2)): 5V / 100 mA
Voltage Regulator Output((VCC3)): 5V or 3.3V / up to 400 mA
Family: OPTIREG™ Mid-Range+ SBC
Currently planned availability until at least: 2038
Product Group: SBC
Green: RoHS compliant
Green: Halogen free
