INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

TLE9471-3ESV33

分类:
数据:

简介: TLE9471-3ES V33 with main functions such as a 5 V low-dropout voltage regulator, another 5 V low-dropout voltage regulator with off-board protection.

Transceiver: 1 x CAN FD ISO 11898 - 2 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 3.3V / 500 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Output Drivers: 1 x Charge Pump Quiescent Current: 15µA (typ.) Sleep Mode Standby Current: 44µA (typ.) Stop Mode Wake-up Inputs: Wake Pins, CAN Family: OPTIREG™ Lite SBC Currently planned availability until at least: 2038

IRSM836-024MA

分类: 微电路 / 多芯片组件(MCM)
数据:

简介: CIPOS™ Nano 250 V, 2.2 Ω three-phase intelligent power module

Voltage Class: 250.0V Pmot(10kHz): 40.0W Product Group: CIPOS™ Nano Built in NTC: No Configuration: 3 Phase Open Source Encryption: No Additional Information: Electrical Switch Type: MOSFET RDS (on)(@ Tj = 25°C): NoneΩ Product Name: IRSM836-024MA Qualification: Industrial Language: PLECS Product Category: Intelligent Power Modules (IPM) Rated Current: 2.0A

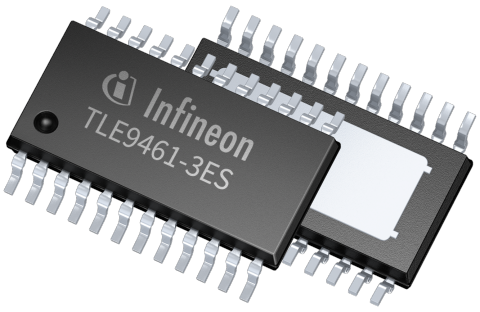

TLE9461-3ESV33

分类:
数据:

简介: The TLE9461-3ES V33 is a monolithically integrated circuit in an exposed pad PG-TSDSO-24-1 (150 mil) power package

Transceiver: 1 x CAN FD ISO 11898 - 2 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 3.3V / 150 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Output Drivers: 1 x Charge Pump Quiescent Current: 15µA (typ.) Sleep Mode Standby Current: 44µA (typ.) Stop Mode Wake-up Inputs: Wake Pins, CAN Family: OPTIREG™ Lite SBC Currently planned availability until at least: 2038

TLE9471ESV33

分类:
数据:

简介: The TLE9471ES V33 is a Lite SBC in a PG-TSDSO-24-1 power package and is software compatible to all SBC families TLE926x and TLE927x

TLE9261-3BQXV33

分类:
数据:

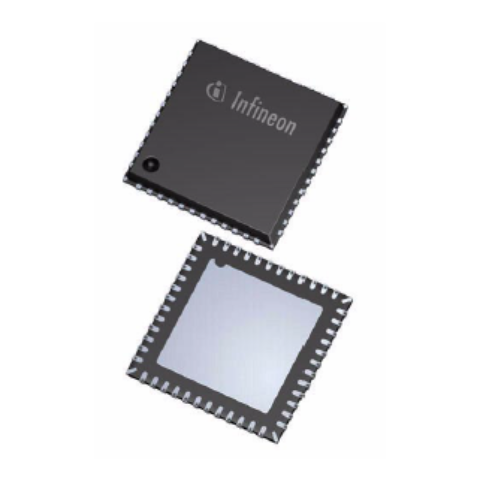

简介: The TLE9261-3BQXV33 is a monolithic integrated circuit in a 7mm x 7mm power package with Lead Tip Inspection (LTI) feature to support AOI

Transceiver: 1 x CAN FD ISO 11898 - 2 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 3.3V / 250 mA Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC3)): 3.3V or 1.8V / up to 400 mA Family: OPTIREG™ Mid-Range+ SBC Currently planned availability until at least: 2038 Green: RoHS compliant Green: Halogen free

TLE9262-3BQXV33

分类:
数据:

简介: The TLE9262-3BQXV33 is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 3.3V / 250 mA Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN, LIN Transceiver: 1 x CAN FD ISO 11898 - 2 Transceiver: 1 x LIN2.2 / J2602 Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC3)): 3.3V or 1.8V / up to 400 mA Family: OPTIREG™ Mid-Range+ SBC Currently planned availability until at least: 2038 Green: RoHS compliant Green: Halogen free

IRSM836-025MA

分类: 微电路 / 多芯片组件(MCM)
数据:

简介: CIPOS™ Nano 500 V, 4 Ω three-phase intelligent power module

Voltage Class: 500.0V Pmot(10kHz): 55.0W Product Group: CIPOS™ Nano Built in NTC: No Configuration: 3 Phase Open Source Encryption: No Additional Information: Electrical Switch Type: MOSFET RDS (on)(@ Tj = 25°C): NoneΩ Product Name: IRSM836-025MA Qualification: Industrial Language: PLECS Product Category: Intelligent Power Modules (IPM) Rated Current: 2.0A

TLE9261BQXV33

分类:
数据:

简介: The TLE9261-3BQX V33 belongs to Infineon´s Mid-Range+ SBC family and is designed for various CAN automotive applications

TLE9262BQX

分类:
数据:

简介: The TLE9262BQX is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 250 mA Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN, LIN Transceiver: 1 x CAN FD ISO 11898 - 2 Transceiver: 1 x LIN2.2 / J2602 Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC3)): 5V or 3.3V / up to 400 mA Family: OPTIREG™ Mid-Range+ SBC Currently planned availability until at least: 2038 Green: RoHS compliant Green: Halogen free

TLE9262BQXV33

分类:
数据:

简介: The TLE9262BQXV33 is a Mid-Range+ SBC with a 7mm x 7mm power package
