INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

TLE9263BQX

分类:
数据:

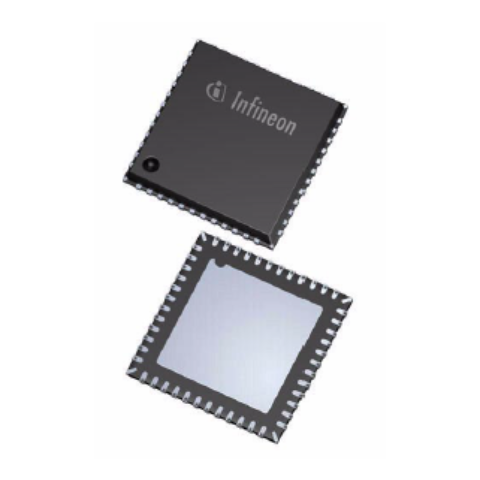

简介: The TLE9263BQX is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 250 mA Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN, LIN Transceiver: 1 x CAN FD ISO 11898 - 2 Transceiver: 2 x LIN2.2 / J2602 Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC3)): 5V or 3.3V / up to 400 mA Family: OPTIREG™ Mid-Range+ SBC Currently planned availability until at least: 2038 Green: RoHS compliant Green: Halogen free

IKCM15R60GD

分类: 微电路 / 多芯片组件(MCM)
数据:

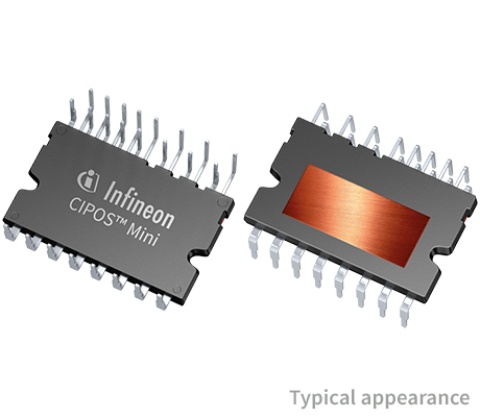

简介: CIPOS™ Mini 600 V, 15 A two-phase asymmetric inverter intelligent power module

Voltage Class: 600.0V Rated Current: 15.0A Pmot(10kHz): 2200.0W Product Group: CIPOS™ Mini Built in NTC: Yes Configuration: 2 Phase Asymmetric Inverter Encryption: no Additional Information: Electrical Switch Type: IGBT Product Name: IKCM15R60GD Qualification: Industrial Language: PLECS Product Category: Intelligent Power Modules (IPM)

TLE9263-3BQXV33

分类:
数据:

简介: The TLE9263-3BQX V33 is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 3.3V / 250 mA Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN, LIN Transceiver: 1 x CAN FD ISO 11898 - 2 Transceiver: 2 x LIN2.2 / J2602 Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC3)): 3.3V or 1.8V / up to 400 mA Family: OPTIREG™ Mid-Range+ SBC Currently planned availability until at least: 2038 Green: RoHS compliant Green: Halogen free

IRSM836-015MA

分类: 微电路 / 多芯片组件(MCM)
数据:

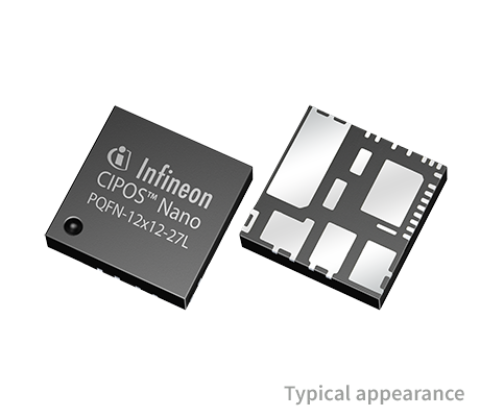

简介: CIPOS™ Nano 500 V, 6 Ω three-phase intelligent power module

Voltage Class: 500.0V Pmot(10kHz): 50.0W Product Group: CIPOS™ Nano Built in NTC: No Configuration: 3 Phase Open Source Encryption: No Additional Information: Electrical Switch Type: MOSFET RDS (on)(@ Tj = 25°C): NoneΩ Product Name: IRSM836-015MA Qualification: Industrial Language: PLECS Product Category: Intelligent Power Modules (IPM) Rated Current: 1.0A

TLE9263BQXV33

分类:
数据:

简介: The TLE9263BQXV33 is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

TLF30681QVS01

分类:
数据:

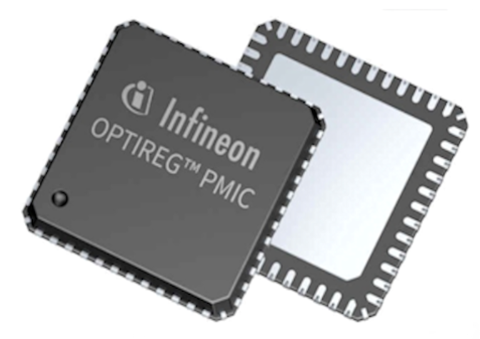

简介: The TLF30681QVS01 is a multi-rail supply for ADAS-applications like 77GHz short range radar, 24GHz radar, and 60GHz radar (e.g. In-cabin sensing).

I[out] max: 2300.0mA I[out] max: 1000.0mA I[out] max: 250.0mA I[q]: 11.0µA Comments: PostReg Boost for transceivers Comments: PostRegs Buck for µC-core Comments: Window-Watchdog Comments: Automotive PMIC Comments: companion power IC for Aurix™ MCU and peripherals Comments: battery connected Buck (PreReg PoL) Base Product: TLF3068xQV ISO 26262: QM Enable (=Inhibit): yes V[Q] (multiple): 3.3 V V[Q] (multiple): 0.9 V - 1.3 V V[Q] (multiple): 5.0 V Watchdog: Window-WD Package: PG-DSO-14 Qualification: Automotive Regulator Type: Buck-boost 更多

Reset: yes Target Application: Safe Control Target Application: Safe Computing Tolerance: 2% Operating Temperature max: 150.0°C Operating Voltage max: 35.0V Over Voltage Protection: yes Product Group: PMIC Classification: n.a Currently planned availability until at least: n.a

TLE9271QX

分类:
数据:

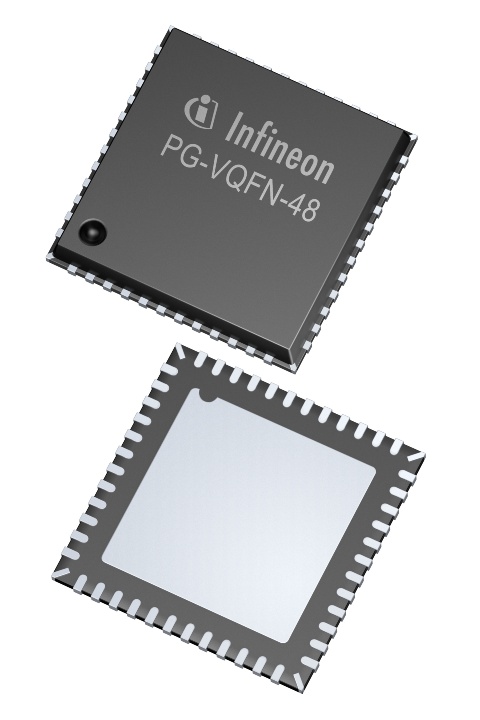

简介: The TLE9271QX is a monolithic integrated circuit in an exposed pad PG-VQFN-48-31 (7mm x 7mm) leadless package with LTI feature supporting A0I.

Transceiver: 1 x CAN FD ISO 11898-2 Transceiver: 2 x LIN2.2 / J2602 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 750 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Quiescent Current: 30 μA (typ) Sleep Mode Standby Current: 50 μA (typ) Stop Mode Fail-safe Outputs: 3 x Fail-safe Outputs I[out] max: 750.0mA Output Current max: 750.0mA Wake-up Inputs: Wake Pins, CAN, LIN V[BOOST]: 6.65V V[BOOST]: 8.0V Family: OPTIREG™ DCDC SBC Currently planned availability until at least: 2038

TLE9271QXV33

分类:
数据:

简介: The TLE9271QXV33 is a monolithic integrated circuit in an exposed pad PG-VQFN-48-31 (7mm x 7mm) leadless package with LT1) feature supporting A0I.

Transceiver: 1 x CAN FD ISO 11898-2 Transceiver: 2 x LIN2.2 / J2602 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 3.3V / 750 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Quiescent Current: 30 μA (typ) Sleep Mode Standby Current: 50 μA (typ) Stop Mode Fail-safe Outputs: 3 x Fail-safe Outputs I[out] max: 750.0mA Output Current max: 750.0mA Wake-up Inputs: Wake Pins, CAN, LIN V[BOOST]: 6.65V V[BOOST]: 8.0V Family: OPTIREG™ DCDC SBC Currently planned availability until at least: 2038

TLE9262QX

分类:
数据:

简介: The TLE9262QX is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

Transmission Rate max: 2.0MBit/s Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN, LIN Failure Management: Fail-Safe Mode Failure Management: 3 x Limp-Home Outputs Failure Management: CAN Failure Detection Transceiver: High Speed CAN ISO 11898 - 5 Transceiver: 1 x LIN2.2 / J2602 Voltage Regulator Output((VCC1)): 5V / 250 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC3)): 5V or 3.3V / up to 400 mA Family: OPTIREG™ Mid-Range SBC Product Group: - Green: RoHS compliant Green: Halogen free

TLE9263-3BQX

分类:
数据:

简介: The TLE9263-3BQX is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI
