INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

TLE6711G

分类:
数据:

简介: The TLE6711G is a multifunctional power supply circuit especially designed for automotive applications.

I[out] max: 250.0mA I[q]: 1500.0µA Comments: Automotive Multifunctional Voltage Regulator and Watchdog Base Product: TLE6711xx ISO 26262: QM Enable (=Inhibit): no V[Q] (multiple): 5.0 V Watchdog: Window-WD Package: PG-TSON-10 Qualification: Automotive Regulator Type: Buck-boost Reset: yes Target Application: Safe Control Tolerance: 2% Operating Temperature max: 150.0°C Operating Voltage max: 35.0V Over Voltage Protection: no Product Group: PMIC Classification: n.a Currently planned availability until at least: n.a

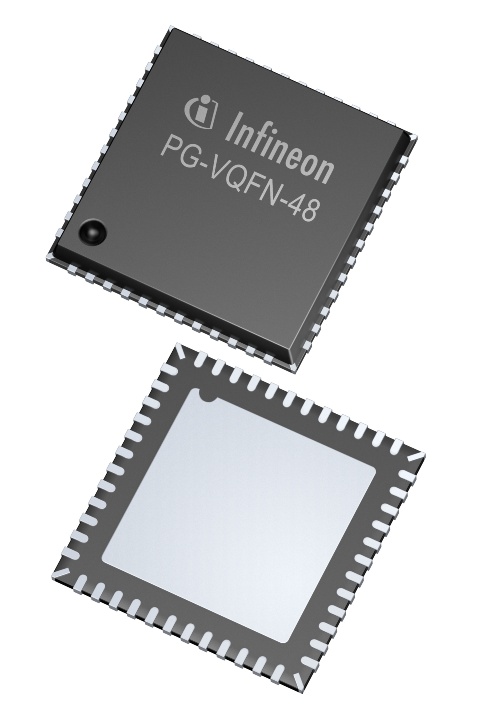

TLE9263QX

分类:
数据:

简介: The TLE9263QX is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

Transmission Rate max: 2.0MBit/s Transceiver: High Speed CAN ISO 11898 - 5 Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN, LIN Failure Management: Fail-Safe Mode Transceiver: 2 x LIN2.2 / J2602 Failure Management: 3 x Limp-Home Outputs Failure Management: CAN Failure Detection Voltage Regulator Output((VCC1)): 5V / 250 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC3)): 5V or 3.3V / up to 400 mA Family: OPTIREG™ Mid-Range SBC Product Group: - Green: RoHS compliant Green: Halogen free

TLE9471ES

分类:
数据:

简介: The TLE9471ES is a Lite SBC, designed for various CAN automotive applications as main supply for the MCU and as interface for a CAN bus network.

Transceiver: 1 x CAN FD ISO 11898 - 2 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 500 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Output Drivers: 1 x Charge Pump Quiescent Current: 15µA (typ.) Sleep Mode Standby Current: 44µA (typ.) Stop Mode Wake-up Inputs: Wake Pins, CAN Language: SPICE Product Category: Automotive SBC Family: OPTIREG™ Lite SBC Currently planned availability until at least: 2038

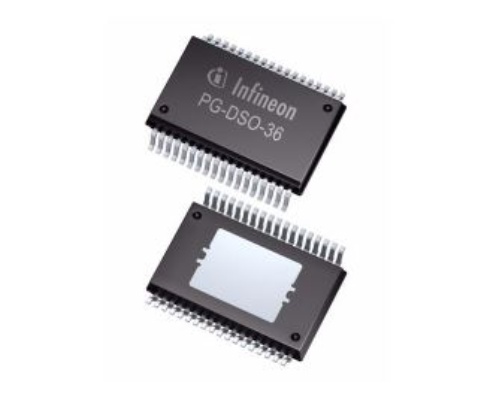

TLE7368-2E

分类:
数据:

简介: The TLE7368-2E device is a multifunctional power supply circuit especially designed for Automotive powertrain systems using a standard 12 V battery.

I[out] max: 800.0mA I[out] max: 700.0mA I[out] max: 70.0mA I[out] max: 105.0mA I[out] max: 50.0mA I[out] max: 30.0mA I[q]: 120.0µA Comments: Automotive PMIC Comments: 3 linear post regulators (5V, 3.3/2.6V, 1.5V) Comments: selectable StandBy-Vreg (1.0/2.6V) and 2 voltage trackers (5V) Base Product: TLE7368 ISO 26262: QM Enable (=Inhibit): yes V[Q] (multiple): 5.0 V V[Q] (multiple): 3.3 V/2.6 V V[Q] (multiple): 1.2 V V[Q] (multiple): 1.0 V/2.6 V Watchdog: Window-WD Package: PG-DSO-36 Qualification: Automotive
Regulator Type: Buck Reset: yes Target Application: Safe Control Tolerance: 2% Operating Temperature max: 150.0°C Operating Voltage max: 45.0V Over Voltage Protection: no Product Group: PMIC Currently planned availability until at least: 2029

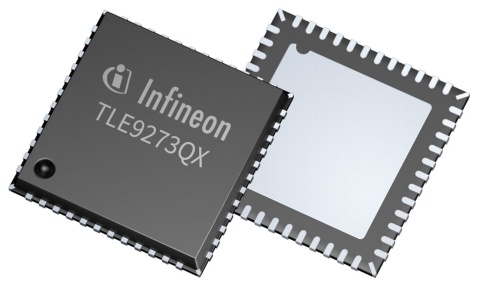

TLE9273QX

分类:
数据:

简介: The TLE9273QX is a monolithic Integrated circuit in an exposed pad PG-VQFN-48-31 (7mm x 7mm) leadless package with LTI feature supporting A0I.

Transceiver: 1 x CAN FD ISO 11898-2 Transceiver: 4 x LIN2.2 / J2602 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 750 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Quiescent Current: 30 μA (typ) Sleep Mode Standby Current: 50 μA (typ) Stop Mode Fail-safe Outputs: 3 x Fail-safe Outputs I[out] max: 750.0mA Output Current max: 750.0mA Wake-up Inputs: Wake Pins, CAN, LIN V[BOOST]: 6.65V V[BOOST]: 8.0V Currently planned availability until at least: 2038 Family: EiceDRIVER™ isolated gate driver ICs for EV

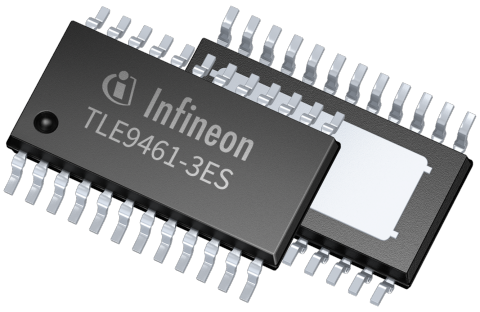

TLE9461ES

分类:
数据:

简介: The TLE9461ES is designed for various CAN automotive applications as main supply for the microcontroller and as interface for a CAN bus network

Transceiver: 1 x CAN FD ISO 11898 - 2 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 150 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Output Drivers: 1 x Charge Pump Quiescent Current: 15µA (typ.) Sleep Mode Standby Current: 44µA (typ.) Stop Mode Wake-up Inputs: Wake Pins, CAN Family: OPTIREG™ Lite SBC Currently planned availability until at least: 2038

TLE9273QXV33

分类:
数据:

简介: The TLE9273QXV33 is a monolithic integrated circuit in an exposed pad PG-VQFN-48-31 (7mm x 7mm) leadless package with LTI feature supporting A0I.

Transceiver: 1 x CAN FD ISO 11898-2 Transceiver: 4 x LIN2.2 / J2602 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 3.3V / 750 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Quiescent Current: 30 μA (typ) Sleep Mode Standby Current: 50 μA (typ) Stop Mode Fail-safe Outputs: 3 x Fail-safe Outputs I[out] max: 750.0mA Output Current max: 750.0mA Wake-up Inputs: Wake Pins, CAN, LIN V[BOOST]: 6.65V V[BOOST]: 8.0V Family: OPTIREG™ DCDC SBC Currently planned availability until at least: 2038

TLE9274QX

分类:
数据:

简介: The TLE9274QX is a monolithic Integrated circuit in an exposed pad PG-VQFN-48-31 (7mm x 7mm) leadless package with LTI feature supporting A0I.

Transmission Rate max: 5.0MBit/s Quiescent Current: 30 μA (typ) Sleep Mode Standby Current: 50 μA (typ) Stop Mode Fail-safe Outputs: 3 x Fail-safe Outputs Wake-up Inputs: Wake Pins Wake-up Inputs: CAN Wake-up Inputs: LIN V[BOOST]: 6.65V V[BOOST]: 8.0V V[BOOST]: 10.0V Voltage Regulator Output((VCC1)): 5V / 750 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC1)): 5V / 750 mA Transceiver: 1 x CAN FD ISO 11898-2 Transceiver: 4 x LIN2.2 / J2602 I[out] max: 750.0mA Family: OPTIREG™ DCDC SBC Currently planned availability until at least: 2038

TLE9461ESV33

分类:
数据:

简介: The TLE9461ES V33 is a monolithically integrated circuit in an exposed 150 mil power package, designed for various CAN automotive applications

Transceiver: 1 x CAN FD ISO 11898 - 2 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 3.3V / 150 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Output Drivers: 1 x Charge Pump Quiescent Current: 15µA (typ.) Sleep Mode Standby Current: 44µA (typ.) Stop Mode Wake-up Inputs: Wake Pins, CAN Family: OPTIREG™ Lite SBC Currently planned availability until at least: 2038

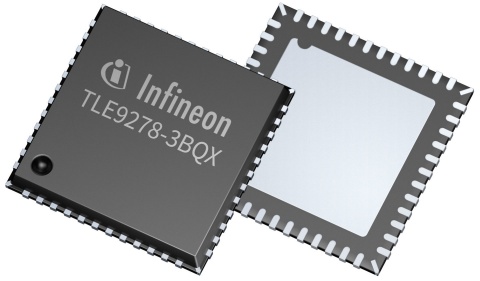

TLE9278-3BQX

分类:
数据:

简介: TLE9278-3BQX - highest level of integration at smallest footprint for all automotive applications requiring multiple channels of CAN transceivers.

Transceiver: 4 x CAN FD ISO 11898-2 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 750 mA Quiescent Current: 30 μA (typ) Sleep Mode Standby Current: 55 μA (typ) Stop Mode External Voltage Regulator: 5V / 3.3V / 1.8V / 1.2V Fail-safe Outputs: 1 x Fail-safe Output I[out] max: 750.0mA Output Current max: 750.0mA Wake-up Inputs: Wake Pins, CAN Currently planned availability until at least: 2038 Family: OPTIREG™ Multi-CAN Power SBC
