INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

TLE9278-3BQXV33

分类:
数据:

简介: TLE9278-3BQX V33 - the highest level of integration at smallest footprint for all autom. applications requiring multiple channels of CAN transceivers

Transceiver: 4 x CAN FD ISO 11898-2 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 3.3V / 750 mA Quiescent Current: 30 μA (typ) Sleep Mode Standby Current: 55 μA (typ) Stop Mode External Voltage Regulator: 5V / 3.3V / 1.8V / 1.2V Fail-safe Outputs: 1 x Fail-safe Output I[out] max: 750.0mA Output Current max: 750.0mA Wake-up Inputs: Wake Pins, CAN Currently planned availability until at least: 2038 Family: OPTIREG™ Multi-CAN Power SBC

WLC1115-68LQXQ

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
数据:

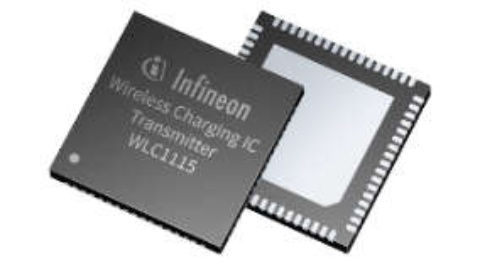

简介: Tray package: WLC1115 wireless charging transmitter IC with USB-PD, buck, sensing, software & Qi2 system solution

Applications: Consumer, Industrial Coil: Single Function: Transmitter Operating Temperature: None°C Input Voltage: NoneV PD Support: Sink Package Option: Tray Output Power: NoneW Qi Support: Qi2 Buck-boost support: Yes

TLE9261BQX

分类:
数据:

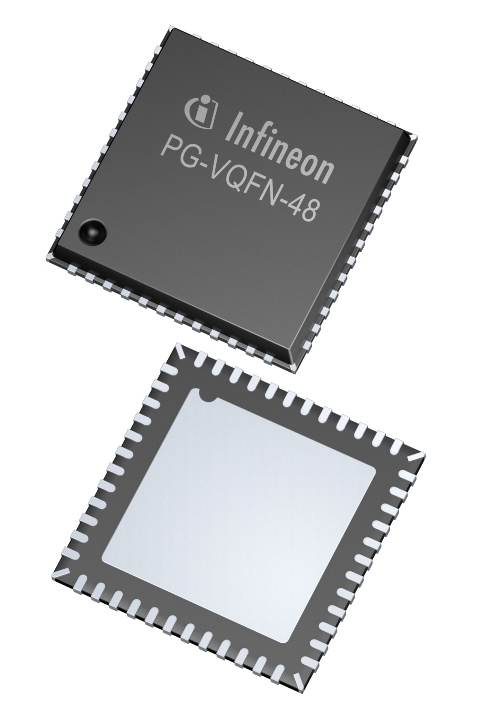

简介: The TLE9261BQX is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 250 mA Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN Transceiver: 1 x CAN FD ISO 11898 - 2 Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC3)): 5V or 3.3V / up to 400 mA Family: OPTIREG™ Mid-Range+ SBC Currently planned availability until at least: 2038 Green: RoHS compliant Green: Halogen free

TLE9278BQXV33

分类:
数据:

简介: TLE9278BQX V33 - highest level of integration at smallest footprint for all automotive applications requiring multiple channels of CAN transceivers.

TLE9278BQX

分类:
数据:

简介: TLE9278BQX - highest level of integration at smallest footprint for all automotive applications requiring multiple channels of CAN transceivers.

Transceiver: 4 x CAN FD ISO 11898-2 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 750 mA Quiescent Current: 30 μA (typ) Sleep Mode Standby Current: 55 μA (typ) Stop Mode External Voltage Regulator: 5V / 3.3V / 1.8V / 1.2V Fail-safe Outputs: 1 x Fail-safe Output I[out] max: 750.0mA Output Current max: 750.0mA Wake-up Inputs: Wake Pins, CAN Currently planned availability until at least: 2038 Family: OPTIREG™ Multi-CAN Power SBC

TLE9262-3BQX

分类:
数据:

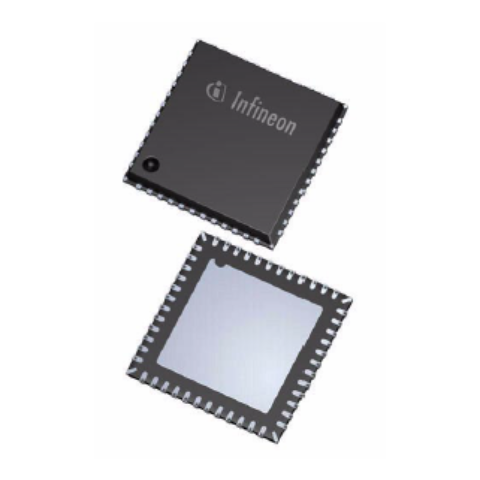

简介: The TLE9262-3BQX is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 250 mA Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN, LIN Transceiver: 1 x CAN FD ISO 11898 - 2 Transceiver: 1 x LIN2.2 / J2602 Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC3)): 5V or 3.3V / up to 400 mA Family: OPTIREG™ Mid-Range+ SBC Currently planned availability until at least: 2038 Green: RoHS compliant Green: Halogen free

TLE9471-3ES

分类:
数据:

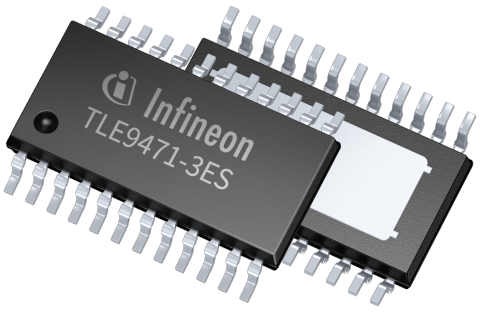

简介: The TLE9471-3ES is a lite SBC, designed as main supply for the MCU and as interface for a CAN bus network including the CAN Partial Networking feature

Transceiver: 1 x CAN FD ISO 11898 - 2 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 500 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Output Drivers: 1 x Charge Pump Quiescent Current: 15µA (typ.) Sleep Mode Standby Current: 44µA (typ.) Stop Mode Wake-up Inputs: Wake Pins, CAN Family: OPTIREG™ Lite SBC Currently planned availability until at least: 2038

WLC1115-68LQXQT

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
数据:

简介: Tape & reel package: WLC1115 wireless charging transmitter IC with USB-PD, buck, sensing, software & Qi2 system solution

Applications: Consumer, Industrial Coil: Single Function: Transmitter Input Voltage: NoneV PD Support: Sink Package Option: Tape & Reel Operating Temperature: None°C Output Power: NoneW Qi Support: Qi2 Buck-boost support: Yes

TLE9015DQU

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
数据:

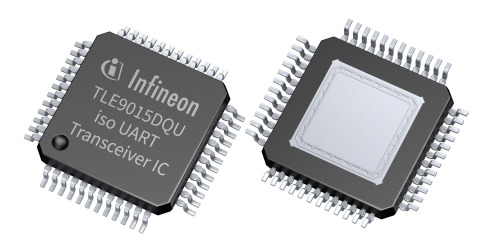

简介: iso UART Transceiver IC

UART Interfaces: 2.0 ISO UART Interfaces: 2.0 Voltage Class: 75.0V Isolated Communication Interface: iso UART Non-isolated Communication Interface: UART Standby Current: 3 µA ESD Protection: 4.0kV Tj: None°C Classification: NA

IGCM04G60GA

分类: 微电路 / 多芯片组件(MCM)
数据:

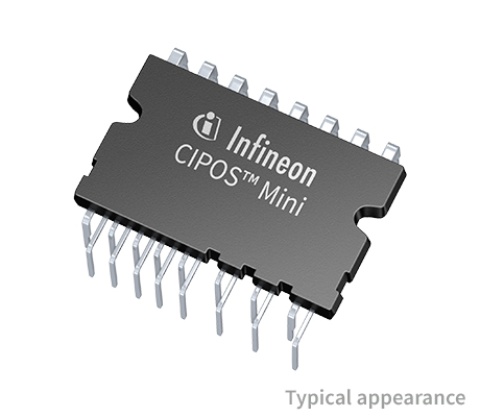

简介: CIPOS™ Mini 600 V, 4 A three-phase intelligent power module

Voltage Class: 600.0V Rated Current: 4.0A Pmot(10kHz): 600.0W Product Group: CIPOS™ Mini Built in NTC: Yes Configuration: 3 Phase Closed Emitter Encryption: no Additional Information: Electrical Switch Type: IGBT Qualification: Industrial Product Name: IGCM04G60GA Language: PLECS Product Category: Intelligent Power Modules (IPM)
