INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

TLE9260QX

分类:
数据:

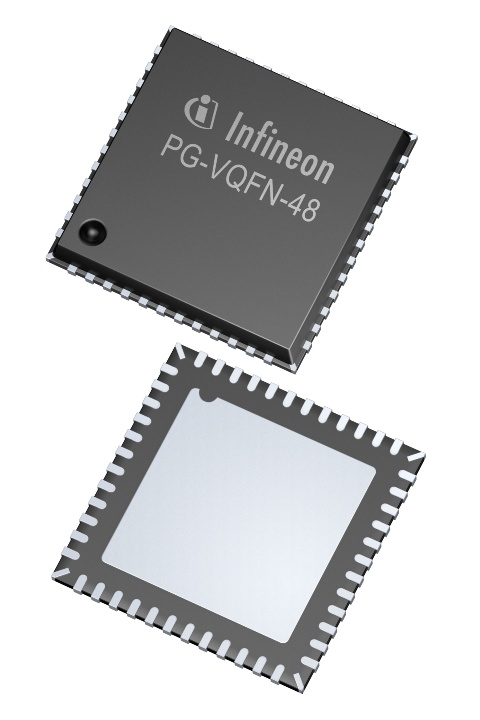

简介: The TLE9260QX is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

Transmission Rate max: 2.0MBit/s Transceiver: High Speed CAN ISO 11898 - 5 Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN Failure Management: Fail-Safe Mode Failure Management: 3 x Limp-Home Outputs Failure Management: CAN Failure Detection Voltage Regulator Output((VCC1)): 5V / 250 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Family: OPTIREG™ Mid-Range SBC Product Group: - Green: RoHS compliant Green: Halogen free

CY2302SXI-1T

分类:
数据:

Category: Zero Delay Buffers Core/IO Operating Voltages((V)): 3.3/5.0 Function: See datasheet I/O Voltage((V)): 3.3/5.0 Input Type: LVCMOS/LVTTL On-chip Clock Generation(PLL): 1 Operating Temperature max: 85.0°C Operating Voltage max: 5.5V Output Frequency max: 133.0MHz Output Signal Type: LVCMOS Outputs: 2.0 Peak Reflow Temp: 260.0°C Publish in NPSG: N Publish in PSG: Y Qualification: Industrial Spread Spectrum: N Features: 3.3V Zero Delay Buffer Lead Ball Finish: Pure Sn;Ni/Pd/Au Input Frequency max: 133.0MHz

CY2305CSXI-1H

分类:
数据:

Category: Zero Delay Buffers Features: 3.3V Zero Delay Buffer Function: See datasheet I/O Voltage((V)): 3.3 Input Frequency max: 133.0MHz Input Type: LVCMOS/LVTTL Lead Ball Finish: Pure Sn Operating Temperature max: 85.0°C Output Signal Type: LVCMOS Outputs: 5.0 Peak Reflow Temp: 260.0°C Publish in PSG: Y Qualification: Industrial Spread Spectrum: N Operating Voltage max: 3.6V Output Frequency max: 133.0MHz Core/IO Operating Voltages((V)): 3.3 Publish in NPSG: N On-chip Clock Generation(PLL): 1

TLE9272QX

分类:
数据:

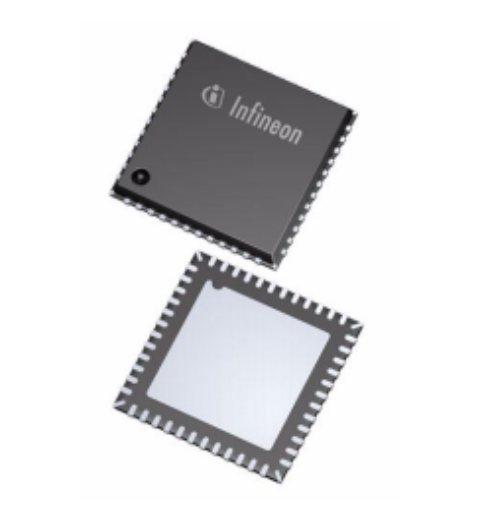

简介: The TLE9272QX is a monolithic integrated circuit in an exposed pad PG-VQFN-48-31 (7mm x 7mm) leadless package with LTI feature supporting A0I.

Transceiver: 1 x CAN FD ISO 11898-2 Transceiver: 3 x LIN2.2 / J2602 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 5V / 750 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Quiescent Current: 30 μA (typ) Sleep Mode Standby Current: 50 μA (typ) Stop Mode Fail-safe Outputs: 3 x Fail-safe Outputs I[out] max: 750.0mA Output Current max: 750.0mA Wake-up Inputs: Wake Pins, CAN, LIN V[BOOST]: 6.65V V[BOOST]: 8.0V Family: OPTIREG™ DCDC SBC Currently planned availability until at least: 2038

CY22150FZXI

分类:
数据:

Category: Programmable clocks Core/IO Operating Voltages((V)): 3.3 Features: 6-Output Programmable Clock Generator I/O Voltage((V)): 2.5/3.3 Input Frequency max: 133.0MHz Input Type: Xtal/LVCMOS/LVTTL On-chip Clock Generation(PLL): 1 Operating Temperature max: 85.0°C Output Signal Type: CMOS Outputs: 6.0 Peak Reflow Temp: 260.0°C Publish in NPSG: N Publish in PSG: Y Qualification: Industrial Operating Voltage max: 3.45V Lead Ball Finish: Pure Sn Spread Spectrum: N Output Frequency max: 166.6MHz

TLE9272QXV33

分类:
数据:

简介: The TLE9272QXV33 is a monolithic integrated circuit in an exposed pad PG-VQFN-48-31 (7mm x 7mm) leadless package with LTI feature supporting A0I.

Transceiver: 1 x CAN FD ISO 11898-2 Transceiver: 3 x LIN2.2 / J2602 Transmission Rate max: 5.0MBit/s Voltage Regulator Output((VCC1)): 3.3V / 750 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Quiescent Current: 30 μA (typ) Sleep Mode Standby Current: 50 μA (typ) Stop Mode Fail-safe Outputs: 3 x Fail-safe Outputs I[out]: 750.0mA Wake-up Inputs: Wake Pins, CAN, LIN V[BOOST]: 6.65V V[BOOST]: 8.0V Family: OPTIREG™ DCDC SBC Currently planned availability until at least: 2038

TLE9261QX

分类:
数据:

简介: The TLE9261QX is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI

Transmission Rate max: 2.0MBit/s Transceiver: High Speed CAN ISO 11898 - 5 Output Drivers: 4 x High-Side Switch 150 mA Quiescent Current: 15 μA (typ) Sleep Mode Standby Current: 44 μA (typ) Stop Mode Wake-up Inputs: Wake Pins, CAN Failure Management: Fail-Safe Mode Failure Management: 3 x Limp-Home Outputs Failure Management: CAN Failure Detection Voltage Regulator Output((VCC1)): 5V / 250 mA Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC3)): 5V or 3.3V /up to 400 mA Family: OPTIREG™ Mid-Range SBC Product Group: - Green: RoHS compliant Green: Halogen free

TLE9274QXV33

分类:
数据:

简介: The TLE9274QX V33 is a monolithic integrated circuit in an exposed pad PG-VQFN-48-31 (7mm x 7mm) leadless package with LTI feature supporting A0I.

Transmission Rate max: 5.0MBit/s V[BOOST]: 6.65V V[BOOST]: 8.0V V[BOOST]: 10.0V Standby Current: 50 μA (typ) Stop Mode Fail-safe Outputs: 3 x Fail-safe Outputs Wake-up Inputs: Wake Pins Wake-up Inputs: CAN Wake-up Inputs: LIN Voltage Regulator Output((VCC2)): 5V / 100 mA Voltage Regulator Output((VCC1)): 3.3V / 750 mA Transceiver: 1 x CAN FD ISO 11898-2 Transceiver: 4 x LIN2.2 / J2602 Quiescent Current: 30 μA (typ) Sleep Mode I[out] max: 750.0mA Family: OPTIREG™ DCDC SBC Currently planned availability until at least: 2038

WLC1150-68LQXQT

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
数据:

简介: A highly integrated wireless charging transmitter IC for High Power Wireless charging (tape and reel package)

Applications: Consumer, Industrial Coil: Single Function: Transmitter Input Voltage: NoneV PD Support: Sink Package Option: Tape & Reel Qi Support: Qi & Proprietary Operating Temperature: None°C Output Power: NoneW Buck-boost support: Yes

WLC1515-68LDXS

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
数据:

简介: Qi 2.0 compliant automotive wireless charging controller

Coil: 3 Function: Transmitter Input Voltage: NoneV Operating Temperature: None°C Output Power: NoneW PD Support: No Package Option: Tray Qi Support: Qi 1.3.x Applications: Automotive Buck-boost support: Yes
