INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

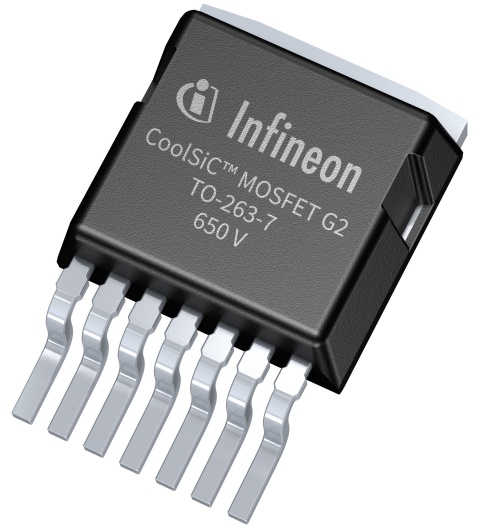

IMBG65R020M2H

分类:
数据:

简介: CoolSiC™ MOSFET 650 V G2 in TO-263-7 package

Qualification: Industrial

R[thJC] max: 0.46K/W

I[D ](@25°C) max: 91.0A

Operating Temperature max: 175.0°C

Polarity: N

R[DS (on)](@ Tj = 25°C): 20.0mΩ

库存数量:

库存数量:

询价

AIMDQ75R020M1H

分类:
数据:

简介: The CoolSiC™ Automotive MOSFET 750 V G1 is a highly robust SiC MOSFET for the best system performance and reliability.

I[D ](@25°C) max: 81.0A

Operating Temperature max: 175.0°C

Polarity: N

Qualification: Automotive

R[DS (on)](@ Tj = 25°C): 20.0mΩ

Technology: CoolSiC™ G1

库存数量:

库存数量:

询价

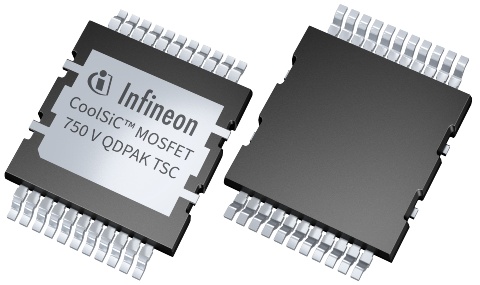

IMDQ75R027M1H

分类:
数据:

简介: The CoolSiC™ MOSFET 750 V G1 is a highly robust SiC MOSFET for the best system performance and reliability.

I[D ](@25°C) max: 64.0A

Operating Temperature max: 175.0°C

Polarity: N

Qualification: Industrial

R[DS (on)](@ Tj = 25°C): 27.0mΩ

Technology: CoolSiC™ G1

库存数量:

库存数量:

询价

F4-33MR12W1M1H_B76

分类:
数据:

简介: CoolSiC™ MOSFET fourpack module 1200 V

Applications: ESS

Applications: Solar

Applications: EV Charger

Applications: UPS

Configuration: Fourpack

Features: PressFIT

库存数量:

库存数量:

询价

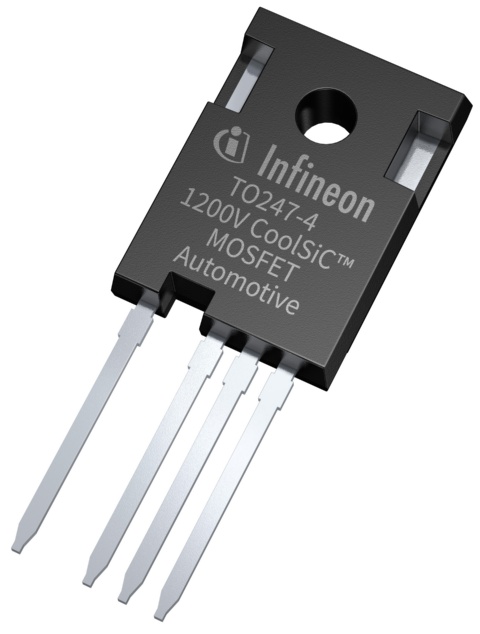

AIMZH120R030M1T

分类:
数据:

简介: Automotive 1200V Silicon-carbide (SiC) Trench Power MOSFET in TO247-4L (thin leads), 30mΩ

V[DS] max: 1200.0V

I[D ](@25°C) max: 69.0A

Qualification: Automotive

Polarity: N

Operating Temperature max: 175.0°C

R[DS (on)](@ Tj = 25°C): 30.0mΩ

库存数量:

库存数量:

询价

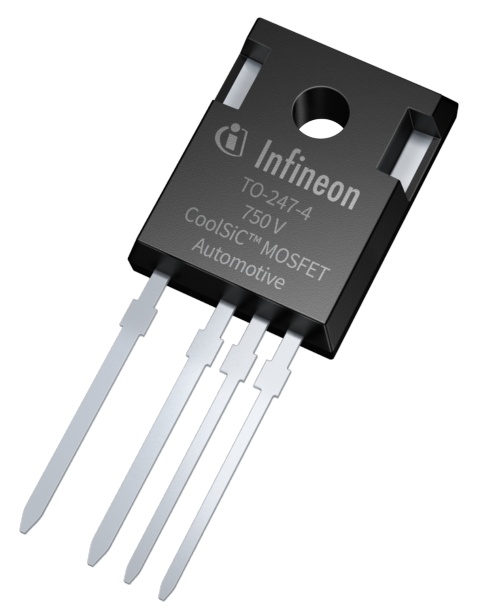

AIMZA75R020M1H

分类:
数据:

简介: The CoolSiC™ Automotive MOSFET 750 V G1 is a highly robust SiC MOSFET for the best combination of system performance and reliability

I[D ] max: 75.0A

Operating Temperature max: 175.0°C

Polarity: N

Qualification: Automotive

R[DS (on)](@ Tj = 25°C): 20.0mΩ

V[DS] max: 750.0V

库存数量:

库存数量:

询价

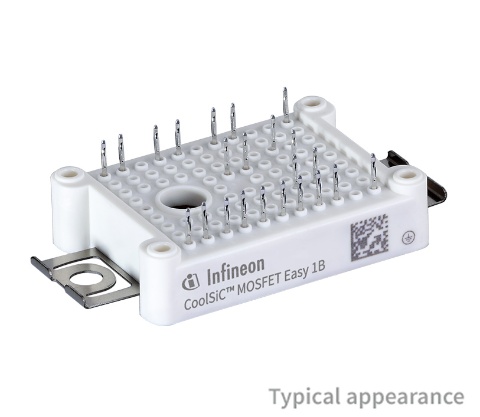

DF14MR12W1M1HF_B67

分类:
数据:

简介: Booster 1200 V CoolSiC™ MOSFET Module

R[DS (on)](@ Tj = 25°C): 27.0mΩ

Qualification: Industrial

Housing: Easy 1B

Features: PressFIT

Configuration: Booster

Dimensions(width): 33.8mm

库存数量:

库存数量:

询价

IMDQ75R020M1H

分类:
数据:

简介: The CoolSiC™ MOSFET 750 V G1 is a highly robust SiC MOSFET for the best system performance and reliability.

I[D ](@25°C) max: 81.0A

Operating Temperature max: 175.0°C

Polarity: N

Qualification: Industrial

R[DS (on)](@ Tj = 25°C): 20.0mΩ

Technology: CoolSiC™ G1

库存数量:

库存数量:

询价

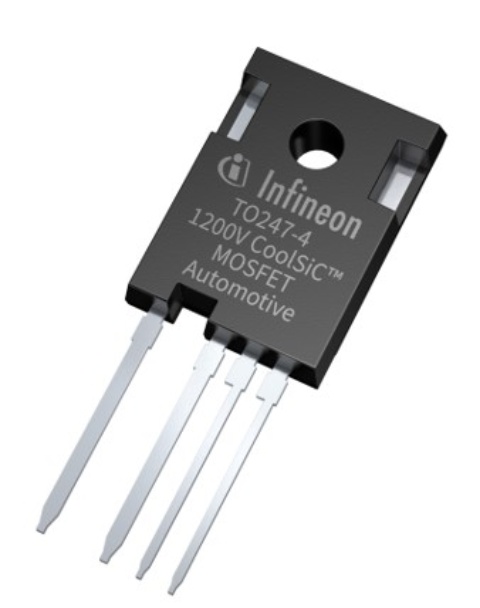

AIMZHN120R020M1T

分类:
数据:

简介: Automotive 1200V Silicon-carbide (SiC) Trench Power MOSFET in TO247-4L, 20mΩ

I[D ](@25°C) max: 100.0A

Operating Temperature max: 175.0°C

Polarity: N

Qualification: Automotive

R[DS (on)](@ Tj = 25°C): 19.0mΩ

V[DS] max: 1200.0V

库存数量:

库存数量:

询价

AIMZH120R020M1T

分类:
数据:

简介: Automotive 1200V Silicon-carbide (SiC) Trench Power MOSFET in TO247-4L (thin leads), 20mΩ

V[DS] max: 1200.0V

R[DS (on)](@ Tj = 25°C): 19.0mΩ

I[D ](@25°C) max: 100.0A

Qualification: Automotive

Polarity: N

Operating Temperature max: 175.0°C

库存数量:

库存数量:

询价
