INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

1EDI3038AS

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: The EiceDRIVER™ 1EDI3038AS is an automotive qualified single channel high voltage gate driver optimized for SiC MOSFET.

Channels: 1.0 Classification: ISO 26262-compliant Configuration: High-side Input Vcc max: 5.5V Output Current(Sink): 15.0A Output Current(Source): 15.0A Package: PG-DSO-20 Qualification: Automotive Voltage Class: 1200.0V Turn Off Propagation Delay: 60.0ns Turn On Propagation Delay: 60.0ns Isolation Type: Galvanic isolation - Reinforced Family: EiceDRIVER™ isolated gate driver ICs for EV Currently planned availability until at least: 2038

1EDI3035AS

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: The EiceDRIVER™ 1EDI3035AS is an automotive qualified single channel high voltage gate driver optimized for SiC MOSFET.

Channels: 1.0 Classification: ISO 26262-compliant Configuration: High-side Input Vcc max: 5.5V Output Current(Sink): 20.0A Output Current(Source): 20.0A Package: PG-DSO-20 Qualification: Automotive Voltage Class: 1200.0V Turn Off Propagation Delay: 60.0ns Turn On Propagation Delay: 60.0ns Isolation Type: Galvanic isolation - Reinforced Family: EiceDRIVER™ isolated gate driver ICs for EV Currently planned availability until at least: 2038

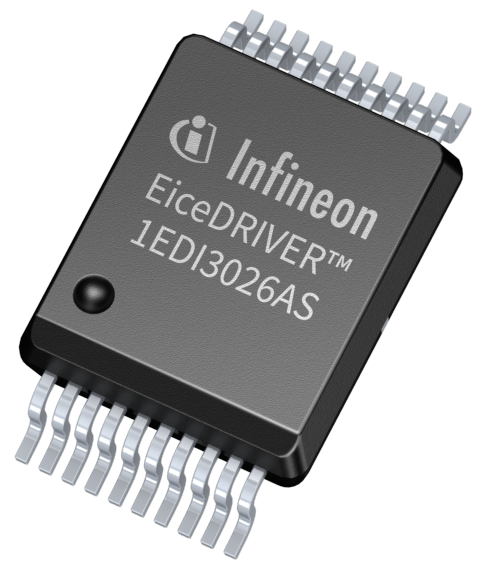

1EDI3026AS

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: The EiceDRIVER™ 1EDI3026AS is an automotive qualified single channel high voltage gate driver optimized for IGBT technologies.

Classification: ISO 26262-compliant Channels: 1.0 Configuration: High-side Input Vcc max: 5.5V Output Current(Sink): 20.0A Output Current(Source): 20.0A Output Current(Source): 20.0A Package: PG-DSO-20 Qualification: Automotive Voltage Class: 1200.0V Turn Off Propagation Delay: 60.0ns Turn On Propagation Delay: 60.0ns Isolation Type: Galvanic isolation - Reinforced Currently planned availability until at least: 2038 Family: EiceDRIVER™ isolated gate driver ICs for EV

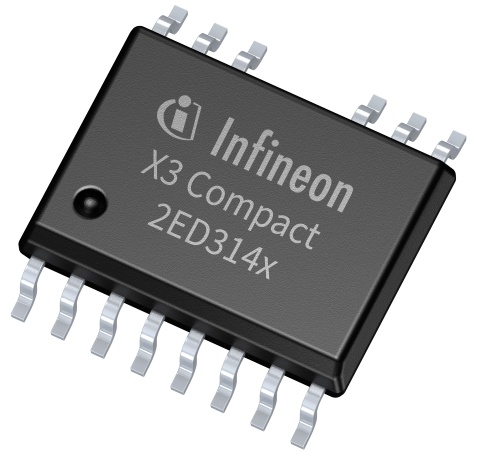

2ED3140MC12L

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 8.5 V UVLO

Channels: 2.0 Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Reinforced Output Current(Source): 6.0A Output Current(Sink): 6.5A Package: PG-DSO-14-71 Qualification: Industrial Voltage Class: 2300.0V Turn Off Propagation Delay: 39.0ns Turn On Propagation Delay: 39.0ns VBS UVLO(Off): 8.5V VBS UVLO(On): 9.3V

IDWD60E65E7

分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 功率二极管
数据:

简介: 650 V silicon power diode in TO-247-2 2pin package

Voltage Class: NoneV VF: 1.65V Configuration: Single Irrm: 18.86A Ptot: NoneW Package: TO-247 Qrr: 1.25µC RthJC: NoneK/W Operating Temperature: None°C trr: 99.0ns VF: NoneV I(FSM): NoneA IR: NoneµA Mounting: THT IF: 71.0A

2ED3141MC12L

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 11 V UVLO

IDW80C65D2

分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 功率二极管
数据:

简介: 650 V IGBT silicon power diode in TO-247 package

Configuration: Common Cathode I(FSM): NoneA IF: 40.0A IR: NoneµA Irrm: 3.6A Mounting: THT Operating Temperature: None°C Ptot: NoneW Package: TO-247 Qrr: 0.18µC RthJC: NoneK/W VF: 1.6V trr: 68.0ns Voltage Class: NoneV

IDP15E65D2

分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 功率二极管
数据:

简介: 650 V silicon power diode in TO-220 real2pin package

IF: 15.0A I(FSM): NoneA VF: 1.6V IR: NoneµA Irrm: 3.3A Qrr: 0.07µC trr: 47.0ns Ptot: NoneW RthJC: NoneK/W Operating Temperature: None°C Mounting: THT Package: TO-220 Configuration: Single Voltage Class: NoneV

2ED3143MC12L

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 14.7 V UVLO

2ED3142MC12L

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 12.5 V UVLO
