INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

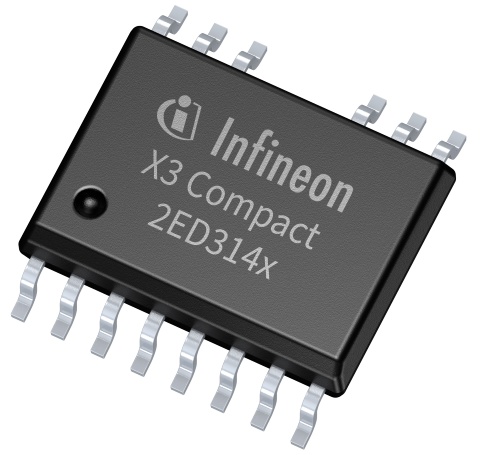

2ED3146MC12L

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 12.5 V UVLO

Channels: 2.0 Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Reinforced Output Current(Source): 6.0A Output Current(Sink): 6.5A Package: PG-DSO-14-71 Qualification: Industrial Voltage Class: 2300.0V Turn Off Propagation Delay: 39.0ns Turn On Propagation Delay: 39.0ns VBS UVLO(Off): 12.5V VBS UVLO(On): 13.6V

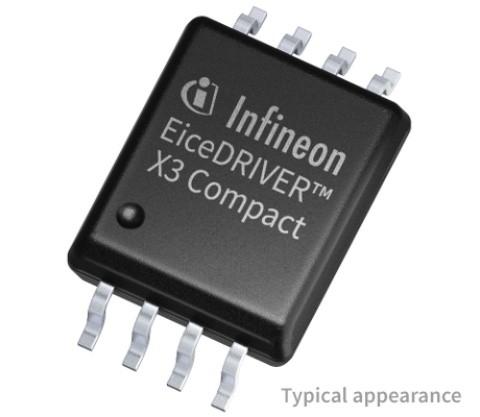

1ED3122MC12H

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 10 A, 5.7 kV (rms) single-channel isolated gate driver with active miller clamp, UL 1577 & VDE 0884-11 certified, 8 V UVLO

Channels: 1.0 Configuration: High-side Isolation Type: Galvanic isolation - Reinforced Input Vcc: NoneV Output Current(Source): 10.0A Output Current(Sink): 9.0A Package: PG-DSO-8 Qualification: Industrial Turn Off Propagation Delay: 90.0ns Turn On Propagation Delay: 90.0ns VBS UVLO(On): 10.0V VBS UVLO(Off): 8.0V VCC UVLO(Off): 2.5V VCC UVLO(On): 3.1V Voltage Class: 2300.0V

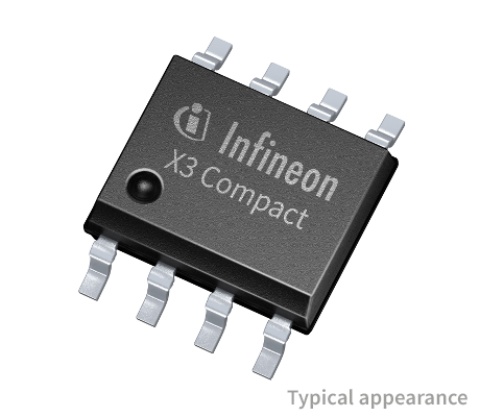

1ED3121MC12H

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 5.5 A, 5.7 kV (rms) single-channel isolated gate driver with separate output, UL 1577 & VDE 0884-11 certified, 10.5 V UVLO

Channels: 1.0 Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Reinforced Output Current(Sink): 5.5A Output Current(Source): 5.5A Package: PG-DSO-8 Qualification: Industrial Turn Off Propagation Delay: 90.0ns Turn On Propagation Delay: 90.0ns VBS UVLO(Off): 10.5V VBS UVLO(On): 12.5V VCC UVLO(Off): 2.5V VCC UVLO(On): 3.1V Voltage Class: 2300.0V

IDWD40E65E7

分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 功率二极管
数据:

简介: 650 V silicon power diode in TO-247-2 2pin package

Voltage Class: NoneV VF: 1.65V Configuration: Single Irrm: 15.69A Ptot: NoneW Package: TO-247 Qrr: 0.86µC RthJC: NoneK/W Operating Temperature: None°C trr: 89.0ns VF: NoneV I(FSM): NoneA IR: NoneµA Mounting: THT IF: 49.0A

1ED3125MU12F

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 10 A, 3.0 kV (rms) single-channel isolated gate driver with active Miller clamp, UL 1577 certified, 10.5 V UVLO

Channels: 1.0 Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Functional Output Current(Source): 10.0A Output Current(Sink): 9.0A Qualification: Industrial Turn Off Propagation Delay: 90.0ns Turn On Propagation Delay: 90.0ns VCC UVLO(Off): 2.5V VCC UVLO(On): 3.1V VBS UVLO(Off): 10.5V VBS UVLO(On): 12.5V Voltage Class: 2300.0V Package: PG-DSO-8

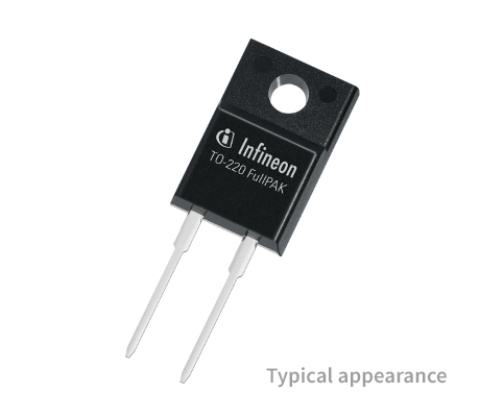

IDV20E65D1

分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 功率二极管
数据:

简介: 650 V silicon power diode in TO-220 FullPAK package

Configuration: Single I(FSM): NoneA IF: 15.0A IR: NoneµA Irrm: 7.6A Mounting: THT Operating Temperature: None°C Ptot: NoneW Package: TO-220 Qrr: 0.31µC RthJC: NoneK/W VF: 1.35V trr: 65.0ns Voltage Class: NoneV

1ED3141MU12F

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 6.5 A, 3 kV (rms) single-channel isolated gate driver with separate output, UL 1577 certified, 12 V UVLO

Voltage Class: 2300.0V Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Functional Qualification: Industrial Turn Off Propagation Delay: 45.0ns Turn On Propagation Delay: 45.0ns Output Current(Source): 6.0A Output Current(Sink): 6.5A VBS UVLO(Off): 11.0V VBS UVLO(On): 12.0V Channels: 1.0

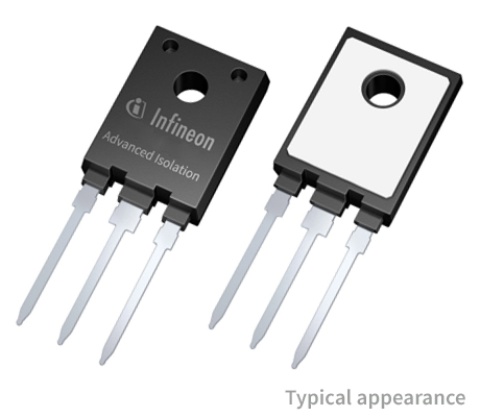

IDFW80C65D1

分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 功率二极管
数据:

简介: 650 V silicon power diode in TO-247 advanced isolation package

I(FSM): NoneA Irrm: 23.5A Operating Temperature: None°C Ptot: NoneW Qrr: 2.62µC RthJC: NoneK/W VF: 1.45V Voltage Class: NoneV Configuration: Common Cathode IF: 59.0A IR: NoneµA trr: 73.0ns Mounting: THT Package: TO-247

1ED3124MU12H

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 14 A, 5.7 kV (rms) single-channel isolated gate driver with separate output, UL 1577 certified, 10.5 V UVLO

Channels: 1.0 Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Functional Qualification: Industrial Voltage Class: 2300.0V Output Current(Sink): 14.0A Output Current(Source): 13.5A Turn Off Propagation Delay: 90.0ns Turn On Propagation Delay: 90.0ns VCC UVLO(Off): 2.5V VCC UVLO(On): 3.1V VBS UVLO(Off): 10.5V VBS UVLO(On): 12.5V Package: PG-DSO-8

1ED3127MU12F

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 10 A, 3 kV (rms) single-channel isolated gate driver with active Miller clamp, UL 1577 certified, 12 V UVLO

Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Functional Output Current(Source): 10.0A VBS UVLO(On): 12.5V Voltage Class: 2300.0V Turn Off Propagation Delay: 90.0ns Turn On Propagation Delay: 90.0ns VCC UVLO(On): 3.1V VCC UVLO(Off): 2.5V VBS UVLO(Off): 10.5V Channels: 1.0 Output Current(Sink): 9.0A Qualification: Industrial Package: PG-DSO-8
