INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

SAK-TC275T-64F200WDC

分类:
数据:

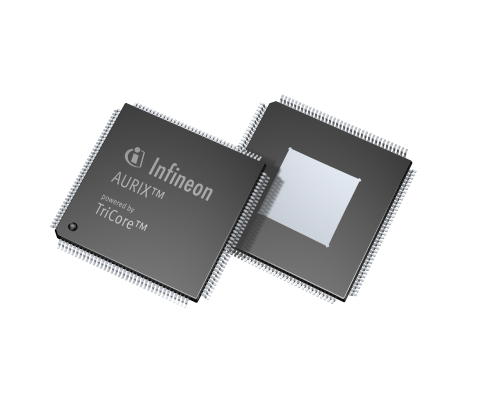

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200 MHz, up to 4MB of Flash and a LQFP-176 package

SRAM (incl. Cache): 472.0kByte CAN Nodes: 4 A/D Input Lines(incl. FADC): 48 Program Memory: 4.0MByte Number of ADC Modules: 14.0 EEPROM Emulation: yes Instruction Width([bits]): 32/16 DMA Channels: 64 External Bus Interface: no Fast Flash Programming: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V I/O Operation Voltages: 5.0V Touch/LED Matrix Control: no On-chip Voltage Regulator: yes Real Time Clock: yes Floating Point Unit: yes Watchdog Timer: yes Oscillator Watchdog: yes 更多

LIN: 4.0 SPI: 4.0 eMMC: no Hardware Accelerator: no # of cores / lockstep cores: 3/2 Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 14.5 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC275TC-64F200NDC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200MHz, 4MB of Flash and a LQFP-176 package

SRAM (incl. Cache): 424.0kByte CAN Nodes: 4 A/D Input Lines(incl. FADC): 48 Program Memory: 4.0MByte Number of ADC Modules: 14.0 EEPROM Emulation: yes Instruction Width([bits]): 32/16 DMA Channels: 64 External Bus Interface: no Fast Flash Programming: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V I/O Operation Voltages: 5.0V Touch/LED Matrix Control: no On-chip Voltage Regulator: yes Real Time Clock: yes Floating Point Unit: yes Watchdog Timer: yes Oscillator Watchdog: yes 更多

eMMC: no SPI: 4.0 LIN: 4.0 Hardware Accelerator: no # of cores / lockstep cores: 3/2 Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant ASIL/SIL support: ASIL-D/SIL-3

SAK-TC275TC-64F200WDC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200MHz, 4MB of Flash and a LQFP-176 Package

LIN: 4.0 SPI: 4.0 eMMC: no # of cores / lockstep cores: 3/2 Hardware Accelerator: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant ASIL/SIL support: ASIL-D/SIL-3

SAK-TC275TF-64F200NDC

分类:
数据:

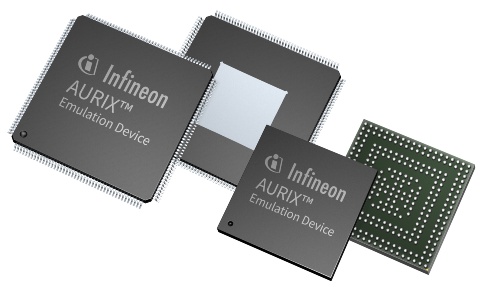

简介: Debug, Trave, Measure and Calibrate

# of cores / lockstep cores: 3/2 Additional Features: 100 Mbit Ethernet CAN Nodes: 4 DSP Functionality: yes External Bus Interface: no Floating Point Unit: yes Hardware Accelerator: no On-chip Clock Generation: yes LIN: 4.0 Number of ADC Modules: 14.0 I/O Operation Voltages max: 5.0V On-chip Voltage Regulator: yes Oscillator Watchdog: yes Real Time Clock: yes Program Memory: 4.0MByte SRAM (incl. Cache): 472.0kByte eMMC: no SPI: 4.0 Watchdog Timer: yes Type of Memory: Flash 更多

Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant A/D Input Lines(incl. FADC): 48 DMA Channels: 64 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC275TF-64F200WDB

分类:
数据:

SRAM (incl. Cache): 472.0kByte Watchdog Timer: yes eMMC: no Real Time Clock: yes Program Memory: 4.0MByte Oscillator Watchdog: yes # of cores / lockstep cores: 3/2 DMA Channels: 64 CAN Nodes: 4 Additional Features: Ethernet Hardware Accelerator: no Floating Point Unit: yes DSP Functionality: yes Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Number of ADC Modules: 14.0 A/D Input Lines(incl. FADC): 48 LIN: 4.0 更多

SPI: 4.0 On-chip Clock Generation: YES On-chip Voltage Regulator: YES ASIL/SIL support: ASIL-D/SIL-3

SAK-TC275TP-64F200NDC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200MHz, 4MB of Flash and a LQFP-176 Package

SRAM (incl. Cache): 472.0kByte CAN Nodes: 4 A/D Input Lines(incl. FADC): 48 Program Memory: 4.0MByte Number of ADC Modules: 14.0 EEPROM Emulation: yes Instruction Width([bits]): 32/16 DMA Channels: 64 External Bus Interface: no Fast Flash Programming: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V I/O Operation Voltages: 5.0V Touch/LED Matrix Control: no On-chip Voltage Regulator: yes Real Time Clock: No Floating Point Unit: yes Watchdog Timer: yes Oscillator Watchdog: yes 更多

eMMC: no SPI: 4.0 LIN: 4.0 # of cores / lockstep cores: 3/2 Hardware Accelerator: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 17.37 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC275TP-64F200WDC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200MHz, 4MB of Flash and LQFP-176 Package

SRAM (incl. Cache): 472.0kByte CAN Nodes: 4 A/D Input Lines(incl. FADC): 48 Program Memory: 4.0MByte Number of ADC Modules: 14.0 EEPROM Emulation: yes Instruction Width([bits]): 32/16 DMA Channels: 64 External Bus Interface: no Fast Flash Programming: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V I/O Operation Voltages: 5.0V Touch/LED Matrix Control: no On-chip Voltage Regulator: yes Real Time Clock: no Floating Point Unit: yes Watchdog Timer: yes Oscillator Watchdog: yes 更多

SAK-TC277T-64F200NDC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200MHz, 4MB of Flash and a LFBGA-292 Package

SRAM (incl. Cache): 472.0kByte CAN Nodes: 4 A/D Input Lines(incl. FADC): 60 Program Memory: 4.0MByte Number of ADC Modules: 14.0 EEPROM Emulation: yes Instruction Width([bits]): 32/16 DMA Channels: 64 External Bus Interface: no Fast Flash Programming: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V I/O Operation Voltages: 5.0V Touch/LED Matrix Control: no On-chip Voltage Regulator: yes Real Time Clock: yes Floating Point Unit: yes Watchdog Timer: yes Oscillator Watchdog: yes 更多

SAK-TC277T-64F200SDC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200MHz, 4MB of Flash and a LFBGA-292 Package

SPI: 4.0 LIN: 4.0 eMMC: no # of cores / lockstep cores: 3/2 Hardware Accelerator: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO26262-compliant Budgetary Price €/1k: 15.48 Budgetary Price €/1k: 15.48 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC277TC-64F200NDC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200MHz, up to 4MB of Flash and a LFBGA-292 Package

SRAM (incl. Cache): 424.0kByte CAN Nodes: 4 A/D Input Lines(incl. FADC): 60 Program Memory: 4.0MByte Number of ADC Modules: 14.0 EEPROM Emulation: yes Instruction Width([bits]): 32/16 DMA Channels: 64 External Bus Interface: no Fast Flash Programming: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V I/O Operation Voltages: 5.0V Touch/LED Matrix Control: no On-chip Voltage Regulator: yes Real Time Clock: yes Floating Point Unit: yes Watchdog Timer: yes Oscillator Watchdog: yes 更多
