Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。
EAS/Avalanche Energy: 3500.0mJ
ID: 4.6A
ID(lim): NoneA
Load Current: 4.6A
Mounting: SMT
Ptot: NoneW
VDS: NoneV
Control Interface: Discrete
IL(nom): 4.6A
Recommended Operating Voltage: NoneV
Operating Temperature: None°C
EAS(Energy capability): 3500.0mJ
toff(Turn OFF time): Noneµs
ton(Turn ON time): Noneµs
Family: Classic HITFET™
Classification: -
Channels: 1.0
RDS (on)(@ Tj = 25°C): 27.0mΩ
RDS (on)(@ Tj = 150°C): NonemΩ
Diagnostics: -
更多
Protection strategy: Latch
Nominal Load Current per channel: 4.6A
IL(Short Circuit Current): 30.0A
BTS3205G
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路数据:

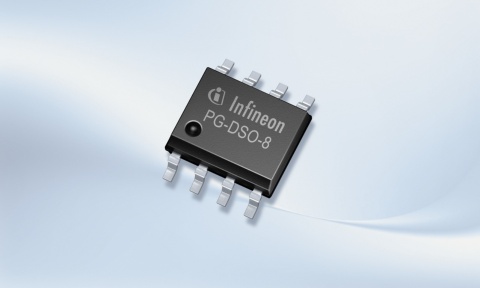

简介: The BTS3205G is a one channel low-side power switch in PG-DSO-8-24 package providing embedded protective functions
EAS/Avalanche Energy: 65.0mJ
ID: 0.35A
ID(lim): NoneA
Mounting: SMT
Ptot: NoneW
VDS: NoneV
Load Current: 0.52A
Diagnostic Features: Output Status
Control Interface: Discrete
IL(nom): 0.52A
Recommended Operating Voltage: NoneV
Operating Temperature: None°C
EAS(Energy capability): 65.0mJ
toff(Turn OFF time): Noneµs
ton(Turn ON time): Noneµs
Family: Classic HITFET™
Classification: -
Channels: 1.0
RDS (on)(@ Tj = 25°C): 900.0mΩ
RDS (on)(@ Tj = 150°C): NonemΩ
更多
Diagnostics: -
Protection strategy: Auto-restart
Nominal Load Current per channel: 0.52A
IL(Short Circuit Current): 0.6A
BTS3134D
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路数据:
简介: N channel vertical power FET in Smart SIPMOS technology. Fully protected by embedded protection functions.
EAS/Avalanche Energy: 3000.0mJ
ID: 3.5A
ID(lim): NoneA
Load Current: 3.5A
Mounting: SMT
Ptot: NonemW
VDS: NoneV
Control Interface: Discrete
IL(nom): 3.5A
Recommended Operating Voltage: NoneV
Operating Temperature: None°C
EAS(Energy capability): 3000.0mJ
toff(Turn OFF time): Noneµs
ton(Turn ON time): Noneµs
Family: Classic HITFET™
Classification: -
Channels: 1.0
RDS (on)(@ Tj = 25°C): 45.0mΩ
RDS (on)(@ Tj = 150°C): NonemΩ
Diagnostics: -
更多
Protection strategy: Latch
Nominal Load Current per channel: 3.5A
IL(Short Circuit Current): 18.0A
BTS3160D
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路数据:

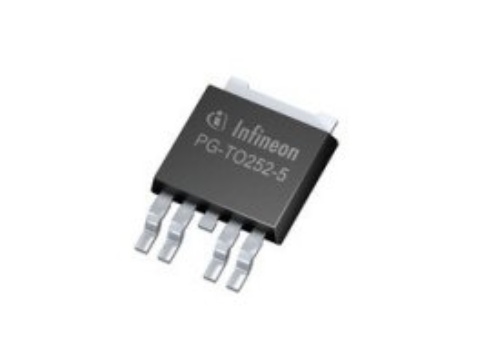

简介: The BTS3160D is a latching one channel low-side power switch in PG-TO-252-5-13 package providing embedded protective functions.
EAS/Avalanche Energy: 300.0mJ
ID: 7.8A
ISC: NoneA
Mounting: SMT
VDS: NoneV
Control Interface: Discrete
Load Current: 9.7A
Diagnostic Features: Output Status
IL(nom): 9.7A
Recommended Operating Voltage: NoneV
Operating Temperature: None°C
EAS(Energy capability): 300.0mJ
toff(Turn OFF time): Noneµs
ton(Turn ON time): Noneµs
Family: Classic HITFET™
Classification: -
Channels: 1.0
RDS (on)(@ Tj = 25°C): 8.0mΩ
RDS (on)(@ Tj = 150°C): NonemΩ
Diagnostics: -
更多
Protection strategy: Latch
Nominal Load Current per channel: 9.7A
IL(Short Circuit Current): 70.0A
BTS3207N
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路数据:
简介: N channel vertical power FET in Smart SIPMOS technology. Fully protected by embedded protection functions.
EAS/Avalanche Energy: 150.0mJ
ID: 0.64A
ID(lim): NoneA
Load Current: 0.64A
Mounting: SMT
Ptot: NoneW
VDS: NoneV
Control Interface: Discrete
IL(nom): 0.64A
Recommended Operating Voltage: NoneV
Operating Temperature: None°C
EAS(Energy capability): 150.0mJ
toff(Turn OFF time): Noneµs
ton(Turn ON time): Noneµs
Family: Classic HITFET™
Classification: -
Channels: 1.0
RDS (on)(@ Tj = 25°C): 500.0mΩ
RDS (on)(@ Tj = 150°C): NonemΩ
Diagnostics: -
更多
Protection strategy: Auto-restart
Nominal Load Current per channel: 0.64A
IL(Short Circuit Current): 5.0A
BTS3256D
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路数据:
简介: The BTS 3256D is a single channel low-side power switch in PG-TO-252-5-11 package providing embedded protective functions
EAS/Avalanche Energy: 300.0mJ
Features: ADJUSTABLE SLEWRATE
Features: SWITCHING UP TO 12KHZ
ID: 7.5A
ID(lim): NoneA
ISC: NoneA
Mounting: SMT
VDS: NoneV
Load Current: 8.7A
Diagnostic Features: Output Status
Control Interface: Discrete
IL(nom): 8.7A
Recommended Operating Voltage: NoneV
Operating Temperature: None°C
EAS(Energy capability): 300.0mJ
toff(Turn OFF time): Noneµs
ton(Turn ON time): Noneµs
Family: Classic HITFET™
Classification: -
Channels: 1.0
更多
RDS (on)(@ Tj = 25°C): 10.0mΩ
RDS (on)(@ Tj = 150°C): NonemΩ
Diagnostics: Digital
Protection strategy: Auto-restart
Nominal Load Current per channel: 8.7A
IL(Short Circuit Current): 42.0A
BTS3205N
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路数据:

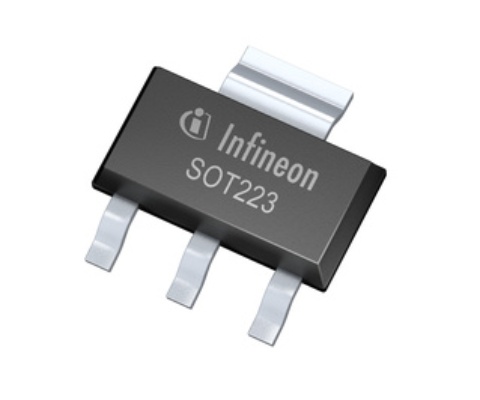

简介: The BTS3205N is a one channel low-side power switch in PG-SOT-223-4 package providing embedded protective functions.
EAS/Avalanche Energy: 65.0mJ
ID: 0.35A
ID(lim): NoneA
Mounting: SMT
Ptot: NoneW
VDS: NoneV
Load Current: 0.52A
Diagnostic Features: Output Status
Control Interface: Discrete
IL(nom): 0.52A
Recommended Operating Voltage: NoneV
Operating Temperature: None°C
EAS(Energy capability): 65.0mJ
toff(Turn OFF time): Noneµs
ton(Turn ON time): Noneµs
Family: Classic HITFET™
Classification: -
Channels: 1.0
RDS (on)(@ Tj = 25°C): 900.0mΩ
RDS (on)(@ Tj = 150°C): NonemΩ
更多
Diagnostics: -
Protection strategy: Auto-restart
Nominal Load Current per channel: 0.52A
IL(Short Circuit Current): 0.6A
BTF3050TE
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路数据:
简介: The BTF3050TE is a 50 mOhm single channel Smart Low-Side Power Switch in a PG-TO252-5 package providing embedded protective functions.
EAS/Avalanche Energy: 120.0mJ
ID: 3.0A
ID(lim): NoneA
IL(LIM): NoneA
IL(LIM)_TRIGGER: NoneA
ISC: NoneA
Mounting: SMT
VDS: NoneV
Load Current: 3.0A
Diagnostic Features: Output Status
Control Interface: Discrete
IL(nom): 3.0A
Operating Temperature: None°C
EAS(Energy capability): 120.0mJ
toff(Turn OFF time): Noneµs
ton(Turn ON time): Noneµs
Family: HITFET™ +
Classification: ISO 26262-ready
Channels: 1.0
RDS (on)(@ Tj = 25°C): 40.0mΩ
更多
RDS (on)(@ Tj = 150°C): NonemΩ
Diagnostics: Digital
Protection strategy: Auto-restart
Nominal Load Current per channel: 3.0A
IL(Short Circuit Current): 8.0A
Recommended Operating Voltage: NoneV
BTS3405G
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路数据:
简介: The BTS3405G is a two channel low-side power switch in PG-DSO-8-25 package providing embedded protective functions.
EAS/Avalanche Energy: 65.0mJ
ID: 0.35A
ID(lim): NoneA
Mounting: SMT
Ptot: NoneW
VDS: NoneV
Load Current: 0.4A
Diagnostic Features: Output Status
Control Interface: Discrete
IL(nom): 0.35A
Recommended Operating Voltage: NoneV
Operating Temperature: None°C
EAS(Energy capability): 65.0mJ
toff(Turn OFF time): Noneµs
ton(Turn ON time): Noneµs
Family: Classic HITFET™
Classification: -
Channels: 2.0
RDS (on)(@ Tj = 25°C): 900.0mΩ
RDS (on)(@ Tj = 150°C): NonemΩ
更多
Diagnostics: -
Protection strategy: Auto-restart
Nominal Load Current per channel: 0.35A
IL(Short Circuit Current): 0.6A
BTF3080EJ
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路数据:

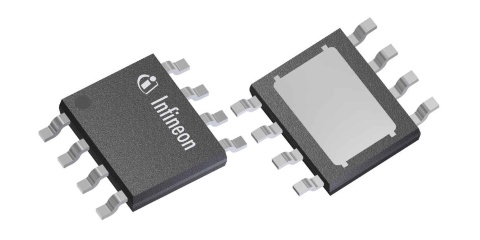

简介: The BTF3080EJ is a 80 mΩ single channel Smart Low-Side Power Switch with in a PG-TDSO-8-31 package providing embedded protective functions.
EAS/Avalanche Energy: 53.0mJ
IL(LIM): NoneA
IL(LIM)_TRIGGER: NoneA
ISC: NoneA
Mounting: SMT
ID: NoneA
VDS: NoneV
Load Current: 3.0A
Diagnostic Features: Output Status
Control Interface: Discrete
IL(nom): 3.0A
Operating Temperature: None°C
EAS(Energy capability): 53.0mJ
toff(Turn OFF time): Noneµs
ton(Turn ON time): Noneµs
Family: HITFET™ +
Classification: ISO 26262-ready
Channels: 1.0
RDS (on)(@ Tj = 25°C): 71.0mΩ
RDS (on)(@ Tj = 150°C): NonemΩ
更多
Diagnostics: Digital
Protection strategy: Auto-restart
Nominal Load Current per channel: 3.0A
IL(Short Circuit Current): 7.0A
Recommended Operating Voltage: NoneV
