INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战: 高能效、 移动性和 安全性,为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称,并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

TLF50281EL

分类:
数据:

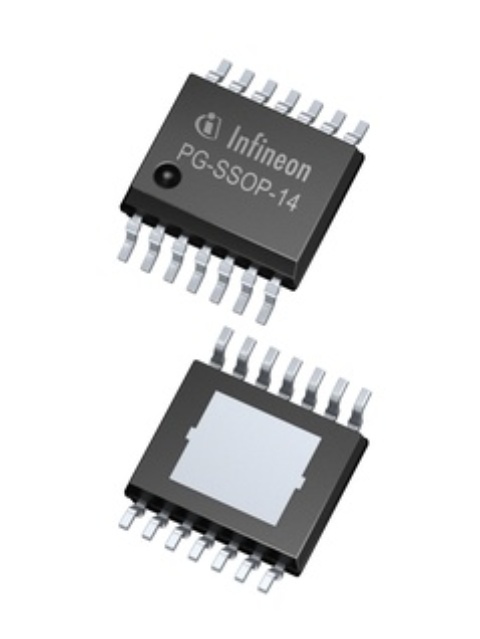

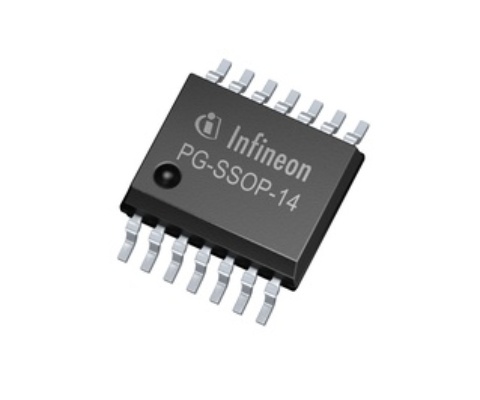

简介: The TLF50281EL is a high frequency PWM step-down DC/DC converter with an integrated PMOS power switch, packaged in a small PG-SSOP-14 with exposed pad

Iq:  45.0µA
Comments:  Iq<45µA
Comments:  f=2,2MHz
Comments:  100%DC
Comments:  EN, RES, WD
Inhibit:  yes
库存数量: 0
询 价

TLE6389-2GV

分类:
数据:

简介: The TLE6389-2GV step-down DC-DC switching controllers provide high efficiency over loads ranging from 1mA up to 2.5A.

Iq:  130.0µA
Inhibit:  yes
VQ (multiple):  adjustable
Watchdog:  no
Protect:  yes
Regulator Type:  Buck Controller
库存数量: 0
询 价

TLF51801ELV

分类:
数据:

简介: The TLF51801ELV is a PWM step-down DC/DC controller with external power switches, packaged in a small, thermal enhanced PG-SSOP-14 with exposed pad.

Iq:  1000.0µA
Comments:  Adj Vout
Comments:  f = 100 - 700 kHz
Comments:  EN
Inhibit:  yes
VQ (multiple):  1.2 V - Dmax * Vs
1: ¥10.1106
库存数量: 0
询 价

TLF50251EL

分类:
数据:

简介: The TLF50251EL is a high frequency PWM step-down DC/DC converter with an integrated PMOS power switch, packaged in a small PG-SSOP-14 with exposed pad

Applications:  Standard device for all applications
Iq:  45.0µA
Comments:  Iq<45µA
Comments:  f=2,2MHz
Comments:  100%DC
Comments:  EN, RES
1: ¥15.2636
库存数量: 3

TLE8366EV33

分类:
数据:

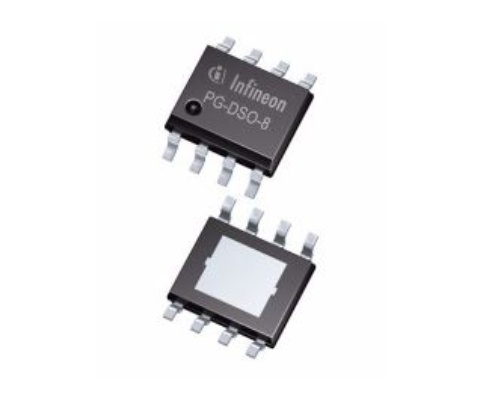

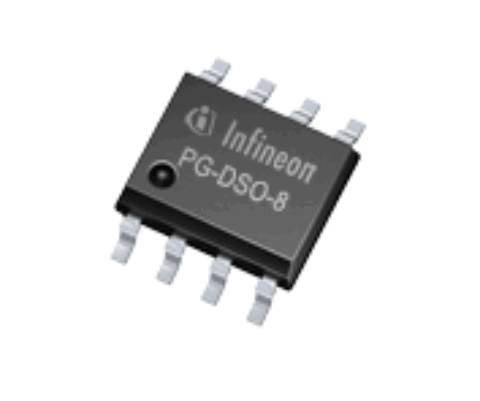

简介: The TLE8366E V33 is a PWM step-down DC/DC converter with an integrated 1.8 A power switch, packaged in a small PG-DSO-8 with exposed pad.

Iq:  7000.0µA
Comments:  Automotive Step-down converter in robust DSO-8 EP package
Inhibit:  yes
VQ (multiple):  3.3V
Watchdog:  no
Protect:  yes
库存数量: 0
询 价

TLE8366EV50

分类:
数据:

简介: The TLE8366E V50 is a PWM step-down DC/DC converter with an integrated 1.8 A power switch, packaged in a small PG-DSO-8 with exposed pad.

Iq:  7000.0µA
Comments:  Automotive Step-down converter in robust DSO-8 EP package
Inhibit:  yes
VQ (multiple):  5.0V
Watchdog:  no
Protect:  yes
1: ¥10.8251
库存数量: 99

TLF50201EL

分类:
数据:

简介: The TLF50201EL is a high frequency PWM step-down DC/DC converter with an integrated PMOS power switch, packaged in a small PG-SSOP-14 with exposed pad

Applications:  Standard device for all applications
Iq:  45.0µA
Comments:  Iq<45µA
Comments:  f=2,2MHz
Comments:  100%DC
Configuration:  TLF50201EL
库存数量: 0
询 价

TLS4120D0EPV

分类:
数据:

简介: The OPTIREG™ Switcher TLS4120D0EPV is a synchronous standalone step-down DC/DC-converter especially designed for automotive applications.

Iq:  31.0µA
Comments:  adjustable voltage with max 2A
Comments:  Iq<31µA
Comments:  f=320..2,8MHz
Comments:  100% duty cycle
Inhibit:  yes
1: ¥26.2119
库存数量: 0
询 价

ICE3AS03LJG

分类:
数据:
ICC:  NonemA
VCC:  NoneV
Iq:  150.0µA
Operating Temperature:  None°C
IGATE:  NoneA
Function:  Current Mode PWM
库存数量: 0
询 价

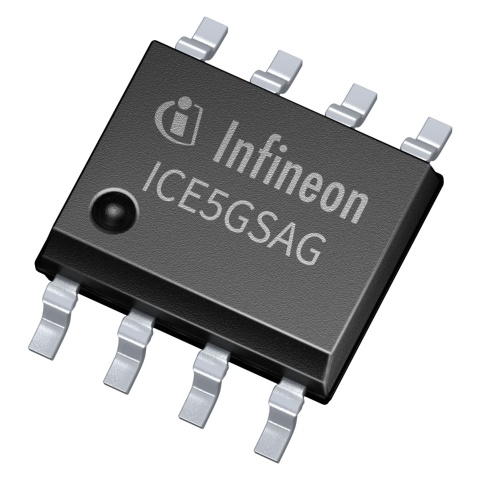

ICE5GSAG

分类:
数据:
Moisture Sensitivity Level:  3
Mounting:  SMT
Package:  PG-DSO-8
Topology:  Flyback
Topology:  Non-isolated flyback
Switching Frequency:  125.0kHz
1: ¥11.2127
库存数量: 14
