INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战: 高能效、 移动性和 安全性,为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称,并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

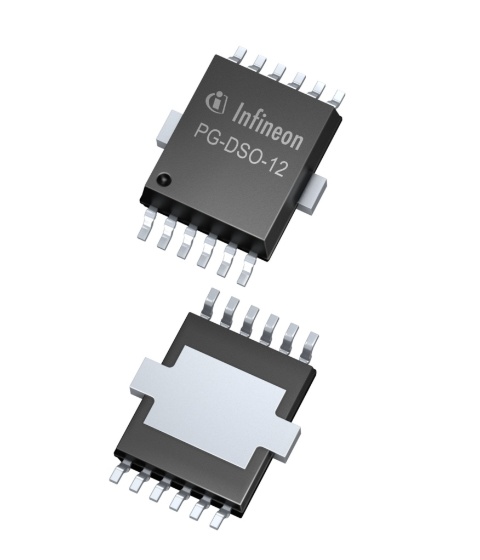

TLE9201SG

分类:
数据:

简介: The MOTIX™ TLE9201SG is a general purpose 6A H-Bridge for industrial and automotive applications

RDS (on):  100.0mΩ
Iq:  19.0µA
ID(lim)(multiple):  6.0 A
Diagnostics:  SPI & Status Flag
Protect:  SC
Protect:  OT
1: ¥13.4423
库存数量: 523

IFX9201SG

分类:
数据:

简介: The MOTIX™ IFX9201SG a general purpose 6A H-bridgedesigned for the control of small DC motors and inductive load

RDS (on):  100.0mΩ
ID(lim)(multiple):  6.0 A
Diagnostics:  SPI & Status Flag
Protect:  SC
Protect:  OT
Protect:  OC
1: ¥17.2720
库存数量: 0
询 价

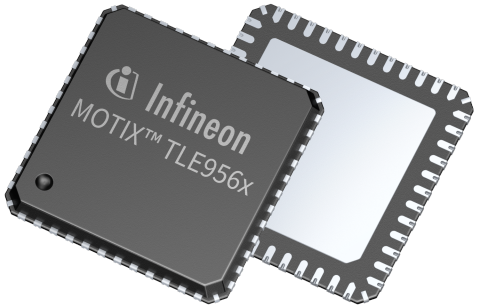

TLE9561QX

分类:
数据:

简介: The MOTIX™ TLE9561QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges

Channels:  8.0
Configuration:  Half Bridge
Transceiver:  1 x CAN FD ISO 11898 - 2
Quiescent Current:  18 μA (typ) Sleep Mode
Transmission Rate:  NoneMBit/s
Voltage Regulator Output((VCC1)):  5V / 250 mA
1: ¥23.6245
库存数量: 33

TLE9561-3QX

分类:
数据:

简介: The MOTIX™ TLE9561-3QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges

Channels:  8.0
Configuration:  Half Bridge
Transceiver:  1 x CAN FD ISO 11898 - 2
Transmission Rate:  NoneMBit/s
Quiescent Current:  18 μA (typ) Sleep Mode
Family:  Bridge SBC
库存数量: 0
询 价

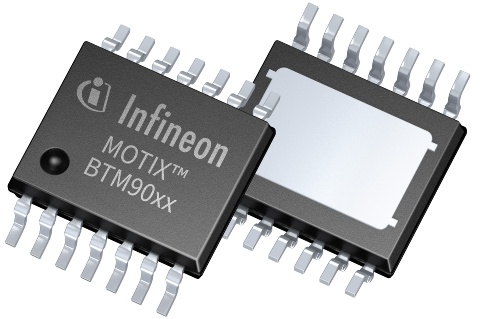

BTM9021EP

分类:
数据:

简介: The MOTIX™ BTM9021EP is a fully integrated H-bridge motor driver with small footprint and adjustable slew rate at two levels for an improved EMC performance. It operates via SPI interface.

Operating Voltage:  NoneV
Protect:  Overtemperature
Protect:  undervoltage
Protect:  overcurrent
Protect:  short circuit
Protect:  crosscurrent
库存数量: 0
询 价

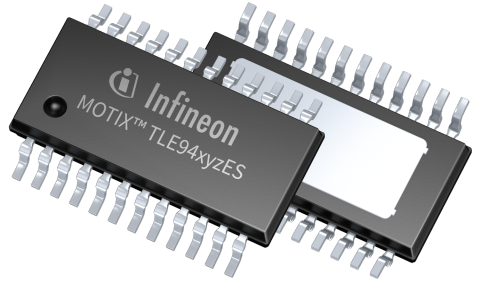

TLE94112ES

分类:
数据:

简介: The MOTIX™ TLE94112ES is a protected twelve-fold half-bridge driver designed especially for automotive motion control applications

ID(lim)(multiple):  12 x 0.9A
Inhibit:  Yes
Iq:  0.6µA
Mounting:  SMT
Operating Voltage:  NoneV
Temperature:  None°C
库存数量: 0
询 价

BTM9020EP

分类:
数据:

简介: The MOTIX™ BTM9020EP is a fully integrated H-bridge motor driver with small footprint and adjustable slew rate at two levels for an improved EMC performance. It operates via direct interface.

Operating Voltage:  NoneV
Protect:  Overtemperature
Protect:  undervoltage
Protect:  overcurrent
Protect:  short circuit
Protect:  crosscurrent
库存数量: 0
询 价

TLE94110ES

分类:
数据:

简介: The MOTIX™ TLE94110ES is a protected ten-fold half-bridge driver designed especially for automotive motion control applications

ID(lim)(multiple):  10 x 0.9A
Iq:  0.6µA
Inhibit:  Yes
Mounting:  SMT
Operating Voltage:  NoneV
RDS (on) (multiple):  850 mOhm
库存数量: 0
询 价

TLE9562-3QX

分类:
数据:

简介: The MOTIX™ TLE9562-3QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges

Quiescent Current:  18 μA (typ) Sleep Mode
Configuration:  Half Bridge
Channels:  8.0
Transceiver:  1 x CAN FD ISO 11898 - 2
Transceiver:  1 x LIN2.2 / J2602
Transmission Rate:  NoneMBit/s
库存数量: 0
询 价

TLE9564QX

分类:
数据:

简介: The MOTIX™ TLE9564QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges

|Product Group|:  BLDC Motor System IC
Channels:  6.0
Configuration:  Three Phase
Family:  Bridge SBC
Output Drivers:  1 x Dual-stage Charge Pump
Output Drivers:  3 x High-Side Switch 150 mA
1: ¥22.1834
库存数量: 87
