INFINEON

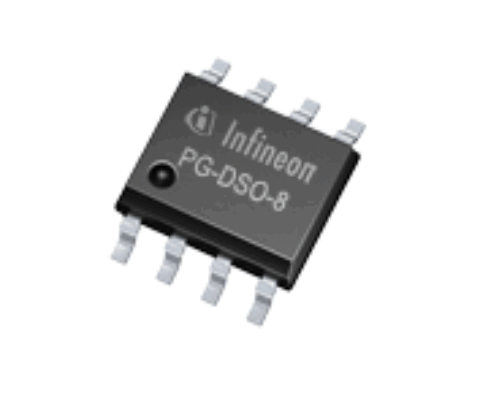

V[CC] max: 25.0V I[CC] max: 8.5mA I[q]: 380.0µA Operating Temperature max: 125.0°C Applications: SMPS Output Current Type: MOSFET Gate Driver Mounting: SMT Package: PG-DSO-8 Language: PowerEsim Product Category: AC-DC Power Conversion Frequency Range: 100.0kHz Budgetary Price €/1k: 0.64

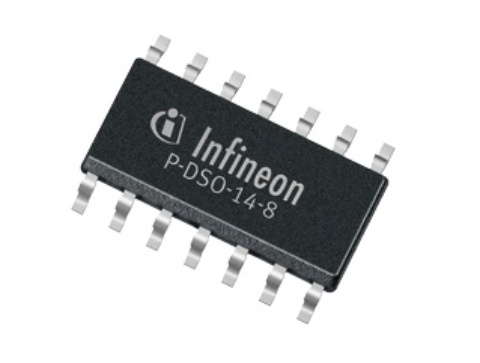

V[CC] max: 25.0V I[CC] max: 9.0mA I[q]: 380.0µA Operating Temperature max: 125.0°C Applications: SMPS Output Current Type: MOSFET Gate Driver Mounting: SMT Package: PG-DSO-14 Language: SPICE Product Category: AC-DC Power Conversion Frequency Range max: 100.0kHz Budgetary Price €/1k: 0.7

V[CC] max: 24.0V I[CC] max: 2.3mA Operating Temperature max: 130.0°C Applications: Off-Line SMPS Output Current Type: MOSFET Gate Driver Mounting: SMT Package: PG-DSO-8 Frequency Range max: 200.0kHz Language: SPICE Product Category: AC-DC Power Conversion Budgetary Price €/1k: 0.52

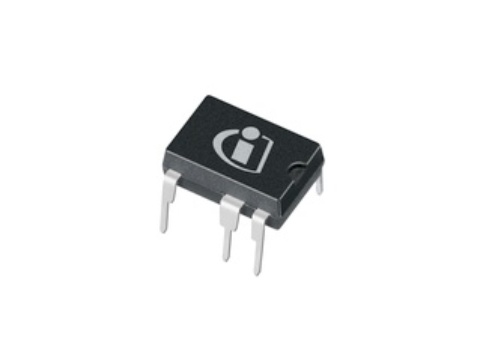

VDS: NoneV VCC: NoneV tr: 30.0ns tf: 30.0ns ICC: 5.7mA ESD Protection: NonekV Operating Temperature: None°C Package: PG-DIP-7 Frequency Range: 100kHz fixed Green Product: Yes Mounting: THT Switching Frequency: 100.0kHz Topology: Flyback RDS (on): NoneΩ Pout: NoneW Type: PWM controller with integrated MOSFET Technology: Gen3R Target Application: Power Supplies Sub Application: Offline SMPS Language: PowerEsim 更多

ESD Protection max: 2.0kV Frequency Range: 65kHz fixed Green Product: Yes I[CC]: 2.7mA Operating Temperature max: 130.0°C Package: PG-DSO-12 R[DS (on)] max: 1.96Ω V[CC] max: 25.0V V[DS] max: 650.0V t[f]: 30.0ns t[r]: 30.0ns Topology: Flyback Switching Frequency: 65.0kHz P[out] max: 23.0W Technology: Gen3R Type: PWM controller with integrated MOSFET Target Application: Power Supplies Sub Application: Offline SMPS Mounting: SMD Budgetary Price €/1k: 0.98

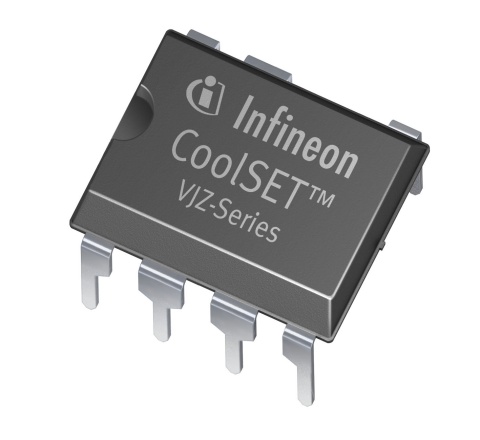

V[DS] max: 800.0V V[CC] max: 25.0V t[r]: 30.0ns t[f]: 30.0ns I[CC]: 5.7mA ESD Protection max: 2.0kV Operating Temperature max: 130.0°C Package: PG-DIP-7 Frequency Range: 100kHz fixed Green Product: Yes Switching Frequency: 100.0kHz Topology: Flyback R[DS (on)] max: 0.71Ω Type: PWM controller with integrated MOSFET Technology: Gen3R Target Application: Power Supplies Sub Application: Offline SMPS P[out] max: 52.0W Mounting: THD Budgetary Price €/1k: 1.22

V[DS] max: 800.0V R[DS (on)] max: 0.71Ω t[r]: 30.0ns t[f]: 30.0ns V[CC] max: 25.0V I[CC]: 4.4mA ESD Protection max: 2.0kV Operating Temperature max: 130.0°C Package: PG-DIP-7 Frequency Range: 65kHz fixed Green Product: Yes Topology: Flyback Switching Frequency: 65.0kHz P[out] max: 40.0W Type: PWM controller with integrated MOSFET Technology: Gen3R Target Application: Power Supplies Sub Application: Offline SMPS Mounting: THD Budgetary Price €/1k: 1.24

I[CC] max: 20.0mA I[Q] max: 2.0A I[q]: 300.0µA Operating Temperature max: 125.0°C V[CC] max: 25.0V Applications: SMPS Mounting: SMT Output Current Type: MOSFET Gate Driver Package: PG-DSO-8 Language: PowerEsim Product Category: AC-DC Power Conversion Frequency Range max: 285.0kHz Budgetary Price €/1k: 0.46

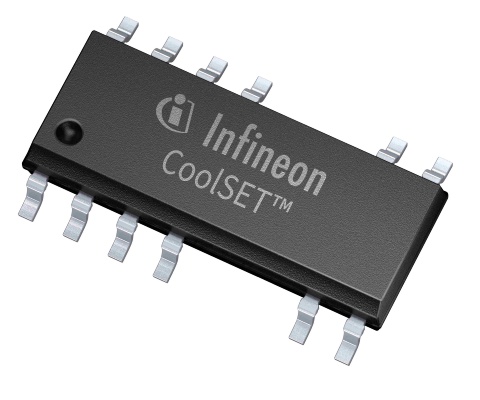

Family: CoolSET™ Frequency Range: Variable Green Product: Yes Package: PG-DSO-12 R[DS (on)] max: 2.35Ω Sub Application: Offline SMPS Switching Frequency: Variable Technology: Gen5 Topology: Flyback Type: PWM controller with integrated MOSFET V[CC] max: 24.0V V[DS] max: 800.0V t[f]: 30.0ns t[r]: 30.0ns ESD Protection max: 2.0kV Target Application: Power Supplies Target Application: Industrial Target Application: SMPS I[CC]: 0.9mA P[out] max: 23.0W 更多

Family: CoolSET™ Frequency Range: Variable Green Product: Yes Package: PG-DSO-12 R[DS (on)] max: 4.85Ω Sub Application: Offline SMPS Switching Frequency: Variable Technology: Gen5 Topology: Flyback Type: PWM controller with integrated MOSFET V[CC] max: 24.0V V[DS] max: 800.0V t[f]: 30.0ns t[r]: 30.0ns ESD Protection max: 2.0kV Target Application: Power Supplies Target Application: Industrial Target Application: SMPS I[CC]: 0.9mA P[out] max: 15.0W 更多
