INFINEON
Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。
V[DS] max: 650.0V
R[DS (on)] max: 0.75Ω
V[CC] max: 24.0V
ESD Protection max: 2.0kV
Operating Temperature max: 130.0°C
t[r]: 30.0ns
t[f]: 30.0ns
I[CC]: 1.5mA

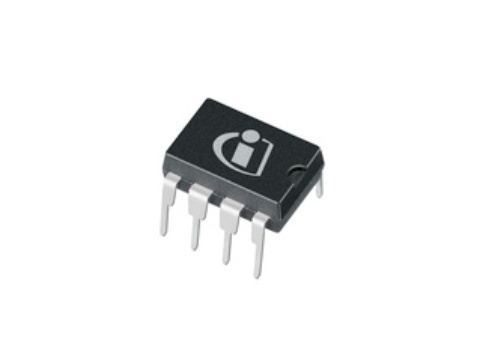

Package: PG-DIP-8
Green Product: Yes
Frequency Range: Variable
Topology: Flyback
Family: CoolSET™
P[out] max: 42.0W
Switching Frequency: Variable
Technology: Gen2
Type: PWM controller with integrated MOSFET
Target Application: Power Supplies
Sub Application: Offline SMPS
Mounting: THD
Budgetary Price €/1k: 1.2
V[DS] max: 650.0V
R[DS (on)] max: 0.75Ω
t[r]: 30.0ns
t[f]: 30.0ns
V[CC] max: 24.0V
I[CC]: 1.5mA
ESD Protection max: 2.0kV
Operating Temperature max: 130.0°C

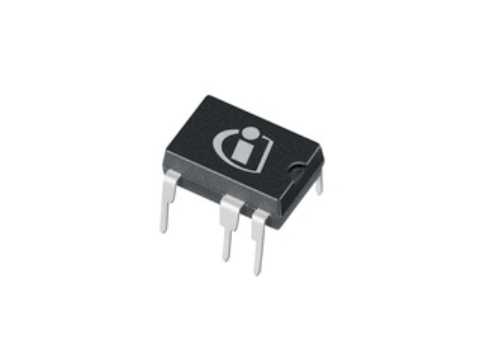

Package: PG-DIP-7
Frequency Range: Variable
Green Product: Yes
Topology: Flyback
Family: CoolSET™
P[out] max: 40.0W
Switching Frequency: Variable
Technology: Gen2
Type: PWM controller with integrated MOSFET
Target Application: Power Supplies
Sub Application: Offline SMPS
Mounting: THD
Budgetary Price €/1k: 1.12
ESD Protection: NonekV
Frequency Range: Variable
Green Product: Yes
ICC: 1.5mA
Mounting: SMT
Operating Temperature: None°C

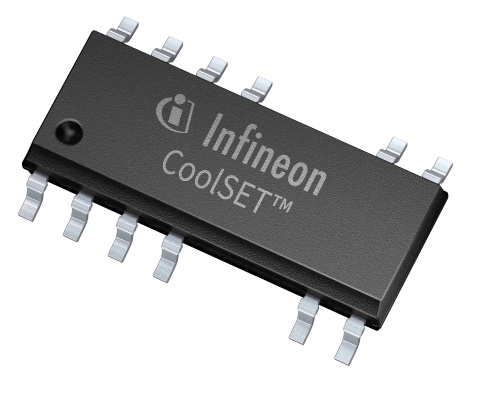

Package: PG-DSO-12
RDS (on): NoneΩ
VCC: NoneV
VDS: NoneV
tf: 30.0ns
tr: 30.0ns
Topology: Flyback
Family: CoolSET™
Pout: NoneW
Switching Frequency: Variable
Technology: Gen2
Type: PWM controller with integrated MOSFET
Target Application: Power Supplies
Sub Application: Offline SMPS
Budgetary Price €/1k: 1.46

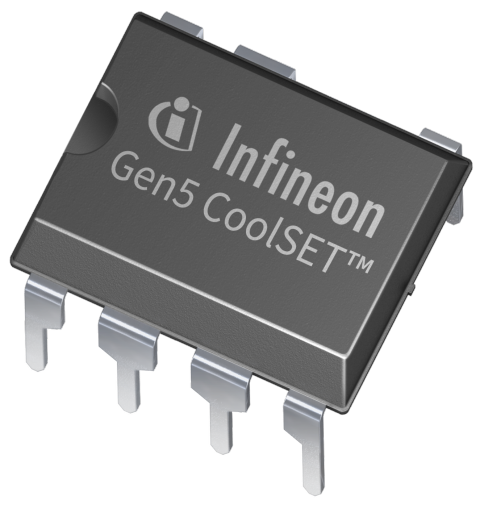

ICE5BR3995CZ
分类:数据:
简介: 65 kHz offline flyback regulator with integrated 950 V CoolMOS™ superjunction MOSFET and line overvoltage protection
ESD Protection max: 2.0kV
Green Product: Yes
I[CC]: 0.9mA
Operating Temperature max: 129.0°C
Package: PG-DIP-7
P[out] max: 16.5W
R[DS (on)] max: 4.05Ω
Sub Application: Offline SMPS
Technology: Gen5
V[DS] max: 950.0V
Topology: Flyback
Type: PWM controller with integrated MOSFET
V[CC] max: 24.0V
Target Application: Power Supplies
Target Application: Industrial
Target Application: Consumer
Target Application: Home appliances
Target Application: SMPS
Target Application: Metering
Switching Frequency: 65.0kHz
Mounting: THD
Applications: Charger, SMPS

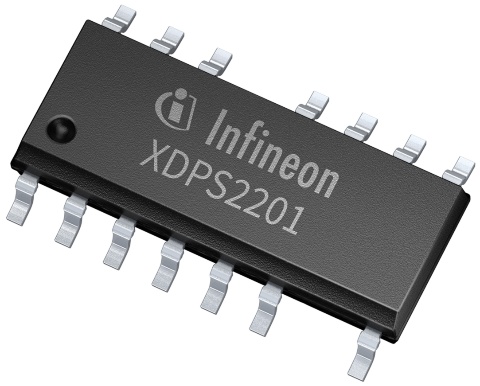

Package: DSO-14
f[SW] max: 250.0kHz
V[CC] max: 24.0V
Type: AC-DC controller
Operating Temperature max: 125.0°C
Topology: Hybrid Flyback
Output Current Type: Constant current+constant voltage
Current mode control: yes
I[CC]: 11.0mA
Switching Frequency max: 250.0kHz
V[DS] max: 650.0V
R[DS (on)] max: 1.96Ω
t[r]: 30.0ns
t[f]: 30.0ns
V[CC] max: 24.0V
I[CC]: 1.5mA
ESD Protection max: 2.0kV
Operating Temperature max: 130.0°C
Package: PG-DIP-7
Frequency Range: Variable
Green Product: Yes
Topology: Flyback
Family: CoolSET™
P[out] max: 25.0W
Switching Frequency: Variable
Technology: Gen2
Type: PWM controller with integrated MOSFET
Target Application: Power Supplies
Sub Application: Offline SMPS
Mounting: THD
Budgetary Price €/1k: 0.97

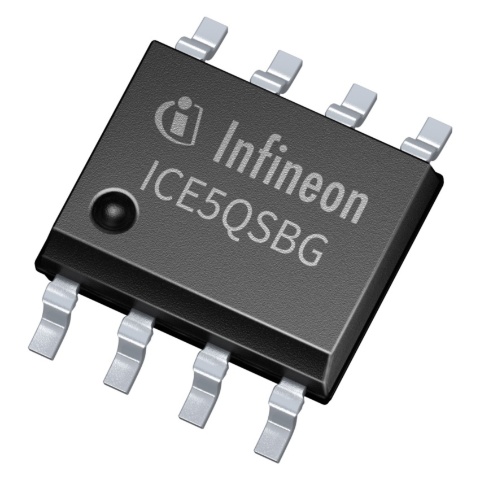

ICE5QSBG
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路数据:
简介: 5th generation quasi-resonant flyback controller
Applications: Industrial
Applications: SMPS
Applications: Power Supplies
Moisture Sensitivity Level: 3
Mounting: SMT
Operating Temperature max: 129.0°C
Package: PG-DSO-8
V[CC] max: 24.0V
V[CC] max: 18.0V
Output Current Type: 4
Softstart: Yes
OCP: Yes
OLP: Yes
Brown Out Protection: Yes
Frequency max: 250.0kHz
Language: SPICE
Product Category: AC-DC Power Conversion
I[CC]: 7.5mA
Budgetary Price €/1k: 1.2
Applications: PC, TV, Server, SMPS

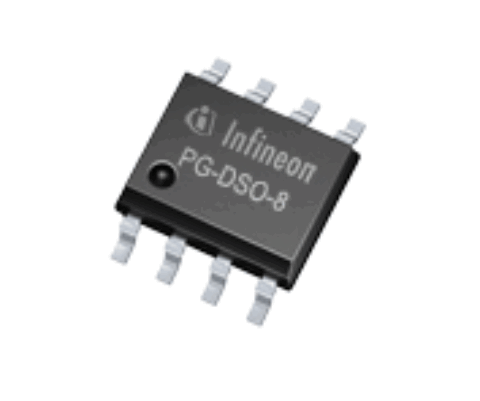

ICL8800
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路数据:
简介: Single-stage PFC flyback controller for constant voltage output
Comments: Flyback controller CV output with high power factor and low THD
Output characteristics: Constant Voltage
Package: PG-DSO-8
Product Category: LED Controller
Switching Frequency: NonekHz
Topology: Flyback SSR/PSR
Type: Controller
ICC: 2.0mA
