INFINEON
Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。
ESD Protection max: 2.0kV
Frequency Range: Variable
Green Product: Yes
I[CC]: 1.5mA
Operating Temperature max: 130.0°C

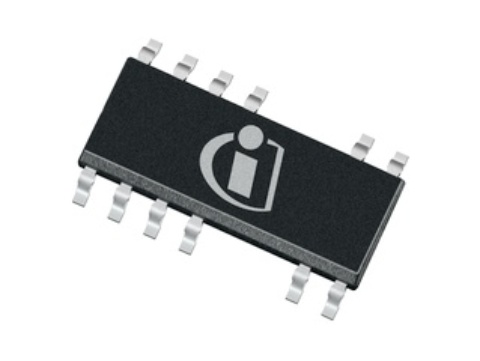

Package: PG-DSO-12
R[DS (on)] max: 5.18Ω
V[CC] max: 24.0V
V[DS] max: 800.0V
t[r]: 30.0ns
t[f]: 30.0ns
Topology: Flyback
Family: CoolSET™
P[out] max: 14.0W
Switching Frequency: Variable
Technology: Gen2
Type: PWM controller with integrated MOSFET
Target Application: Power Supplies
Sub Application: Offline SMPS
Mounting: SMD
Budgetary Price €/1k: 0.84

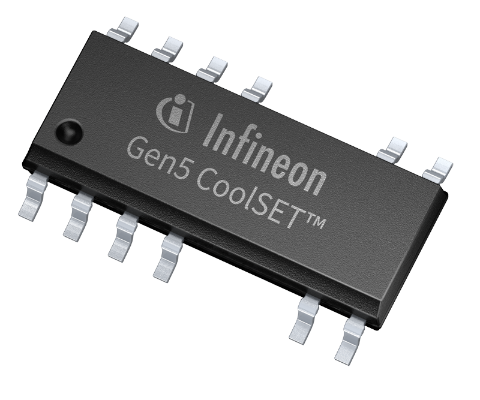

ICE5QR0680BG
分类:数据:
简介: 5th generation quasi-resonant CoolSET™ with integrated 800V CoolMOS™ SJ MOSFET in SMD package
ESD Protection max: 2.0kV
Family: CoolSET™
Frequency Range: Variable
Green Product: Yes
Package: PG-DSO-12
R[DS (on)] max: 0.8Ω
Sub Application: Offline SMPS
Switching Frequency: Variable
Target Application: Power Supplies
Target Application: Industrial
Target Application: SMPS
Technology: Gen5
Topology: Flyback
Type: PWM controller with integrated MOSFET
V[CC] max: 24.0V
V[DS] max: 800.0V
t[f]: 30.0ns
t[r]: 30.0ns
I[CC]: 0.9mA
P[out] max: 42.0W
更多
Operating Temperature max: 129.0°C
Mounting: SMD

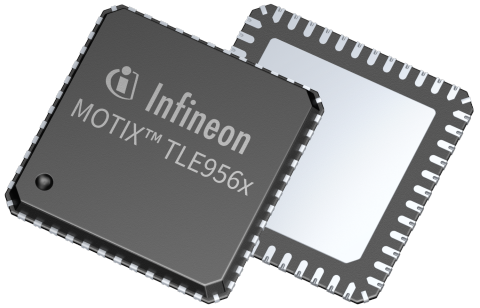

TLE9562QX
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: The MOTIX™ TLE9562QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges
Quiescent Current: 18 μA (typ) Sleep Mode
Channels: 8.0
Configuration: Half Bridge
Transmission Rate max: 5.0MBit/s
Voltage Regulator Output((VCC1)): 5V / 250 mA
Output Drivers: 1 x Dual-stage Charge Pump
Output Drivers: 4 x High-Side Switch 150 mA
Wake-up Inputs: Wake Pins, CAN, LIN
Temperature: - 40°C - 150°C
Technology: MOTIX™ SBC
Operating Voltage max: 28.0V
Currently planned availability until at least: 2038
Family: MOTIX™ motor system ICs (SBC)
Interfaces: SPI
Qualification: Automotive
Classification: ISO26262-ready
Temperature max: 150.0°C
Transceiver: 1 x CAN FD
Transceiver: 1 x LIN
Gate current max: 100.0mA
更多
Supply Voltage absolute max ratings: 40.0V
Supply Voltage max: 28.0V
V[DS] max: 650.0V
R[DS (on)] max: 0.75Ω
t[r]: 30.0ns
t[f]: 30.0ns
V[CC] max: 24.0V
I[CC]: 1.5mA
ESD Protection max: 2.0kV
Operating Temperature max: 130.0°C
Package: PG-DSO-12
Frequency Range: Variable
Green Product: Yes
Topology: Flyback
Family: CoolSET™
P[out] max: 38.0W
Switching Frequency: Variable
Technology: Gen2
Type: PWM controller with integrated MOSFET
Target Application: Power Supplies
Sub Application: Offline SMPS
Mounting: SMD
Budgetary Price €/1k: 1.2
t[f]: 30.0ns
I[CC]: 2.7mA
ESD Protection max: 2.0kV
R[DS (on)] max: 1.96Ω
t[r]: 30.0ns
V[DS] max: 650.0V
Operating Temperature max: 130.0°C
V[CC] max: 25.0V
Green Product: Yes
Frequency Range: 65kHz fixed

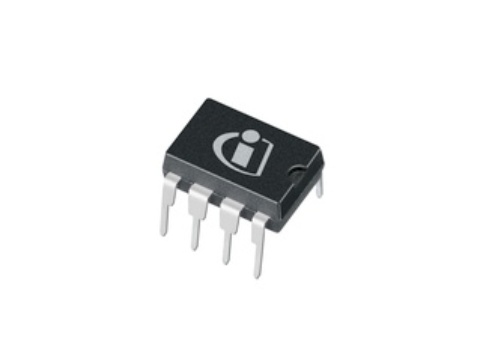

Package: PG-DIP-8
Topology: Flyback
Switching Frequency: 65.0kHz
P[out] max: 25.0W
Technology: Gen3R
Type: PWM controller with integrated MOSFET
Target Application: Power Supplies
Sub Application: Offline SMPS
Mounting: THD
Budgetary Price €/1k: 0.95
ESD Protection max: 2.0kV
I[CC]: 0.9mA
Operating Temperature max: 129.0°C
Package: PG-DSO-12
Switching Frequency: 125.0kHz
V[DS] max: 800.0V
V[CC] max: 24.0V
R[DS (on)] max: 1.75Ω
Topology: Flyback
Topology: Non-isolated flyback
Green Product: Yes
P[out] max: 27.0W
Technology: Gen5
Type: PWM controller with integrated MOSFET
Target Application: Power Supplies
Sub Application: Offline SMPS
Target Application: Industrial
Target Application: SMPS
Mounting: SMD
Budgetary Price €/1k: 0.88
V[DS] max: 800.0V
R[DS (on)] max: 2.62Ω
t[r]: 30.0ns
t[f]: 30.0ns
V[CC] max: 25.0V
I[CC]: 3.4mA
ESD Protection max: 2.0kV
Operating Temperature max: 130.0°C

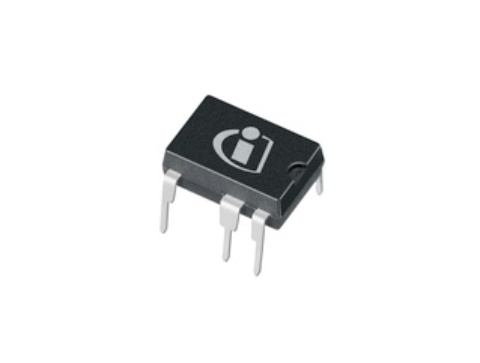

Package: PG-DIP-7
Frequency Range: 100kHz fixed
Green Product: Yes
Switching Frequency: 100.0kHz
Topology: Flyback
P[out] max: 21.0W
Type: PWM controller with integrated MOSFET
Technology: Gen3R
Target Application: Power Supplies
Sub Application: Offline SMPS
Mounting: THD
Budgetary Price €/1k: 0.93
t[r]: 30.0ns
t[f]: 30.0ns
V[DS] max: 650.0V
R[DS (on)] max: 1.96Ω
V[CC] max: 24.0V
I[CC]: 1.5mA
ESD Protection max: 2.0kV
Operating Temperature max: 130.0°C
Package: PG-DIP-8
Green Product: Yes
Frequency Range: Variable
Topology: Flyback
Family: CoolSET™
P[out] max: 26.0W
Switching Frequency: Variable
Technology: Gen2
Type: PWM controller with integrated MOSFET
Target Application: Power Supplies
Sub Application: Offline SMPS
Mounting: THD
Budgetary Price €/1k: 0.98
Green Product: Yes
Package: PG-DSO-12
Family: CoolSET™
Frequency Range: Variable
Operating Temperature max: 129.0°C
P[out] max: 27.0W
Topology: Flyback
V[DS] max: 800.0V
t[f]: 30.0ns
t[r]: 30.0ns
V[CC] max: 24.0V
R[DS (on)] max: 1.75Ω
ESD Protection max: 2.0kV
I[CC]: 0.9mA
Switching Frequency: Variable
Target Application: Power Supplies
Technology: Gen5
Type: PWM controller with integrated MOSFET
Sub Application: Offline SMPS
Target Application: Industrial
更多
Target Application: SMPS
|Product Collections|: /simulation-model-desk/
Language: PowerEsim
Product Category: AC-DC Power Conversion
Mounting: SMD
Budgetary Price €/1k: 0.92
VDS: NoneV
RDS (on): NoneΩ
tr: 30.0ns
tf: 30.0ns
VCC: NoneV
ICC: 1.5mA
ESD Protection: NonekV
Operating Temperature: None°C
Package: PG-DSO-12
Frequency Range: Variable
Green Product: Yes
Mounting: SMT
Topology: Flyback
Family: CoolSET™
Pout: NoneW
Switching Frequency: Variable
Technology: Gen2
Type: PWM controller with integrated MOSFET
Target Application: Power Supplies
Sub Application: Offline SMPS
Budgetary Price €/1k: 0.82
