德州仪器 (TI) 是一家全球化半导体设计与制造企业,凭借 80,000+ 模拟 IC 与嵌入式处理器产品、各类软件以及最大规模的销售和技术支持不断开拓创新。
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.2
Vos (offset voltage at 25°C) (max) (mV): 0.05
GBW (typ) (MHz): 40
Features: EMI Hardened, Zero Crossover, e-Trim™
| 库存数量: | 0 |
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 18
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5
Vos (offset voltage at 25°C) (max) (mV): 0.12
GBW (typ) (MHz): 11
Slew rate (typ) (V/µs): 20
| 库存数量: | 0 |
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.5
Rail-to-rail: In, Out
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 3
| 库存数量: | 0 |
Product type: Analog output
Common-mode voltage (max) (V): 40
Common-mode voltage (min) (V): -0.2
Input offset (±) (max) (µV): 15
Input offset drift (±) (typ) (µV/°C): 0.01
Voltage gain (V/V): 25, 50, 100, 200, 500
| 库存数量: | 0 |
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 36
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 3
Rail-to-rail: In to V-
GBW (typ) (MHz): 1.2
Slew rate (typ) (V/µs): 0.5
| 库存数量: | 0 |
Current consumption (mA): 130
Frequency (min) (MHz): 1
Frequency (max) (MHz): 11000
Gain (typ) (dB): 16
Noise figure (typ) (dB): 6.8
OIP3 (typ) (dBm): 37
| 库存数量: | 0 |

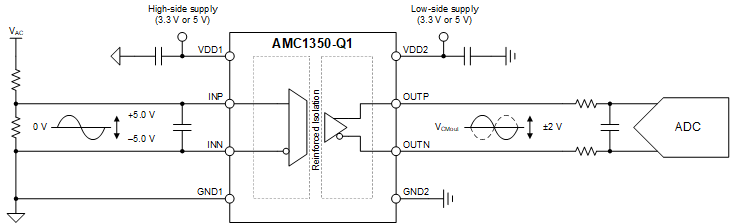

Device type: Voltage sensing
Peak-to-peak input voltage range (V): 5
Isolation rating: Reinforced
Withstand isolation voltage (VISO) (Vrms): 5000
Working isolation voltage (VIOWM) (Vrms): 1500
Transient isolation voltage (VIOTM) (VPK): 7000
| 库存数量: | 0 |
Device type: Voltage sensing
Peak-to-peak input voltage range (V): 0-5
Isolation rating: Reinforced
Withstand isolation voltage (VISO) (Vrms): 5000
Working isolation voltage (VIOWM) (Vrms): 1500
Transient isolation voltage (VIOTM) (VPK): 7000
| 库存数量: | 0 |
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.7
Vos (offset voltage at 25°C) (max) (mV): 0.01
GBW (typ) (MHz): 5.7
Features: Cost Optimized, Zero Drift
| 库存数量: | 0 |
Number of channels: 2
GBW (typ) (MHz): 900
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 3.3
Vos (offset voltage at 25°C) (max) (mV): 8
Rail-to-rail: No
| 库存数量: | 0 |
