Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 24 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Rail-to-rail: In-Out GBW (typ) (MHz): 25 Slew rate (typ) (V/µs): 18 Vos (offset voltage at 25°C) (max) (mV): 0.2 Iq per channel (typ) (mA): 1.25 Vn at 1 kHz (typ) (nV√Hz): 12 Rating: Automotive Operating temperature range (°C): -40 to 125 Offset drift (typ) (µV/°C): 0.25 Features: EMI Hardened, MUX Friendly, Small Size CMRR (typ) (dB): 134 Iout (typ) (A): 0.15 Architecture: Bipolar Input common mode headroom (to negative supply) (typ) (V): 0 Input common mode headroom (to positive supply) (typ) (V): 0 Output swing headroom (to negative supply) (typ) (V): 0.035 Output swing headroom (to positive supply) (typ) (V): -0.035

Output swing headroom (to positive supply) (typ) (V): -0.01 Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.7 Rail-to-rail: In, Out GBW (typ) (MHz): 20 Slew rate (typ) (V/µs): 30 Vos (offset voltage at 25°C) (max) (mV): 0.8 Iq per channel (typ) (mA): 1.6 Vn at 1 kHz (typ) (nV√Hz): 8 Rating: Catalog Operating temperature range (°C): -40 to 125 Offset drift (typ) (µV/°C): 0.4 Features: Zero Crossover Input bias current (max) (pA): 5 CMRR (typ) (dB): 110 Iout (typ) (A): 0.04 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.1 Input common mode headroom (to positive supply) (typ) (V): 0.1 Output swing headroom (to negative supply) (typ) (V): 0.01 Output swing headroom (to positive supply) (typ) (V): -0.01

Rating: Space Number of channels: 1 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.1 BW at Acl (MHz): 620 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 1500 Architecture: Fully Differential ADC Driver Vn at flatband (typ) (nV√Hz): 2.2 Iq per channel (typ) (mA): 10.1 Rail-to-rail: In to V-, Out Vos (offset voltage at 25°C) (max) (mV): 0.45 Operating temperature range (°C): -55 to 125 Iout (typ) (mA): 100 2nd harmonic (dBc): 140 3rd harmonic (dBc): 140 Frequency of harmonic distortion measurement (MHz): 0.1 GBW (typ) (MHz): 850 Input bias current (max) (pA): 13000000 Features: Shutdown CMRR (typ) (dB): 100 Rating: Space

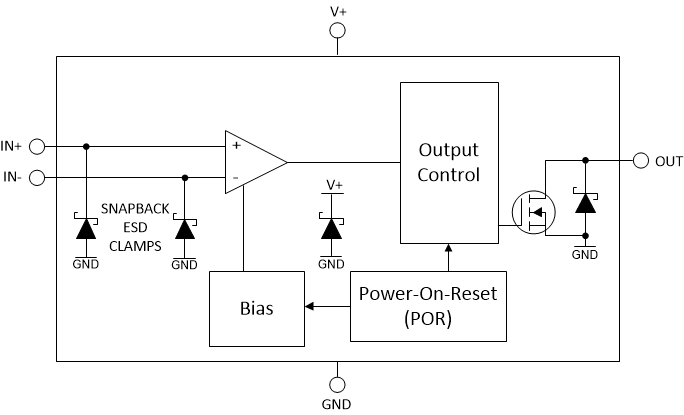

Iq per channel (typ) (mA): 0.025 Input bias current (±) (max) (nA): 0.005 Rail-to-rail: In Rating: Catalog Operating temperature range (°C): -40 to 125 Features: Fail-safe, POR VICR (max) (V): 5.5 VICR (min) (V): 0

Iq per channel (typ) (mA): 0.025 Input bias current (±) (max) (nA): 0.005 Rail-to-rail: In Rating: Automotive Operating temperature range (°C): -40 to 125 Features: Fail-safe, POR VICR (max) (V): 5.5 VICR (min) (V): 0

Output swing headroom (to positive supply) (typ) (V): 0.001 THD + N at 1 kHz (typ) (%): 0.002 Number of channels: 4 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.7 Vos (offset voltage at 25°C) (max) (mV): 0.01 GBW (typ) (MHz): 5.7 Features: Cost Optimized, Zero Drift Slew rate (typ) (V/µs): 2.8 Rail-to-rail: In, Out Offset drift (typ) (µV/°C): 0.01 Iq per channel (typ) (mA): 0.57 Vn at 1 kHz (typ) (nV√Hz): 8.5 CMRR (typ) (dB): 150 Rating: Catalog Operating temperature range (°C): -40 to 125 Input bias current (max) (pA): 300 Iout (typ) (A): 0.055 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.1 Input common mode headroom (to positive supply) (typ) (V): 0 Output swing headroom (to negative supply) (typ) (V): 0.001 Output swing headroom (to positive supply) (typ) (V): 0.001 THD + N at 1 kHz (typ) (%): 0.002

Output swing headroom (to positive supply) (typ) (V): 0.001 THD + N at 1 kHz (typ) (%): 0.002 Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.7 Vos (offset voltage at 25°C) (max) (mV): 0.01 GBW (typ) (MHz): 5.7 Features: Cost Optimized, Zero Drift Slew rate (typ) (V/µs): 2.8 Rail-to-rail: In, Out Offset drift (typ) (µV/°C): 0.01 Iq per channel (typ) (mA): 0.57 Vn at 1 kHz (typ) (nV√Hz): 8.5 CMRR (typ) (dB): 150 Rating: Catalog Operating temperature range (°C): -40 to 125 Input bias current (max) (pA): 300 Iout (typ) (A): 0.055 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.1 Input common mode headroom (to positive supply) (typ) (V): 0 Output swing headroom (to negative supply) (typ) (V): 0.001 Output swing headroom (to positive supply) (typ) (V): 0.001 THD + N at 1 kHz (typ) (%): 0.002

Output swing headroom (to positive supply) (typ) (V): -0.01 Number of channels: 4 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.7 Rail-to-rail: In, Out GBW (typ) (MHz): 20 Slew rate (typ) (V/µs): 30 Vos (offset voltage at 25°C) (max) (mV): 0.8 Iq per channel (typ) (mA): 1.6 Vn at 1 kHz (typ) (nV√Hz): 8 Rating: Catalog Operating temperature range (°C): -40 to 125 Offset drift (typ) (µV/°C): 0.4 Features: Zero Crossover Input bias current (max) (pA): 5 CMRR (typ) (dB): 110 Iout (typ) (A): 0.04 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.1 Input common mode headroom (to positive supply) (typ) (V): 0.1 Output swing headroom (to negative supply) (typ) (V): 0.01 Output swing headroom (to positive supply) (typ) (V): -0.01

Architecture: FET / CMOS Input, Voltage FB Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5 GBW (typ) (MHz): 50 BW at Acl (MHz): 80 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 27 Vn at flatband (typ) (nV√Hz): 4.5 Vn at 1 kHz (typ) (nV√Hz): 4.5 Iq per channel (typ) (mA): 4.6 Vos (offset voltage at 25°C) (max) (mV): 1.9 Rail-to-rail: In, Out Features: Zero Crossover Rating: Catalog Operating temperature range (°C): -40 to 125 CMRR (typ) (dB): 115 Input bias current (max) (pA): 20 Offset drift (typ) (µV/°C): 0.4 Iout (typ) (mA): 85
