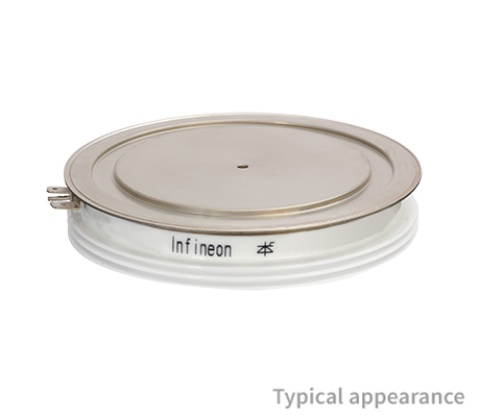

V[DRM]/ V[RRM (V)]: 2600.0V I[TSM]: 43500.0A I[TAVM]: 2480 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 111mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 2600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2480/85 I[TSM] [A](@10ms, Tvj max): 43500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 9460.0 V[T]/I[T] [V/kA](@Tvj max): 1.43/3.0 V[T0] [V](@T[vj max]) max: 0.95 r[T] [mΩ](@T[vj max]) max: 0.154 t[q] [µs]: 400.0 R[thJC] [K/kW](@180° el sin) max: 8.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 95.0

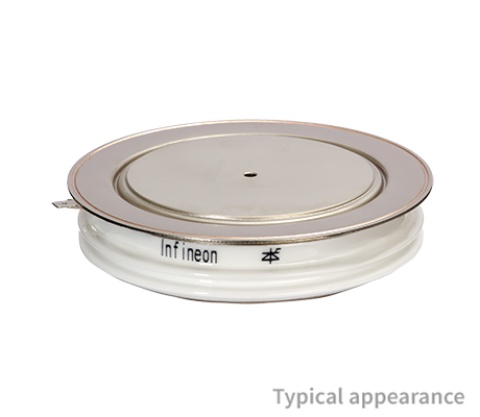

V[DRM]/ V[RRM (V)]: 5200.0V I[TSM]: 43000.0A I[TAVM]: 1660 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 120mm height 35mm / Ceramic V[DRM] / V[RRM] [V]: 5200.0 I[TAVM]/T[C] [A/°C](@180° el sin): 1660/85 I[TSM] [A](@10ms, Tvj max): 43000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 9250.0 V[T]/I[T] [V/kA](@Tvj max): 1.70/2.0 V[T0] [V](@T[vj max]) max: 0.92 r[T] [mΩ](@T[vj max]) max: 0.37 t[q] [µs]: 450.0 R[thJC] [K/kW](@180° el sin) max: 9.7 T[vj] [°C] max: 125.0 Clamping force [kn] max: 52.0

V[DRM]/ V[RRM (V)]: 5200.0V I[TSM]: 43000.0A I[TAVM]: 1770 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 120mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 5200.0 I[TAVM]/T[C] [A/°C](@180° el sin): 1770/85 I[TSM] [A](@10ms, Tvj max): 43000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 9250.0 V[T]/I[T] [V/kA](@Tvj max): 1.70/2.0 V[T0] [V](@T[vj max]) max: 0.92 r[T] [mΩ](@T[vj max]) max: 0.37 t[q] [µs]: 450.0 R[thJC] [K/kW](@180° el sin) max: 9.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 52.0

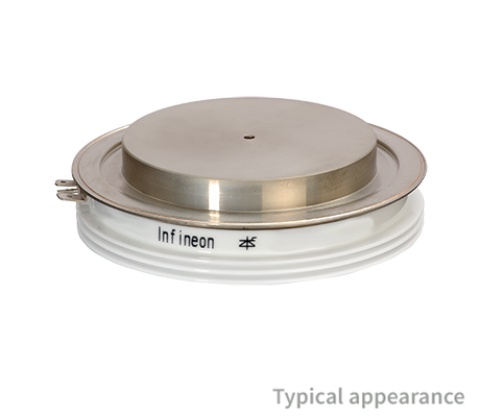

V[DRM]/ V[RRM (V)]: 3600.0V I[TSM]: 41000.0A I[TAVM]: 2060 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 120mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 3600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2060/85 I[TSM] [A](@10ms, Tvj max): 41000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 8400.0 V[T]/I[T] [V/kA](@Tvj max): 1.50/2.0 V[T0] [V](@T[vj max]) max: 1.0 r[T] [mΩ](@T[vj max]) max: 0.25 t[q] [µs]: 300.0 R[thJC] [K/kW](@180° el sin) max: 8.7 T[vj] [°C] max: 125.0 Clamping force [kn] max: 52.0

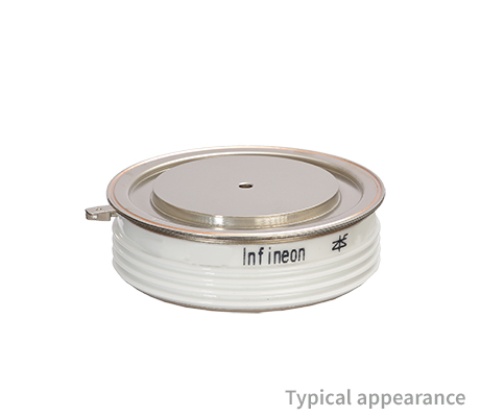

V[DRM]/ V[RRM (V)]: 600.0V I[TSM]: 42000.0A I[TAVM]: 2509 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 75mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2509/85 I[TSM] [A](@10ms, Tvj max): 42000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 8820.0 V[T]/I[T] [V/kA](@Tvj max): 1.22/6.0 V[T0] [V](@T[vj max]) max: 0.75 r[T] [mΩ](@T[vj max]) max: 0.072 t[q] [µs]: 200.0 R[thJC] [K/kW](@180° el sin) max: 18.4 T[vj] [°C] max: 140.0 Clamping force [kn] max: 56.0

V[DRM]/ V[RRM (V)]: 2200.0V I[TSM]: 50000.0A I[TAVM]: 2810 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 111mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 2200.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2810/85 I[TSM] [A](@10ms, Tvj max): 50000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 12500.0 V[T]/I[T] [V/kA](@Tvj max): 2.35/11.0 V[T0] [V](@T[vj max]) max: 0.9 r[T] [mΩ](@T[vj max]) max: 0.112 t[q] [µs]: 300.0 R[thJC] [K/kW](@180° el sin) max: 8.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 95.0

V[DRM]/ V[RRM (V)]: 3600.0V I[TSM]: 37000.0A I[TAVM]: 2180 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 111mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 3600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2180/85 I[TSM] [A](@10ms, Tvj max): 37000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 6850.0 V[T]/I[T] [V/kA](@Tvj max): 2.90/8.0 V[T0] [V](@T[vj max]) max: 1.08 r[T] [mΩ](@T[vj max]) max: 0.2 t[q] [µs]: 450.0 R[thJC] [K/kW](@180° el sin) max: 8.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 65.0

V[DRM]/ V[RRM (V)]: 2000.0V I[TSM]: 40000.0A I[TAVM]: 2400 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 111mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 2000.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2400/85 I[TSM] [A](@10ms, Tvj max): 40000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 8000.0 V[T]/I[T] [V/kA](@Tvj max): 2.65/8.8 V[T0] [V](@T[vj max]) max: 1.05 r[T] [mΩ](@T[vj max]) max: 0.154 t[q] [µs]: 400.0 R[thJC] [K/kW](@180° el sin) max: 8.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 95.0

V[DRM]/ V[RRM (V)]: 2600.0V I[TSM]: 40000.0A I[TAVM]: 2400 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 111mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 2600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2400/85 I[TSM] [A](@10ms, Tvj max): 40000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 8000.0 V[T]/I[T] [V/kA](@Tvj max): 2.65/8.8 V[T0] [V](@T[vj max]) max: 1.05 r[T] [mΩ](@T[vj max]) max: 0.154 t[q] [µs]: 400.0 R[thJC] [K/kW](@180° el sin) max: 8.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 95.0

V[DRM]/ V[RRM (V)]: 3800.0V I[TSM]: 37000.0A I[TAVM]: 2180 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 111mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 3800.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2180/85 I[TSM] [A](@10ms, Tvj max): 37000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 6850.0 V[T]/I[T] [V/kA](@Tvj max): 2.90/8.0 V[T0] [V](@T[vj max]) max: 1.08 r[T] [mΩ](@T[vj max]) max: 0.2 t[q] [µs]: 450.0 R[thJC] [K/kW](@180° el sin) max: 8.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 65.0
