V[DRM]/ V[RRM (V)]: 2200.0V I[TSM]: 23000.0A I[TAVM]: 1329 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 75mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 2200.0 I[TAVM]/T[C] [A/°C](@180° el sin): 1329/85 I[TSM] [A](@10ms, Tvj max): 23000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 2645.0 V[T]/I[T] [V/kA](@Tvj max): 1.13/1.0 V[T0] [V](@T[vj max]) max: 0.9 r[T] [mΩ](@T[vj max]) max: 0.234 t[q] [µs]: 300.0 R[thJC] [K/kW](@180° el sin) max: 18.4 T[vj] [°C] max: 125.0 Clamping force [kn] max: 45.0

V[DRM]/ V[RRM (V)]: 2800.0V I[TSM]: 22500.0A I[TAVM]: 1220 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 75mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 2800.0 I[TAVM]/T[C] [A/°C](@180° el sin): 1220/85 I[TSM] [A](@10ms, Tvj max): 22500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 2531.0 V[T]/I[T] [V/kA](@Tvj max): 1.38/1.0 V[T0] [V](@T[vj max]) max: 1.0 r[T] [mΩ](@T[vj max]) max: 0.275 t[q] [µs]: 350.0 R[thJC] [K/kW](@180° el sin) max: 18.4 T[vj] [°C] max: 125.0 Clamping force [kn] max: 45.0

V[DRM]/ V[RRM (V)]: 1600.0V I[TSM]: 22500.0A I[TAVM]: 1190 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 75mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 1600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 1190/85 I[TSM] [A](@10ms, Tvj max): 22500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 2530.0 V[T]/I[T] [V/kA](@Tvj max): 2.05/5.4 V[T0] [V](@T[vj max]): 0.9 r[T] [mΩ](@T[vj max]): 0.19 t[q] [µs]: 240.0 R[thJC] [K/kW](@180° el sin) max: 23.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 32.0

V[DRM]/ V[RRM (V)]: 1800.0V I[TSM]: 22500.0A I[TAVM]: 1190 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 75mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 1800.0 I[TAVM]/T[C] [A/°C](@180° el sin): 1190/85 I[TSM] [A](@10ms, Tvj max): 22500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 2530.0 V[T]/I[T] [V/kA](@Tvj max): 2.05/5.4 V[T0] [V](@T[vj max]) max: 0.9 r[T] [mΩ](@T[vj max]) max: 0.19 t[q] [µs]: 240.0 R[thJC] [K/kW](@180° el sin) max: 23.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 32.0

V[DRM]/ V[RRM (V)]: 5200.0V I[TSM]: 54000.0A I[TAVM]: 2250 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 120mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 5200.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2250/85 I[TSM] [A](@10ms, Tvj max): 54000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 14600.0 V[T]/I[T] [V/kA](@Tvj max): 1.85/3.0 V[T0] [V](@T[vj max]) max: 0.81 r[T] [mΩ](@T[vj max]) max: 0.36 t[q] [µs]: 450.0 R[thJC] [K/kW](@180° el sin) max: 6.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 65.0

V[DRM]/ V[RRM (V)]: 2800.0V I[TSM]: 40000.0A I[TAVM]: 2400 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 111mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 2800.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2400/85 I[TSM] [A](@10ms, Tvj max): 40000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 8000.0 V[T]/I[T] [V/kA](@Tvj max): 2.65/8.8 V[T0] [V](@T[vj max]) max: 1.05 r[T] [mΩ](@T[vj max]) max: 0.154 t[q] [µs]: 400.0 R[thJC] [K/kW](@180° el sin) max: 8.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 95.0

V[DRM]/ V[RRM (V)]: 4400.0V I[TSM]: 16000.0A I[TAVM]: 930 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 76mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 4400.0 I[TAVM]/T[C] [A/°C](@180° el sin): 870/85 I[TSM] [A](@10ms, Tvj max): 16000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 1280.0 V[T]/I[T] [V/kA](@Tvj max): 1.86/1.2 V[T0] [V](@T[vj max]) max: 1.08 r[T] [mΩ](@T[vj max]) max: 0.65 t[q] [µs]: 500.0 R[thJC] [K/kW](@180° el sin) max: 18.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 24.0

V[DRM]/ V[RRM (V)]: 3600.0V I[TSM]: 17500.0A I[TAVM]: 930 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 75mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 3600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 930/85 I[TSM] [A](@10ms, Tvj max): 17500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 1530.0 V[T]/I[T] [V/kA](@Tvj max): 2.70/3.6 V[T0] [V](@T[vj max]) max: 1.0 r[T] [mΩ](@T[vj max]) max: 0.43 t[q] [µs]: 500.0 R[thJC] [K/kW](@180° el sin) max: 21.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 45.0

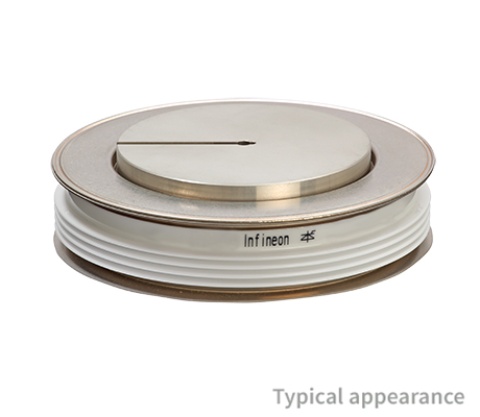

V[DRM]/ V[RRM (V)]: 8000.0V I[TSM]: 55000.0A I[TAVM]: 1770 (180 ° el sin) Configuration: Light Triggered Phase Control Thyristor Housing: Disc dia 150mm height 40mm / Ceramic V[DRM] / V[RRM] [V]: 8000.0 I[TAVM]/T[C] [A/°C](@180° el sin): 1770/85 I[TSM] [A](@10ms, Tvj max): 55000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 15125.0 V[T]/I[T] [V/kA](@Tvj max): 3.00/4.0 V[T0] [V](@T[vj max]) max: 1.24 r[T] [mΩ](@T[vj max]) max: 0.44 t[q] [µs]: 550.0 R[thJC] [K/kW](@180° el sin) max: 6.3 T[vj] [°C] max: 120.0 Clamping force [kn] max: 91.0

V[DRM]/ V[RRM (V)]: 1400.0V I[TSM]: 22500.0A I[TAVM]: 1190 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 75mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 1400.0 I[TAVM]/T[C] [A/°C](@180° el sin): 1190/85 I[TSM] [A](@10ms, Tvj max): 22500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 2530.0 V[T]/I[T] [V/kA](@Tvj max): 2.05/5.4 V[T0] [V](@T[vj max]) max: 0.9 r[T] [mΩ](@T[vj max]) max: 0.19 t[q] [µs]: 240.0 R[thJC] [K/kW](@180° el sin) max: 23.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 32.0
