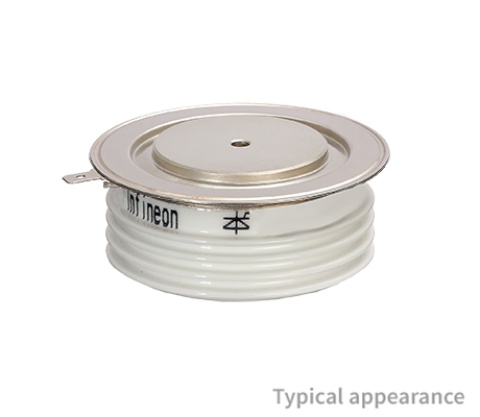

V[DRM]/ V[RRM (V)]: 1600.0V I[TSM]: 15500.0A I[TAVM]: 879 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 58mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 1600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 879/85 I[TSM] [A](@10ms, Tvj max): 15500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 1200.0 V[T]/I[T] [V/kA](@Tvj max): 1.95/3.6 V[T0] [V](@T[vj max]) max: 0.85 r[T] [mΩ](@T[vj max]) max: 0.27 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 32.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 21.0

V[DRM]/ V[RRM (V)]: 1400.0V I[TSM]: 15500.0A I[TAVM]: 879 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 58mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 1400.0 I[TAVM]/T[C] [A/°C](@180° el sin): 879/85 I[TSM] [A](@10ms, Tvj max): 15500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 1200.0 V[T]/I[T] [V/kA](@Tvj max): 1.95/3.6 V[T0] [V](@T[vj max]) max: 0.85 r[T] [mΩ](@T[vj max]) max: 0.27 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 32.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 21.0

V[DRM]/ V[RRM (V)]: 1800.0V I[TSM]: 15500.0A I[TAVM]: 879 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 58mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 1800.0 I[TAVM]/T[C] [A/°C](@180° el sin): 879/85 I[TSM] [A](@10ms, Tvj max): 15500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 1200.0 V[T]/I[T] [V/kA](@Tvj max): 1.95/3.6 V[T0] [V](@T[vj max]) max: 0.85 r[T] [mΩ](@T[vj max]) max: 0.27 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 32.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 21.0

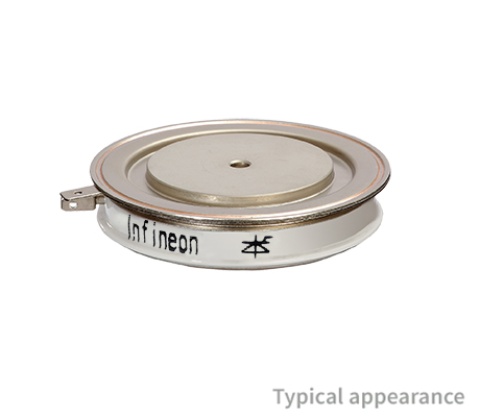

V[DRM]/ V[RRM (V)]: 1800.0V I[TSM]: 15500.0A I[TAVM]: 936 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 58mm height 14mm / Ceramic V[DRM] / V[RRM] [V]: 1800.0 I[TAVM]/T[C] [A/°C](@180° el sin): 959/85 I[TSM] [A](@10ms, Tvj max): 15500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 1200.0 V[T]/I[T] [V/kA](@Tvj max): 1.95/3.6 V[T0] [V](@T[vj max]) max: 0.85 r[T] [mΩ](@T[vj max]) max: 0.27 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 28.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 21.0

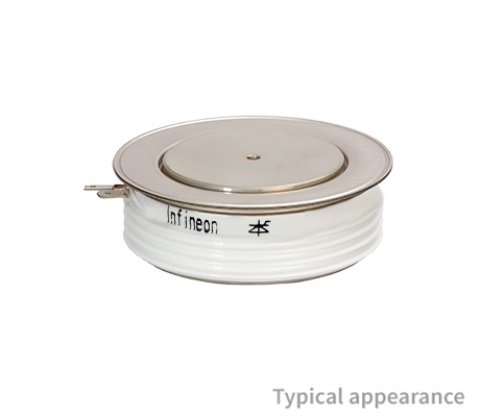

V[DRM]/ V[RRM (V)]: 7000.0V I[TSM]: 13000.0A I[TAVM]: 640 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 75mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 7000.0 I[TAVM]/T[C] [A/°C](@180° el sin): 640/85 I[TSM] [A](@10ms, Tvj max): 13000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 845.0 V[T]/I[T] [V/kA](@Tvj max): 2.65/1.0 V[T0] [V](@T[vj max]) max: 1.3 r[T] [mΩ](@T[vj max]) max: 1.35 t[q] [µs]: 600.0 R[thJC] [K/kW](@180° el sin) max: 17.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 24.0

V[DRM]/ V[RRM (V)]: 1600.0V I[TSM]: 12500.0A I[TAVM]: 826 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 58mm height 14mm / Ceramic V[DRM] / V[RRM] [V]: 1600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 844/85 I[TSM] [A](@10ms, Tvj max): 12500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 781.0 V[T]/I[T] [V/kA](@Tvj max): 1.94/3.0 V[T0] [V](@T[vj max]) max: 0.85 r[T] [mΩ](@T[vj max]) max: 0.3 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 30.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 18.0

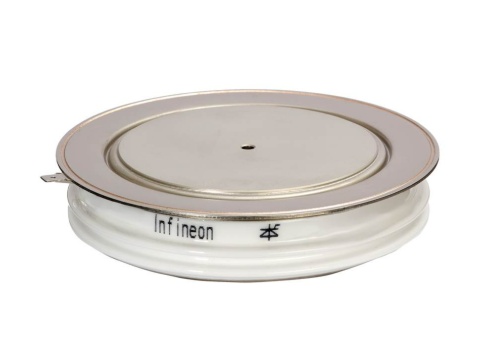

Clamping force [kn] max: 95.0 Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 75mm height 26mm / Ceramic I[TAVM]: 2720 (180 ° el sin) I[TAVM]/T[C] [A/°C]: 2720/85 (@180° el sin) I[TSM]: 43500.0A I[TSM] [A](@10ms, Tvj max): 43500.0 R[thJC] [K/kW](@180° el sin) max: 7.74 T[vj] [°C] max: 125.0 V[DRM] / V[RRM] [V]: 2800.0 V[DRM]/ V[RRM (V)]: 2800.0V V[T0] [V](@T[vj max]) max: 9.0 V[T]/I[T] [V/kA](@Tvj max): 1.49/4.0 r[T] [mΩ](@T[vj max]) max: 148.0 t[q] [µs]: 400.0 ∫I2dt [A²s · 103]: 9460.0

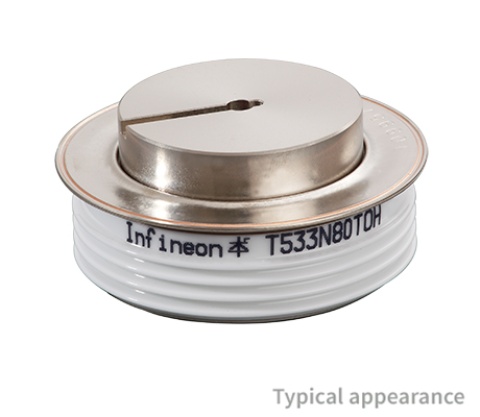

V[DRM]/ V[RRM (V)]: 8000.0V I[TSM]: 10500.0A I[TAVM]: 540 (85 ° el sin) Configuration: Light Triggered Phase Control Thyristor Housing: Disc dia 76mm height 35mm / Ceramic V[DRM] / V[RRM] [V]: 8000.0 I[TAVM]/T[C] [A/°C](@180° el sin): 540/85 I[TSM] [A](@10ms, Tvj max): 10500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 550.0 V[T]/I[T] [V/kA](@Tvj max): 2.75/1.0 V[T0] [V](@T[vj max]) max: 1.26 r[T] [mΩ](@T[vj max]) max: 1.47 t[q] [µs]: 650.0 R[thJC] [K/kW](@180° el sin) max: 20.0 T[vj] [°C] max: 120.0 Clamping force [kn] max: 24.0

I[TSM]: 10500.0A I[TAVM]: 540 (180 ° el sin) V[DRM]/ V[RRM (V)]: 6500.0V Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 76mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 6500.0 I[TAVM]/T[C] [A/°C](@180° el sin): 540/85 I[TSM] [A](@10ms, Tvj max): 10500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 442.0 V[T]/I[T] [V/kA](@Tvj max): 2.75/1.0 V[T0] [V](@T[vj max]) max: 1.35 r[T] [mΩ](@T[vj max]) max: 1.4 t[q] [µs]: 1000.0 R[thJC] [K/kW](@180° el sin) max: 21.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 23.0

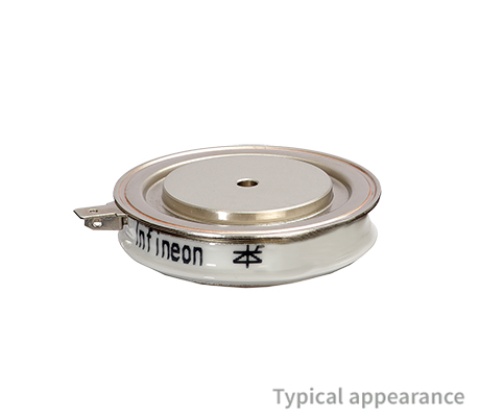

V[DRM]/ V[RRM (V)]: 1400.0V I[TSM]: 6900.0A I[TAVM]: 595 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 48mm height 14mm / Ceramic V[DRM] / V[RRM] [V]: 1400.0 I[TAVM]/T[C] [A/°C](@180° el sin): 559/85 I[TSM] [A](@10ms, Tvj max): 6900.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 238.0 V[T]/I[T] [V/kA](@Tvj max): 1.92/1.6 V[T0] [V](@T[vj max]) max: 0.8 r[T] [mΩ](@T[vj max]) max: 0.6 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 44.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 10.0
