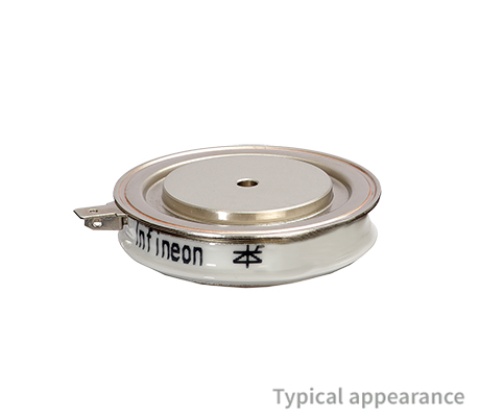

V[DRM]/ V[RRM (V)]: 1600.0V I[TSM]: 8000.0A I[TAVM]: 644 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 48mm height 14mm / Ceramic V[DRM] / V[RRM] [V]: 1600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 644/85 I[TSM] [A](@10ms, Tvj max): 8000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 320.0 V[T]/I[T] [V/kA](@Tvj max): 2.15/2.4 V[T0] [V](@T[vj max]) max: 0.8 r[T] [mΩ](@T[vj max]) max: 0.5 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 39.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 12.0

V[DRM]/ V[RRM (V)]: 1400.0V I[TSM]: 8000.0A I[TAVM]: 644 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 48mm height 14mm / Ceramic V[DRM] / V[RRM] [V]: 1400.0 I[TAVM]/T[C] [A/°C](@180° el sin): 644/85 I[TSM] [A](@10ms, Tvj max): 8000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 320.0 V[T]/I[T] [V/kA](@Tvj max): 2.15/2.4 V[T0] [V](@T[vj max]) max: 0.8 r[T] [mΩ](@T[vj max]) max: 0.5 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 39.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 12.0

V[DRM]/ V[RRM (V)]: 1800.0V I[TSM]: 6900.0A I[TAVM]: 595 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 48mm height 14mm / Ceramic V[DRM] / V[RRM] [V]: 1800.0 I[TAVM]/T[C] [A/°C](@180° el sin): 559/85 I[TSM] [A](@10ms, Tvj max): 6900.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 238.0 V[T]/I[T] [V/kA](@Tvj max): 1.92/1.6 V[T0] [V](@T[vj max]) max: 0.8 r[T] [mΩ](@T[vj max]) max: 0.6 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 44.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 10.0

V[DRM]/ V[RRM (V)]: 1600.0V I[TSM]: 6900.0A I[TAVM]: 595 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 48mm height 14mm / Ceramic V[DRM] / V[RRM] [V]: 1600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 559/85 I[TSM] [A](@10ms, Tvj max): 6900.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 238.0 V[T]/I[T] [V/kA](@Tvj max): 1.92/1.6 V[T0] [V](@T[vj max]) max: 0.8 r[T] [mΩ](@T[vj max]) max: 0.6 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 44.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 10.0

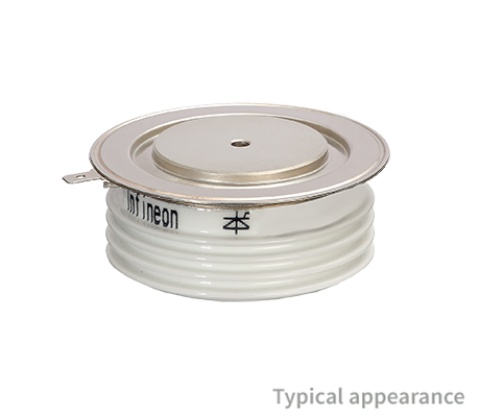

V[DRM]/ V[RRM (V)]: 2600.0V I[TSM]: 11500.0A I[TAVM]: 659 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 58mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 2600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 659/85 I[TSM] [A](@10ms, Tvj max): 11500.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 660.0 V[T]/I[T] [V/kA](@Tvj max): 2.53/2.85 V[T0] [V](@T[vj max]) max: 1.0 r[T] [mΩ](@T[vj max]) max: 0.5 t[q] [µs]: 300.0 R[thJC] [K/kW](@180° el sin) max: 33.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 21.0

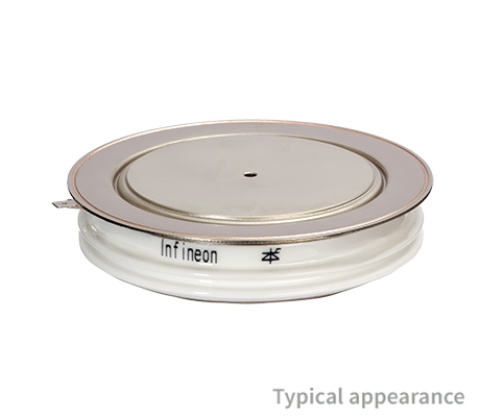

V[DRM]/ V[RRM (V)]: 2400.0V I[TSM]: 40000.0A I[TAVM]: 2400 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 111mm height 26mm / Ceramic V[DRM] / V[RRM] [V]: 2400.0 I[TAVM]/T[C] [A/°C](@180° el sin): 2400/85 I[TSM] [A](@10ms, Tvj max): 40000.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 8000.0 V[T]/I[T] [V/kA](@Tvj max): 2.65/8.8 V[T0] [V](@T[vj max]) max: 1.05 r[T] [mΩ](@T[vj max]) max: 0.154 t[q] [µs]: 400.0 R[thJC] [K/kW](@180° el sin) max: 8.5 T[vj] [°C] max: 125.0 Clamping force [kn] max: 95.0

V[DRM]/ V[RRM (V)]: 1600.0V I[TSM]: 6400.0A I[TAVM]: 424 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 48mm height 14mm / Ceramic V[DRM] / V[RRM] [V]: 1600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 424/85 I[TSM] [A](@10ms, Tvj max): 6400.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 205.0 V[T]/I[T] [V/kA](@Tvj max): 2.10/1.5 V[T0] [V](@T[vj max]) max: 0.9 r[T] [mΩ](@T[vj max]) max: 0.75 t[q] [µs]: 220.0 R[thJC] [K/kW](@180° el sin) max: 56.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 10.0

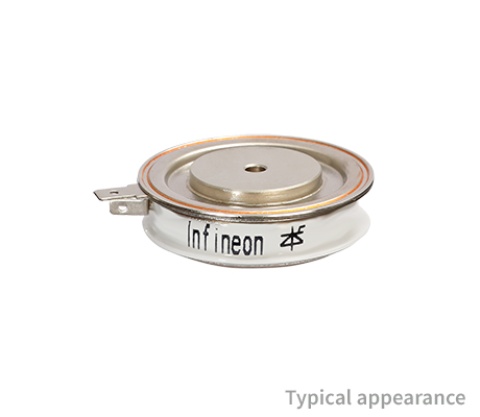

V[DRM]/ V[RRM (V)]: 1400.0V I[TSM]: 4600.0A I[TAVM]: 433 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 42mm height 14mm / Ceramic V[DRM] / V[RRM] [V]: 1400.0 I[TAVM]/T[C] [A/°C](@180° el sin): 433/85 I[TSM] [A](@10ms, Tvj max): 4600.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 106.0 V[T]/I[T] [V/kA](@Tvj max): 2.07/1.2 V[T0] [V](@T[vj max]) max: 0.85 r[T] [mΩ](@T[vj max]) max: 0.9 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 51.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 8.0

V[DRM]/ V[RRM (V)]: 1600.0V I[TSM]: 6350.0A I[TAVM]: 470 (180 ° el sin) Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 42mm height 14mm / Ceramic V[DRM] / V[RRM] [V]: 1600.0 I[TAVM]/T[C] [A/°C](@180° el sin): 470/85 I[TSM] [A](@10ms, Tvj max): 6350.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 202.0 V[T]/I[T] [V/kA](@Tvj max): 1.85/1.2 V[T0] [V](@T[vj max]) max: 0.8 r[T] [mΩ](@T[vj max]) max: 0.75 t[q] [µs]: 250.0 R[thJC] [K/kW](@180° el sin) max: 51.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 8.0

I[TAVM]: 280 (180 ° el sin) I[TSM]: 5800.0A V[DRM]/ V[RRM (V)]: 6500.0V Configuration: Electrical Triggered Phase Control Thyristor Housing: Disc dia 58mm height 27mm / Ceramic V[DRM] / V[RRM] [V]: 6500.0 I[TAVM]/T[C] [A/°C](@180° el sin): 280/85 I[TSM] [A](@10ms, Tvj max): 5800.0 ∫I2dt [A²s · 103](@10ms, Tvj max): 115.0 V[T]/I[T] [V/kA](@Tvj max): 2.75/0.5 V[T0] [V](@T[vj max]) max: 1.35 r[T] [mΩ](@T[vj max]) max: 2.8 t[q] [µs]: 1000.0 R[thJC] [K/kW](@180° el sin) max: 43.0 T[vj] [°C] max: 125.0 Clamping force [kn] max: 12.0
