TAS2572

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有 I/V 检测和集成 13V H 类升压功能的 6.6W 数字输入智能放大器

Audio input type: Digital Input Architecture: Class-D Boosted, Smart Amp Speaker channels (max): Mono Rating: Catalog Power stage supply (max) (V): 13.2 Power stage supply (min) (V): 5.5 Load (min) (Ω): 4 Output power (W): 6.5 SNR (dB): 112.5 THD + N at 1 kHz (%): 0.0035 Iq (typ) (mA): 2.3 Control interface: I2C Analog supply (min) (V): 2.5 Analog supply voltage (max) (V): 5.5 PSRR (dB): 115 Operating temperature range (°C): -40 to 85 Audio input type: Digital Input Architecture: Class-D Boosted, Smart Amp Speaker channels (max): Mono Rating: Catalog 更多

Power stage supply (max) (V): 13.2 Power stage supply (min) (V): 5.5 Load (min) (Ω): 4 Output power (W): 6.5 SNR (dB): 112.5 THD + N at 1 kHz (%): 0.0035 Iq (typ) (mA): 2.3 Control interface: I2C Analog supply (min) (V): 2.5 Analog supply voltage (max) (V): 5.5 PSRR (dB): 115 Operating temperature range (°C): -40 to 85

TAS6511-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有电流检测功能的汽车级、45V、2MHz、单通道数字输入 D 级音频放大器

Audio input type: Digital Input Architecture: Class-D Speaker channels (max): Mono Rating: Automotive Power stage supply (max) (V): 18 Power stage supply (min) (V): 4.5 Load (min) (Ω): 1 Output power (W): 45 THD + N at 1 kHz (%): 0.02 Iq (typ) (mA): 65 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 18 Sampling rate (max) (kHz): 192 PSRR (dB): 80 Operating temperature range (°C): -40 to 125 Audio input type: Digital Input Architecture: Class-D Speaker channels (max): Mono 更多

Rating: Automotive Power stage supply (max) (V): 18 Power stage supply (min) (V): 4.5 Load (min) (Ω): 1 Output power (W): 45 THD + N at 1 kHz (%): 0.02 Iq (typ) (mA): 65 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 18 Sampling rate (max) (kHz): 192 PSRR (dB): 80 Operating temperature range (°C): -40 to 125

TAS5827

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有集成音频和 H 类控制的 43W 立体声、数字输入闭环 D 类放大器

Audio input type: Digital Input Architecture: Class-D Speaker channels (max): Stereo Rating: Catalog Power stage supply (max) (V): 26.4 Power stage supply (min) (V): 4.5 Load (min) (Ω): 2 Output power (W): 55 SNR (dB): 111 THD + N at 1 kHz (%): 0.03 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 26.4 Sampling rate (max) (kHz): 19.2 Operating temperature range (°C): -40 to 85 Audio input type: Digital Input Architecture: Class-D Speaker channels (max): Stereo Rating: Catalog 更多

Power stage supply (max) (V): 26.4 Power stage supply (min) (V): 4.5 Load (min) (Ω): 2 Output power (W): 55 SNR (dB): 111 THD + N at 1 kHz (%): 0.03 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 26.4 Sampling rate (max) (kHz): 19.2 Operating temperature range (°C): -40 to 85

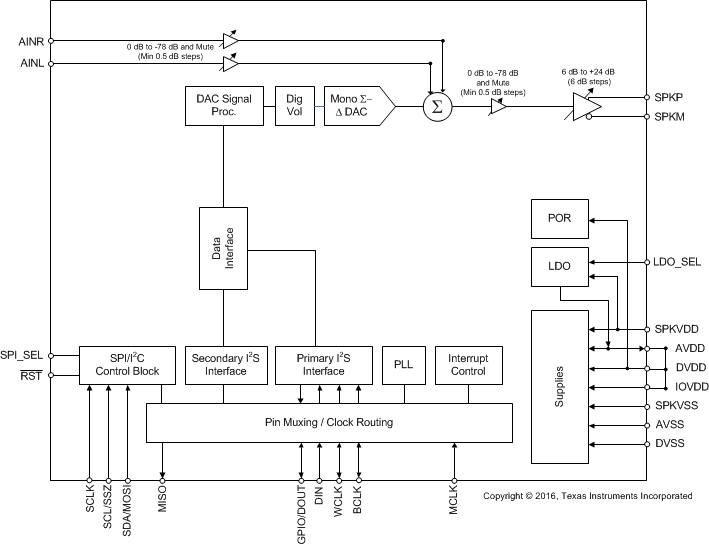

TAS2505A-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有音频处理功能的汽车类 2W 单声道数字或模拟输入 D 类放大器

Audio input type: Analog Input, Digital Input Architecture: Class-D Speaker channels (max): Mono Rating: Automotive Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 2.7 Load (min) (Ω): 4 Output power (W): 2.6 SNR (dB): 94 THD + N at 1 kHz (%): 0.02 Iq (typ) (mA): 0.002 Control interface: I2C, SPI Closed/open loop: Closed Analog supply (min) (V): 1.5 Analog supply voltage (max) (V): 1.95 Sampling rate (max) (kHz): 96 PSRR (dB): 47.2 Operating temperature range (°C): -40 to 105 Audio input type: Analog Input, Digital Input Architecture: Class-D 更多

Speaker channels (max): Mono Rating: Automotive Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 2.7 Load (min) (Ω): 4 Output power (W): 2.6 SNR (dB): 94 THD + N at 1 kHz (%): 0.02 Iq (typ) (mA): 0.002 Control interface: I2C, SPI Closed/open loop: Closed Analog supply (min) (V): 1.5 Analog supply voltage (max) (V): 1.95 Sampling rate (max) (kHz): 96 PSRR (dB): 47.2 Operating temperature range (°C): -40 to 105

TAS6582-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有电流检测功能的汽车类、45V、10A 数字输入双通道 D 级音频放大器

Audio input type: Digital Input Architecture: Class-D Speaker channels (max): Stereo Rating: Automotive Power stage supply (max) (V): 45 Power stage supply (min) (V): 4.5 Load (min) (Ω): 2 SNR (dB): 111 THD + N at 1 kHz (%): 0.03 Iq (typ) (mA): 120 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 45 Sampling rate (max) (kHz): 192 PSRR (dB): 75 Operating temperature range (°C): -40 to 125 Audio input type: Digital Input Architecture: Class-D Speaker channels (max): Stereo 更多

Rating: Automotive Power stage supply (max) (V): 45 Power stage supply (min) (V): 4.5 Load (min) (Ω): 2 SNR (dB): 111 THD + N at 1 kHz (%): 0.03 Iq (typ) (mA): 120 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 45 Sampling rate (max) (kHz): 192 PSRR (dB): 75 Operating temperature range (°C): -40 to 125

TAS6424R-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 汽车类 75W、2MHz、四通道、4.5V 至 26.4V 数字输入 D 类音频放大器

Audio input type: Digital Input Architecture: Class-D Speaker channels (max): 4 Rating: Automotive Power stage supply (max) (V): 26.4 Power stage supply (min) (V): 4.5 Load (min) (Ω): 1 Output power (W): 75 THD + N at 1 kHz (%): 0.02 Iq (typ) (mA): 165 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 26.4 Sampling rate (max) (kHz): 96 PSRR (dB): 75 Operating temperature range (°C): -40 to 125 Audio input type: Digital Input Architecture: Class-D Speaker channels (max): 4 更多

Rating: Automotive Power stage supply (max) (V): 26.4 Power stage supply (min) (V): 4.5 Load (min) (Ω): 1 Output power (W): 75 THD + N at 1 kHz (%): 0.02 Iq (typ) (mA): 165 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 26.4 Sampling rate (max) (kHz): 96 PSRR (dB): 75 Operating temperature range (°C): -40 to 125

TPA3223

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有低空闲电流的 200W 立体声、400W 单声道、10 至 45V 电源电压、模拟输入 D 类音频放大器

Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Stereo Rating: Catalog Power stage supply (max) (V): 45 Power stage supply (min) (V): 10 Load (min) (Ω): 1 Output power (W): 200 SNR (dB): 108 THD + N at 1 kHz (%): 0.02 Iq (typ) (mA): 35 Control interface: Hardware Closed/open loop: Closed PSRR (dB): 60 Operating temperature range (°C): -40 to 85 Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Stereo Rating: Catalog Power stage supply (max) (V): 45 更多

Power stage supply (min) (V): 10 Load (min) (Ω): 1 Output power (W): 200 SNR (dB): 108 THD + N at 1 kHz (%): 0.02 Iq (typ) (mA): 35 Control interface: Hardware Closed/open loop: Closed PSRR (dB): 60 Operating temperature range (°C): -40 to 85

TAS2781

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 25W、4.5V 至 23V、数字输入集成音频处理扬声器保护 D 类放大器

Audio input type: Digital Input Architecture: Class-D, Smart Amp Speaker channels (max): Mono Rating: Catalog Power stage supply (max) (V): 23 Power stage supply (min) (V): 4.5 Load (min) (Ω): 3.2 Output power (W): 25 SNR (dB): 110 THD + N at 1 kHz (%): 0.006 Iq (typ) (mA): 15 Control interface: I2C, SPI, Shutdown Mode Closed/open loop: Closed Analog supply (min) (V): 1.65 Analog supply voltage (max) (V): 1.95 Sampling rate (max) (kHz): 192 PSRR (dB): 110 Operating temperature range (°C): -40 to 85 Audio input type: Digital Input Architecture: Class-D, Smart Amp 更多

Speaker channels (max): Mono Rating: Catalog Power stage supply (max) (V): 23 Power stage supply (min) (V): 4.5 Load (min) (Ω): 3.2 Output power (W): 25 SNR (dB): 110 THD + N at 1 kHz (%): 0.006 Iq (typ) (mA): 15 Control interface: I2C, SPI, Shutdown Mode Closed/open loop: Closed Analog supply (min) (V): 1.65 Analog supply voltage (max) (V): 1.95 Sampling rate (max) (kHz): 192 PSRR (dB): 110 Operating temperature range (°C): -40 to 85

TAS2780

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有 I/V 检测功能、提供扬声器保护的 25W 数字输入、4.5V 至 24V 6A 峰值智能放大器

Audio input type: Digital Input Architecture: Class-D, Smart Amp Speaker channels (max): Mono Rating: Catalog Power stage supply (max) (V): 24 Power stage supply (min) (V): 4.5 Load (min) (Ω): 3.2 Output power (W): 25 Iq (typ) (mA): 9.2 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 3 Analog supply voltage (max) (V): 24 Sampling rate (max) (kHz): 96 PSRR (dB): 110 Operating temperature range (°C): -40 to 85 Audio input type: Digital Input Architecture: Class-D, Smart Amp Speaker channels (max): Mono Rating: Catalog 更多

Power stage supply (max) (V): 24 Power stage supply (min) (V): 4.5 Load (min) (Ω): 3.2 Output power (W): 25 Iq (typ) (mA): 9.2 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 3 Analog supply voltage (max) (V): 24 Sampling rate (max) (kHz): 96 PSRR (dB): 110 Operating temperature range (°C): -40 to 85

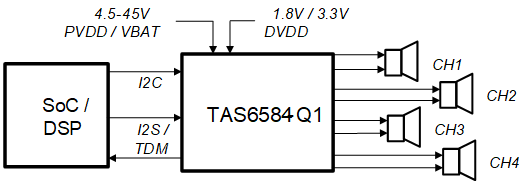

TAS6584-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有电流检测功能的汽车类 45V、10A 数字输入、四通道 D 类音频放大器

Audio input type: Digital Input Architecture: Class-D Speaker channels (max): 4 Rating: Automotive Power stage supply (max) (V): 45 Power stage supply (min) (V): 4.5 Load (min) (Ω): 2 Output power (W): 215 SNR (dB): 111 THD + N at 1 kHz (%): 0.03 Iq (typ) (mA): 120 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 45 Sampling rate (max) (kHz): 192 PSRR (dB): 75 Operating temperature range (°C): -40 to 125 Audio input type: Digital Input Architecture: Class-D 更多

Speaker channels (max): 4 Rating: Automotive Power stage supply (max) (V): 45 Power stage supply (min) (V): 4.5 Load (min) (Ω): 2 Output power (W): 215 SNR (dB): 111 THD + N at 1 kHz (%): 0.03 Iq (typ) (mA): 120 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 45 Sampling rate (max) (kHz): 192 PSRR (dB): 75 Operating temperature range (°C): -40 to 125
