状态: 已停产 Compliance: Pb A H P Type: Adjustable V(BR) Typ (V): 2.5 Tolerance (%): 1 IQ Typ (mA): - IR Min (mA): 0.0015 VF Max (V): 36 TA Min (°C): -25 TA Max (°C): 85 Package Type: TO-92-3 LF MSL Type: NA MSL Temp (°C): 0 ON Target: No 参考价格: Price N/A

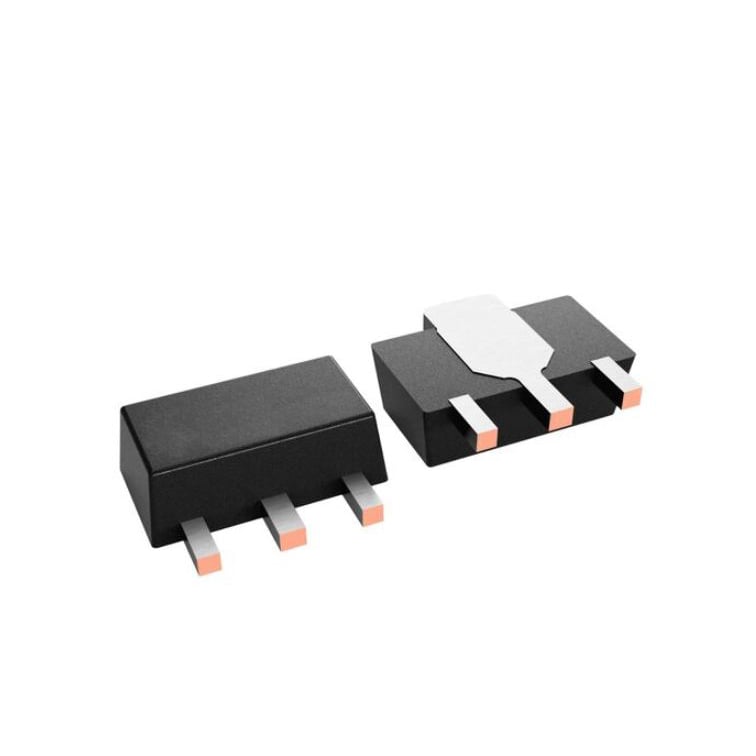

参考类型: 分流器 输出类型: 可调式 电压 - 输出（最小值/固定）: 2.495V 电压 - 输出（最大值）: 36 V 电流 - 输出: 100 mA 容差: ±2.2% 温度系数: - 噪声 - 0.1Hz 至 10Hz: - 噪声 - 10Hz 至 10Hz: - 电压 - 输入: - 电流 - 供电: - 电流 - 阴极: 1 mA 工作温度: 0°C ~ 70°C（TA） 安装类型: 表面贴装型 封装/外壳: TO-243AA 供应商器件封装: SOT-89-3

参考类型: 分流器 输出类型: 可调式 电压 - 输出（最小值/固定）: 2.495V 电压 - 输出（最大值）: 36 V 电流 - 输出: 100 mA 容差: ±2% 温度系数: - 噪声 - 0.1Hz 至 10Hz: - 噪声 - 10Hz 至 10Hz: - 电压 - 输入: - 电流 - 供电: - 电流 - 阴极: 1 mA 工作温度: 0°C ~ 70°C（TA） 安装类型: 表面贴装型 封装/外壳: TO-243AA 供应商器件封装: SOT-89-3

参考类型: 分流器 输出类型: 可调式 电压 - 输出（最小值/固定）: 2.495V 电压 - 输出（最大值）: 36 V 电流 - 输出: 100 mA 容差: ±2.2% 温度系数: - 噪声 - 0.1Hz 至 10Hz: - 噪声 - 10Hz 至 10Hz: - 电压 - 输入: - 电流 - 供电: - 电流 - 阴极: 1 mA 工作温度: 0°C ~ 70°C（TA） 安装类型: 表面贴装型 封装/外壳: TO-243AA 供应商器件封装: SOT-89-3

VO (V): 2.495 Initial accuracy (max) (%): 0.5, 1, 2 VO adj (min) (V): 2.495 VO adj (max) (V): 36 Iz for regulation (min) (µA): 200 Reference voltage (V): Adjustable, adjustable Rating: Catalog Temp coeff (max) (ppm/°C): 48 Operating temperature range (°C): -40 to 125 Iout/Iz (max) (mA): 100 VO (V): 2.495 Initial accuracy (max) (%): 0.5, 1, 2 VO adj (min) (V): 2.495 VO adj (max) (V): 36 Iz for regulation (min) (µA): 200 Reference voltage (V): Adjustable, adjustable Rating: Catalog Temp coeff (max) (ppm/°C): 48 Operating temperature range (°C): -40 to 125 Iout/Iz (max) (mA): 100

VO (V): 2.5, 3, 4.096, 4.5, 5 Initial accuracy (max) (%): 0.02 Temp coeff (max) (ppm/°C): 0.8 Vin (min) (V): 2.7 Vin (max) (V): 18 Iq (typ) (mA): 0.26 Rating: Catalog Features: Enable pin LFN 0.1 to 10 Hz (typ) (µVPP): 1.125 Iout/Iz (max) (mA): 10 Operating temperature range (°C): -40 to 125 Shutdown current (ISD) (typ) (µA): 5 VO (V): 2.5, 3, 4.096, 4.5, 5 Initial accuracy (max) (%): 0.02 Temp coeff (max) (ppm/°C): 0.8 Vin (min) (V): 2.7 Vin (max) (V): 18 Iq (typ) (mA): 0.26 Rating: Catalog Features: Enable pin 更多

Temp coeff (max) (ppm/°C): 15 Vin (min) (V): 1.7 Vin (max) (V): 6 Iq (typ) (mA): 0.00065 Rating: Automotive Features: Enable, TRIM/NR pin LFN 0.1 to 10 Hz (typ) (µVPP): 8.2 Iout/Iz (max) (mA): 10 Operating temperature range (°C): -40 to 125 Temp coeff (max) (ppm/°C): 15 Vin (min) (V): 1.7 Vin (max) (V): 6 Iq (typ) (mA): 0.00065 Rating: Automotive Features: Enable, TRIM/NR pin LFN 0.1 to 10 Hz (typ) (µVPP): 8.2 Iout/Iz (max) (mA): 10 Operating temperature range (°C): -40 to 125

VO (V): 1.024, 1.2, 1.25, 1.6, 1.8, 2.048, 2.5, 3, 3.3, 4.096, 5 Initial accuracy (max) (%): 0.05 Temp coeff (max) (ppm/°C): 12 Vin (min) (V): 1.7 Vin (max) (V): 6 Iq (typ) (mA): 0.00065, 0.00068 Rating: Catalog Features: Enable pin LFN 0.1 to 10 Hz (typ) (µVPP): 8.2 Iout/Iz (max) (mA): 10 Operating temperature range (°C): -40 to 125 Shutdown current (ISD) (typ) (µA): 0.1 VO (V): 1.024, 1.2, 1.25, 1.6, 1.8, 2.048, 2.5, 3, 3.3, 4.096, 5 Initial accuracy (max) (%): 0.05 Temp coeff (max) (ppm/°C): 12 Vin (min) (V): 1.7 Vin (max) (V): 6 Iq (typ) (mA): 0.00065, 0.00068 Rating: Catalog Features: Enable pin 更多

VO (V): 2.5, 3, 3.3, 4.096 Initial accuracy (max) (%): 0.05 Temp coeff (max) (ppm/°C): 8 Vin (min) (V): 2.52 Vin (max) (V): 5.5 Iq (typ) (mA): 0.36 Rating: Automotive TI functional safety category: Functional Safety-Capable Features: Enable pin, Multiple outputs LFN 0.1 to 10 Hz (typ) (µVPP): 30 Iout/Iz (max) (mA): 20 Operating temperature range (°C): -40 to 125 Shutdown current (ISD) (typ) (µA): 3.3 VO (V): 2.5, 3, 3.3, 4.096 Initial accuracy (max) (%): 0.05 Temp coeff (max) (ppm/°C): 8 Vin (min) (V): 2.52 Vin (max) (V): 5.5 Iq (typ) (mA): 0.36 Rating: Automotive 更多

VO (V): 1.25, 2.5, 3, 3.3, 4.096, 5 Initial accuracy (max) (%): 0.025 Temp coeff (max) (ppm/°C): 2 Vin (min) (V): 3 Vin (max) (V): 18 Iq (typ) (mA): 4 Rating: Catalog Features: Enable pin LFN 0.1 to 10 Hz (typ) (µVPP): 0.22 Iout/Iz (max) (mA): 10 Operating temperature range (°C): -40 to 125 Shutdown current (ISD) (typ) (µA): 5 VO (V): 1.25, 2.5, 3, 3.3, 4.096, 5 Initial accuracy (max) (%): 0.025 Temp coeff (max) (ppm/°C): 2 Vin (min) (V): 3 Vin (max) (V): 18 Iq (typ) (mA): 4 Rating: Catalog Features: Enable pin 更多
