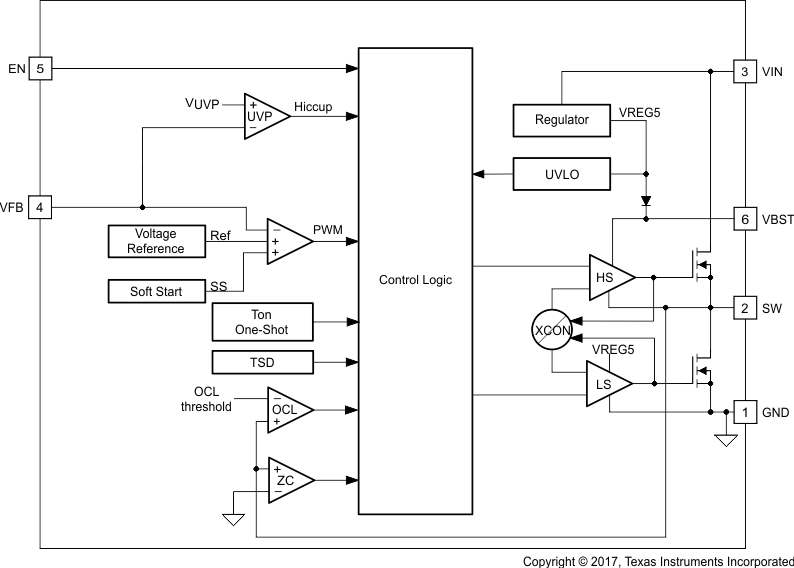

TPS563208

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 FCCM 模式的 4.5V 至 17V 输入电压、3A 输出电流、同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 4.5 Vin (max) (V): 17 Switching frequency (min) (kHz): 580 Switching frequency (max) (kHz): 580 Features: Enable, Forced PWM, Soft Start Fixed, Synchronous Rectification Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 400 Duty cycle (max) (%): 80 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 更多

Vin (min) (V): 4.5 Vin (max) (V): 17 Switching frequency (min) (kHz): 580 Switching frequency (max) (kHz): 580 Features: Enable, Forced PWM, Soft Start Fixed, Synchronous Rectification Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 400 Duty cycle (max) (%): 80

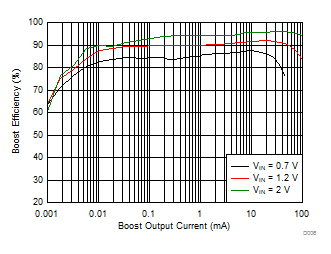

TPS610985

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有集成负载开关的低输入电压、3V 输出电压、同步升压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 0.7 Vin (max) (V): 4.5 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 3000 Features: Light Load Efficiency, Synchronous Rectification Vout (min) (V): 2.91 Vout (max) (V): 3.09 Iq (typ) (µA): 0.3 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 0.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 0.7 Vin (max) (V): 4.5 更多

Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 3000 Features: Light Load Efficiency, Synchronous Rectification Vout (min) (V): 2.91 Vout (max) (V): 3.09 Iq (typ) (µA): 0.3 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 0.5

TPS610986

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有集成负载开关的低输入电压、3.3V 输出电压、同步升压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 0.7 Vin (max) (V): 4.5 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 3000 Features: Light Load Efficiency, Synchronous Rectification Vout (min) (V): 3.201 Vout (max) (V): 3.399 Iq (typ) (µA): 0.3 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 0.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 0.7 Vin (max) (V): 4.5 更多

Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 3000 Features: Light Load Efficiency, Synchronous Rectification Vout (min) (V): 3.201 Vout (max) (V): 3.399 Iq (typ) (µA): 0.3 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 0.5

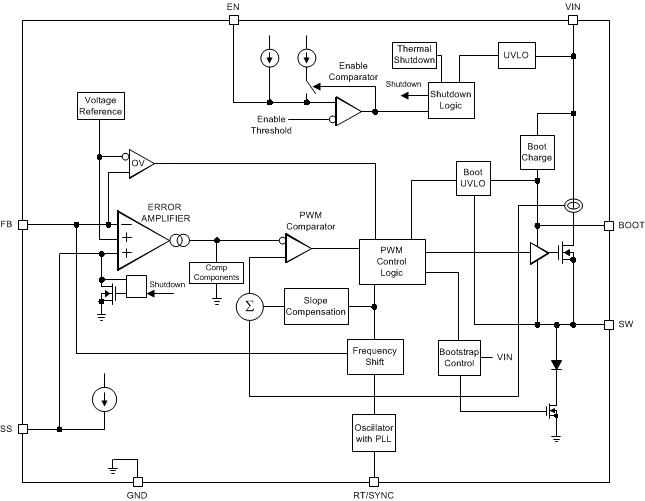

LMR14020-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 40uA IQ 的 SIMPLE SWITCHER®、汽车类 40V、2A 2.2MHz 降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 4 Vin (max) (V): 40 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2500 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 28 Iq (typ) (µA): 40 Duty cycle (max) (%): 98 Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 更多

Vin (min) (V): 4 Vin (max) (V): 40 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2500 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 28 Iq (typ) (µA): 40 Duty cycle (max) (%): 98

LMR14030-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 40uA IQ 的 SIMPLE SWITCHER®、汽车类 40V、3.5A 2.2MHz 降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3.5 Vin (min) (V): 4 Vin (max) (V): 40 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2500 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 30 Iq (typ) (µA): 40 Duty cycle (max) (%): 98 Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3.5 更多

Vin (min) (V): 4 Vin (max) (V): 40 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2500 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 30 Iq (typ) (µA): 40 Duty cycle (max) (%): 98

LMR14050-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 40uA IQ 的 SIMPLE SWITCHER® 汽车类 40V、5A 2.2MHz 降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 5 Vin (min) (V): 4 Vin (max) (V): 40 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2500 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 28 Iq (typ) (µA): 40 Duty cycle (max) (%): 98 Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 5 更多

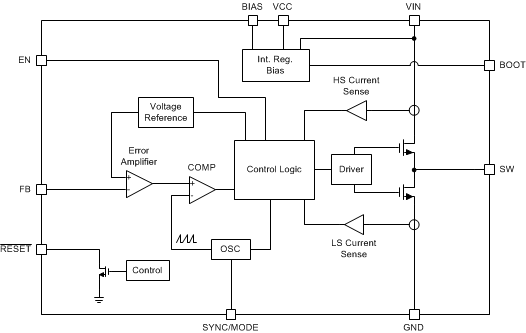

LM53600-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 汽车类 3.5V 至 36V、650mA 同步 2.1MHz 降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 0.65 Vin (min) (V): 3.5 Vin (max) (V): 42 Switching frequency (min) (kHz): 1890 Switching frequency (max) (kHz): 2400 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 3.3 Vout (max) (V): 9.9 Iq (typ) (µA): 23 Duty cycle (max) (%): 98 Rating: Automotive Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 0.65 更多

Vin (min) (V): 3.5 Vin (max) (V): 42 Switching frequency (min) (kHz): 1890 Switching frequency (max) (kHz): 2400 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 3.3 Vout (max) (V): 9.9 Iq (typ) (µA): 23 Duty cycle (max) (%): 98

LM53601-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 汽车类 3.5V 至 36V、1A 同步 2.1MHz 降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 1 Vin (min) (V): 3.5 Vin (max) (V): 42 Switching frequency (min) (kHz): 1890 Switching frequency (max) (kHz): 2400 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 3.2 Vout (max) (V): 6 Iq (typ) (µA): 23 Duty cycle (max) (%): 98 Rating: Automotive Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 1 更多

Vin (min) (V): 3.5 Vin (max) (V): 42 Switching frequency (min) (kHz): 1890 Switching frequency (max) (kHz): 2400 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 3.2 Vout (max) (V): 6 Iq (typ) (µA): 23 Duty cycle (max) (%): 98

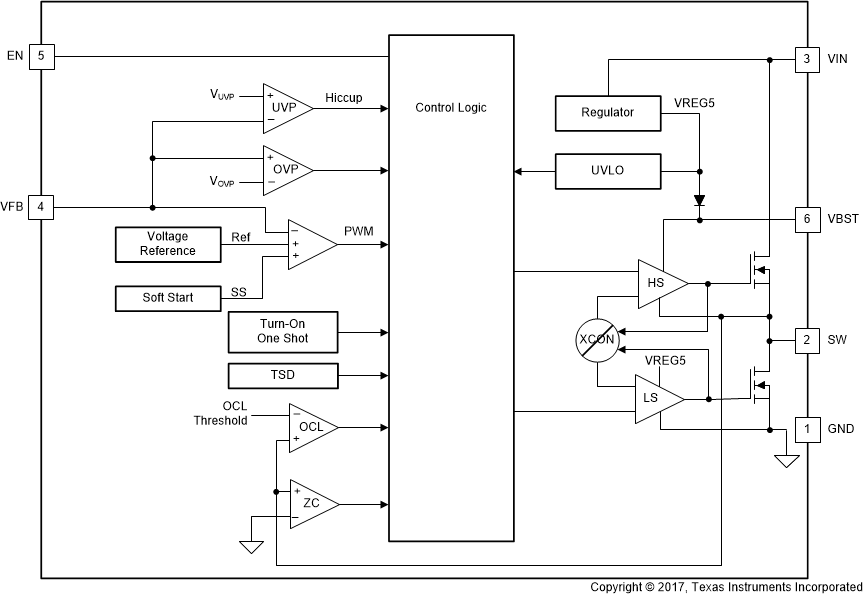

TPS562201

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 Eco-mode 的 4.5V 至 17V 输入电压、2A 输出电流、同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 4.5 Vin (max) (V): 17 Switching frequency (min) (kHz): 580 Switching frequency (max) (kHz): 580 Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 400 Duty cycle (max) (%): 80 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 4.5 更多

Vin (max) (V): 17 Switching frequency (min) (kHz): 580 Switching frequency (max) (kHz): 580 Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 400 Duty cycle (max) (%): 80

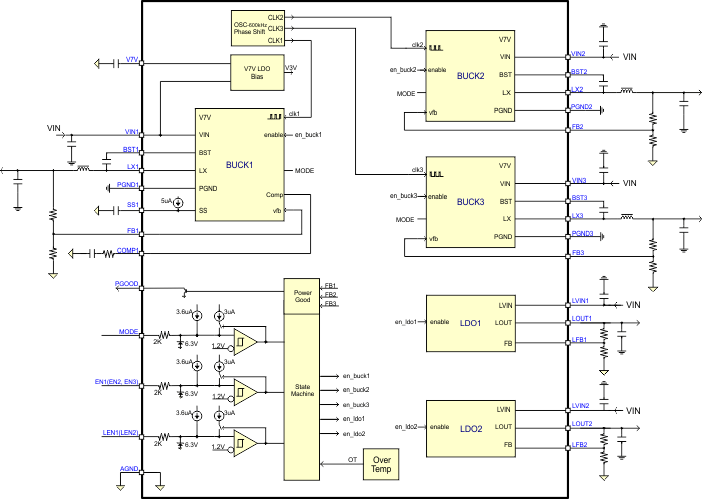

TPS65262-2

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 350mA/150mA 双 LDO 的 4.5V 至 18V 输入电压、3A/1A/1A 三路同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Buck Iout (max) (A): 3 Vin (min) (V): 1.3 Vin (max) (V): 18 Switching frequency (min) (kHz): 540 Switching frequency (max) (kHz): 670 Vout (min) (V): 0.6 Vout (max) (V): 17 Iq (typ) (µA): 790 Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Buck Iout (max) (A): 3 Vin (min) (V): 1.3 Vin (max) (V): 18 Switching frequency (min) (kHz): 540 Switching frequency (max) (kHz): 670 Vout (min) (V): 0.6 更多

Vout (max) (V): 17 Iq (typ) (µA): 790
