LMR16006


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有低 Iq 的 SIMPLE SWITCHER® 4V 至 60V、600mA 降压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 0.6 Vin (min) (V): 4 Vin (max) (V): 60 Switching frequency (min) (kHz): 700 Switching frequency (max) (kHz): 2100 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 55 Iq (typ) (µA): 28 Duty cycle (max) (%): 97 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 0.6 Vin (min) (V): 4
Vin (max) (V): 60 Switching frequency (min) (kHz): 700 Switching frequency (max) (kHz): 2100 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 55 Iq (typ) (µA): 28 Duty cycle (max) (%): 97

LM5160


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: LM5160 宽输入 65V、2A 同步降压/Fly-Buck™ 转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck, Flybuck Iout (max) (A): 2 Vin (min) (V): 4.5 Vin (max) (V): 65 Switching frequency (min) (kHz): 50 Switching frequency (max) (kHz): 1000 Control mode: Constant on-time (COT) Vout (min) (V): 2 Vout (max) (V): 60 Duty cycle (max) (%): 92 Switch current limit (typ) (A): 2.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck, Flybuck Iout (max) (A): 2 Vin (min) (V): 4.5 Vin (max) (V): 65 Switching frequency (min) (kHz): 50
Switching frequency (max) (kHz): 1000 Control mode: Constant on-time (COT) Vout (min) (V): 2 Vout (max) (V): 60 Duty cycle (max) (%): 92 Switch current limit (typ) (A): 2.5

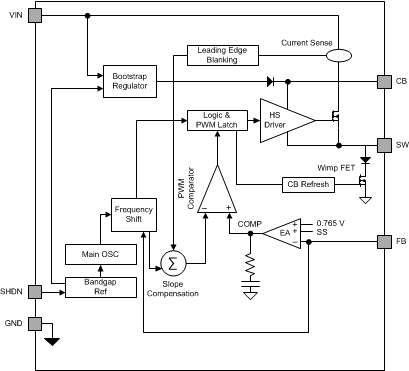

LV2862


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用超小型 SOT23 封装的 4.5V 至 60V 600mA 降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 0.6 Vin (min) (V): 4 Vin (max) (V): 60 Switching frequency (min) (kHz): 770 Switching frequency (max) (kHz): 2100 Control mode: current mode Vout (min) (V): 0.765 Vout (max) (V): 58 Iq (typ) (µA): 28 Duty cycle (max) (%): 97 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 0.6 Vin (min) (V): 4
Vin (max) (V): 60 Switching frequency (min) (kHz): 770 Switching frequency (max) (kHz): 2100 Control mode: current mode Vout (min) (V): 0.765 Vout (max) (V): 58 Iq (typ) (µA): 28 Duty cycle (max) (%): 97

LM3648


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 1.5A 高侧电流源的 LM3648 同步升压 LED 闪光灯驱动器

Input voltage type: DC/DC Topology: Boost, current mode Vin (min) (V): 2.5 Vin (max) (V): 5.5 Vout (max) (V): 5.5 Vout (min) (V): 2.5 Iout (max) (A): 1.5 Iq (typ) (mA): 0.3 Operating temperature range (°C): -40 to 85 Dimming method: Analog, PWM Number of channels: 1 Rating: Catalog Input voltage type: DC/DC Topology: Boost, current mode Vin (min) (V): 2.5 Vin (max) (V): 5.5 Vout (max) (V): 5.5 Vout (min) (V): 2.5 Iout (max) (A): 1.5 Iq (typ) (mA): 0.3
Operating temperature range (°C): -40 to 85 Dimming method: Analog, PWM Number of channels: 1 Rating: Catalog

TPS563209


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 SOT-23 封装的 17V 输入、3A 同步降压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 4.5 Vin (max) (V): 17 Switching frequency (min) (kHz): 650 Switching frequency (max) (kHz): 650 Features: Enable, Soft Start Fixed, Synchronous Rectification Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 650 Duty cycle (max) (%): 80 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3
Vin (min) (V): 4.5 Vin (max) (V): 17 Switching frequency (min) (kHz): 650 Switching frequency (max) (kHz): 650 Features: Enable, Soft Start Fixed, Synchronous Rectification Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 650 Duty cycle (max) (%): 80

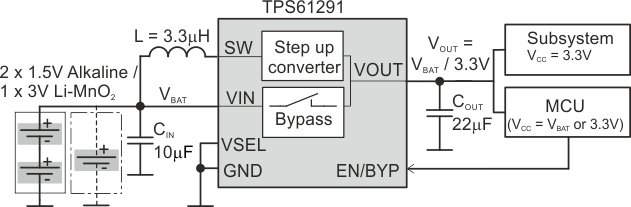

TPS61291


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 15nA 旁路操作的低 Iq 升压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 0.9 Vin (max) (V): 5 Switching frequency (min) (kHz): 2300 Switching frequency (max) (kHz): 2300 Features: Bypass Mode Pass-through Mode, Synchronous Rectification Vout (min) (V): 2.5 Vout (max) (V): 3.3 Iq (typ) (µA): 5 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 1 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 0.9 Vin (max) (V): 5
Switching frequency (min) (kHz): 2300 Switching frequency (max) (kHz): 2300 Features: Bypass Mode Pass-through Mode, Synchronous Rectification Vout (min) (V): 2.5 Vout (max) (V): 3.3 Iq (typ) (µA): 5 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 1

TPS92661-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 适用于汽车前照灯系统的高亮度 LED 矩阵管理器

Number of channels: 12 Topology: Floating Switch Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 4.5 Vin (max) (V): 5.5 Vout (min) (V): 0 Vout (max) (V): 60 Iout (max) (A): 1 Iq (typ) (mA): 1 Features: Integrated Switch Number of channels: 12 Topology: Floating Switch Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 4.5 Vin (max) (V): 5.5 Vout (min) (V): 0 Vout (max) (V): 60 Iout (max) (A): 1
Iq (typ) (mA): 1 Features: Integrated Switch

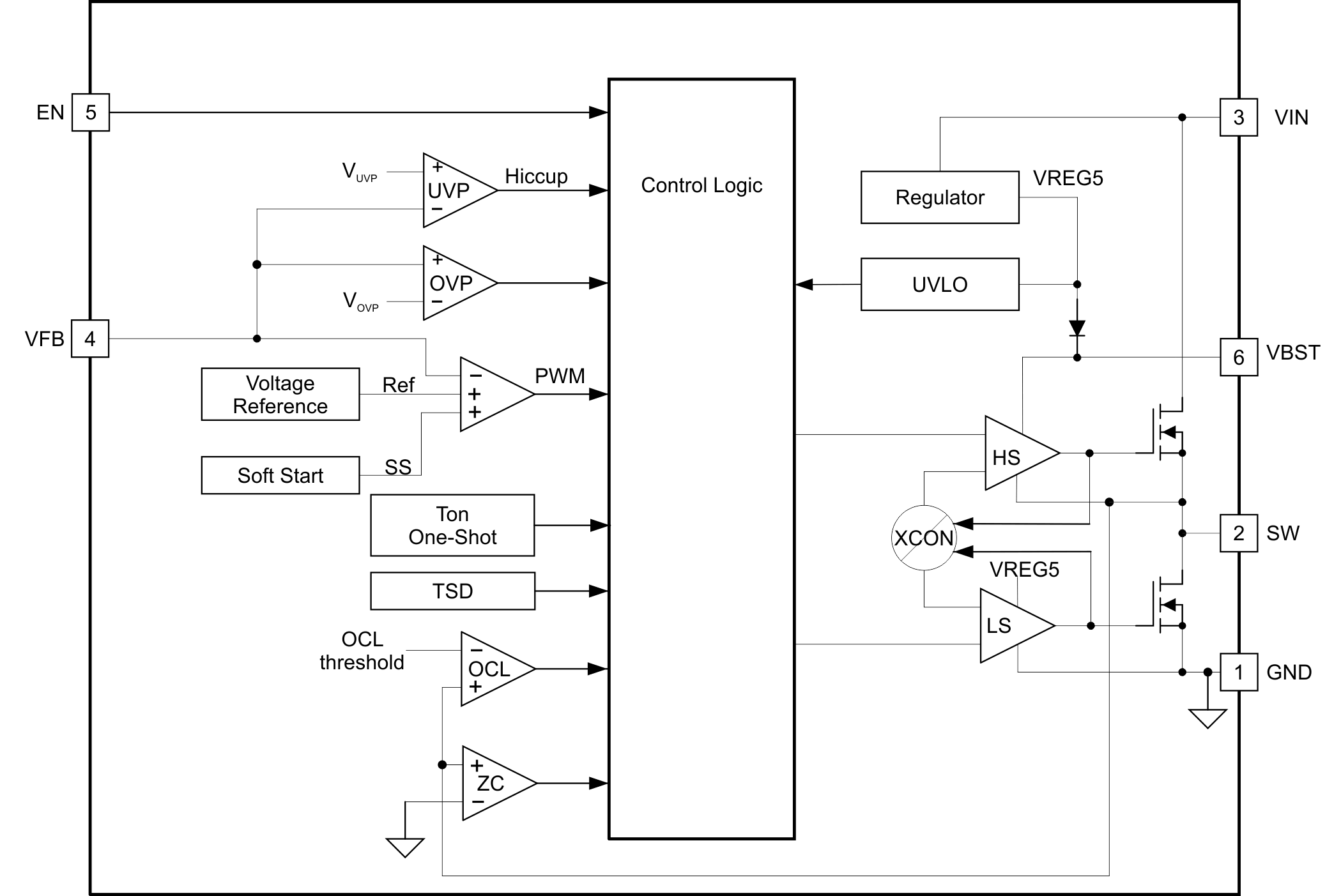

TPS563200


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 SOT-23 封装、具有高级 Eco-mode™ 的 17V 输入、3A 同步降压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 4.5 Vin (max) (V): 17 Switching frequency (min) (kHz): 650 Switching frequency (max) (kHz): 650 Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 190 Duty cycle (max) (%): 80 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 4.5
Vin (max) (V): 17 Switching frequency (min) (kHz): 650 Switching frequency (max) (kHz): 650 Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 7 Iq (typ) (µA): 190 Duty cycle (max) (%): 80

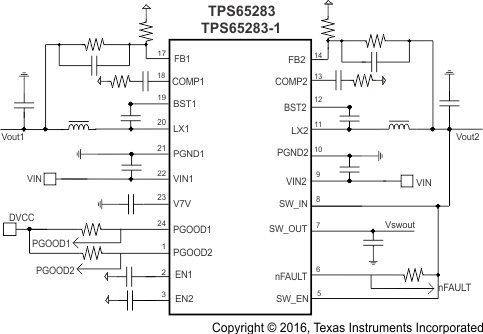

TPS65283-1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 Eco-mode 的 4.5V 至 18V 输入、3.5A/2.5A、双路同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Buck Iout (max) (A): 3.5 Vin (min) (V): 4.5 Vin (max) (V): 18 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 600 Vout (min) (V): 0.6 Vout (max) (V): 16 Iq (typ) (µA): 500 Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Buck Iout (max) (A): 3.5 Vin (min) (V): 4.5 Vin (max) (V): 18 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 600 Vout (min) (V): 0.6
Vout (max) (V): 16 Iq (typ) (µA): 500

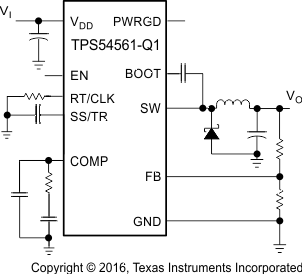

TPS54561-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有软启动和 Eco-mode™ 的汽车类 4.5V 至 60V 输入 5A 直流/直流降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 5 Vin (min) (V): 4.5 Vin (max) (V): 60 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 2500 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 59 Iq (typ) (µA): 1520 Duty cycle (max) (%): 98 Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 5 Vin (min) (V): 4.5
Vin (max) (V): 60 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 2500 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 59 Iq (typ) (µA): 1520 Duty cycle (max) (%): 98
