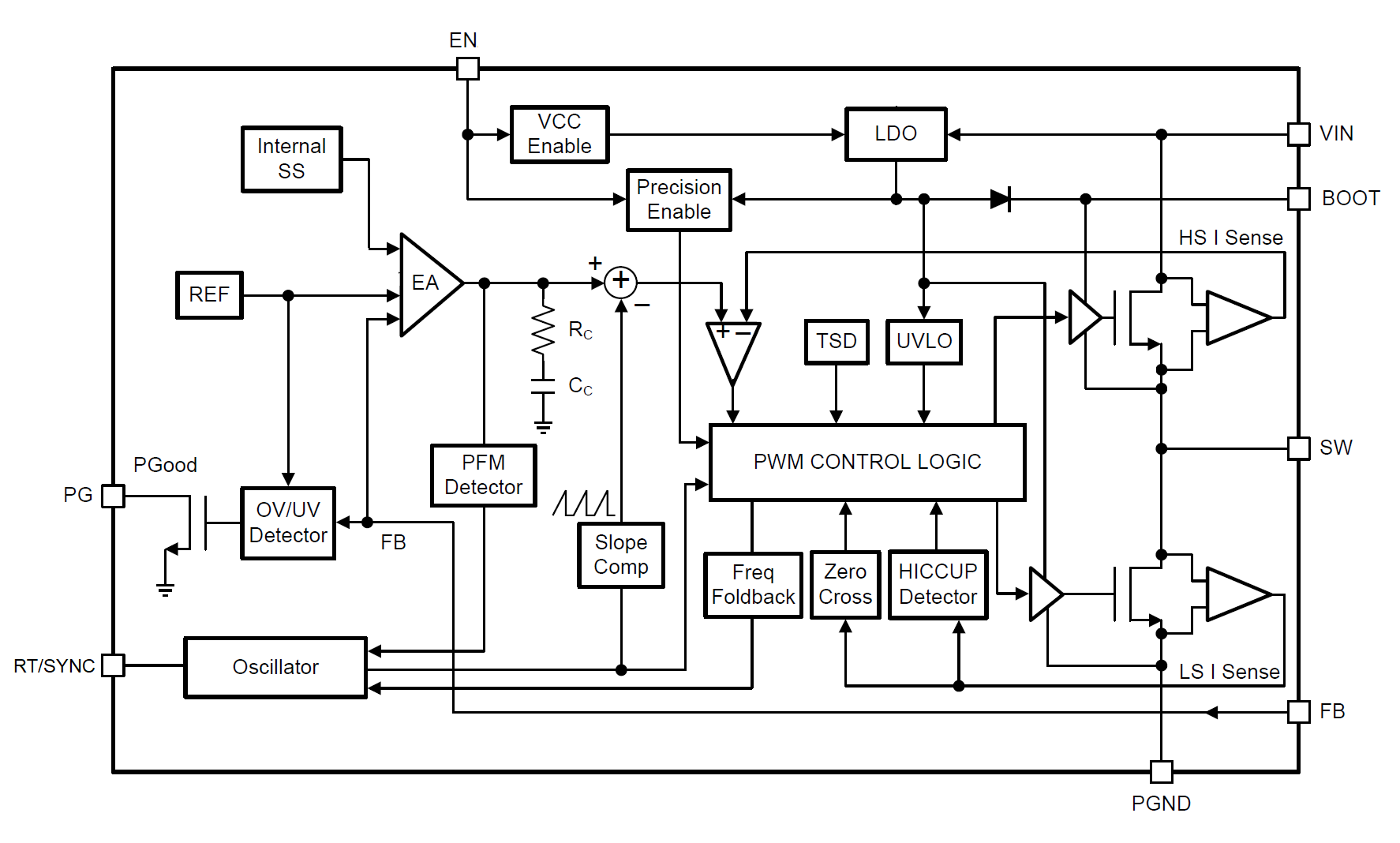

LMR43606-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 4uA IQ 和较高轻负载效率的汽车级 36V、600mA 同步降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 150 TI functional safety category: Functional Safety-Capable Topology: Buck Type: Converter Iout (max) (A): 0.6 Vin (min) (V): 3 Vin (max) (V): 36 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2200 EMI features: Low parasitic Hotrod packaging, Spread Spectrum Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 32 Iq (typ) (µA): 1.5 Duty cycle (max) (%): 99 Rating: Automotive Operating temperature range (°C): -40 to 150 TI functional safety category: Functional Safety-Capable Topology: Buck
Type: Converter Iout (max) (A): 0.6 Vin (min) (V): 3 Vin (max) (V): 36 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2200 EMI features: Low parasitic Hotrod packaging, Spread Spectrum Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 32 Iq (typ) (µA): 1.5 Duty cycle (max) (%): 99

TPS61289


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 26V 20A 双向降压/升压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost, Buck, Buck/Boost Type: DC/DC converter Vin (min) (V): 0.5 Vin (max) (V): 24 Switching frequency (min) (kHz): 50 Switching frequency (max) (kHz): 250 Vout (min) (V): 4.5 Vout (max) (V): 25 Iq (typ) (µA): 190 Duty cycle (max) (%): 99.5 Switch current limit (typ) (A): 20 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost, Buck, Buck/Boost Type: DC/DC converter Vin (min) (V): 0.5 Vin (max) (V): 24 Switching frequency (min) (kHz): 50
Switching frequency (max) (kHz): 250 Vout (min) (V): 4.5 Vout (max) (V): 25 Iq (typ) (µA): 190 Duty cycle (max) (%): 99.5 Switch current limit (typ) (A): 20

TPS56836


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 Out-of-Audio™ 运行模式的 4.5V 至 28V 输入、8A 同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 8 Vin (min) (V): 4.5 Vin (max) (V): 28 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 1200 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 13 Iq (typ) (µA): 45 Duty cycle (max) (%): 98 Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 8 Vin (min) (V): 4.5
Vin (max) (V): 28 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 1200 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 13 Iq (typ) (µA): 45 Duty cycle (max) (%): 98

TPS56838


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 FCCM 工作模式的 4.5V 至 28V 输入、8A 同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 8 Vin (min) (V): 4.5 Vin (max) (V): 28 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 1200 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 13 Iq (typ) (µA): 45 Duty cycle (max) (%): 98 Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 8 Vin (min) (V): 4.5
Vin (max) (V): 28 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 1200 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 13 Iq (typ) (µA): 45 Duty cycle (max) (%): 98

TPS56A37


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 4.5V 至 28V 输入、10A 同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 10 Vin (min) (V): 4.5 Vin (max) (V): 28 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 500 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 13 Iq (typ) (µA): 45 Duty cycle (max) (%): 98 Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 10 Vin (min) (V): 4.5
Vin (max) (V): 28 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 500 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 13 Iq (typ) (µA): 45 Duty cycle (max) (%): 98

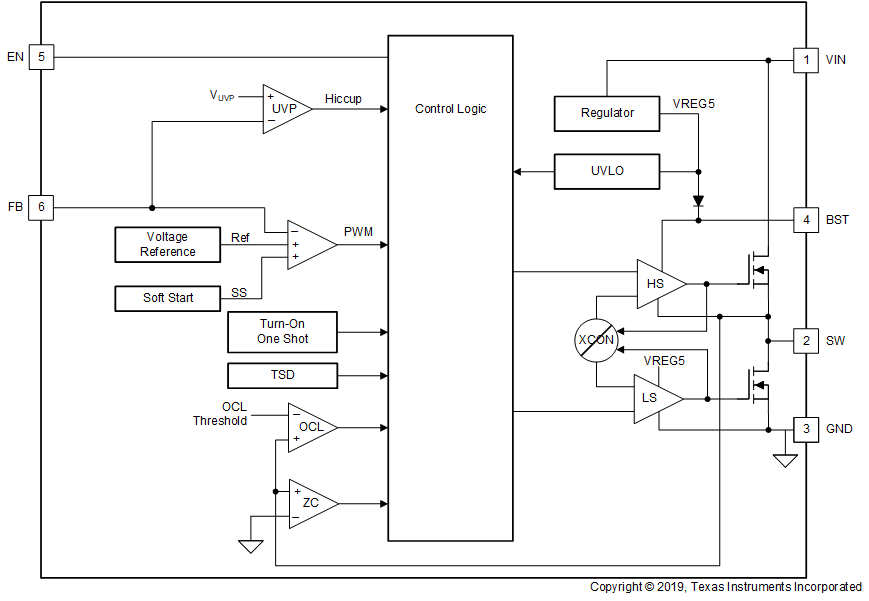

TPS562203


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 SOT563 封装且具有 Eco-Mode 的 4.2V 至 17V 输入、2A 同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 4.2 Vin (max) (V): 17 Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 600 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 7 Iq (typ) (µA): 110 Duty cycle (max) (%): 95 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 4.2
Vin (max) (V): 17 Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 600 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 7 Iq (typ) (µA): 110 Duty cycle (max) (%): 95

TPS562206


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 SOT563 封装且具有 FCCM 模式的 4.2V 至 17V 输入、2A 同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 4.2 Vin (max) (V): 17 Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 600 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 7 Iq (typ) (µA): 350 Duty cycle (max) (%): 95 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 4.2
Vin (max) (V): 17 Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 600 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 7 Iq (typ) (µA): 350 Duty cycle (max) (%): 95

TPS563203


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 SOT563 封装的 4.2V 至 17V 输入、3A 同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 4.2 Vin (max) (V): 17 Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 600 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 7 Iq (typ) (µA): 110 Duty cycle (max) (%): 95 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 4.2
Vin (max) (V): 17 Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 600 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 7 Iq (typ) (µA): 110 Duty cycle (max) (%): 95

LMR38015-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有展频功能的汽车级 80V 输入、1.5A 同步直流/直流降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 150 TI functional safety category: Functional Safety-Capable Topology: Buck Type: Converter Iout (max) (A): 1.5 Vin (min) (V): 4.2 Vin (max) (V): 80 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2200 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 75 Iq (typ) (µA): 40 Duty cycle (max) (%): 98 Rating: Automotive Operating temperature range (°C): -40 to 150 TI functional safety category: Functional Safety-Capable Topology: Buck
Type: Converter Iout (max) (A): 1.5 Vin (min) (V): 4.2 Vin (max) (V): 80 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2200 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 75 Iq (typ) (µA): 40 Duty cycle (max) (%): 98

TPS563206


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 SOT563 封装的 4.2V 至 17V 输入、3A 同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 4.2 Vin (max) (V): 17 Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 600 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 7 Iq (typ) (µA): 350 Duty cycle (max) (%): 95 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 4.2
Vin (max) (V): 17 Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 600 Control mode: D-CAP3 Vout (min) (V): 0.6 Vout (max) (V): 7 Iq (typ) (µA): 350 Duty cycle (max) (%): 95
