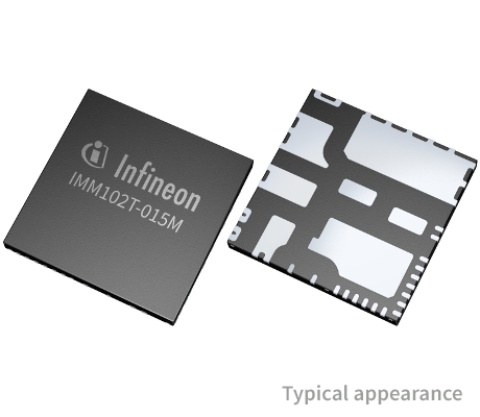

IMM102T-015M
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: IPM with PMSM/BLDC motor & PFC controller and MOSFET power stage
Control Option: 1 motor + PFC
Integration Level: IPM + MCE
Moisture Sensitivity Level: 3
Package: PG-IQFN-38-1
Processor Type: MCE 2.0
Type of Memory: Flash
Language: PLECS
Product Category: Motor Control ICs

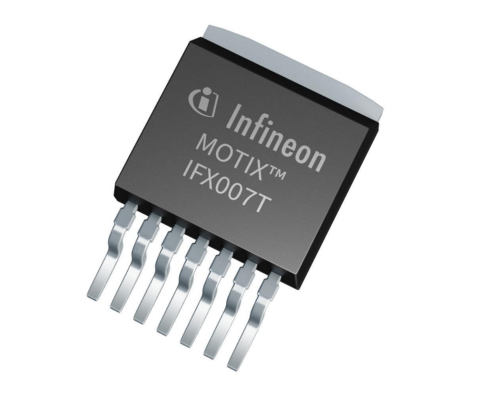

IFX007T
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ IFX007T is an integrated high current half bridge for motor drive applications
I[q]: 7.0µA
R[DS (on) ] (multiple): 10.0
I[D(lim)](multiple): 77.0 A
Inhibit: Yes
Mounting: SMT
I[D(lim)](multiple): 55.0 A
Normal Operating Voltage Range: 24 V
Protect: Overtemperature-Protection
Protect: Overcurrent-Protection
Diagnostics: Current Sense
Diagnostics: Overtemperature-Protection
Diagnostics: Overcurrent-Protection-failure flag
Language: SPICE
Protect: Undervoltage Protection
Temperature: - 40°C - 150°C
Operating Voltage max: 40.0V
Technology: MOTIX™ Bridge
Currently planned availability until at least: 2033
Classification: JESD47I
RDSON_H(typ): 5.3mΩ
更多
RDSON_L(typ): 4.7mΩ
Over current detection min: 55.0A
Supply Voltage absolute max ratings: 40.0V
BTN8982TA
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ BTN8982TA is an integrated high current half bridge for motor drive applications
I[q]: 7.0µA
I[D(lim)](multiple): 77.0A
Inhibit: Yes
Mounting: SMT
R[DS (on) ] (multiple): 10.0
I[D(lim)](multiple): 55.0 A
Normal Operating Voltage Range: 8 V - 18 V
Protect: Overtemperature-Protection
Protect: Overcurrent-Protection
Diagnostics: Current Sense
Diagnostics: Overtemperature-Protection
Diagnostics: Overcurrent-Protection-failure flag
Language: SPICE
Protect: Undervoltage Protection
Temperature: - 40°C - 150°C
Operating Voltage max: 40.0V
Technology: MOTIX™ Bridge
Currently planned availability until at least: 2030
RDSON_H(typ): 5.3mΩ
RDSON_L(typ): 4.7mΩ
更多
Over current detection min: 55.0A
Supply Voltage absolute max ratings: 40.0V

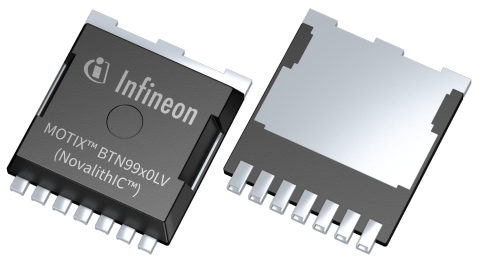

BTN9990LV
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ BTN9990LV is an integrated high current half bridge with low path resistance for motor drive applications.
R[DS (on) ] (multiple): 5.3 mΩ
I[D(lim)](multiple): min 75.0 A
I[D(lim)](multiple): typ. 95.0 A
I[D(lim)](multiple): max 115.0 A
I[q] max: 3.3µA
Operating Voltage max: 40.0V
Normal Operating Voltage Range: 8 V - 18 V
Technology: MOTIX™ Bridge
Diagnostics: Current Sense
Diagnostics: Overtemperature-Protection
Diagnostics: Overcurrent-Protection-failure flag
Protect: Overtemperature-Protection
Protect: Overcurrent-Protection
Protect: Undervoltage Protection
Currently planned availability until at least: 2037
Temperature: - 40°C - 150°C
Classification: ISO26262-ready
RDSON_H(typ): 3.5mΩ
RDSON_L(typ): 1.8mΩ
Over current detection min: 5.0A
Supply Voltage absolute max ratings: 40.0V

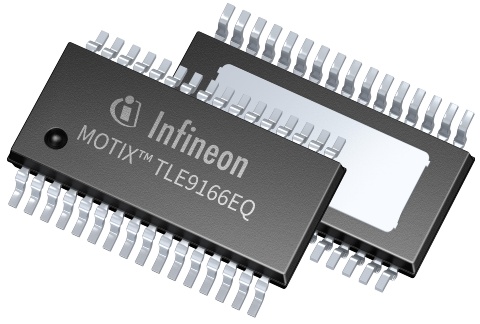

TLE9166EQ
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: MOTIX™ TLE9166EQ: Powerful, versatile multi half-bridge IC for door control modules and zone controllers, offering top performance and flexibility.
Normal Operating Voltage Range: 5.5 V to 20 V
Technology: MOTIX™ Bridge
Number of Half-Bridges: 6.0
Number of gate drivers: 2.0
Number of high-sides: 5.0
Number of low-sides: 1.0
High-side output current max: 1.5A
Low-side output current max: 0.5A
Half-bridge output current max: 7.0A
Diagnostics: OC, OL, TW, TSD, PSF, SPI_ERR, NPOR
Protect: SC, OT, UV, OV
Operating Voltage max: 20.0V
Temperature: - 40°C - 150°C
Currently planned availability until at least: 2038
Supply Voltage absolute max ratings: 40.0V

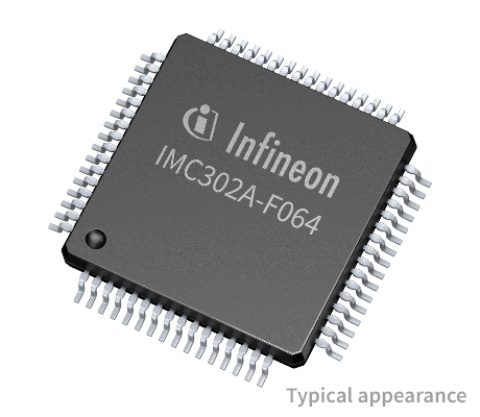

IMC302A-F064
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: PMSM/BLDC motor & PFC controller with additional 32-bit microcontroller
Package: PG-LQFP-64
Processor Type: MCE 2.0 + Arm® Cortex®-M0
Control Option: 1 motor + PFC
Description: MCE 2.0 with scripting and additional MCU, boost /totem pole PFC
Integration Level: MCE + MCU
Moisture Sensitivity Level: 3
Type of Memory: Flash
Control Option: 1 motor
Description: MCE 2.0 without scripting, low cost package
Integration Level: MCE
Moisture Sensitivity Level: 3
Package: PG-TSSOP-38
Processor Type: MCE 2.0
Type of Memory: Flash

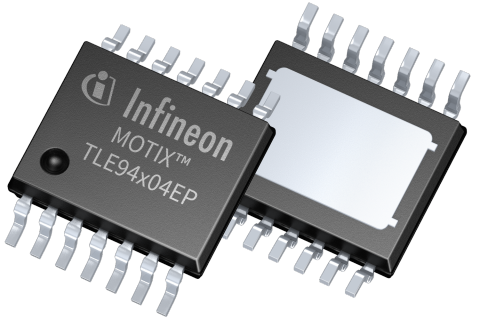

TLE94104EP
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ TLE9410EP is a protected four-fold half-bridge driver designed especially for automotive motion control applications
R[DS (on) ] (multiple): 850 mOhm
I[D(lim)](multiple): 4 x 0.9A
I[q]: 0.2µA
Diagnostics: OC, TW, TSD, PSF, OL, SPI_ERR, NPOR
Protect: SC, OT, UV, OV, OL
Mounting: SMT
Inhibit: Yes
Temperature: - 40°C - 150°C
Operating Voltage max: 20.0V
Technology: MOTIX™ Bridge
Currently planned availability until at least: 2037
RDSON_H(typ): 850.0mΩ
RDSON_L(typ): 850.0mΩ
Over current detection min: 0.9A
Supply Voltage absolute max ratings: 40.0V
TLE94103EP
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ TLE94103EP is a protected three-fold half-bridge driver designed to drive small DC motors in automotive applications
R[DS (on) ] (multiple): 850 mOhm
I[D(lim)](multiple): 3 x 0.9A
I[q]: 0.2µA
Diagnostics: OC, TW, TSD, PSF, OL, SPI_ERR, NPOR
Protect: SC, OT, UV, OV, OL
Mounting: SMT
Inhibit: Yes
Temperature: - 40°C - 150°C
Operating Voltage max: 20.0V
Technology: MOTIX™ Bridge
Currently planned availability until at least: 2037
RDSON_H(typ): 850.0mΩ
RDSON_L(typ): 850.0mΩ
Over current detection min: 0.9A
Supply Voltage absolute max ratings: 40.0V

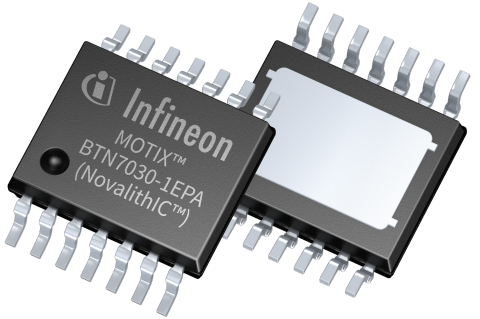

BTN7030-1EPA
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ BTN7030-1EPA is a protected half-bridge with integrated driver.
Diagnostics: Current Sense
Diagnostics: Open Load Detection
Diagnostics: Open load in OFF Detection
Diagnostics: Overcurrent-Protection
Diagnostics: Overtemperature-Protection
Normal Operating Voltage Range: 6 V - 18 V
Mounting: SMT
Inhibit: Yes
I[D(lim)](multiple): 17.0 A
I[D(lim)](multiple): 14.0 A
I[q]: 1.0µA
R[DS (on) ] (multiple): 32
Protect: Overtemperature-Protection
Protect: Overcurrent-Protection
Protect: Undervoltage-Protection
Protect: Cross-Current Protection
Protect: Overvoltage-Protection
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Technology: MOTIX™ Bridge
更多
Language: PSpice
Currently planned availability until at least: 2038
RDSON_H(typ): 12.0mΩ
RDSON_L(typ): 20.0mΩ
Over current detection min: 14.0A
Supply Voltage absolute max ratings: 35.0V
