IMM102T-056M

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: IPM with PMSM/BLDC motor controller and MOSFET power stage

Control Option: 1 motor + PFC Integration Level: IPM + MCE Moisture Sensitivity Level: 3 Package: PG-IQFN-38-1 Processor Type: MCE 2.0 Type of Memory: Flash Language: PLECS Product Category: Motor Control ICs

BTN8962TA

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The MOTIX™ BTN8962TA is an integrated high current half bridge for motor drive applications

I[q]: 7.0µA I[D(lim)](multiple): 42.0A Inhibit: Yes Mounting: SMT R[DS (on) ] (multiple): 14.2 I[D(lim)](multiple): 30.0 A Normal Operating Voltage Range: 8 V - 18 V Protect: Overtemperature-Protection Protect: Overcurrent-Protection Diagnostics: Current Sense Diagnostics: Overtemperature-Protection Diagnostics: Overcurrent-Protection-failure flag Language: SPICE Protect: Undervoltage Protection Temperature: - 40°C - 150°C Operating Voltage max: 40.0V Technology: MOTIX™ Bridge Currently planned availability until at least: 2030 RDSON_L(typ): 7.5mΩ Over current detection min: 30.0A 更多

Supply Voltage absolute max ratings: 40.0V RDSON_H(typ): 6.7mΩ

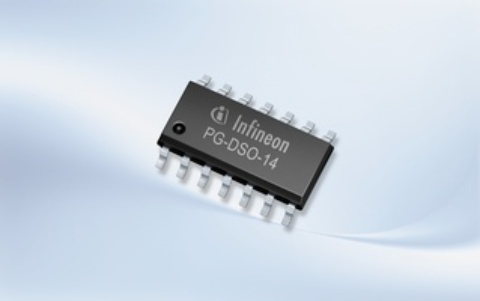

TLE4207G

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The MOTIX™ TLE4207G is a protected Dual-Half-Bridge-Driver designed specially for automotive and industrial motion control applications

I[q]: 20.0µA Protect: short circuit e.a. Mounting: SMT Diagnostics: OT, OV R[DS (on) ] (multiple): n/a I[D(lim)](multiple): 2 x 0.8 A I[D(lim)](multiple): 2 x 1.5 A Inhibit: Yes Temperature: - 40°C - 150°C Operating Voltage max: 18.0V Technology: MOTIX™ Bridge Currently planned availability until at least: 2038 Over current detection min: 0.8A Supply Voltage absolute max ratings: 18.0V

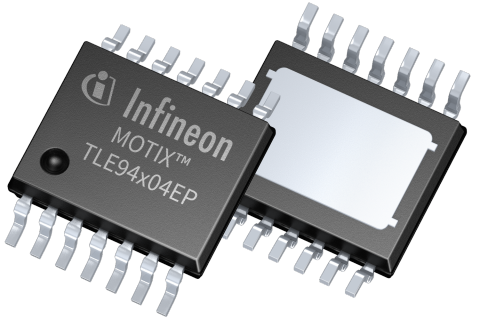

TLE94004EP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The MOTIX™ TLE94004EP is a protected four-fold half-bridge driver designed especially for automotive motion control applications

R[DS (on) ] (multiple): 850 mOhm I[D(lim)](multiple): 4 x 0.9A I[q]: 0.2µA Diagnostics: OC, TSD, PSF Protect: SC, OT, UV, OV Mounting: SMT Inhibit: Yes Temperature: - 40°C - 150°C Operating Voltage max: 20.0V Technology: MOTIX™ Bridge Currently planned availability until at least: 2037 RDSON_H(typ): 850.0mΩ RDSON_L(typ): 850.0mΩ Over current detection min: 0.9A Supply Voltage absolute max ratings: 40.0V

TLE94003EP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The MOTIX™ TLE94003EP is a protected three-fold half-bridge driver designed to drive small DC motors in automotive applications

R[DS (on) ] (multiple): 850 mOhm I[D(lim)](multiple): 3 x 0.9A I[q]: 0.2µA Diagnostics: OC, TSD, PSF Protect: SC, OT, UV, OV Mounting: SMT Inhibit: Yes Temperature: - 40°C - 150°C Operating Voltage max: 20.0V Technology: MOTIX™ Bridge Currently planned availability until at least: 2037 RDSON_H(typ): 850.0mΩ RDSON_L(typ): 850.0mΩ Over current detection min: 0.9A Supply Voltage absolute max ratings: 40.0V

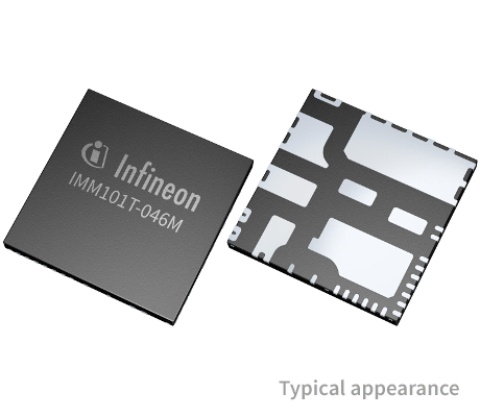

IMM101T-046M

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: IPM with PMSM/BLDC motor controller and MOSFET power stage

Control Option: 1 motor Integration Level: IPM + MCE Moisture Sensitivity Level: 3 Package: PG-IQFN-38-1 Processor Type: MCE 2.0 Type of Memory: Flash Language: PLECS Product Category: Motor Control ICs

IMC301A-F064

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: PMSM/BLDC motor controller with additional 32-bit microcontroller

Package: PG-LQFP-64 Processor Type: MCE 2.0 + Arm® Cortex®-M0 Control Option: 1 motor Description: MCE 2.0 with scripting and additional MCU Integration Level: MCE + MCU Moisture Sensitivity Level: 3 Type of Memory: Flash

IMM101T-056M

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: IPM with PMSM/BLDC motor controller and MOSFET power stage

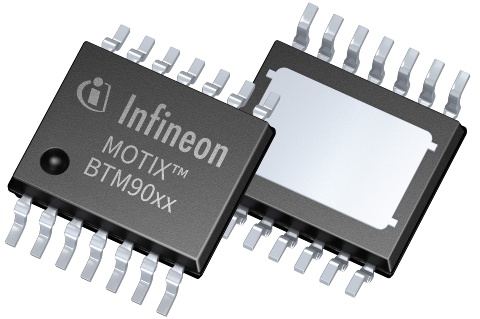

BTM9011EP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The MOTIX™ BTM9011EP is a fully integrated H-bridge motor driver with small footprint and adjustable slew rate at two levels for an improved EMC performance. It operates via SPI interface.

Operating Voltage max: 40.0V Protect: Overtemperature Protect: undervoltage Protect: overcurrent Protect: short circuit Protect: crosscurrent Diagnostics: Open load detection Diagnostics: current sense Normal Operating Voltage Range: 7 V - 18 V Digital interface: SDI Digital interface: SCLK Digital interface: CS Digital interface: SDO Pulse current (at 85°C)(for tpulse≤ 1 s): 5.2A Pulse current (at 85°C)(for tpulse ≤ 10 s): 4.2A Product validation: AEC-Q100 (Grade 1) I[D(lim)](multiple): min 10.0 A Currently planned availability until at least: 2038 Technology: MOTIX™ Bridge R[DS (on)]: 87.5mΩ 更多

Interfaces: SPI Classification: ISO26262-ready Temperature max: 150.0°C RDSON_H(typ): 87.5mΩ RDSON_L(typ): 87.5mΩ Over current detection min: 10.0A Supply Voltage absolute max ratings: 40.0V

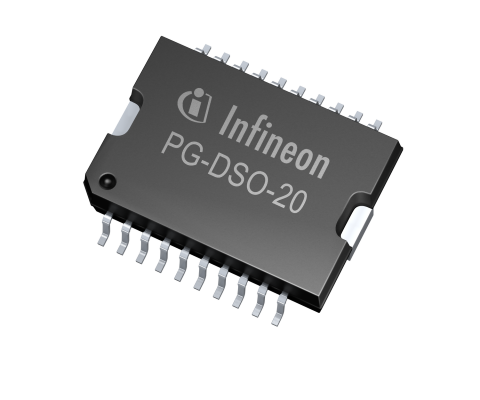

TLE8209-2SA

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The MOTIX™ TLE8209-2 is a SPI programmable H-bridge, designed for the control of DC motors in safety critical automotive applications

R[DS (on)](switch): 125.0mΩ R[DS (on)]: 125.0mΩ I[q]: 20.0µA Diagnostics: SPI & Status Flag I[D(lim)](multiple): 10.0 A I[D(lim)](multiple): 7.7 A Protect: OT Protect: SC Mounting: SMT I[q]: 13.0mA Protect: OC Inhibit: Yes Operating Voltage max: 28.0V Technology: MOTIX™ Bridge Currently planned availability until at least: 2033 Normal Operating Voltage Range: 4.5 V - 28 V Temperature max: 150.0°C RDSON_H(typ): 115.0mΩ RDSON_L(typ): 125.0mΩ Over current detection min: 8.6A Supply Voltage absolute max ratings: 40.0V
