UCC21331-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有使能逻辑和可编程死区时间的汽车级 3kVRMS 4A/6A 双通道栅极驱动器

Number of channels: 2 Isolation rating: Basic Withstand isolation voltage (VISO) (Vrms): 3000 Transient isolation voltage (VIOTM) (VPK): 4242 TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Features: Enable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 9.2 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 150 Rating: Automotive Fall time (ns): 8 Undervoltage lockout (typ) (V): 12 Number of channels: 2 Isolation rating: Basic Withstand isolation voltage (VISO) (Vrms): 3000 Transient isolation voltage (VIOTM) (VPK): 4242 更多

TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Features: Enable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 9.2 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 150 Rating: Automotive Fall time (ns): 8 Undervoltage lockout (typ) (V): 12

UCC21231

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 4A 拉电流和 6A 灌电流的高速双通道隔离式栅极驱动器

Number of channels: 2 Isolation rating: Basic Withstand isolation voltage (VISO) (Vrms): 1600 Transient isolation voltage (VIOTM) (VPK): 2263 TI functional safety category: Functional Safety-Capable Power switch: GaNFET, MOSFET Features: Enable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 6.5 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 125 Rating: Catalog Fall time (ns): 8 Undervoltage lockout (typ) (V): 5 Number of channels: 2 Isolation rating: Basic Withstand isolation voltage (VISO) (Vrms): 1600 Transient isolation voltage (VIOTM) (VPK): 2263 更多

TI functional safety category: Functional Safety-Capable Power switch: GaNFET, MOSFET Features: Enable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 6.5 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 125 Rating: Catalog Fall time (ns): 8 Undervoltage lockout (typ) (V): 5

UCC23525

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 12V UVLO 的 5A/5A、5.7kVRMS 增强型单通道光耦兼容隔离式栅极驱动器

Number of channels: 1 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 8000 Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 5 Features: Opto-compatible input Output VCC/VDD (max) (V): 30 Output VCC/VDD (min) (V): 13 Input threshold: 4 mA Operating temperature range (°C): -40 to 125 Rating: Catalog Bootstrap supply voltage (max) (V): 2121 Fall time (ns): 25 Undervoltage lockout (typ) (V): 12 Number of channels: 1 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 更多

Transient isolation voltage (VIOTM) (VPK): 8000 Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 5 Features: Opto-compatible input Output VCC/VDD (max) (V): 30 Output VCC/VDD (min) (V): 13 Input threshold: 4 mA Operating temperature range (°C): -40 to 125 Rating: Catalog Bootstrap supply voltage (max) (V): 2121 Fall time (ns): 25 Undervoltage lockout (typ) (V): 12

UCC5880-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有高级保护功能的汽车级 20A 实时可变 IGBT/SiC MOSFET 隔离式栅极驱动器

Number of channels: 1 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1414 Transient isolation voltage (VIOTM) (VPK): 7071 TI functional safety category: Functional Safety-Compliant Power switch: IGBT, SiCFET Peak output current (A): 20 Output VCC/VDD (max) (V): 30 Output VCC/VDD (min) (V): 12 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Propagation delay time (µs): 0.15 Input threshold: CMOS Operating temperature range (°C): -40 to 125 Rating: Automotive Rise time (ns): 55 Fall time (ns): 55 Undervoltage lockout (typ) (V): Programmable Number of channels: 1 更多

Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1414 Transient isolation voltage (VIOTM) (VPK): 7071 TI functional safety category: Functional Safety-Compliant Power switch: IGBT, SiCFET Peak output current (A): 20 Output VCC/VDD (max) (V): 30 Output VCC/VDD (min) (V): 12 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Propagation delay time (µs): 0.15 Input threshold: CMOS Operating temperature range (°C): -40 to 125 Rating: Automotive Rise time (ns): 55 Fall time (ns): 55 Undervoltage lockout (typ) (V): Programmable

UCC21330

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有禁用逻辑和可编程死区时间的 3kVRMS 4A/6A 双通道隔离式栅极驱动器

Number of channels: 2 Isolation rating: Basic Withstand isolation voltage (VISO) (Vrms): 3000 Transient isolation voltage (VIOTM) (VPK): 4242 TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Features: Disable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 9.2 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 150 Rating: Automotive, Catalog Fall time (ns): 8 Undervoltage lockout (typ) (V): 5, 8, 12 Number of channels: 2 Isolation rating: Basic Withstand isolation voltage (VISO) (Vrms): 3000 Transient isolation voltage (VIOTM) (VPK): 4242 更多

TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Features: Disable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 9.2 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 150 Rating: Automotive, Catalog Fall time (ns): 8 Undervoltage lockout (typ) (V): 5, 8, 12

UCC21330-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有禁用逻辑和可编程死区时间的汽车级 3kVRMS 4A/6A 双通道栅极驱动器

Number of channels: 2 Isolation rating: Basic Withstand isolation voltage (VISO) (Vrms): 3000 Transient isolation voltage (VIOTM) (VPK): 4242 TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 6 Features: Disable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 9.2 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 150 Rating: Automotive Fall time (ns): 8 Undervoltage lockout (typ) (V): 5, 8, 12 Number of channels: 2 Isolation rating: Basic Withstand isolation voltage (VISO) (Vrms): 3000 更多

Transient isolation voltage (VIOTM) (VPK): 4242 TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 6 Features: Disable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 9.2 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 150 Rating: Automotive Fall time (ns): 8 Undervoltage lockout (typ) (V): 5, 8, 12

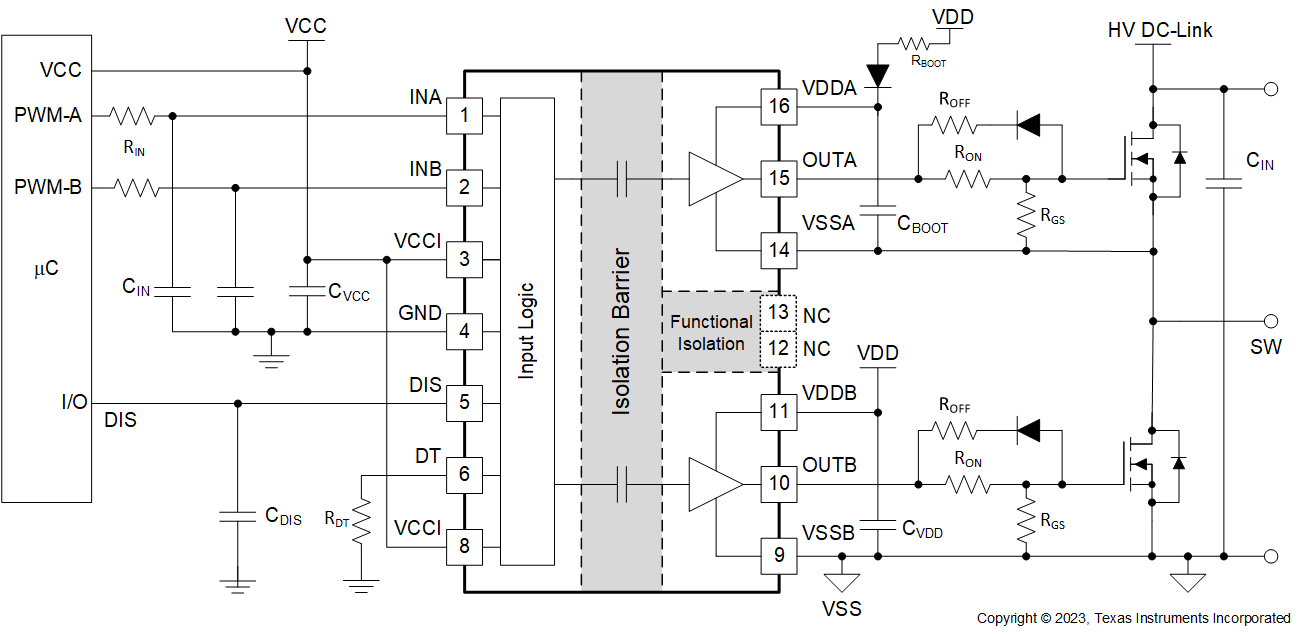

UCC21550

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 适用于 IGBT 且具有 DIS 和 DT 引脚的 4A/6A、5kVRMS 双通道隔离式栅极驱动器

Number of channels: 2 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Transient isolation voltage (VIOTM) (VPK): 7070 TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 6 Features: Disable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 13 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 150 Rating: Catalog Fall time (ns): 8 Undervoltage lockout (typ) (V): 5, 8, 12 Number of channels: 2 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 更多

Transient isolation voltage (VIOTM) (VPK): 7070 TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 6 Features: Disable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 13 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 150 Rating: Catalog Fall time (ns): 8 Undervoltage lockout (typ) (V): 5, 8, 12

UCC21550-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 适用于 IGBT 且具有 DIS 和 DT 引脚的汽车级 4A/6A、5kVRMS 双通道隔离式栅极驱动器

Number of channels: 2 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Transient isolation voltage (VIOTM) (VPK): 7070 TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 6 Features: Disable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 13 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 150 Rating: Automotive Fall time (ns): 8 Undervoltage lockout (typ) (V): 5, 8, 12 Number of channels: 2 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 更多

Transient isolation voltage (VIOTM) (VPK): 7070 TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 6 Features: Disable, High CMTI, Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 13 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Input threshold: CMOS, TTL Operating temperature range (°C): -40 to 150 Rating: Automotive Fall time (ns): 8 Undervoltage lockout (typ) (V): 5, 8, 12

UCC21551

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 适用于 IGBT 和 SiC、具有 EN 和 DT 引脚的4A/6A 5kVRMS 双通道隔离式栅极驱动器

Number of channels: 2 Withstand isolation voltage (VISO) (Vrms): 5000 TI functional safety category: Functional Safety-Capable Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 6 Features: Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 13 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Propagation delay time (µs): 0.028 Input threshold: CMOS Operating temperature range (°C): -40 to 150 Rating: Catalog Rise time (ns): 8 Fall time (ns): 8 Undervoltage lockout (typ) (V): 5, 8, 12, 17 Number of channels: 2 Withstand isolation voltage (VISO) (Vrms): 5000 TI functional safety category: Functional Safety-Capable 更多

Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 6 Features: Programmable dead time Output VCC/VDD (max) (V): 25 Output VCC/VDD (min) (V): 13 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Propagation delay time (µs): 0.028 Input threshold: CMOS Operating temperature range (°C): -40 to 150 Rating: Catalog Rise time (ns): 8 Fall time (ns): 8 Undervoltage lockout (typ) (V): 5, 8, 12, 17

UCC21738-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 适用于 SiC/IGBT、具有有源短路保护功能的汽车级 10A 隔离式单通道栅极驱动器

Number of channels: 1 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5700 Working isolation voltage (VIOWM) (Vrms): 2121 Transient isolation voltage (VIOTM) (VPK): 8000 TI functional safety category: Functional Safety Quality-Managed Power switch: IGBT, SiCFET Peak output current (A): 10 Output VCC/VDD (max) (V): 33 Output VCC/VDD (min) (V): 13 Input supply voltage (min) (V): 3 Input supply voltage (max) (V): 5.5 Propagation delay time (µs): 0.09 Input threshold: CMOS Operating temperature range (°C): -40 to 125 Rating: Automotive Bootstrap supply voltage (max) (V): 2121 Rise time (ns): 33 Fall time (ns): 27 Undervoltage lockout (typ) (V): 12 更多
