天天芯片 - 物料搜索

LMP92066

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有集成 EEPROM + 输出 ON/OFF 控制功能的双路、温度控制型 DAC

Number of ADC channels: 0 ADC resolution (bps): 0 Number of DAC channels: 2 DAC resolution (bps): 12 Temperature sensing: Local Number of GPIOs: 0 Interface type: I2C Features: EEPROM Operating temperature range (°C): -40 to 125 Rating: Catalog ADC sampling rate (ksps): 0 ADC analog input range (min) (V): 0 ADC analog input range (max) (V): 0 DAC settling time (µs): 250 DAC output full-scale (min) (V): -5 DAC output full-scale (max) (V): 5 Number of ADC channels: 0 ADC resolution (bps): 0 Number of DAC channels: 2 DAC resolution (bps): 12 更多

Temperature sensing: Local Number of GPIOs: 0 Interface type: I2C Features: EEPROM Operating temperature range (°C): -40 to 125 Rating: Catalog ADC sampling rate (ksps): 0 ADC analog input range (min) (V): 0 ADC analog input range (max) (V): 0 DAC settling time (µs): 250 DAC output full-scale (min) (V): -5 DAC output full-scale (max) (V): 5

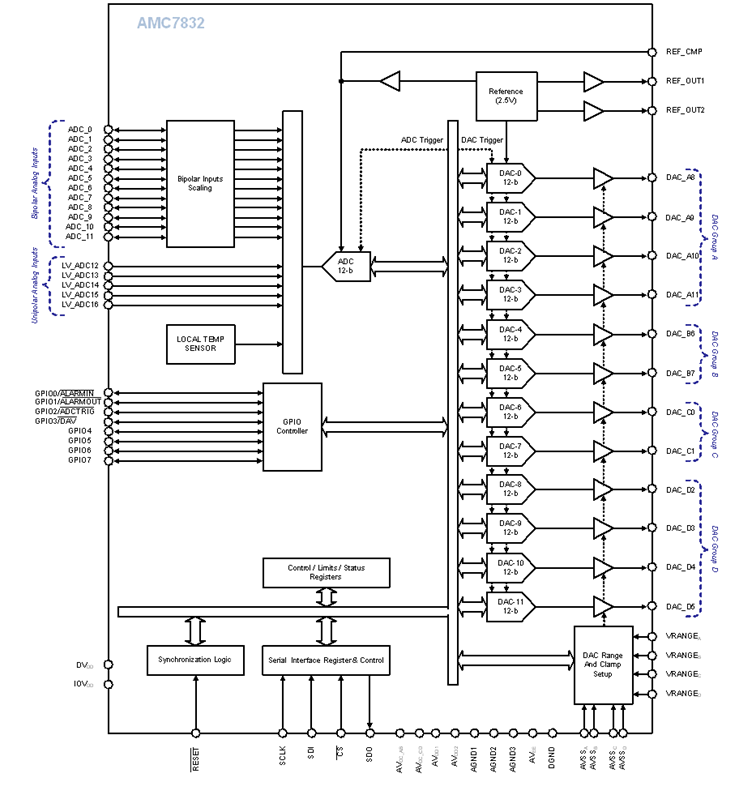

AMC7832

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 12 位高密度模拟监控 (AMC) 解决方案

Number of ADC channels: 17 ADC resolution (bps): 12 Number of DAC channels: 12 DAC resolution (bps): 12 Temperature sensing: Local Number of GPIOs: 8 Interface type: SPI Features: GPIO, Temp Sensor Operating temperature range (°C): -40 to 125 Rating: Catalog ADC sampling rate (ksps): 87 ADC analog input range (min) (V): -12.5 ADC analog input range (max) (V): 12.5 DAC settling time (µs): 10 DAC output full-scale (min) (V): -10 DAC output full-scale (max) (V): 10 Number of ADC channels: 17 ADC resolution (bps): 12 Number of DAC channels: 12 DAC resolution (bps): 12 更多

Temperature sensing: Local Number of GPIOs: 8 Interface type: SPI Features: GPIO, Temp Sensor Operating temperature range (°C): -40 to 125 Rating: Catalog ADC sampling rate (ksps): 87 ADC analog input range (min) (V): -12.5 ADC analog input range (max) (V): 12.5 DAC settling time (µs): 10 DAC output full-scale (min) (V): -10 DAC output full-scale (max) (V): 10

AMC7891

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 用于模拟监控和控制的集成多通道 ADC 和 DAC

Number of ADC channels: 8 ADC resolution (bps): 10 Number of DAC channels: 4 DAC resolution (bps): 10 Temperature sensing: Local Number of GPIOs: 12 Interface type: SPI Features: GPIO, Temp Sensor Operating temperature range (°C): -40 to 105 Rating: Catalog ADC sampling rate (ksps): 500 ADC analog input range (min) (V): 0 ADC analog input range (max) (V): 5 DAC settling time (µs): 3 DAC output full-scale (min) (V): 0 DAC output full-scale (max) (V): 5 Number of ADC channels: 8 ADC resolution (bps): 10 Number of DAC channels: 4 DAC resolution (bps): 10 更多

Temperature sensing: Local Number of GPIOs: 12 Interface type: SPI Features: GPIO, Temp Sensor Operating temperature range (°C): -40 to 105 Rating: Catalog ADC sampling rate (ksps): 500 ADC analog input range (min) (V): 0 ADC analog input range (max) (V): 5 DAC settling time (µs): 3 DAC output full-scale (min) (V): 0 DAC output full-scale (max) (V): 5

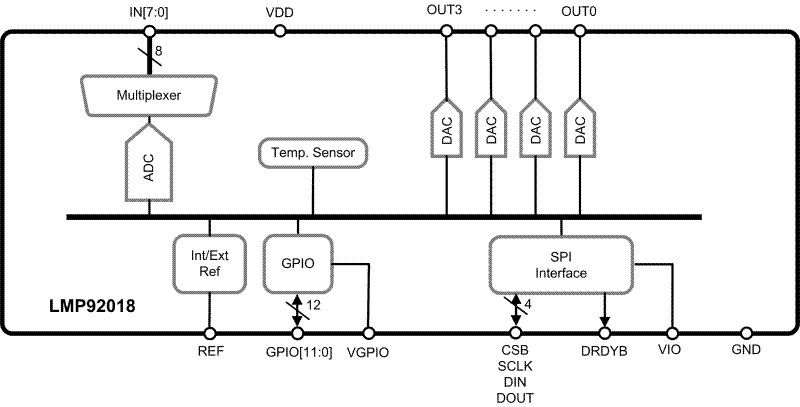

LMP92018

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 用于模拟监视和控制的集成多通道 ADC 和 DAC

Number of ADC channels: 8 ADC resolution (bps): 10 Number of DAC channels: 4 DAC resolution (bps): 10 Temperature sensing: Local Number of GPIOs: 12 Interface type: SPI Operating temperature range (°C): -40 to 125 Rating: Catalog ADC sampling rate (ksps): 500 ADC analog input range (min) (V): 0 ADC analog input range (max) (V): 5 DAC settling time (µs): 20 DAC output full-scale (min) (V): 0 DAC output full-scale (max) (V): 5 Number of ADC channels: 8 ADC resolution (bps): 10 Number of DAC channels: 4 DAC resolution (bps): 10 Temperature sensing: Local 更多

Number of GPIOs: 12 Interface type: SPI Operating temperature range (°C): -40 to 125 Rating: Catalog ADC sampling rate (ksps): 500 ADC analog input range (min) (V): 0 ADC analog input range (max) (V): 5 DAC settling time (µs): 20 DAC output full-scale (min) (V): 0 DAC output full-scale (max) (V): 5

AMC7823

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 用于模拟监控和控制的集成多通道 ADC 和 DAC

Number of ADC channels: 8 ADC resolution (bps): 12 Number of DAC channels: 8 DAC resolution (bps): 12 Temperature sensing: Local, Remote Number of GPIOs: 6 Interface type: SPI Features: GPIO, Temp Sensor Operating temperature range (°C): -40 to 85 Rating: Catalog ADC sampling rate (ksps): 200 ADC analog input range (min) (V): 0 ADC analog input range (max) (V): 5 DAC settling time (µs): 2 DAC output full-scale (min) (V): 0 DAC output full-scale (max) (V): 5 Number of ADC channels: 8 ADC resolution (bps): 12 Number of DAC channels: 8 DAC resolution (bps): 12 更多

Temperature sensing: Local, Remote Number of GPIOs: 6 Interface type: SPI Features: GPIO, Temp Sensor Operating temperature range (°C): -40 to 85 Rating: Catalog ADC sampling rate (ksps): 200 ADC analog input range (min) (V): 0 ADC analog input range (max) (V): 5 DAC settling time (µs): 2 DAC output full-scale (min) (V): 0 DAC output full-scale (max) (V): 5

AMC7820

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 用于模拟监控和控制的集成多通道 ADC 和 DAC

Number of ADC channels: 8 ADC resolution (bps): 12 Number of DAC channels: 3 DAC resolution (bps): 12 Temperature sensing: Remote Number of GPIOs: 0 Interface type: SPI Features: Temp Sensor Operating temperature range (°C): -40 to 85 Rating: Catalog ADC sampling rate (ksps): 100 ADC analog input range (min) (V): 0 ADC analog input range (max) (V): 5 DAC settling time (µs): 3 DAC output full-scale (min) (V): 0 DAC output full-scale (max) (V): 2.5, 5 Number of ADC channels: 8 ADC resolution (bps): 12 Number of DAC channels: 3 DAC resolution (bps): 12 更多

Temperature sensing: Remote Number of GPIOs: 0 Interface type: SPI Features: Temp Sensor Operating temperature range (°C): -40 to 85 Rating: Catalog ADC sampling rate (ksps): 100 ADC analog input range (min) (V): 0 ADC analog input range (max) (V): 5 DAC settling time (µs): 3 DAC output full-scale (min) (V): 0 DAC output full-scale (max) (V): 2.5, 5

TDP20MB421

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有集成式 2:1 多路复用器的四通道 DisplayPort™ 2.1 转接驱动器

Protocols: DisplayPort Rating: Catalog Speed (max) (Gbpp): 20 Operating temperature range (°C): -40 to 85 Protocols: DisplayPort Rating: Catalog Speed (max) (Gbpp): 20 Operating temperature range (°C): -40 to 85

TMUXHS4612

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 6 通道 20Gbps 差分 2:1 多路复用器或 1:2 多路信号分离器

Protocols: DisplayPort, HDMI, MIPI CSI/DSI Rating: Catalog Speed (max) (Gbpp): 20 Operating temperature range (°C): -40 to 125 Protocols: DisplayPort, HDMI, MIPI CSI/DSI Rating: Catalog Speed (max) (Gbpp): 20 Operating temperature range (°C): -40 to 125

LMH1229

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有集成时钟恢复器的第二代 12G SDI 电缆均衡器

Function: Equalizer, Reclocker Operating temperature range (°C): -40 to 85 Function: Equalizer, Reclocker Operating temperature range (°C): -40 to 85

TDP2004

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 4 通道 DisplayPort 2.1 转接驱动器

Type: Redriver Protocols: DisplayPort Rating: Catalog Speed (max) (Gbpp): 20 Number of channels: 4 Operating temperature range (°C): -40 to 85 Type: Redriver Protocols: DisplayPort Rating: Catalog Speed (max) (Gbpp): 20 Number of channels: 4 Operating temperature range (°C): -40 to 85
