INFINEON
Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

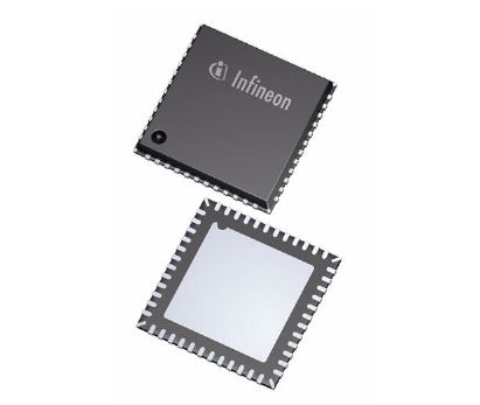

TLD5542-1QV
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路数据:
简介: The TLD5542-1QV is a synchronous H-Bridge DC-DC controller with built in protection features and SPI interface
I[q]: 1.5µA
Inhibit: Yes
Open Load Detection: Yes
Operating Temperature max: 150.0°C
PWM: Yes
Short Circuit Protection: Yes
Tolerance: 3.0%
Topology: DC-DC Synchronous H-Bridge with SPI
f[SW] max: 700.0kHz
Input Voltage max: 40.0V
Output Voltage max: 55.0V
Dimming: Analog and Digital
Type: Buck-boost
V[S] max: 40.0V
V[DRM]/ V[RRM (V)]: 2600.0V
I[TSM]: 43500.0A
I[TAVM]: 2480 (180 ° el sin)

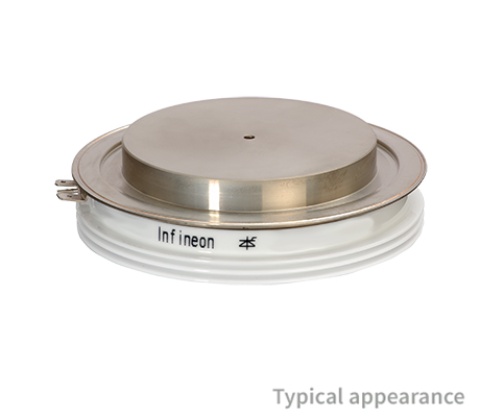

Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 111mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 2600.0
I[TAVM]/T[C] [A/°C](@180° el sin): 2480/85
I[TSM] [A](@10ms, Tvj max): 43500.0
∫I2dt [A²s · 103](@10ms, Tvj max): 9460.0
V[T]/I[T] [V/kA](@Tvj max): 1.43/3.0
V[T0] [V](@T[vj max]) max: 0.95
r[T] [mΩ](@T[vj max]) max: 0.154
t[q] [µs]: 400.0
R[thJC] [K/kW](@180° el sin) max: 8.5
T[vj] [°C] max: 125.0
Clamping force [kn] max: 95.0
V[DRM]/ V[RRM (V)]: 5200.0V
I[TSM]: 43000.0A
I[TAVM]: 1660 (180 ° el sin)

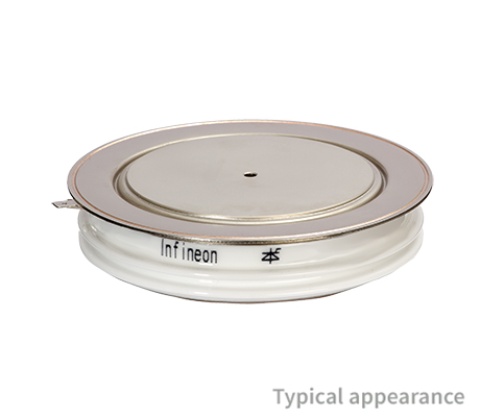

Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 120mm height 35mm / Ceramic
V[DRM] / V[RRM] [V]: 5200.0
I[TAVM]/T[C] [A/°C](@180° el sin): 1660/85
I[TSM] [A](@10ms, Tvj max): 43000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 9250.0
V[T]/I[T] [V/kA](@Tvj max): 1.70/2.0
V[T0] [V](@T[vj max]) max: 0.92
r[T] [mΩ](@T[vj max]) max: 0.37
t[q] [µs]: 450.0
R[thJC] [K/kW](@180° el sin) max: 9.7
T[vj] [°C] max: 125.0
Clamping force [kn] max: 52.0
V[DRM]/ V[RRM (V)]: 5200.0V
I[TSM]: 43000.0A
I[TAVM]: 1770 (180 ° el sin)

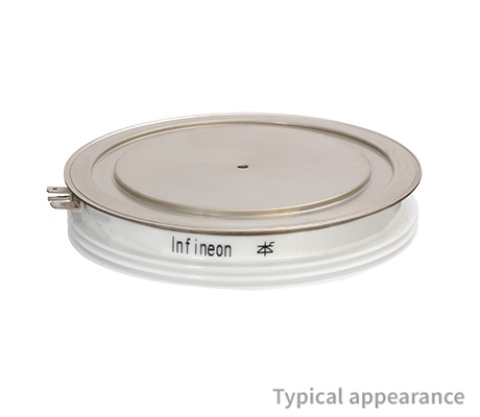

Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 120mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 5200.0
I[TAVM]/T[C] [A/°C](@180° el sin): 1770/85
I[TSM] [A](@10ms, Tvj max): 43000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 9250.0
V[T]/I[T] [V/kA](@Tvj max): 1.70/2.0
V[T0] [V](@T[vj max]) max: 0.92
r[T] [mΩ](@T[vj max]) max: 0.37
t[q] [µs]: 450.0
R[thJC] [K/kW](@180° el sin) max: 9.0
T[vj] [°C] max: 125.0
Clamping force [kn] max: 52.0
V[DRM]/ V[RRM (V)]: 3600.0V
I[TSM]: 41000.0A
I[TAVM]: 2060 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 120mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 3600.0
I[TAVM]/T[C] [A/°C](@180° el sin): 2060/85
I[TSM] [A](@10ms, Tvj max): 41000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 8400.0
V[T]/I[T] [V/kA](@Tvj max): 1.50/2.0
V[T0] [V](@T[vj max]) max: 1.0
r[T] [mΩ](@T[vj max]) max: 0.25
t[q] [µs]: 300.0
R[thJC] [K/kW](@180° el sin) max: 8.7
T[vj] [°C] max: 125.0
Clamping force [kn] max: 52.0
V[DRM]/ V[RRM (V)]: 600.0V
I[TSM]: 42000.0A
I[TAVM]: 2509 (180 ° el sin)

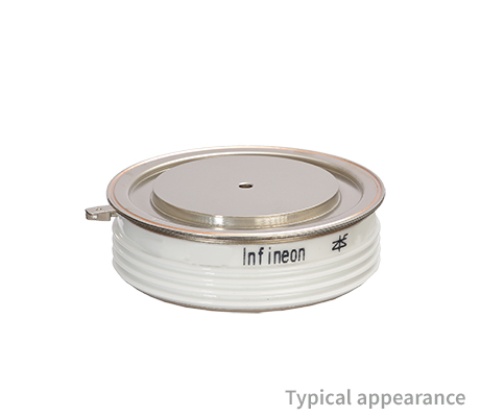

Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 75mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 600.0
I[TAVM]/T[C] [A/°C](@180° el sin): 2509/85
I[TSM] [A](@10ms, Tvj max): 42000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 8820.0
V[T]/I[T] [V/kA](@Tvj max): 1.22/6.0
V[T0] [V](@T[vj max]) max: 0.75
r[T] [mΩ](@T[vj max]) max: 0.072
t[q] [µs]: 200.0
R[thJC] [K/kW](@180° el sin) max: 18.4
T[vj] [°C] max: 140.0
Clamping force [kn] max: 56.0
V[DRM]/ V[RRM (V)]: 2200.0V
I[TSM]: 50000.0A
I[TAVM]: 2810 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 111mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 2200.0
I[TAVM]/T[C] [A/°C](@180° el sin): 2810/85
I[TSM] [A](@10ms, Tvj max): 50000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 12500.0
V[T]/I[T] [V/kA](@Tvj max): 2.35/11.0
V[T0] [V](@T[vj max]) max: 0.9
r[T] [mΩ](@T[vj max]) max: 0.112
t[q] [µs]: 300.0
R[thJC] [K/kW](@180° el sin) max: 8.5
T[vj] [°C] max: 125.0
Clamping force [kn] max: 95.0
V[DRM]/ V[RRM (V)]: 3600.0V
I[TSM]: 37000.0A
I[TAVM]: 2180 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 111mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 3600.0
I[TAVM]/T[C] [A/°C](@180° el sin): 2180/85
I[TSM] [A](@10ms, Tvj max): 37000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 6850.0
V[T]/I[T] [V/kA](@Tvj max): 2.90/8.0
V[T0] [V](@T[vj max]) max: 1.08
r[T] [mΩ](@T[vj max]) max: 0.2
t[q] [µs]: 450.0
R[thJC] [K/kW](@180° el sin) max: 8.5
T[vj] [°C] max: 125.0
Clamping force [kn] max: 65.0
V[DRM]/ V[RRM (V)]: 2000.0V
I[TSM]: 40000.0A
I[TAVM]: 2400 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 111mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 2000.0
I[TAVM]/T[C] [A/°C](@180° el sin): 2400/85
I[TSM] [A](@10ms, Tvj max): 40000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 8000.0
V[T]/I[T] [V/kA](@Tvj max): 2.65/8.8
V[T0] [V](@T[vj max]) max: 1.05
r[T] [mΩ](@T[vj max]) max: 0.154
t[q] [µs]: 400.0
R[thJC] [K/kW](@180° el sin) max: 8.5
T[vj] [°C] max: 125.0
Clamping force [kn] max: 95.0
V[DRM]/ V[RRM (V)]: 2600.0V
I[TSM]: 40000.0A
I[TAVM]: 2400 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 111mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 2600.0
I[TAVM]/T[C] [A/°C](@180° el sin): 2400/85
I[TSM] [A](@10ms, Tvj max): 40000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 8000.0
V[T]/I[T] [V/kA](@Tvj max): 2.65/8.8
V[T0] [V](@T[vj max]) max: 1.05
r[T] [mΩ](@T[vj max]) max: 0.154
t[q] [µs]: 400.0
R[thJC] [K/kW](@180° el sin) max: 8.5
T[vj] [°C] max: 125.0
Clamping force [kn] max: 95.0
